Real Build: How a $125 Lean Cottage Plan Became a Lakefront Retreat in Bend, Oregon

July 20, 2026

The goal was straightforward: a lakefront retreat that looked modern, maximized the views, and didn’t require paying for a custom architectural design. The homeowner found a waterfront lot near Bend, Oregon and needed a plan that could match the site, the setting, and a reasonable build timeline. The 26’ x 32’ Lean Cottage plan fit all three.

The lean shed roofline — single-slope, asymmetrical, unmistakably contemporary — is the design element that defines this build. By orienting the high wall toward the water, the roofline places the tallest windows and the most interior volume exactly where the view is. Ceiling heights run from 8 feet at the low wall to 12’6” at the high wall, and the sloped wood-planked ceiling running the full length of the main floor turns a functional structural decision into an interior design feature.

The plan is the 26’ x 32’ Lean Cabin Architectural Plans — 800 square feet, two bedrooms, one bath, modern shed roof. The PDF plan set starts at $125.

26' x 32' Lean Cabin – floor plan, lean cabin architectural plans download

26x32 Lean cottage floor plan features a large open living + kitchen area, with tall vaulted ceilings. Total of 800SF footprint, perfect size for an ADU.

The Build at a Glance

Plan: 26’ x 32’ Lean Cabin Architectural Plans
Size: 800 square feet
Bedrooms: 2
Bathrooms: 1
Ceiling height: 8’ at low wall — 12’6” at high wall
Roof: Single-slope shed roof, 95 PSF load rating
Foundation: Concrete pier
Location: Bend, Oregon — lakefront
Plan cost: $125 (PDF) / $275 with CAD files
Estimated materials: From $50,000 (regional costs vary)

Open-plan kitchen and living area with wood-planked vaulted ceiling, teal sectional sofa, and dark kitchen island — 26x32 Lean Cottage real build, Bend Oregon — The main floor — 800 square feet of open living with a sloped wood-planked ceiling that runs the full length of the room.

Why the Lean Design Works for a Lakefront Site

The shed roofline is what makes this design work on a waterfront lot. Oriented with the high wall toward the lake, the lean design places the tallest windows and the most interior volume directly in front of the view. The main floor opens toward the water with floor-to-ceiling windows and a sliding glass door — turning the lake view into an active part of the interior experience rather than a feature visible from one window.

The vertical board and batten exterior is a natural fit for the lean aesthetic: clean lines, no decorative trim, a finish that reads architectural rather than rustic. In white against a lakefront backdrop and the high desert terrain of central Oregon, it sits into the landscape without competing with it.

At 800 square feet, the footprint is also the right scale for a lakefront retreat. Large enough to be genuinely comfortable for two couples or a small family; compact enough that every square foot is doing something. The plan uses its footprint efficiently — no wasted hallway, no room that needs expensive furniture to make it feel occupied.

Open-plan living room viewed from kitchen counter showing teal sectional, armchair, and large windows overlooking the lake — 26x32 Lean Cottage real build, Bend Oregon — The view from the kitchen — the open plan puts the lake front and center from every point on the main floor.

What the Plan Set Includes

The Bend, Oregon area presents moderate structural demands — central Oregon’s high desert climate brings cold winters, significant snowfall, and seismic zone considerations that require attention in plan selection. The 26’ x 32’ Lean Cottage plan carries a 95 PSF roof load rating, which covers central Oregon’s typical snow loads. For Bend-area builds, confirm your specific county’s structural requirements with the Deschutes County building department before submitting for permit.

The plan set is complete and permit-ready as delivered. It includes:

Site plan and general notes
Foundation plan (concrete pier or slab options)
Floor plan with full dimensions
All four exterior elevations
Cross-section and wall section details
Electrical and plumbing fixture layout
Roof framing plan
Full materials list

The PDF + CAD files option gives a local Bend-area engineer editable DWG drawings to review, modify, and stamp for Deschutes County without starting from scratch — the recommended format if your jurisdiction requires engineering sign-off.

Bedroom with blue and white striped bedding, triple window overlooking the lake, palm plant, and white dresser — 26x32 Lean Cottage real build, Bend Oregon — The main bedroom — a triple window frames the lake view and fills the room with natural light.

The Finished Interior

The homeowner kept the interior palette deliberately restrained — white walls, light wood vinyl plank flooring, planked wood ceiling — so the views do the decorating. The result is a space that feels clean and contemporary without being cold.

Interior features that stand out in this build:

Reclaimed wood-look planked ceiling across the full main floor
Dark navy kitchen island with quartz countertop and rattan bar stools
Stainless steel appliances including range and full-size refrigerator
Built-in coffee bar on shiplap wall with floating wood shelf and mug rail
Mini-split HVAC unit for year-round heating and cooling
Stacked front-load washer/dryer integrated into the main floor plan
Walk-in shower with black glass and steel frame
Herringbone accent wallpaper in the bathroom with vessel sink and reclaimed wood vanity

Coffee bar station with Keurig, mug shelf, and large windows overlooking the lake on shiplap wall — 26x32 Lean Cottage real build, Bend Oregon — The coffee bar — shiplap wall, floating shelf, lake views on both sides. A detail that makes the space feel deliberately designed.

Stacked washer and dryer beside walk-in shower with black glass frame — 26x32 Lean Cottage real build, Bend Oregon — Stacked laundry and walk-in shower side by side — two full-size appliances and a tiled wet room packed into a compact footprint without compromise.

Second bedroom with striped grey bedding, wicker wall decor, and side table lamp — 26x32 Lean Cottage real build, Bend Oregon — The second bedroom — a private room that holds a queen bed comfortably and still leaves space to move. The black barn door keeps the footprint tight without feeling cramped.

Bathroom with herringbone accent wallpaper, vessel sink on reclaimed wood vanity, and walk-in shower with black frame — 26x32 Lean Cottage real build, Bend Oregon — The bathroom — herringbone wallpaper, vessel sink, black hardware. High-end finish on a contractor budget.

What This Build Demonstrates About the Plan

The 26’ x 32’ Lean Cottage is the plan most often chosen by buyers who want a modern aesthetic without paying for a custom design. This Bend, Oregon lakefront build is a clear example of what that decision looks like completed: a permit-ready plan, a site-appropriate roofline, and finish choices that elevate the result without inflating the cost.

The lean roofline does the structural and aesthetic heavy lifting once the frame goes up. The sloped ceiling, the tall high-wall windows, the asymmetrical exterior profile — these are all consequences of the roofline, not additions to it. What the homeowner adds in finishes (the shiplap wall, the coffee bar, the herringbone bathroom) is layered on top of a foundation that already looks intentional.

For a Bend-area lakefront build, the lean design handles the site demands well. The 95 PSF roof load rating covers central Oregon’s typical snow load requirements. The pier foundation adapts cleanly to the varied soil and grade conditions common on lakefront lots in the Deschutes County area. And the tall water-facing wall can be oriented to face whatever direction gives the best view from your specific lot.

This build is one example of what’s possible with this plan. See all cabin plans available in Oregon — each permit-ready and designed for Oregon build requirements.

Deck and stairs with black metal railing overlooking the lake and green lawn — 26x32 Lean Cottage real build, Bend Oregon — The deck and stairs — the lake is a few steps from the front door. That proximity is what makes the site choice and the plan choice work together.

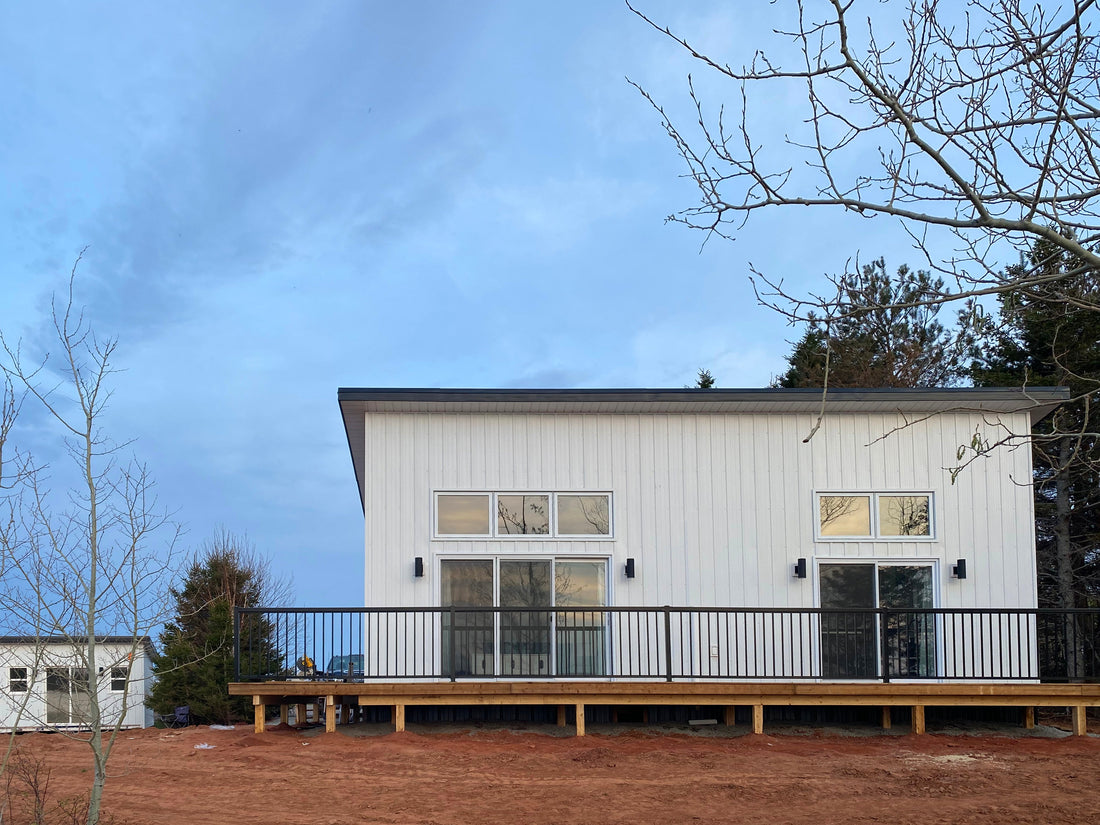

White lean cottage with board and batten siding and full-width deck facing the lake — 26x32 Lean Cottage real build, Bend Oregon — The exterior — the shed roofline, the board and batten, the deck. The plan delivers a finished structure that looks designed, not just built.

Get This Plan

The 26’ x 32’ Lean Cabin plan is available as an instant PDF download — no waiting, no expiry date, no reorder required. The complete plan set is permit-ready and formatted for full-size architectural printing. The PDF + CAD option adds editable DWG files for layout modifications or local engineer review.

At $125 for the PDF, the plan is the lowest-cost decision in any build — and the one that determines everything that follows.
