26' x 32' Lean Cabin Architectural Plans
26' x 32' Lean Cabin Architectural Plans
Couldn't load pickup availability

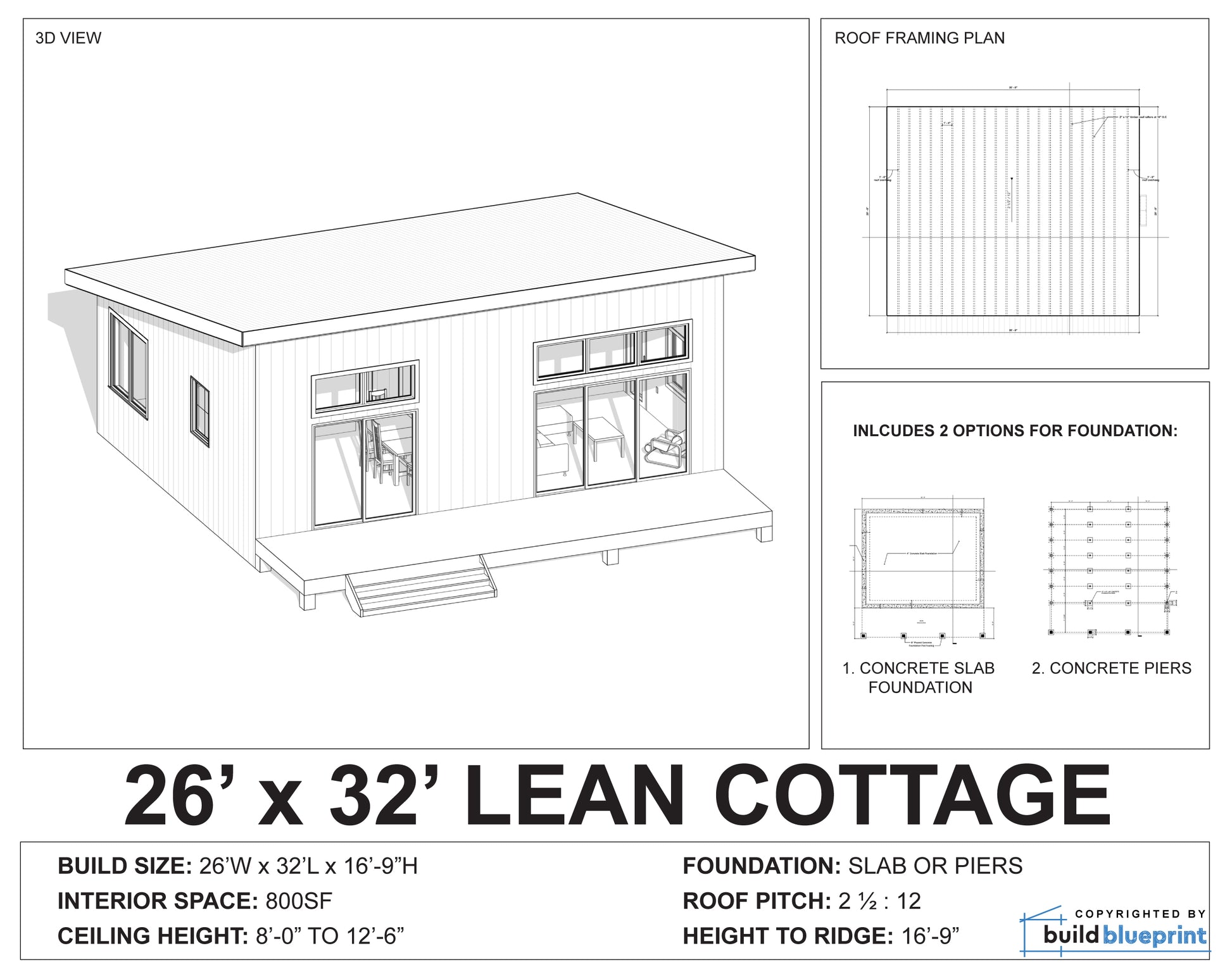

| 800 SF (32'W x 26'L x 16'-9"H) |
| 2 Bedrooms / 1 Bathroom |
| Concrete Piers or Concrete Slab |
| Roof Load: 95 PSF |
| Ceiling Height: 8'-0" to 12'-6" |
| Est. Materials Cost: $40,000* |

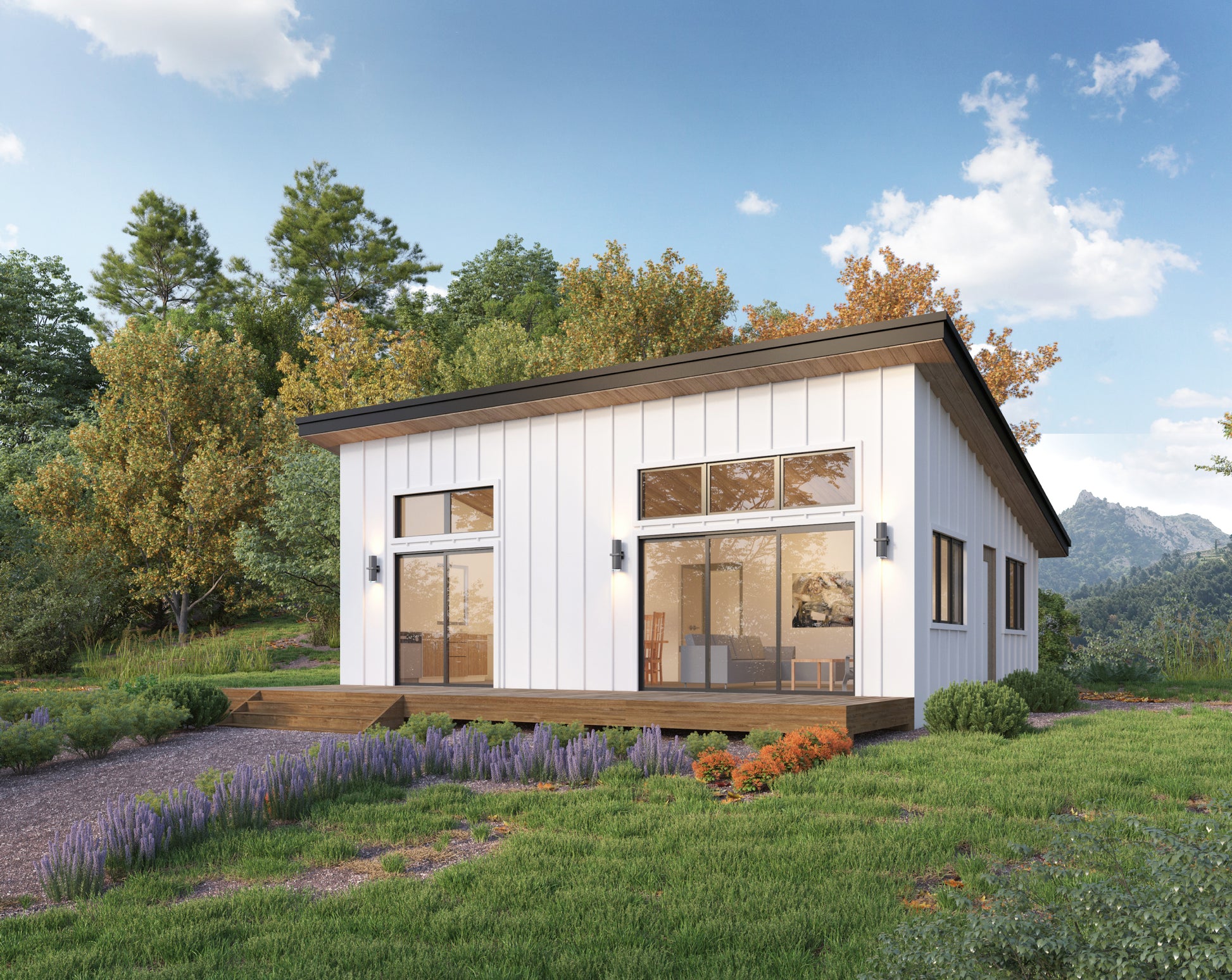

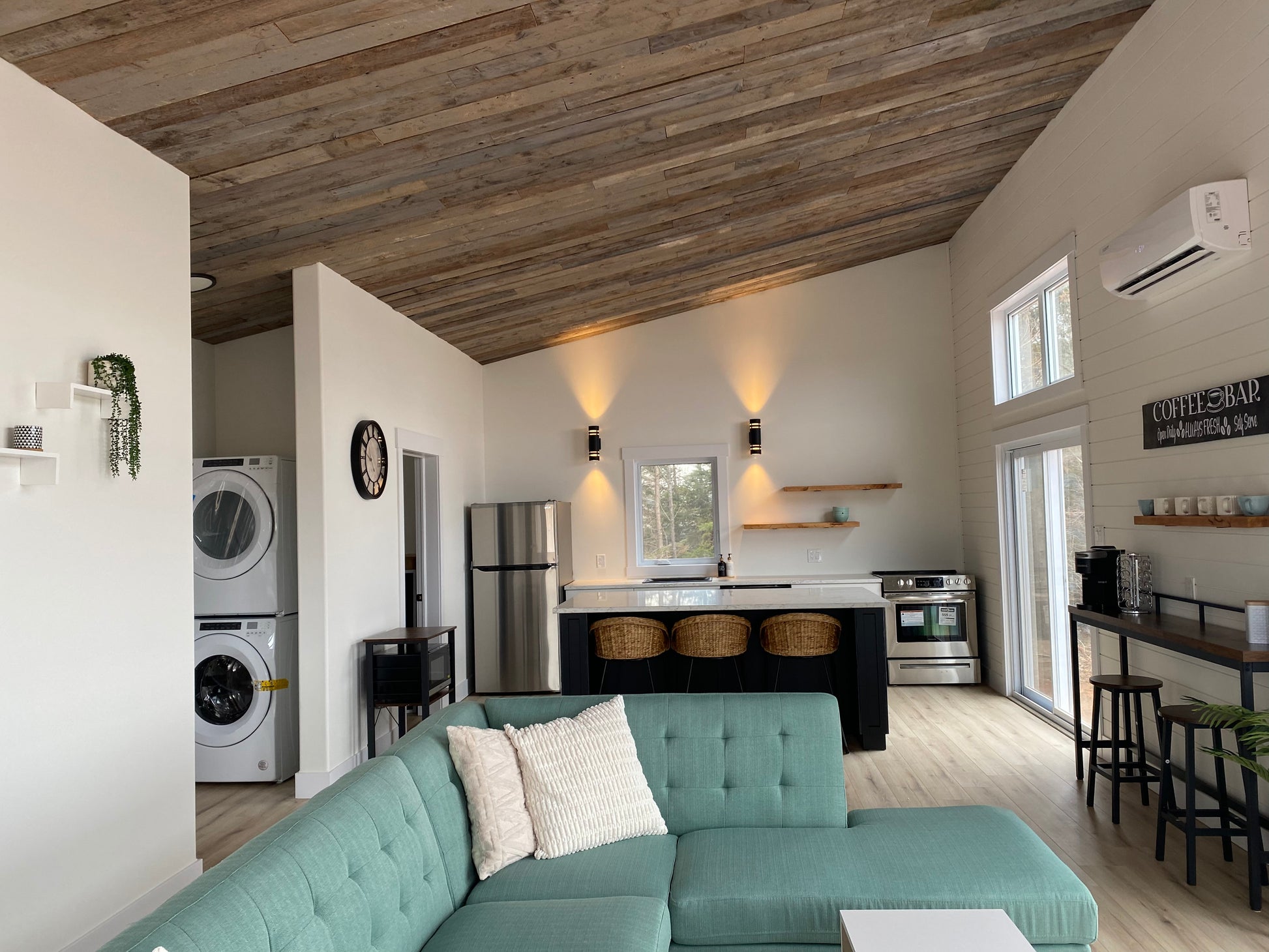

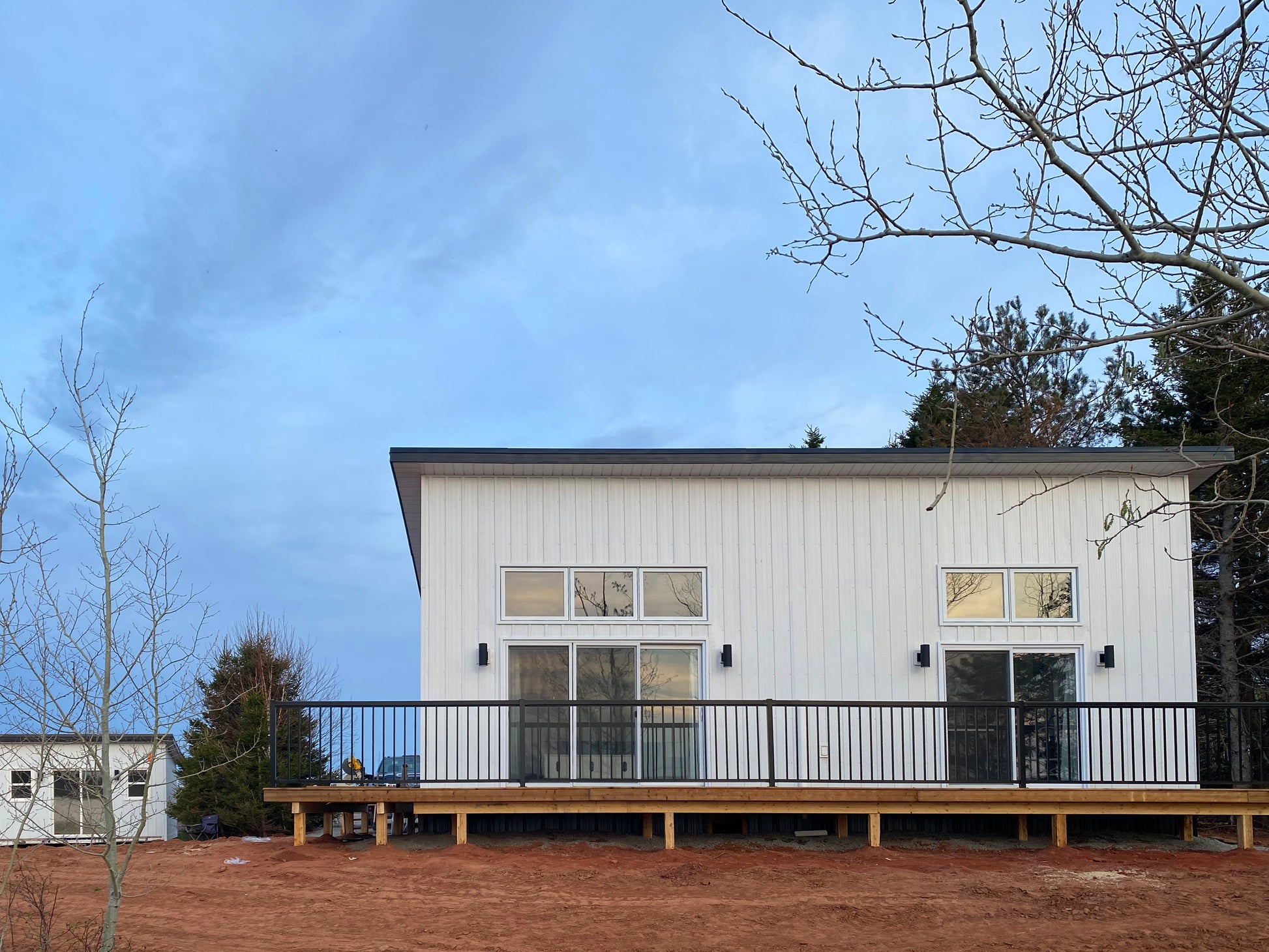

The perfect cabin for a backyard 2 bedroom guest house or office space. This is the complete architectural plan of a modern cottage, with easy-to-build lean style roof! These plans are ready for construction, and suitable to be built on any plot of land. This cottage is complete with optional front deck, high ceilings, large windows for natural light, and stacked washer/dryer. Both concrete slab and concrete pier foundation options are included in the drawings.

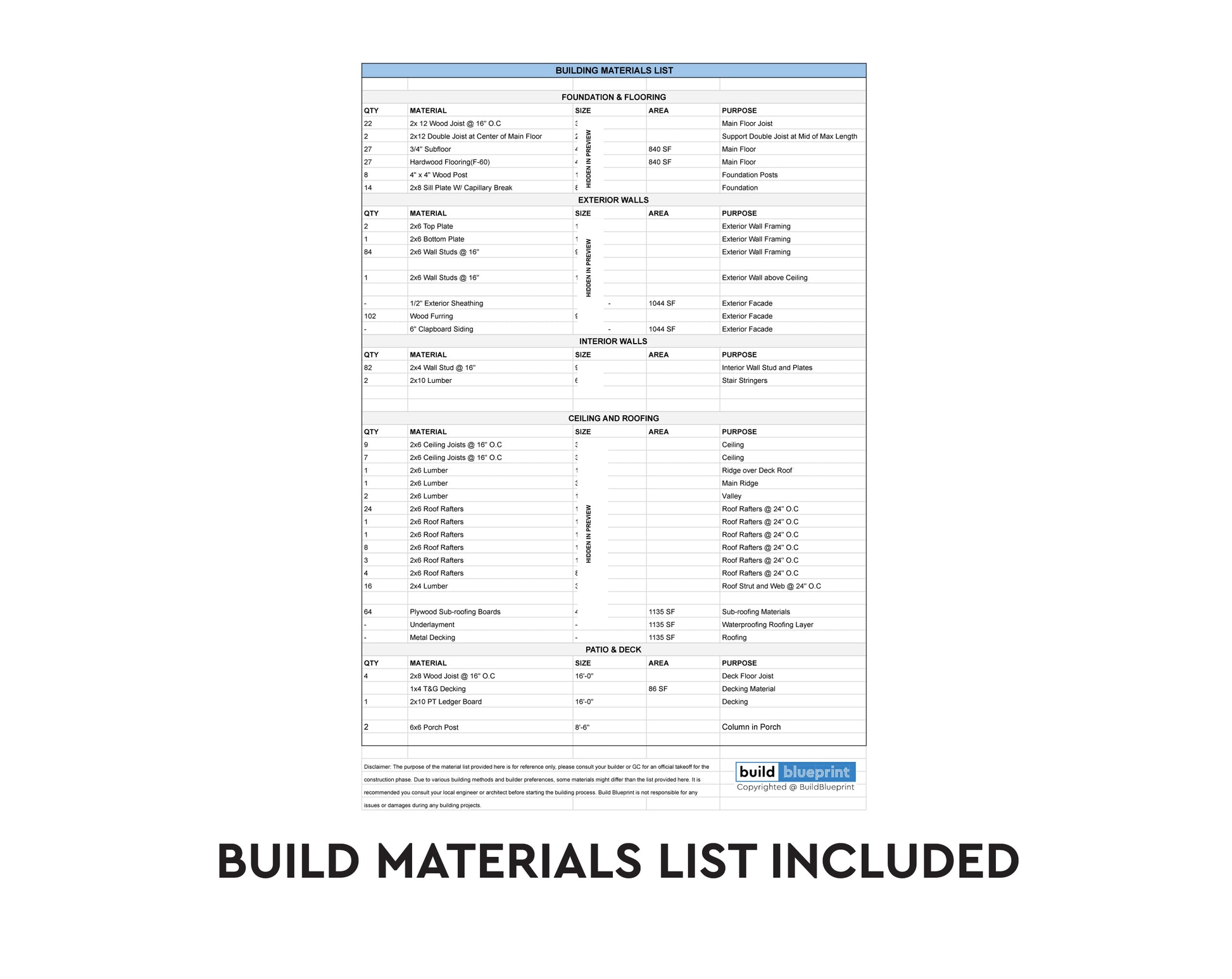

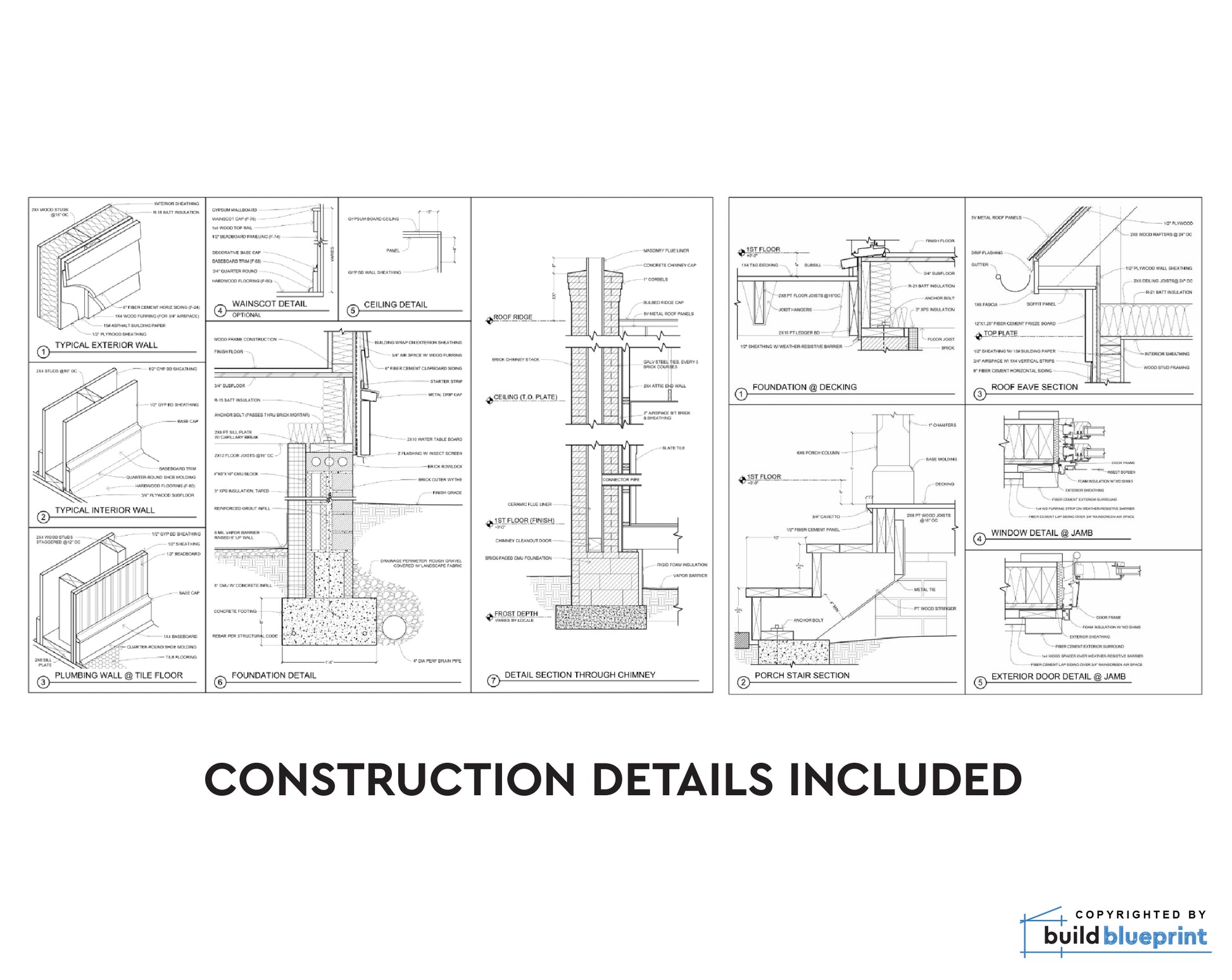

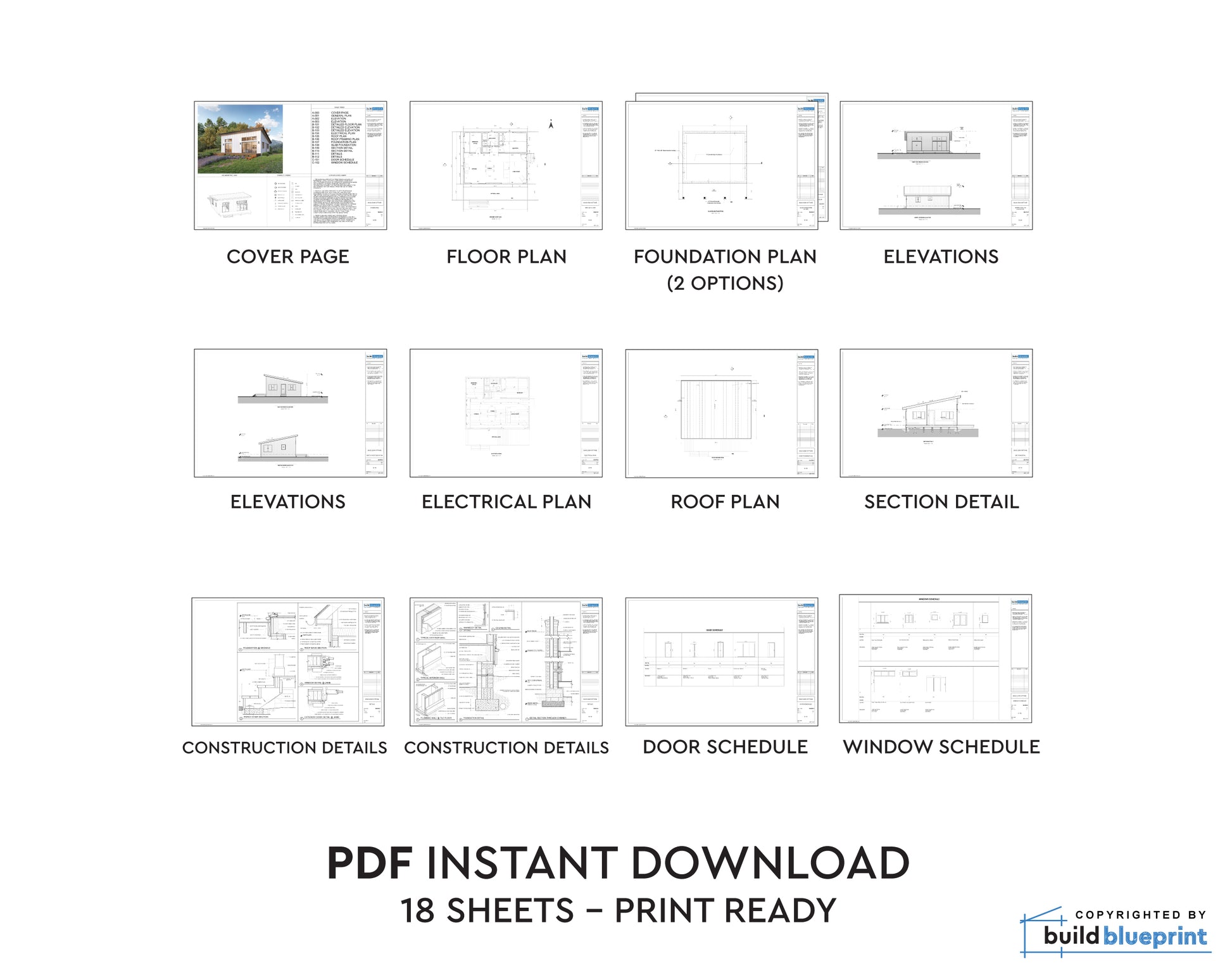

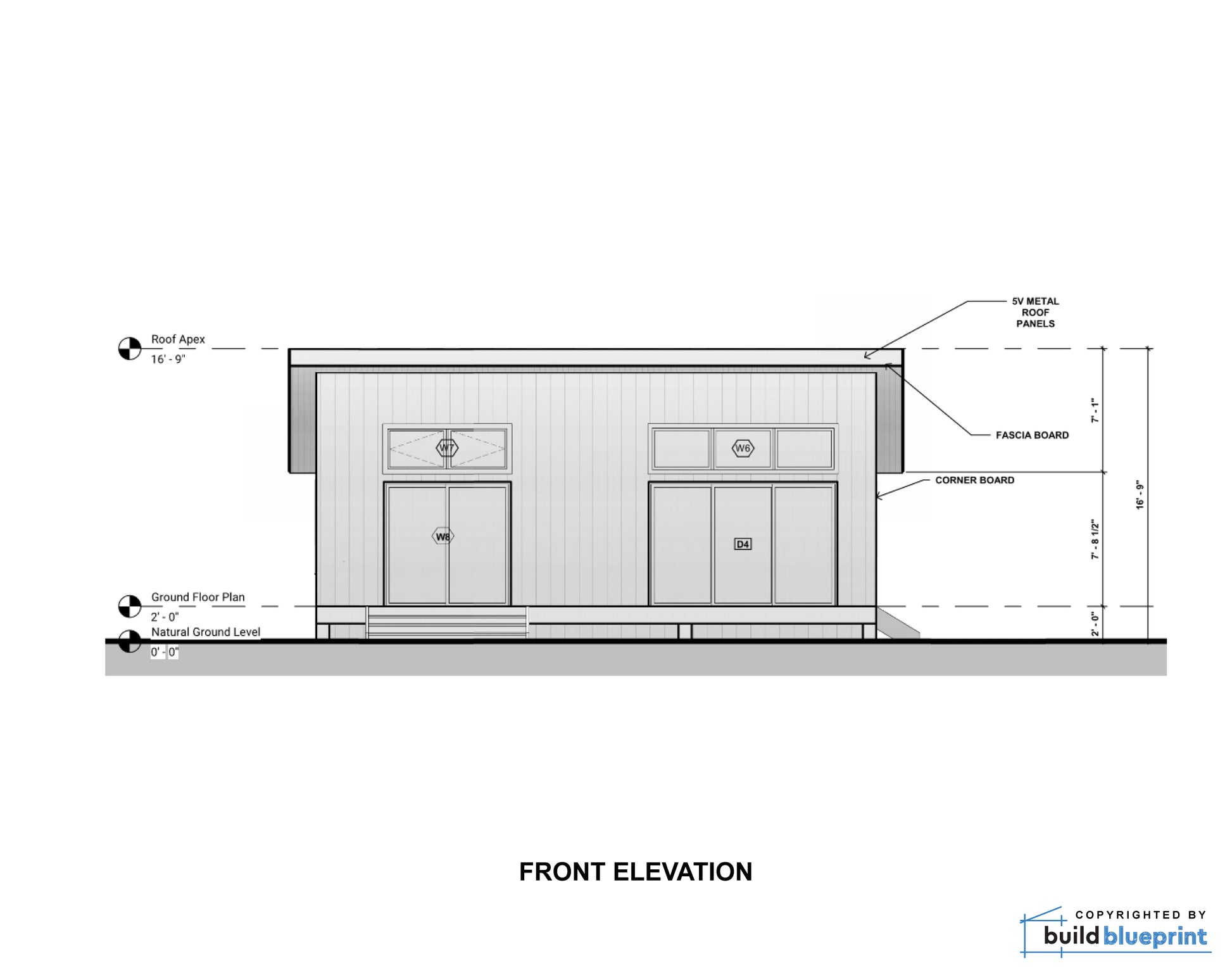

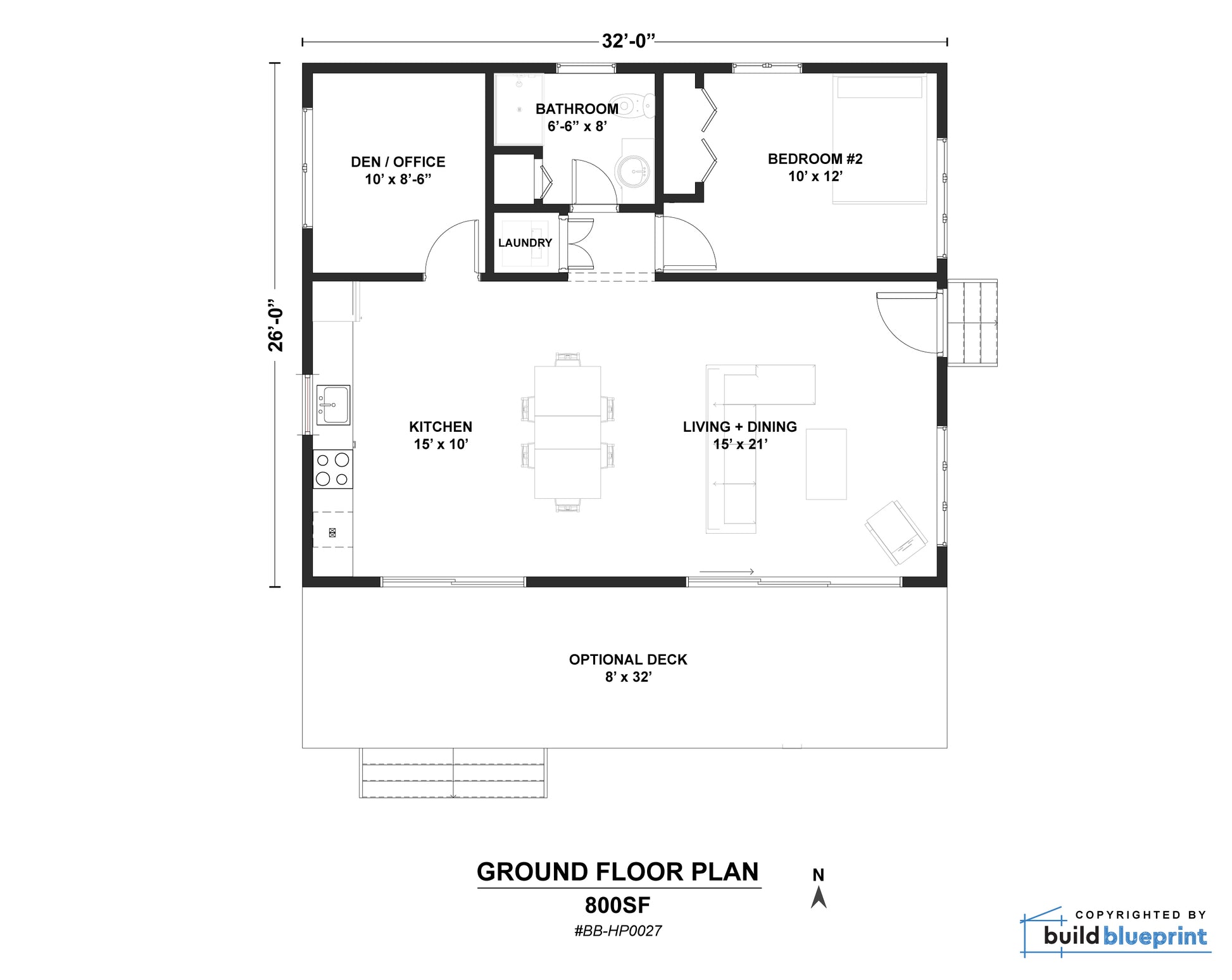

The plans include 18 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Roof Framing Plan, Electrical Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 800SF, with 8'-0" - 12'-6" high ceiling. Plans are designed per standard U.S. and Canada building codes. CAD files are available for purchase, please message me for more information.
Plan is available in both Imperial and Metric units.
Plans are copyrighted by Build Blueprint, and intended for personal builds only.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set
All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
