16' x 24' Aspen Cabin Architectural Plans
16' x 24' Aspen Cabin Architectural Plans
Couldn't load pickup availability
16' x 24' Aspen Cabin Architectural Plans
The Aspen Cabin is a one-bedroom, one-bathroom cabin plan at 480 square feet — compact, efficient, and designed with the kind of vertical drama that makes mountain architecture compelling. At nearly 27 feet tall, the roofline gives this small footprint a presence that reads strongly on forested and hillside lots. Named after the tree that defines high-altitude landscapes across the American West, the Aspen is built for mountain settings.
The concrete footing foundation and 95 PSF roof load make this plan well suited for higher-elevation builds where snow accumulation is a real engineering consideration. For buyers who want a manageable solo build or a low-cost contractor project, this is one of the most achievable designs in our catalog — small footprint, straightforward framing, and a materials cost that keeps the total project budget in check.
Plan Specifications

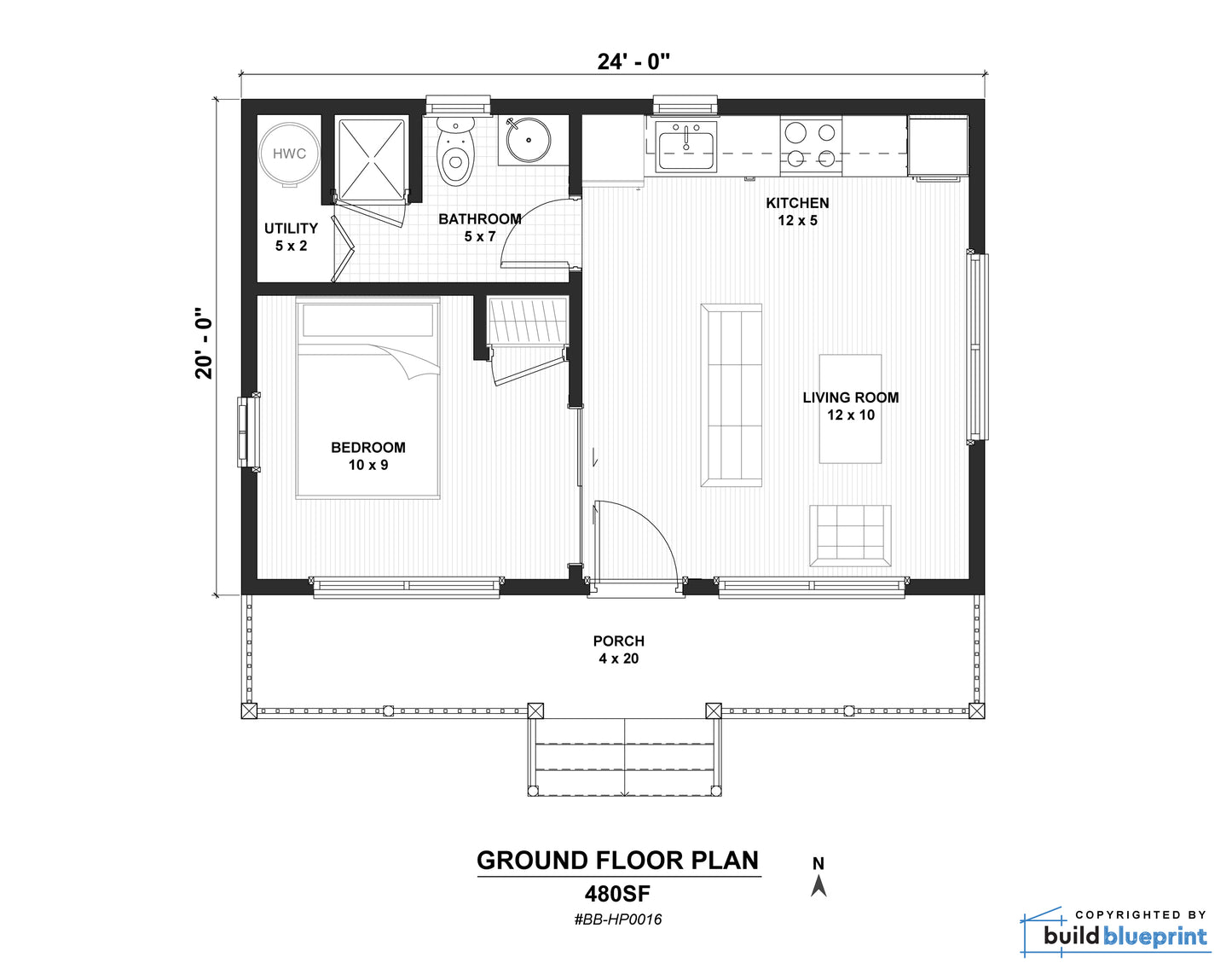

- Footprint: 24' W x 16' L
- Height: 26'-11"
- Floor Area: 480 SF
- Bedrooms: 1
- Bathrooms: 1
- Foundation: Concrete footing
- Roof Load: 95 PSF
- Ceiling Height: 8'-6"
- Est. Materials Cost: From $25,000
What's Included

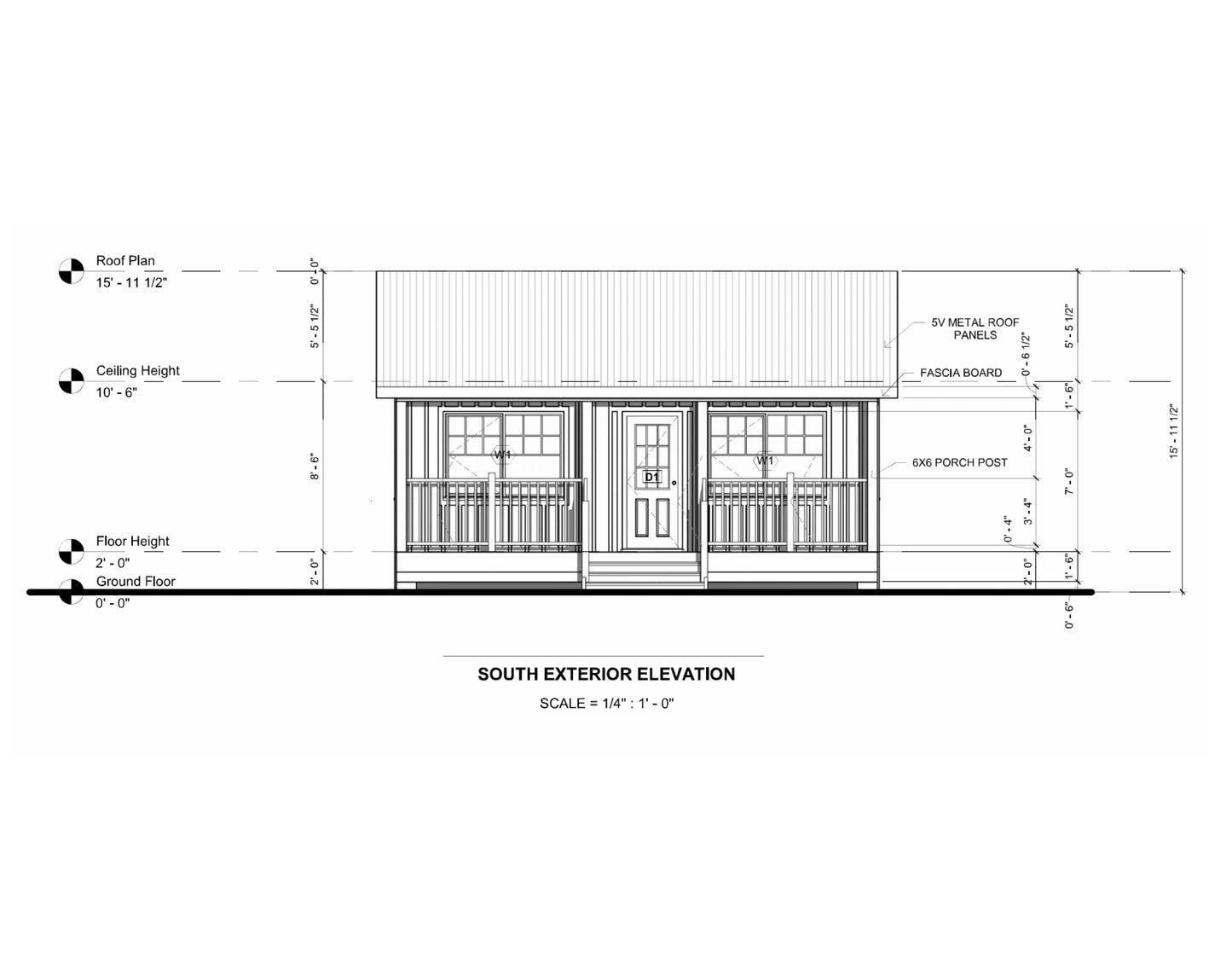

Complete permit-ready plan set including: floor plan, foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Suitable for building permit submission in most US jurisdictions.
Available Plan Options
- Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
- PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.
Who This Plan Is For
Ideal for solo cabin builders, hunters, anglers, and anyone who wants a compact mountain retreat at a price that doesn't require a construction loan. At an estimated materials cost starting at $25,000, this is one of the lowest entry points in our catalog for a permit-ready, professionally designed cabin. The tall roofline and mountain proportions give it far more visual presence than the square footage suggests.
Instant Download
Your complete plan set downloads immediately after purchase.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set

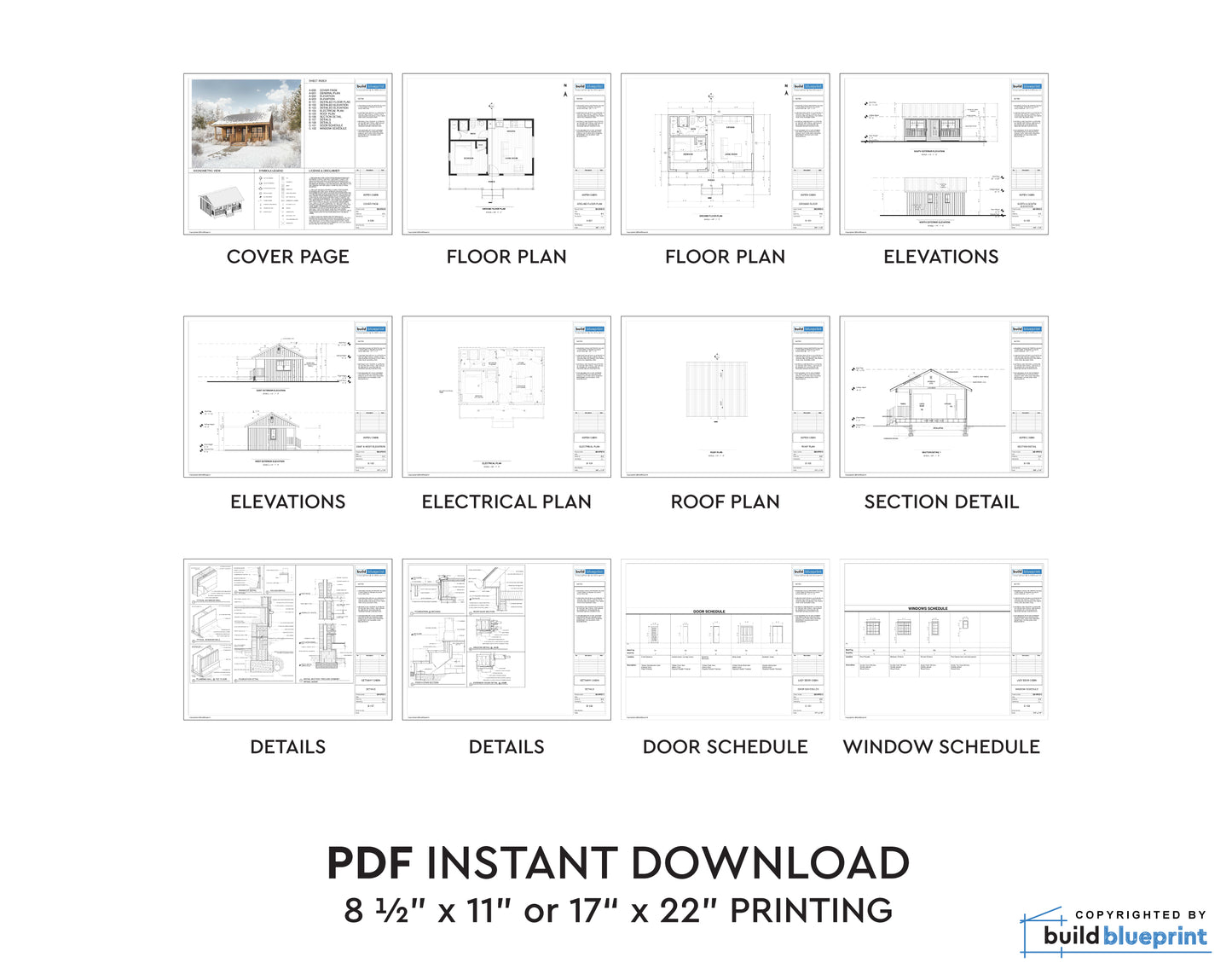

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
