20' x 24' Budget Cabin Architectural Plans

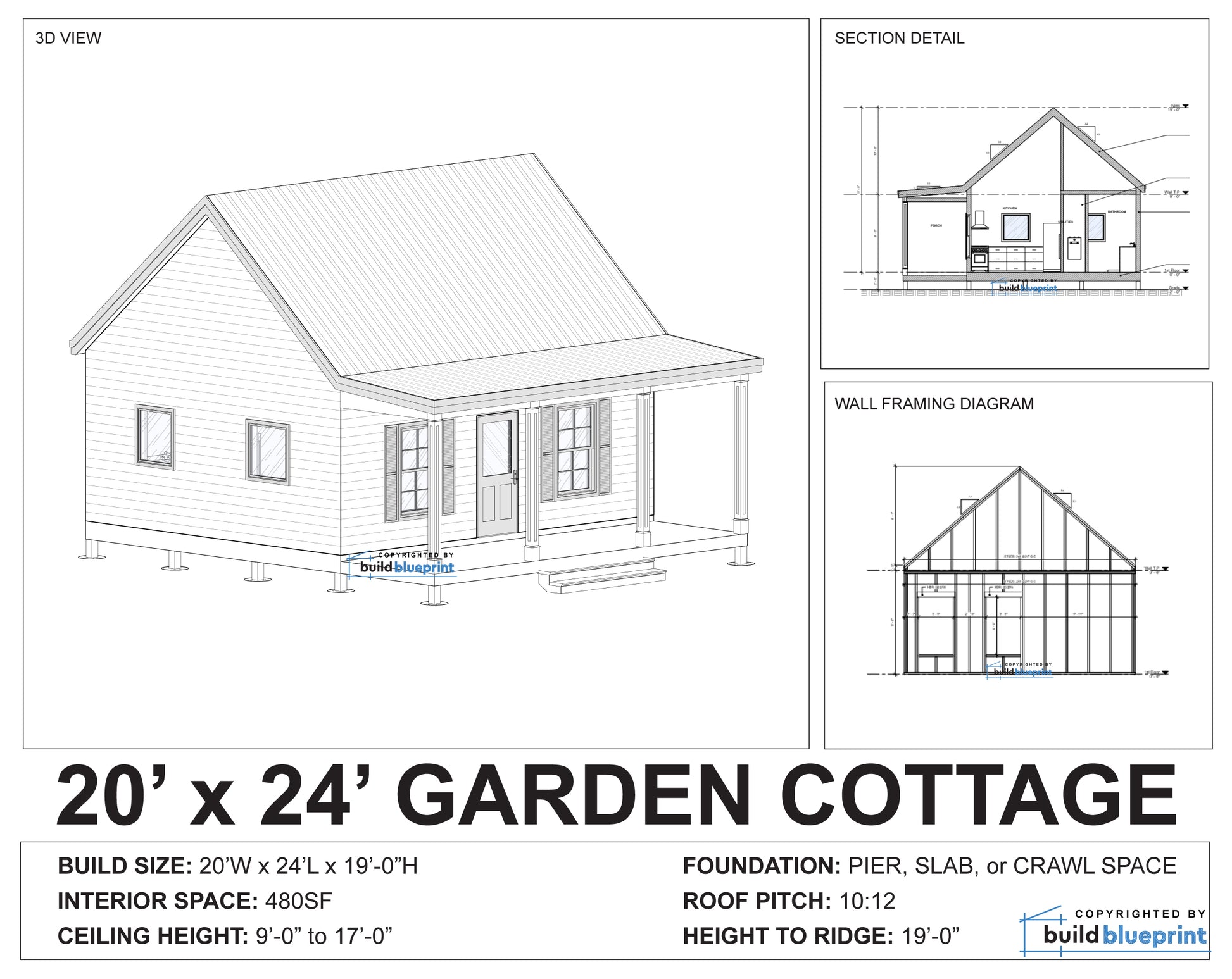

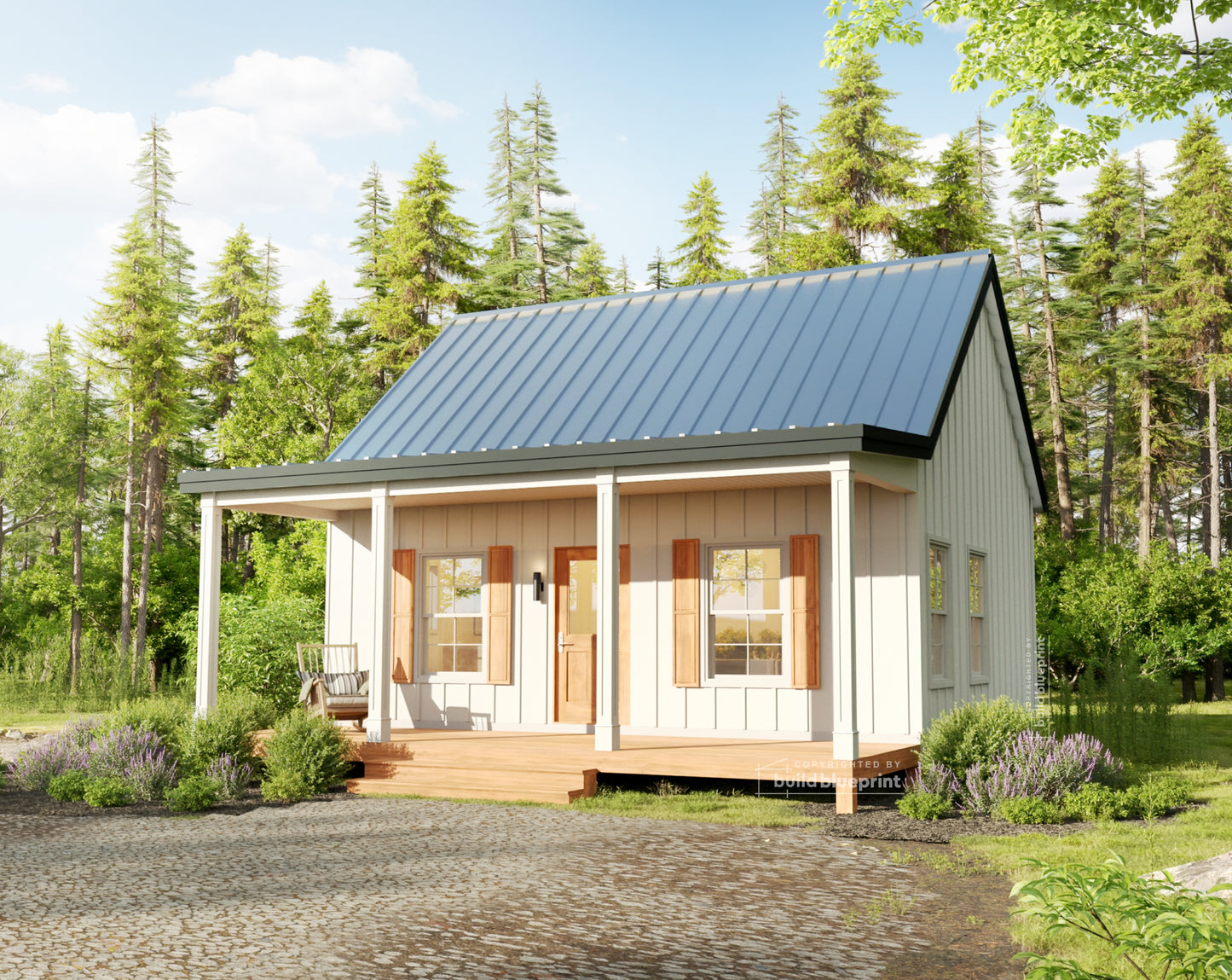

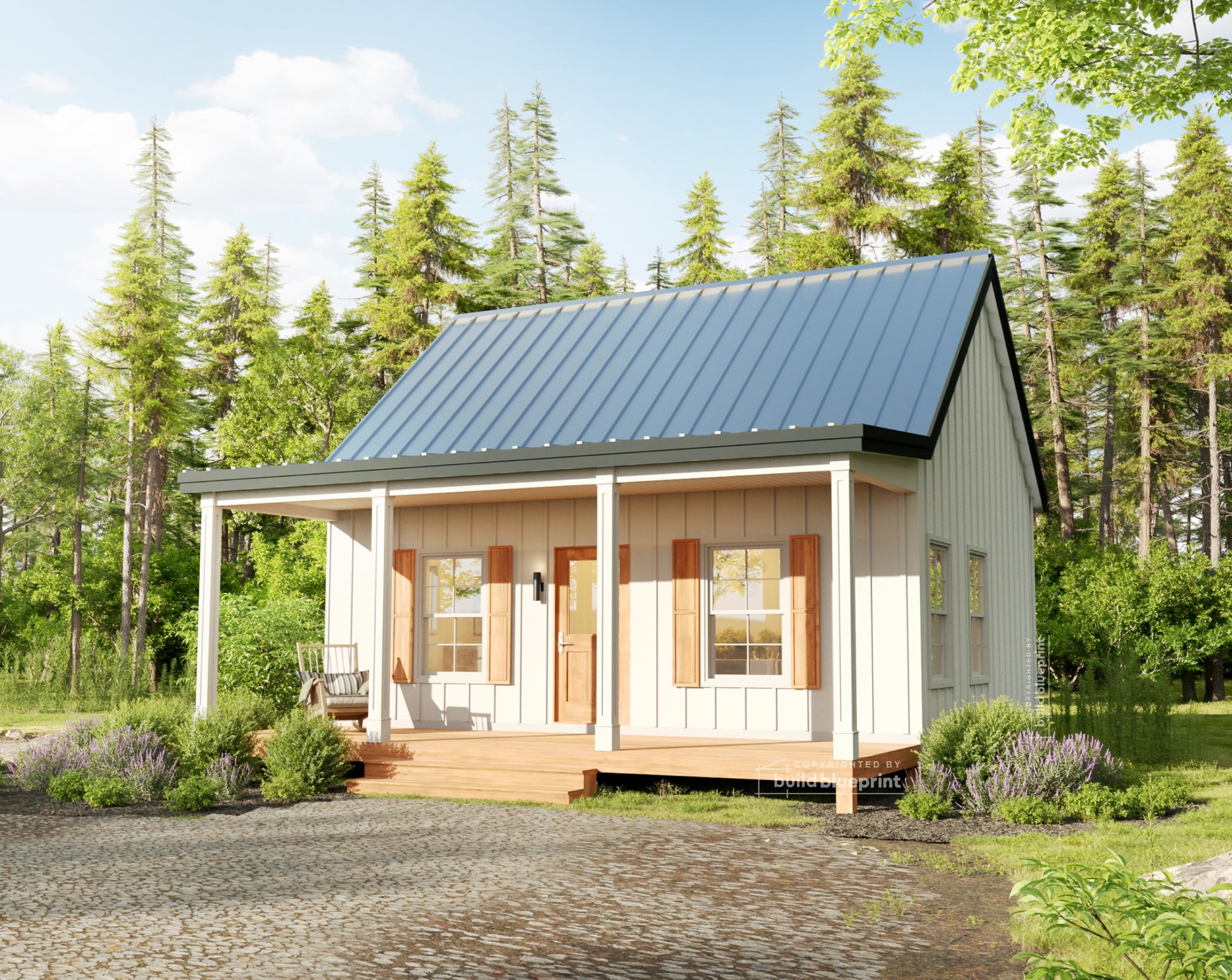

The 20' x 24' Budget Cabin is a one-bedroom, one-bathroom cabin plan at 480 square feet — designed from the ground up to deliver a complete, permit-ready cabin at the lowest possible materials cost. With ceiling heights ranging from 9 to 17 feet and a roofline that peaks at 19 feet, this cabin punches well above its price point in terms of interior volume and visual impact.

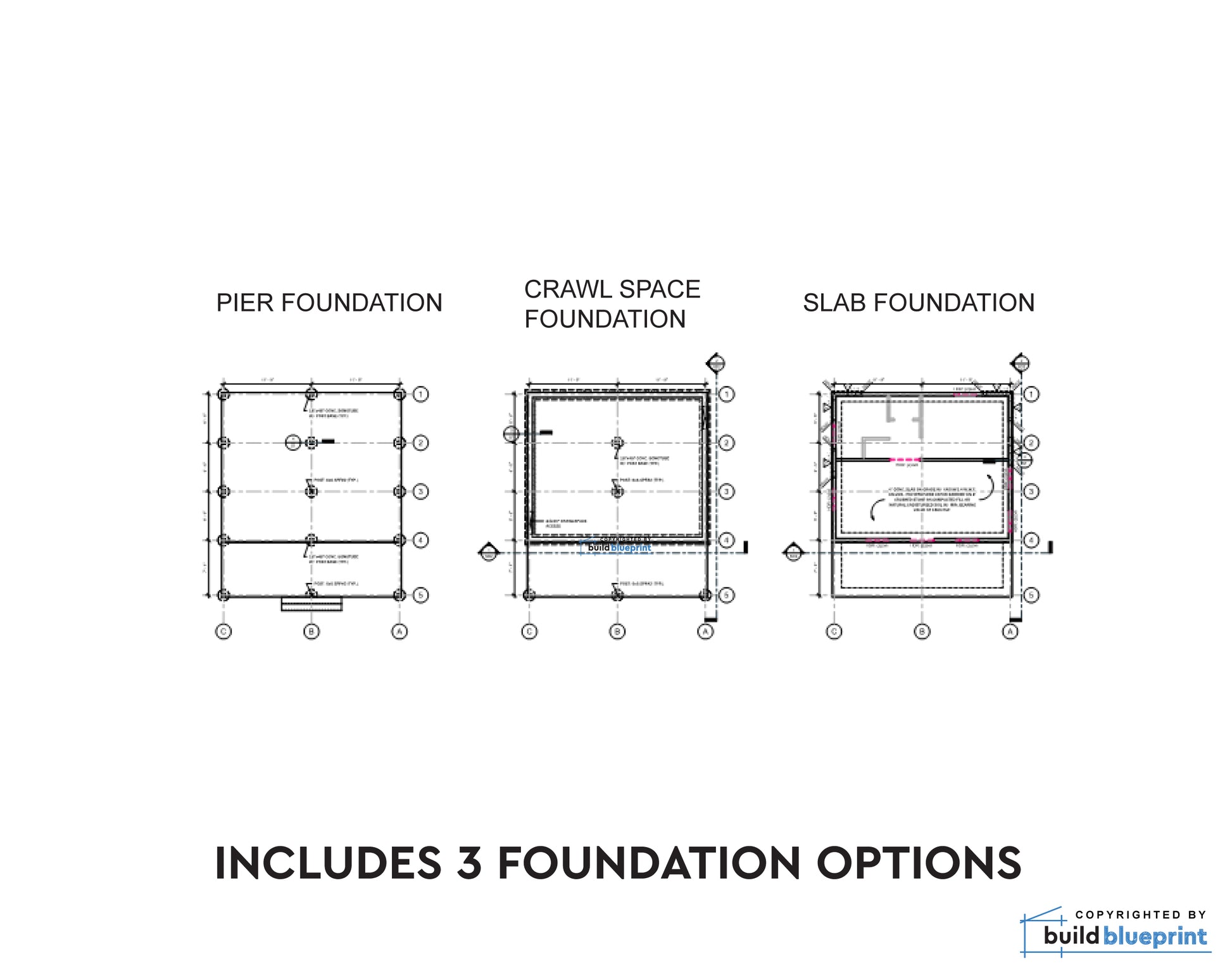

Three foundation options — concrete slab, pier/post, or crawlspace — give you maximum flexibility to match the build to your site without adding cost. This is the right plan for buyers who want a real cabin with real drawings on a real budget. No compromises on structural engineering or drawing quality — just a smart, efficient design that keeps materials costs in check.
Plan Specifications

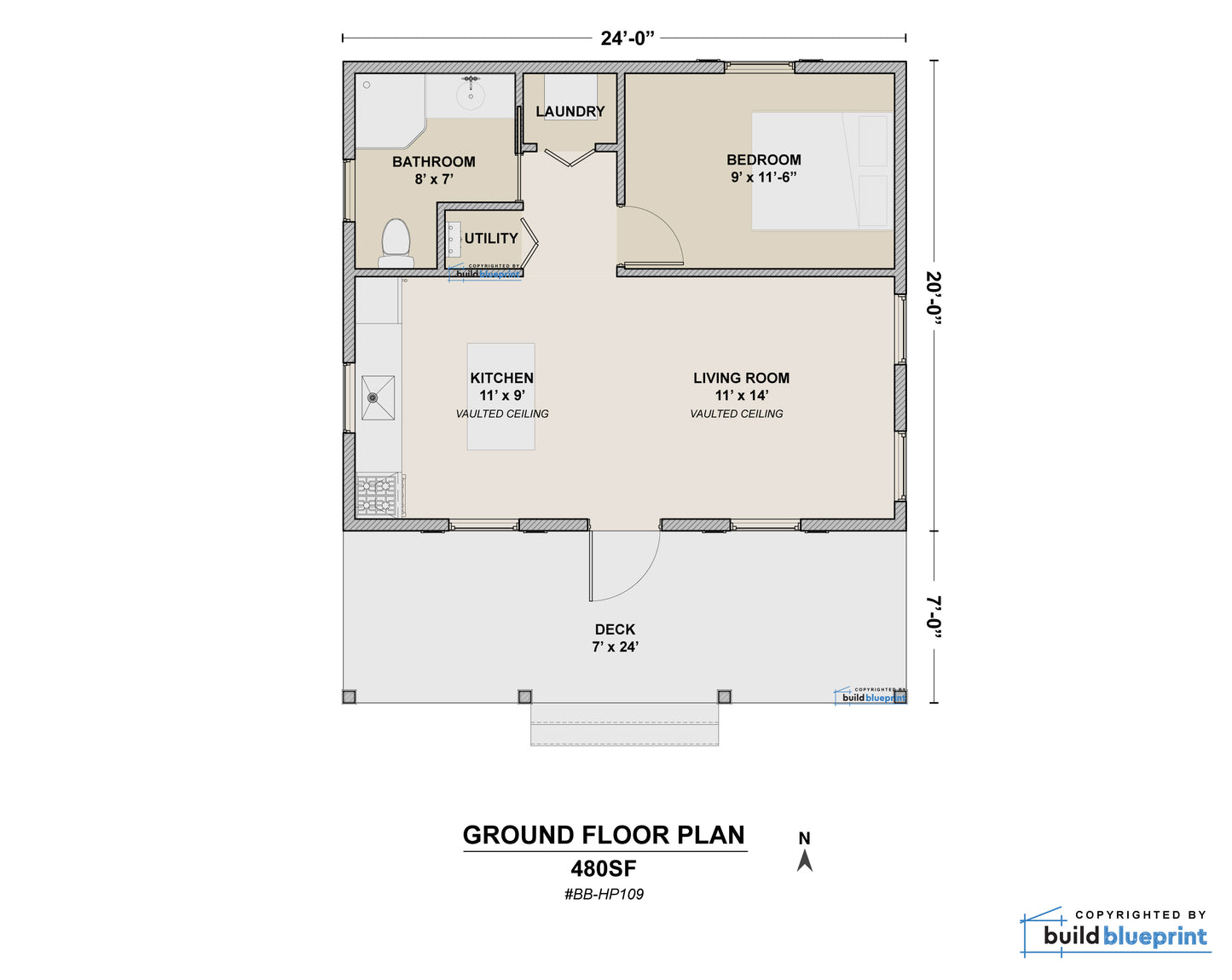

- Footprint: 24' W x 20' L
- Height: 19'-0"
- Floor Area: 480 SF
- Bedrooms: 1
- Bathrooms: 1
- Foundation: Concrete slab, pier/post, or crawlspace
- Ceiling Height: 9'-0" to 17'-0"
- Est. Materials Cost: From $15,000
What's Included

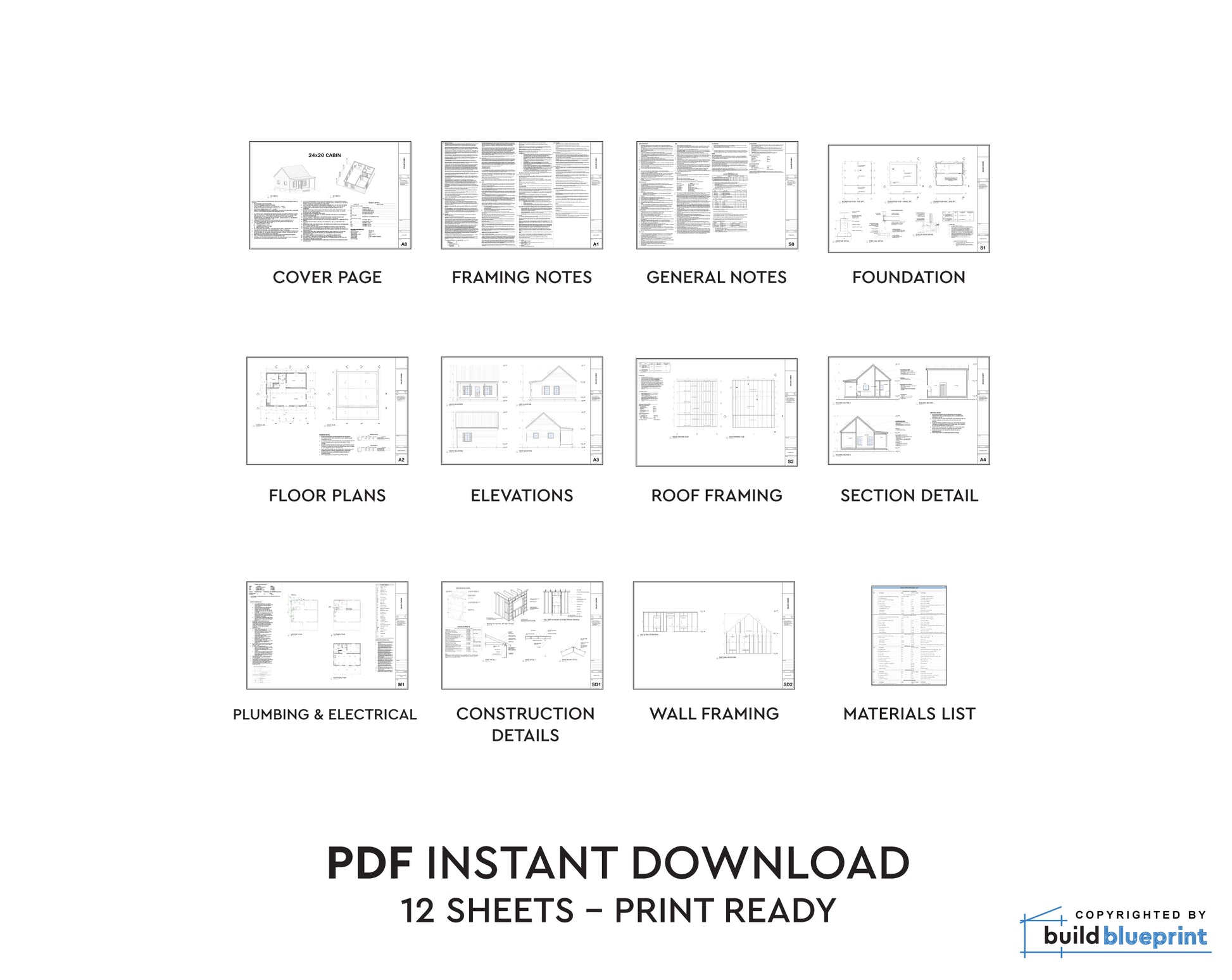

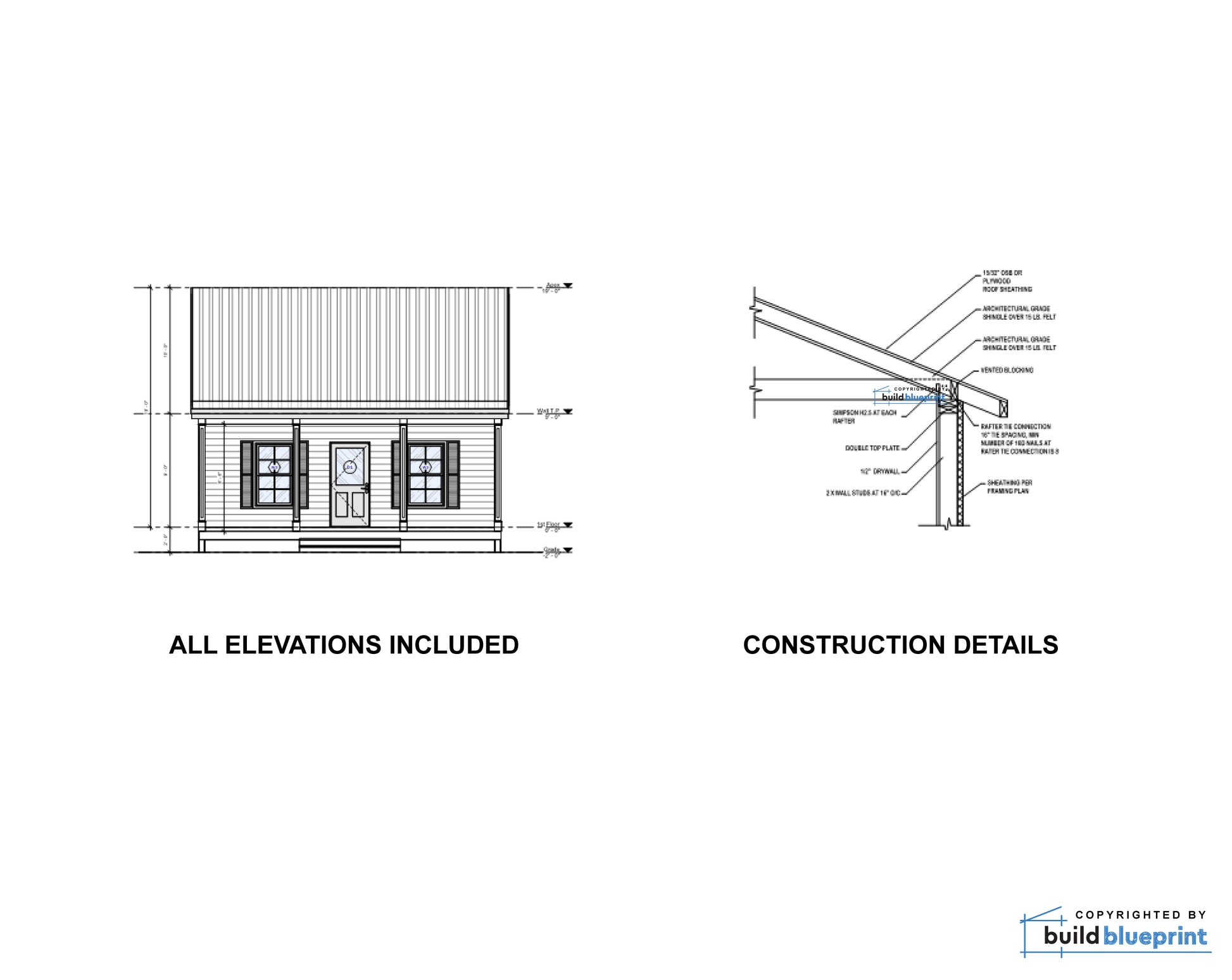

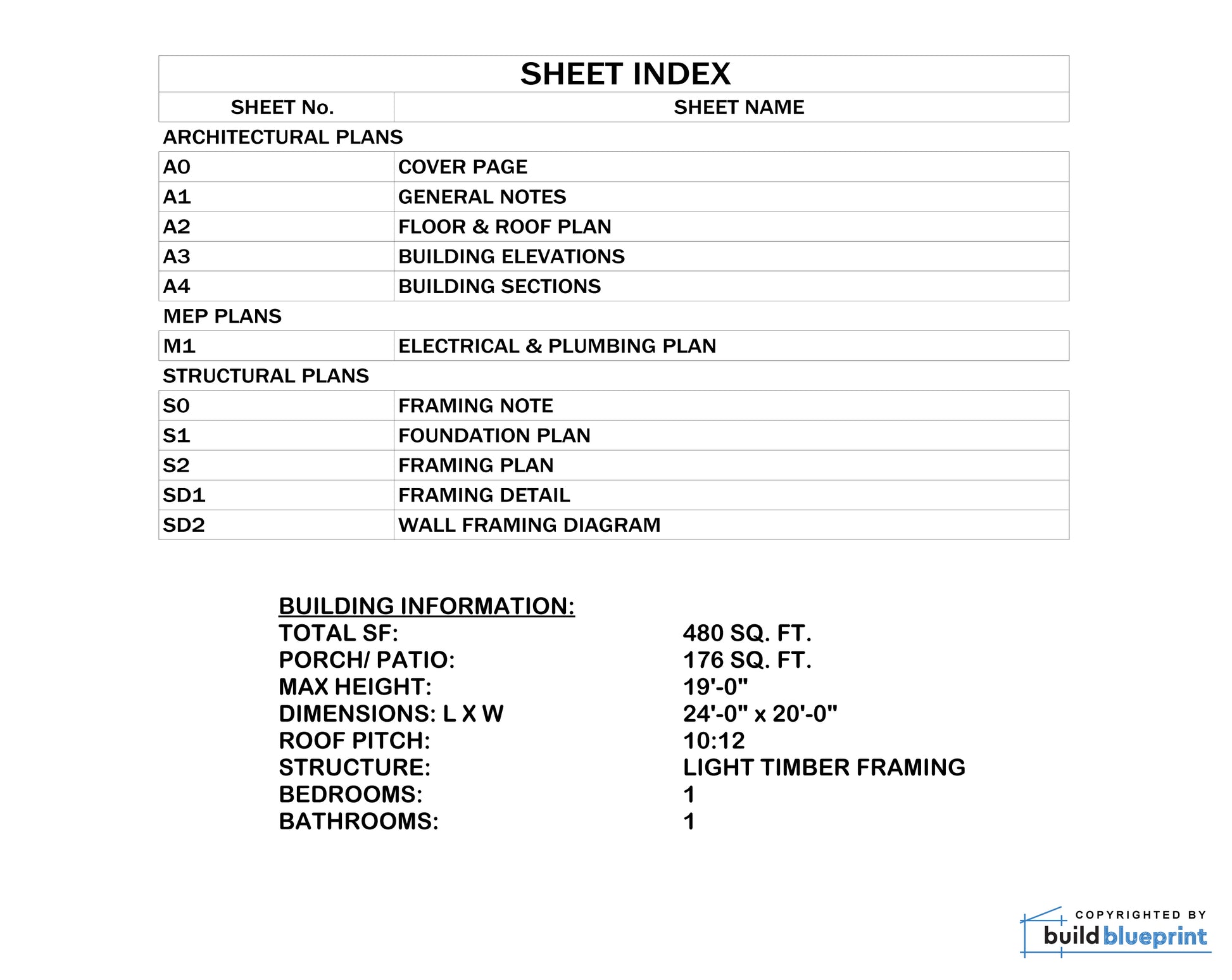

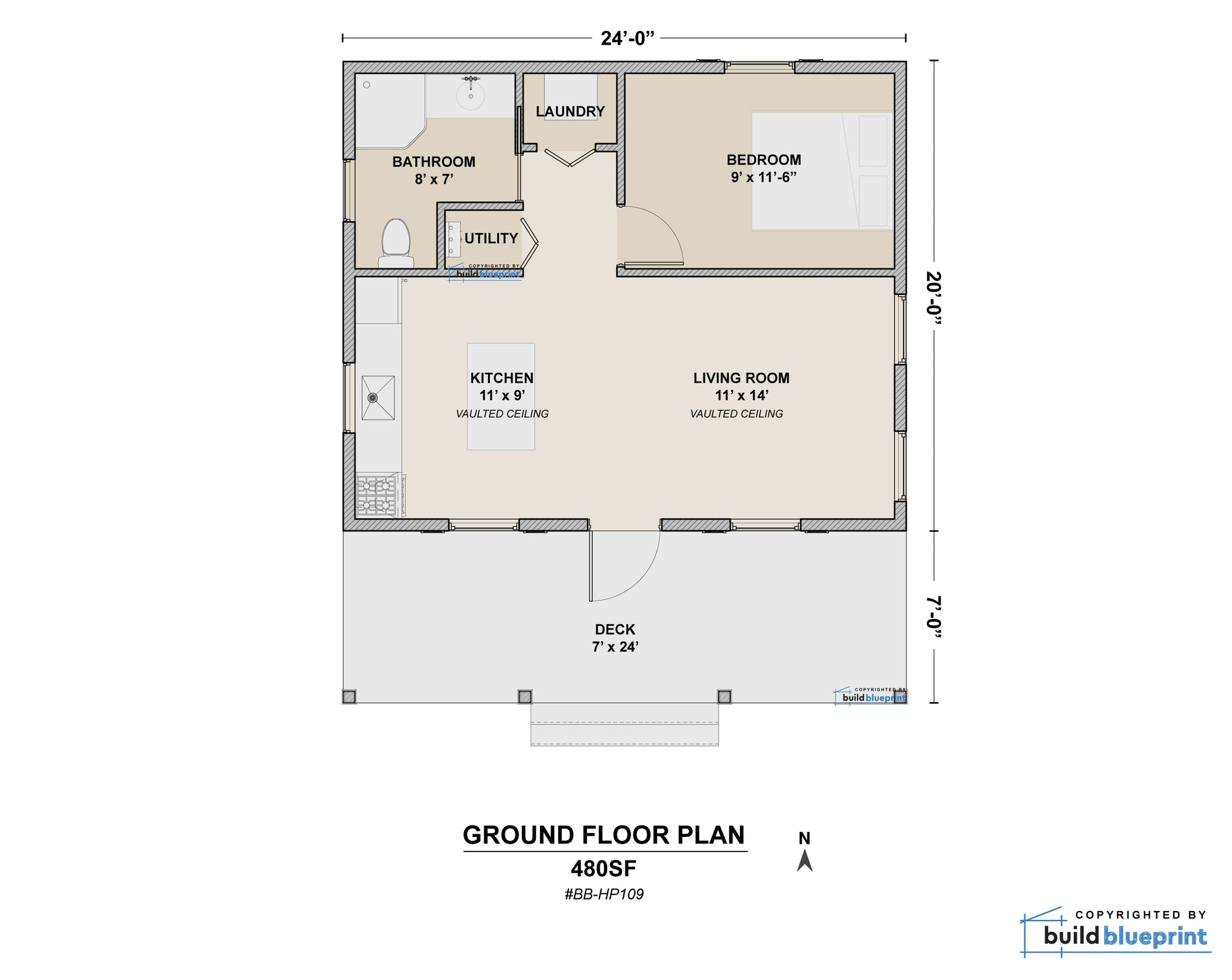

Complete permit-ready plan set including: floor plan, foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Ready for building permit submission in most US jurisdictions.
Available Plan Options
- Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
- PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.
Who This Plan Is For
Built for buyers who want a professionally designed, permit-ready cabin without the price tag that usually comes with it. Estimated materials starting at $15,000 makes this one of the most accessible builds in our entire catalog — achievable for owner-builders, hunters, off-grid homesteaders, and anyone who wants a functional cabin on a tight budget. The 17-foot ceiling height in the main living space creates a dramatic interior that feels far more expensive than the materials cost suggests.
Instant Download
Your complete plan set downloads immediately after purchase. No waiting, no shipping.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set

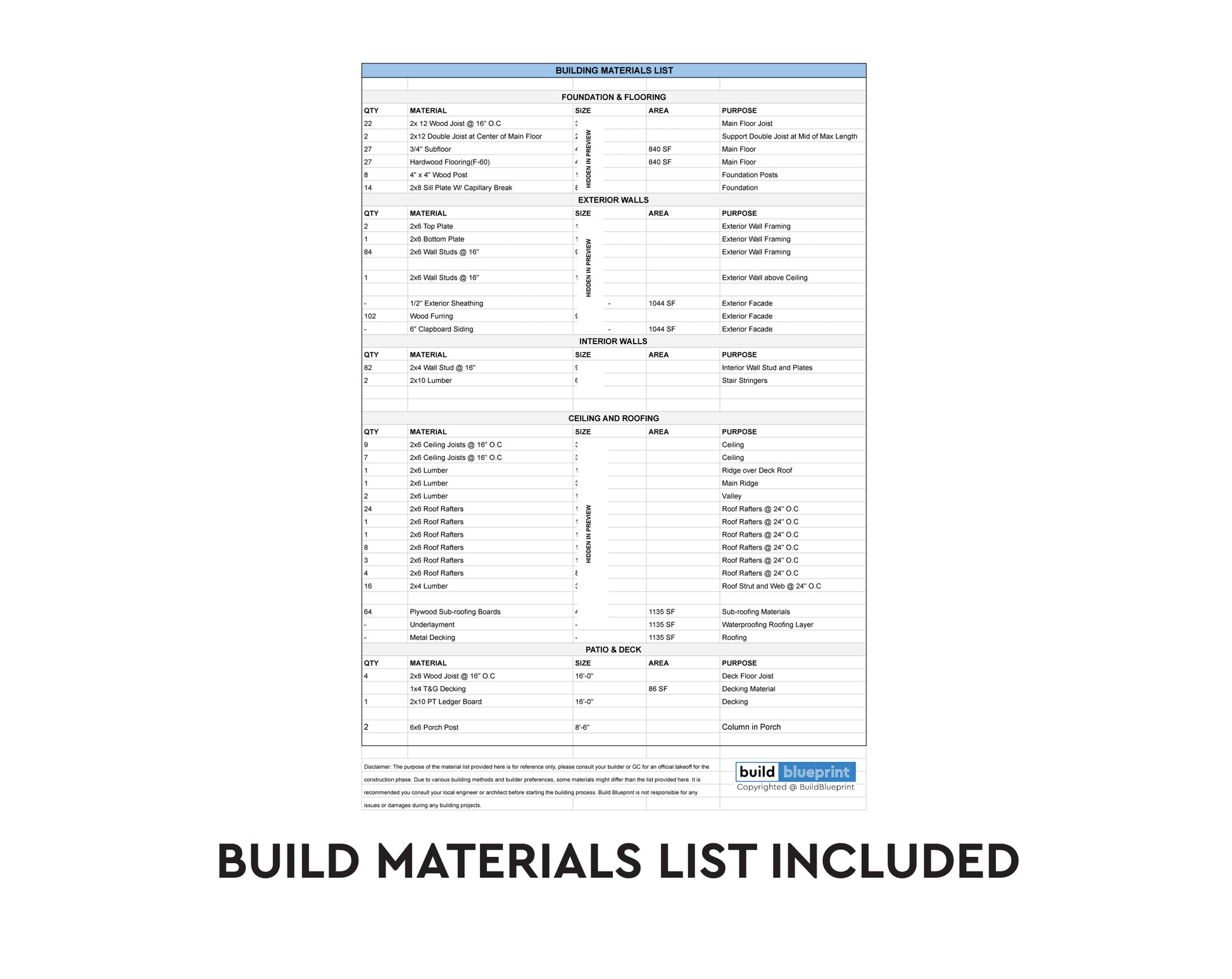

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
