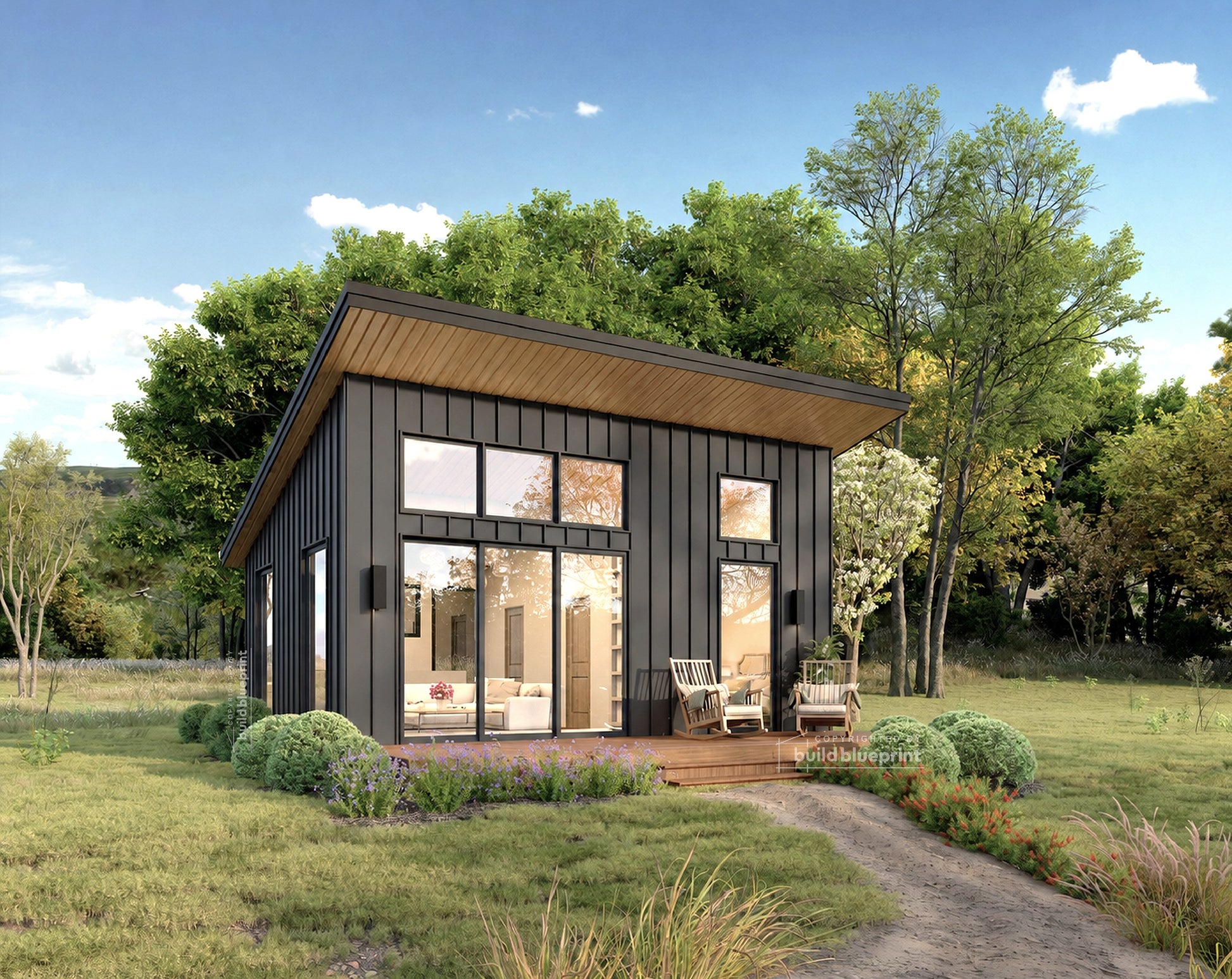

• A modern single-story cabin with dark charcoal vertical siding, large wood-look overhangs, and expansive glass windows, shown on a landscaped lawn with trees and a blue sky.

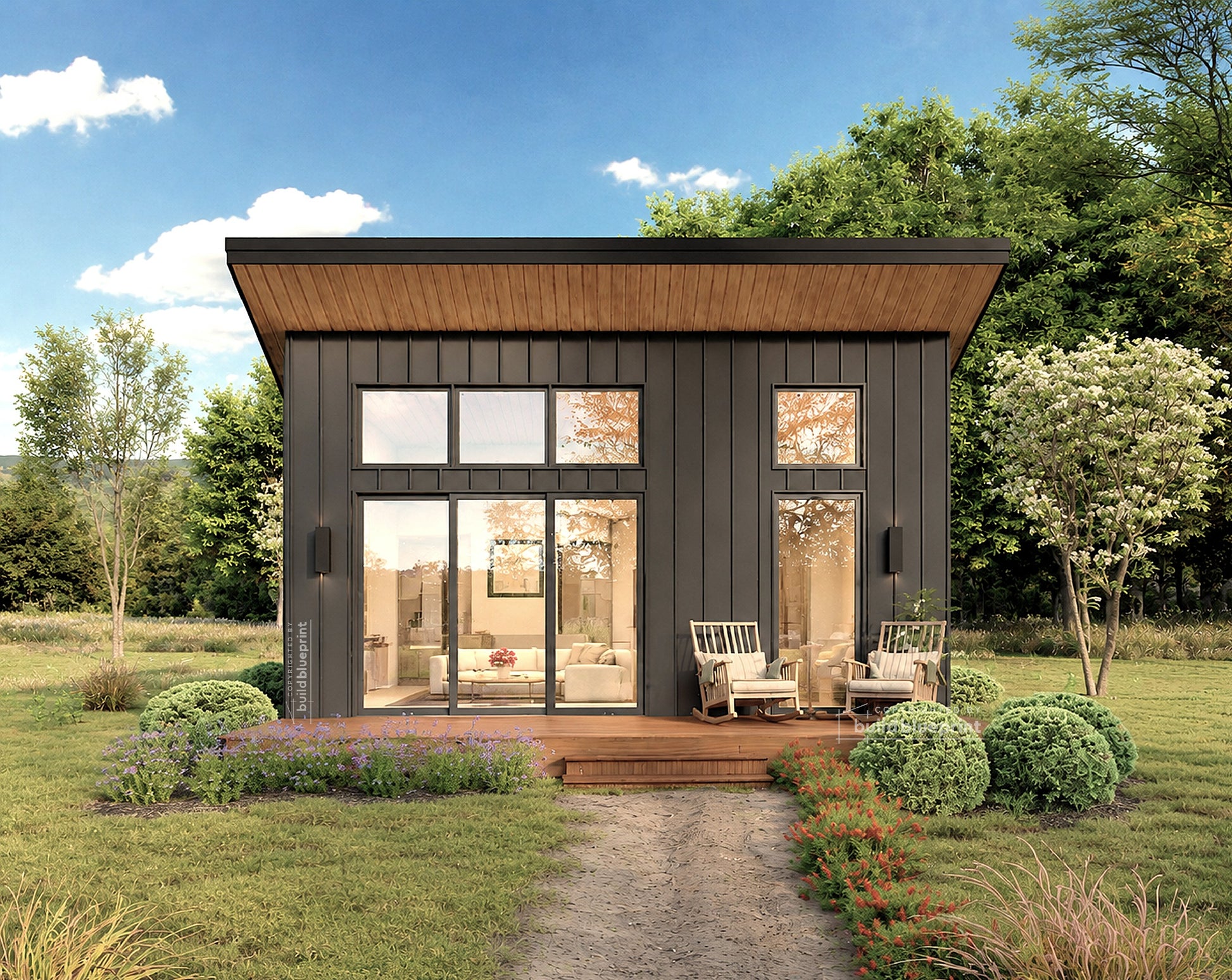

  • A modern single-story cabin with dark charcoal gray siding, large floor-to-ceiling glass windows, and a wood-look roof over a wooden deck, shown in a landscaped yard with trees and a blue sky.

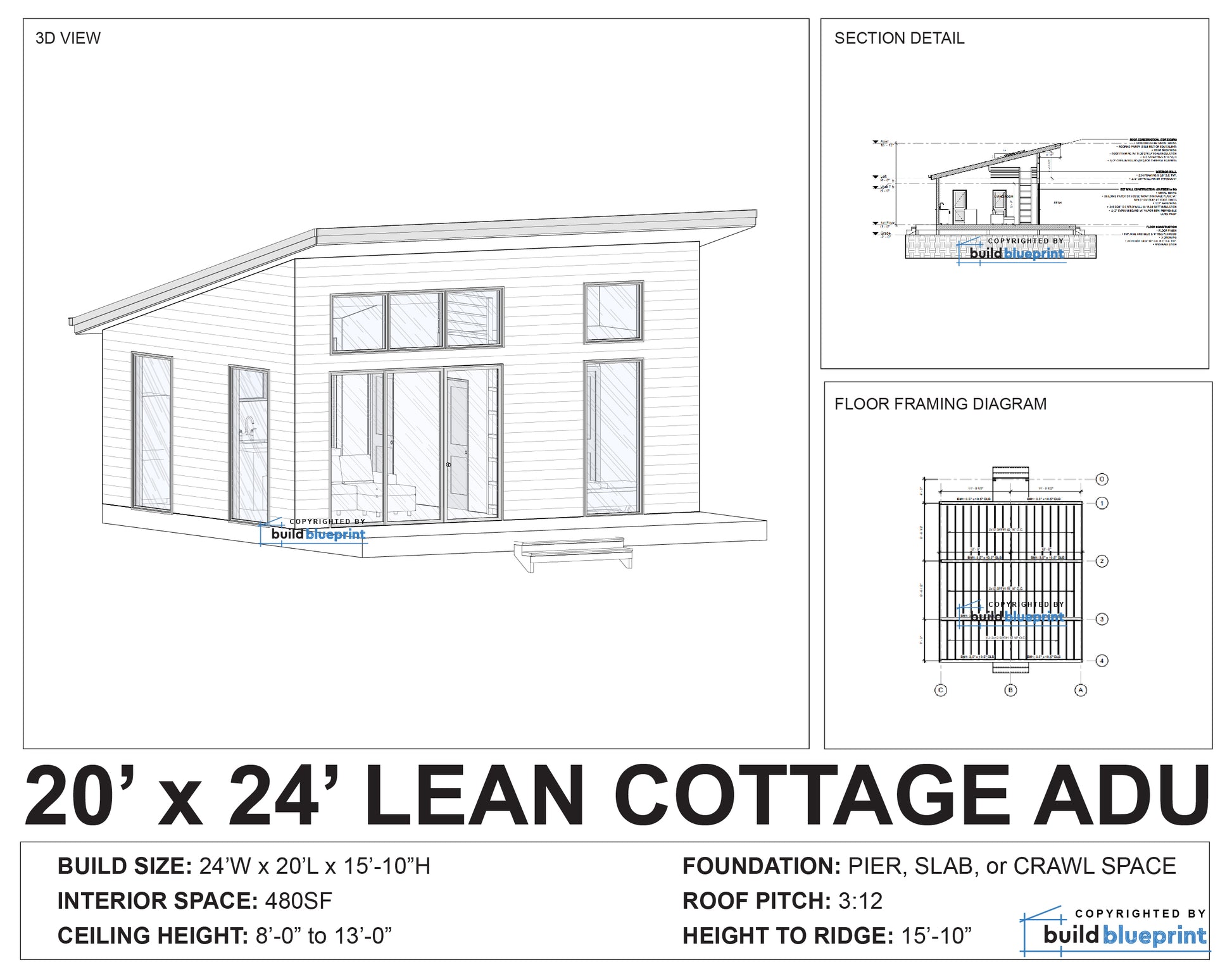

  • Architectural blueprint and measurement chart for a 20' x 24' lean cottage ADU, showing a 3D house model, section detail, floor framing diagram, and specifications on a white background.

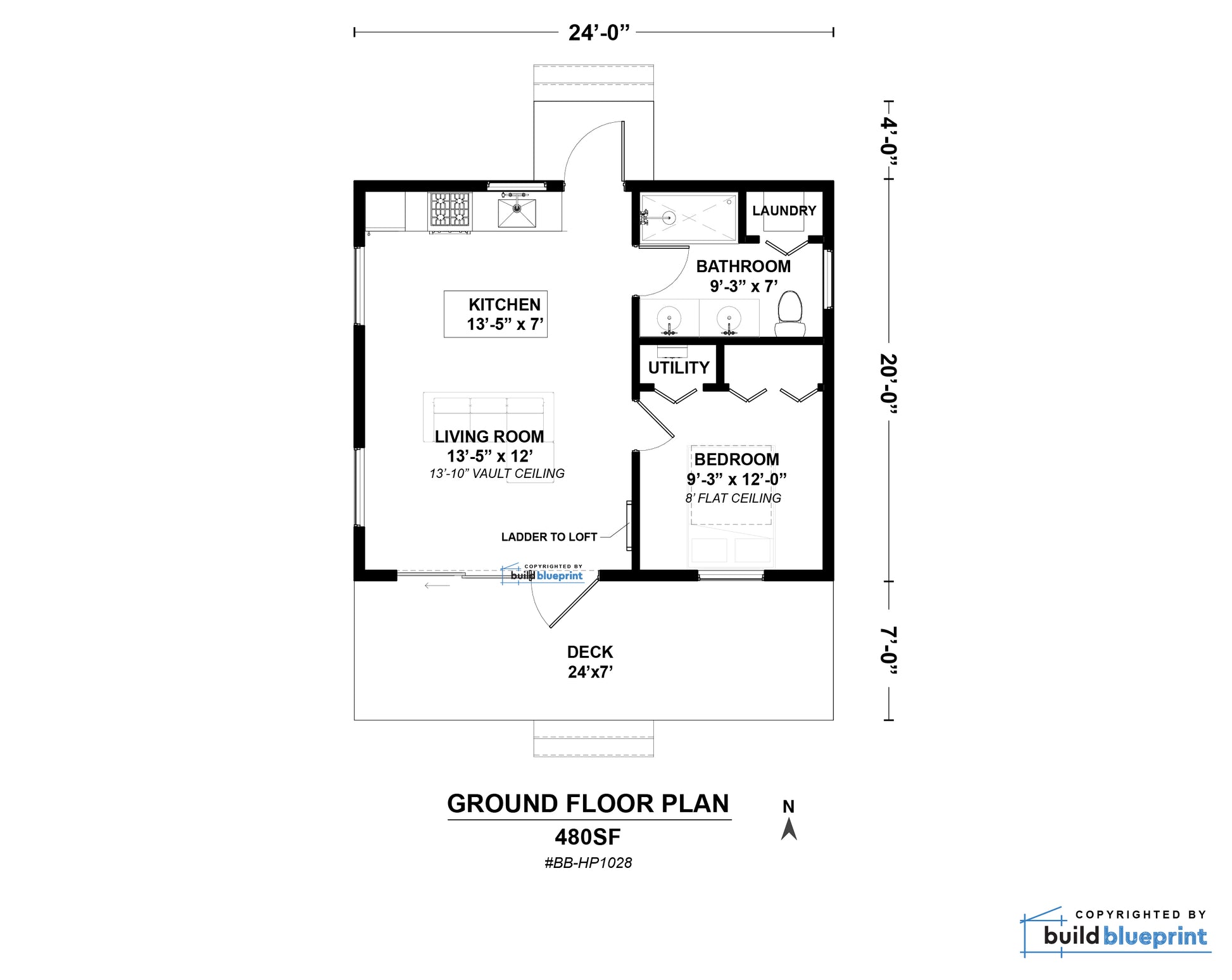

  • Ground floor plan layout diagram for a 480SF home, showing room dimensions, labels for kitchen, living room, bedroom, bathroom, utility, laundry, and deck, with overall building dimensions.

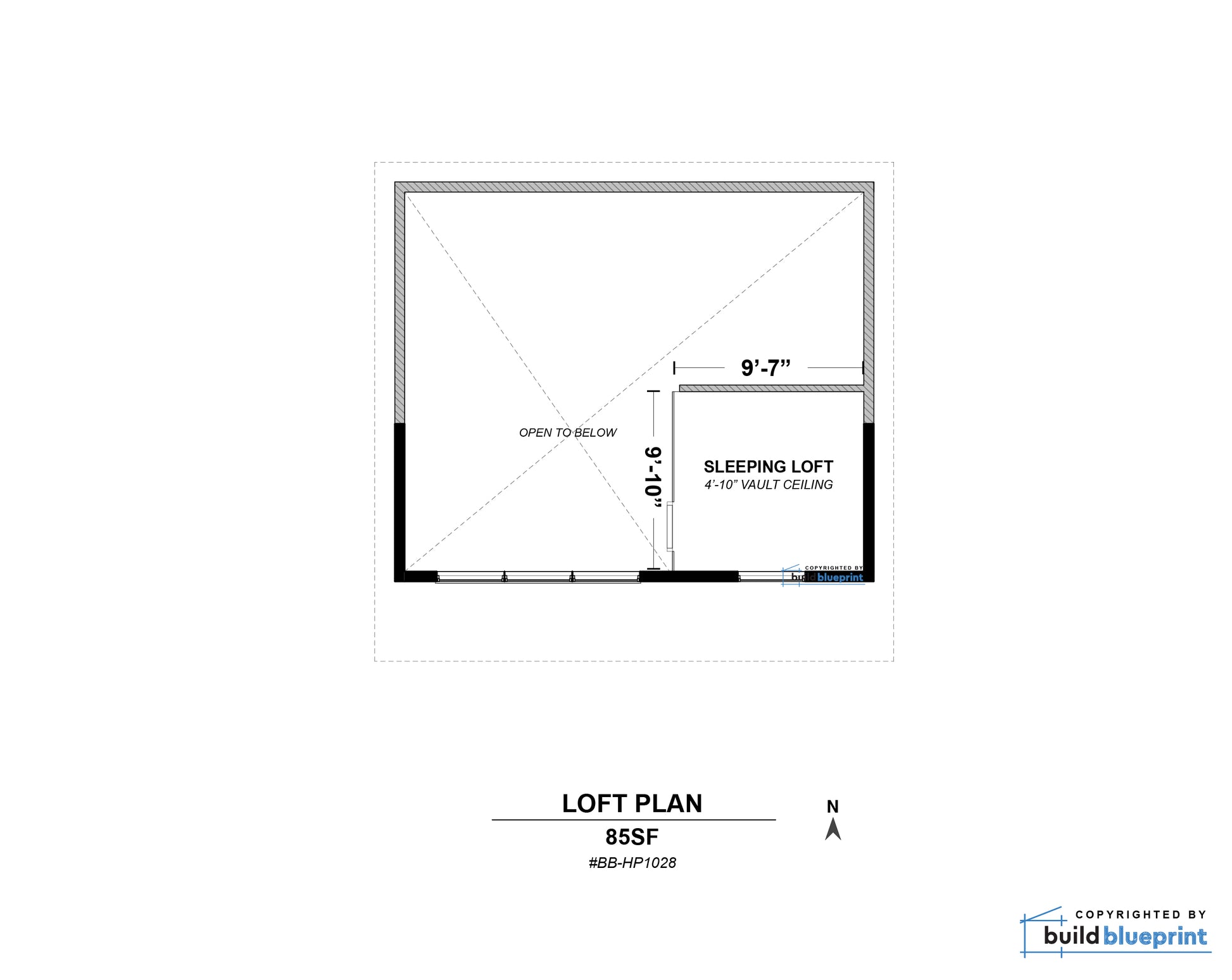

  • A black-and-white architectural floor plan labeled 'LOFT PLAN' with a sleeping loft section, dimensions including 9'-7" and 6'-10".

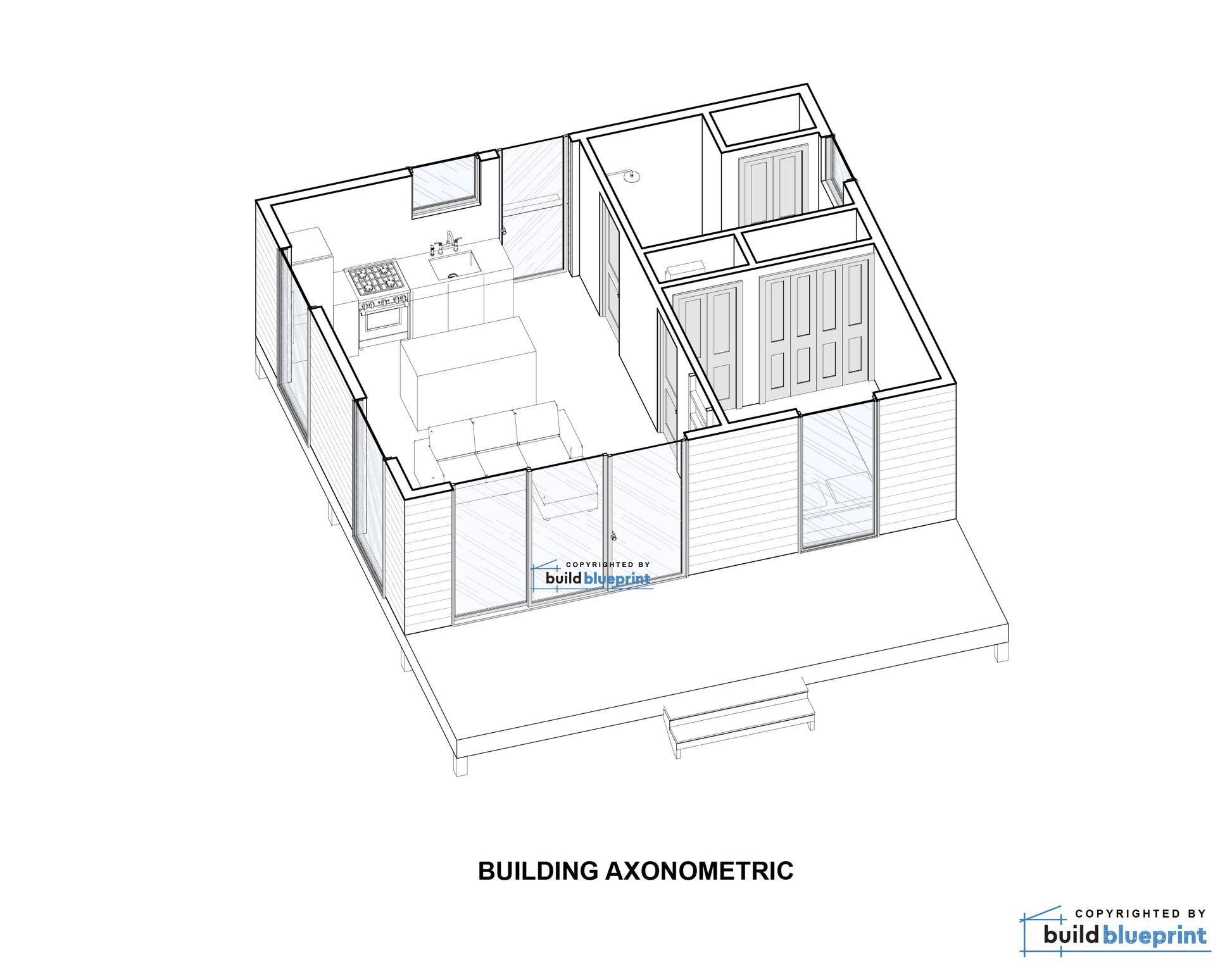

  • An axonometric line drawing of a small modular home or cabin with interior rooms visible, shown on a white background with the text 'BUILDING AXONOMETRIC' below and a 'build blueprint' mark in the lower right.

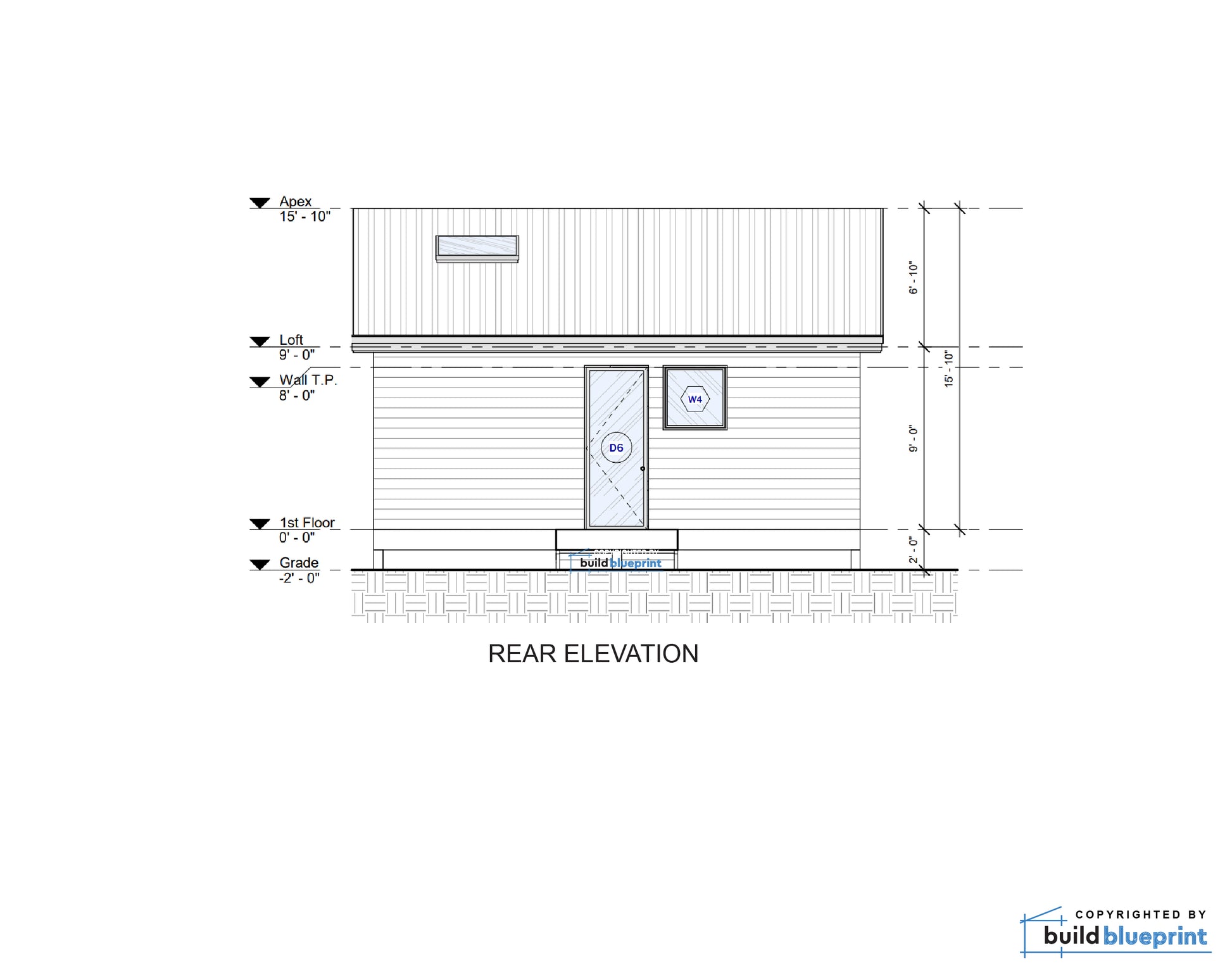

  • A technical architectural elevation drawing showing the rear elevation of a house with dimensions, labels, and a small Build Blueprint copyright mark in the bottom right corner.
  • 20' x 24' Lean Cottage – electrical plan, lean-to cottage architectural plans PDF
  • 20' x 24' Lean Cottage – wall framing, permit-ready lean-to cottage plans
  • Lean Cottage – permit-ready architectural plans PDF instant download
  • 20' x 24' Lean Cottage – materials list, lean-to cottage building plans
1 11

Build Blueprint

20' x 24' Budget Lean Cabin Architectural Plans

20' x 24' Budget Lean Cabin Architectural Plans

$125.00 USD
$125.00 USD
Sale Sold out
Instant Download
Secure Checkout
Build Ready Plans

20' x 24' Budget Lean Cabin Architectural Plans

The 20' x 24' shed roof cabin is one of the most affordable ways to get a permitted, code-compliant structure built β€” 480 square feet with a bedroom, full bathroom, and sleeping loft under a clean single-pitch roofline that keeps framing costs to a minimum. At this footprint and price point, this is a serious contender for backyard ADU builds, detached guest suites, and budget cabin projects where keeping total construction cost low is the primary goal. The shed roof style is the right choice for cost-conscious builders: fewer materials, faster framing, and a contemporary look that doesn't read as a compromise.

The sleeping loft maximizes the usable square footage without expanding the footprint, a front deck adds outdoor living space, and large windows keep the interior bright despite the compact size. A washer/dryer hookup makes this livable as a long-term guest suite or short-term rental unit. Three foundation options: concrete slab, concrete pier, and crawl-space are all included in the drawings, so the plan adapts to your specific site without additional engineering costs.

Plan Specifications

  • Footprint: 24' W x 20' L
  • Height: 15'-10"
  • Floor Area: 480 SF + loft
  • Bedrooms: 1 + loft
  • Bathrooms: 1
  • Foundation: Concrete piers, slab, or crawlspace
  • Roof Load: 125 PSF
  • Ceiling Height: 8'-0" to 13'-0"
  • Est. Materials Cost: From $25,000

What's Included

Complete permit-ready plan set including: floor plan, loft plan, foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Ready for building permit submission in most US jurisdictions.

Available Plan Options

  • Complete PDF Plan β€” Full plan set as a print-ready PDF. Instant download.
  • PDF + CAD Files β€” Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.

Who This Plan Is For

The standout feature of this plan is the 125 PSF roof load β€” the highest rating in our small cabin lineup. If you're building in a high-snowfall region, on an exposed mountain site, or anywhere that demands serious structural engineering, this is the small lean cottage to choose. At an estimated materials cost starting at $25,000, it's also one of the most affordable entry points into a modern-looking, structurally capable cabin build.

Instant Download

Your complete plan set downloads immediately after purchase. No waiting, no shipping.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Complete Plan Set

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
