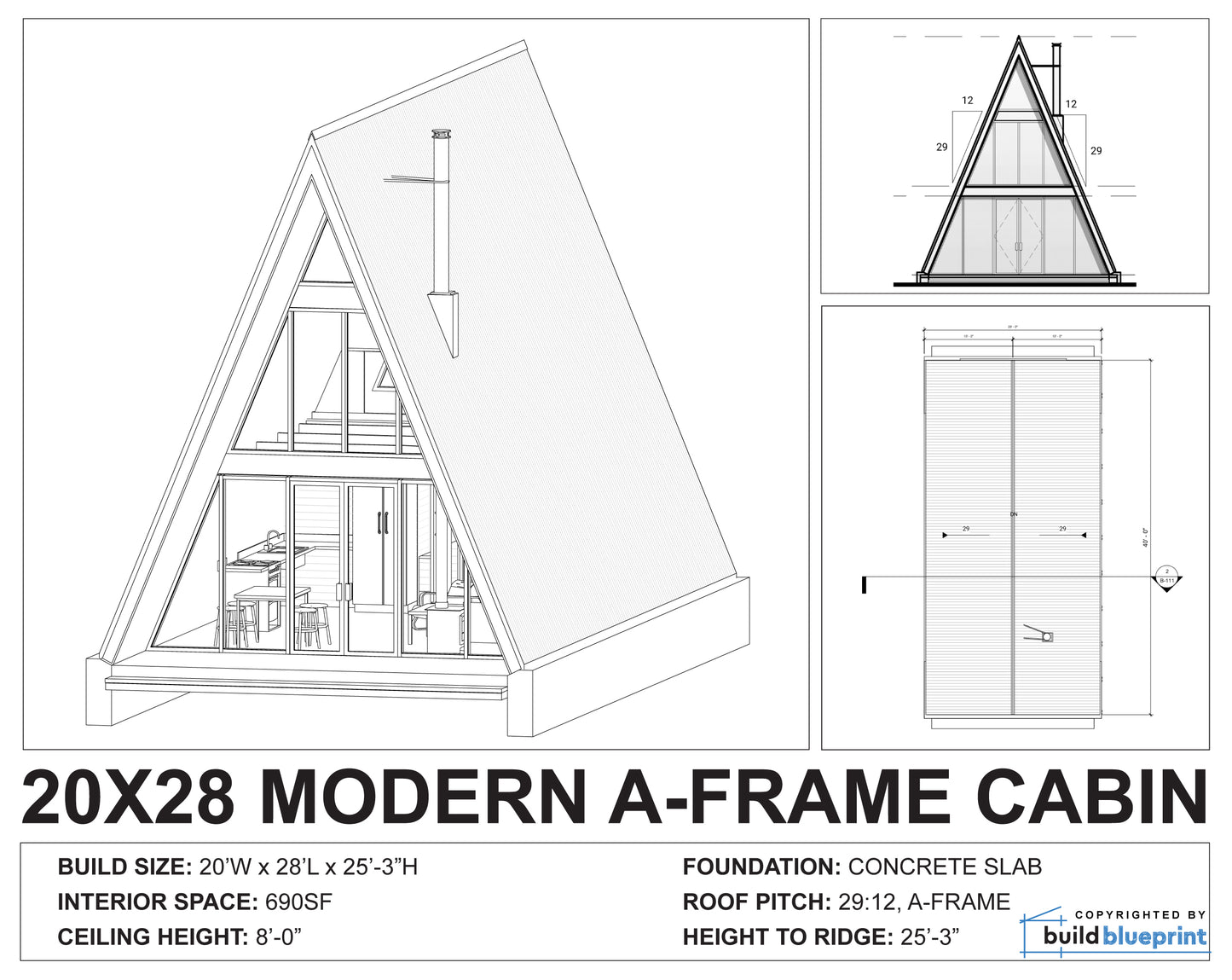

20' x 28' Modern A-Frame Cabin Architectural Plans

20' x 28' Modern A-Frame Cabin Architectural Plans

Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Sold out
690 SF (20'W x 28'L x 25'-3"H)
2 Bedrooms / 1 Bathroom
Concrete Slab Foundation
Roof Load: 95 PSF
Ceiling Height: 8'-0"
Est. Materials Cost: $45,000*

Complete architectural plans to build a cozy modern A-frame cabin. This design is suitable to be built on any plot of land. A-frame cabins are designed to be easier and cheaper to build, and consumes less energy than a traditional cabin. Concrete slab foundation for easy construction and requires less materials.

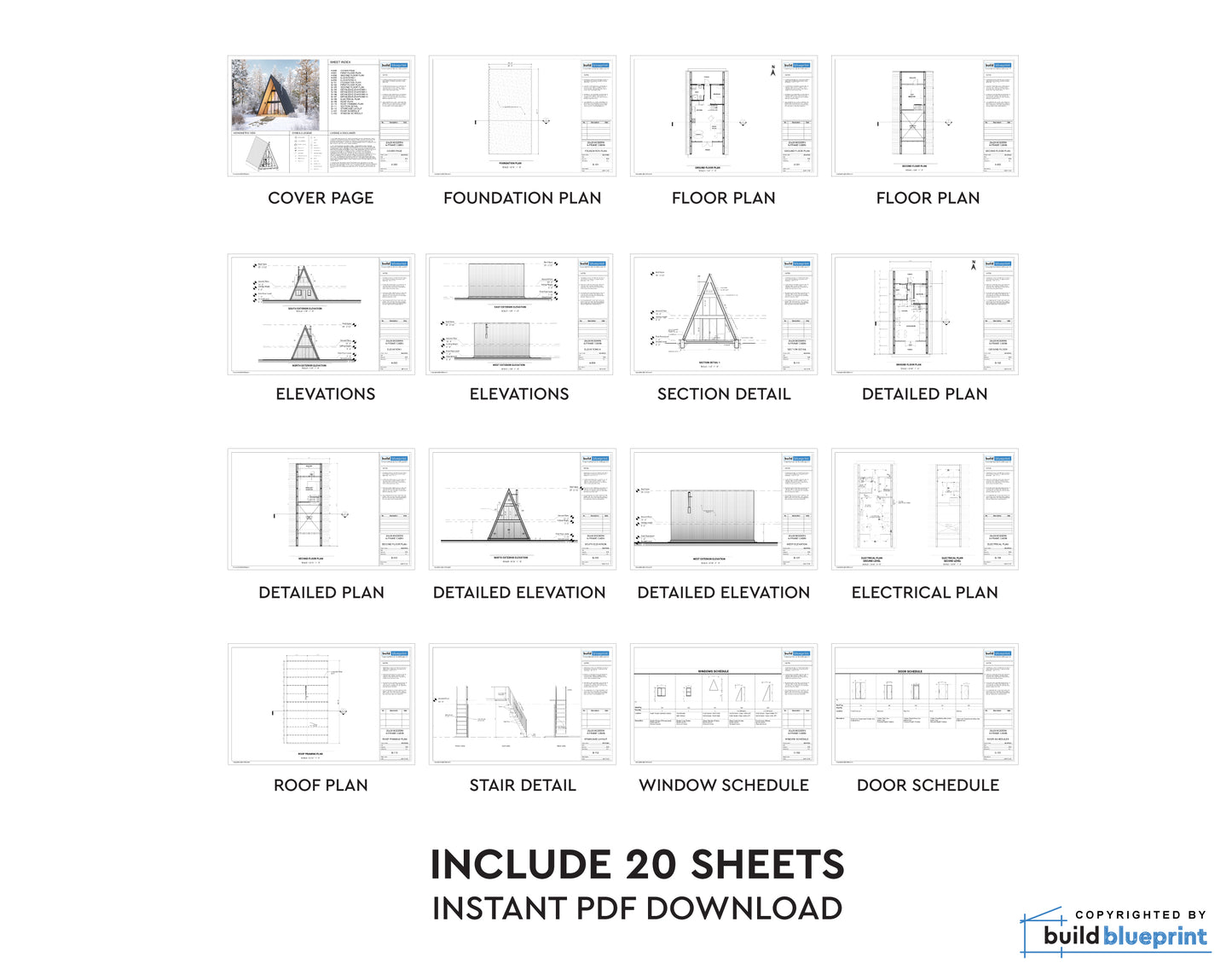

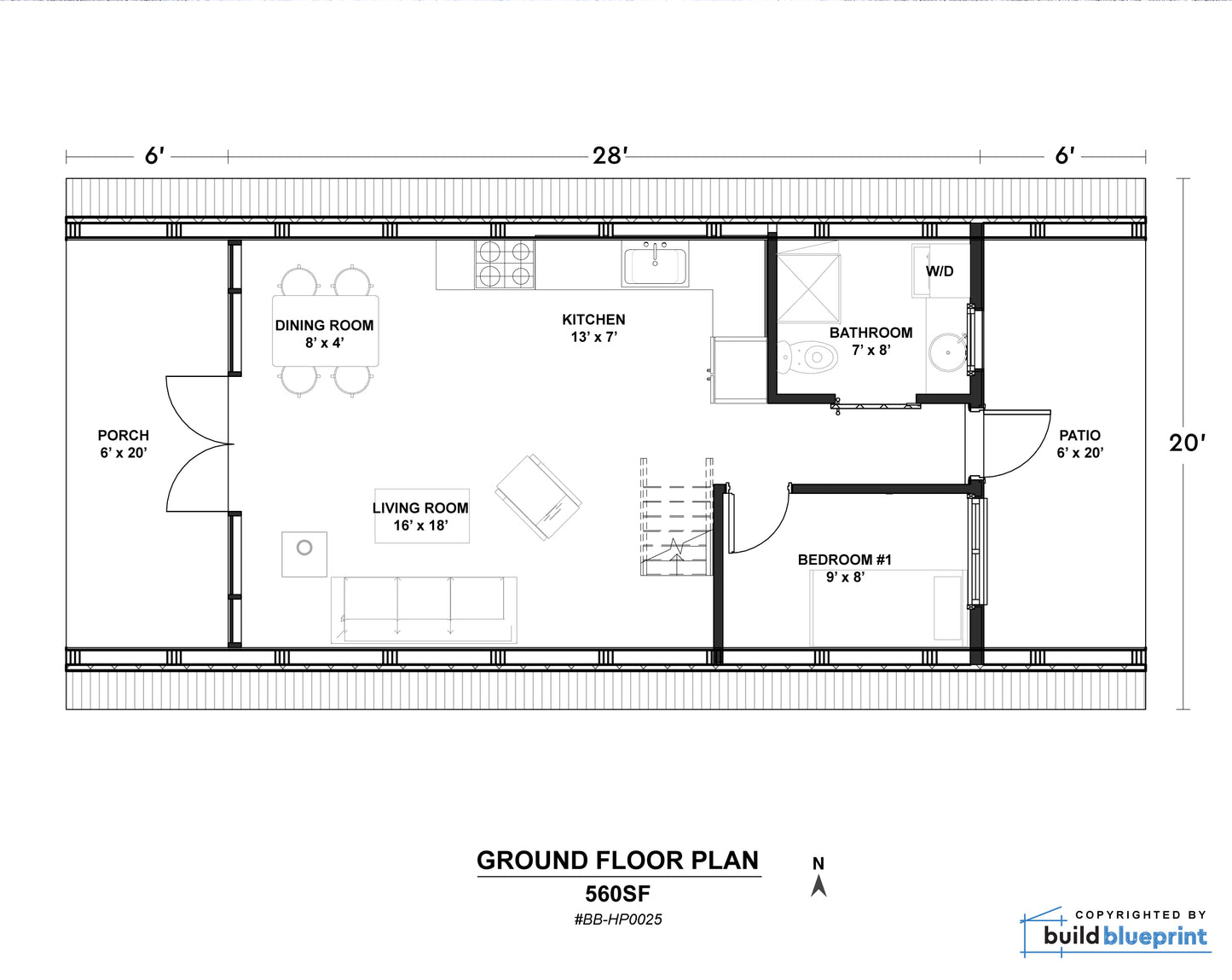

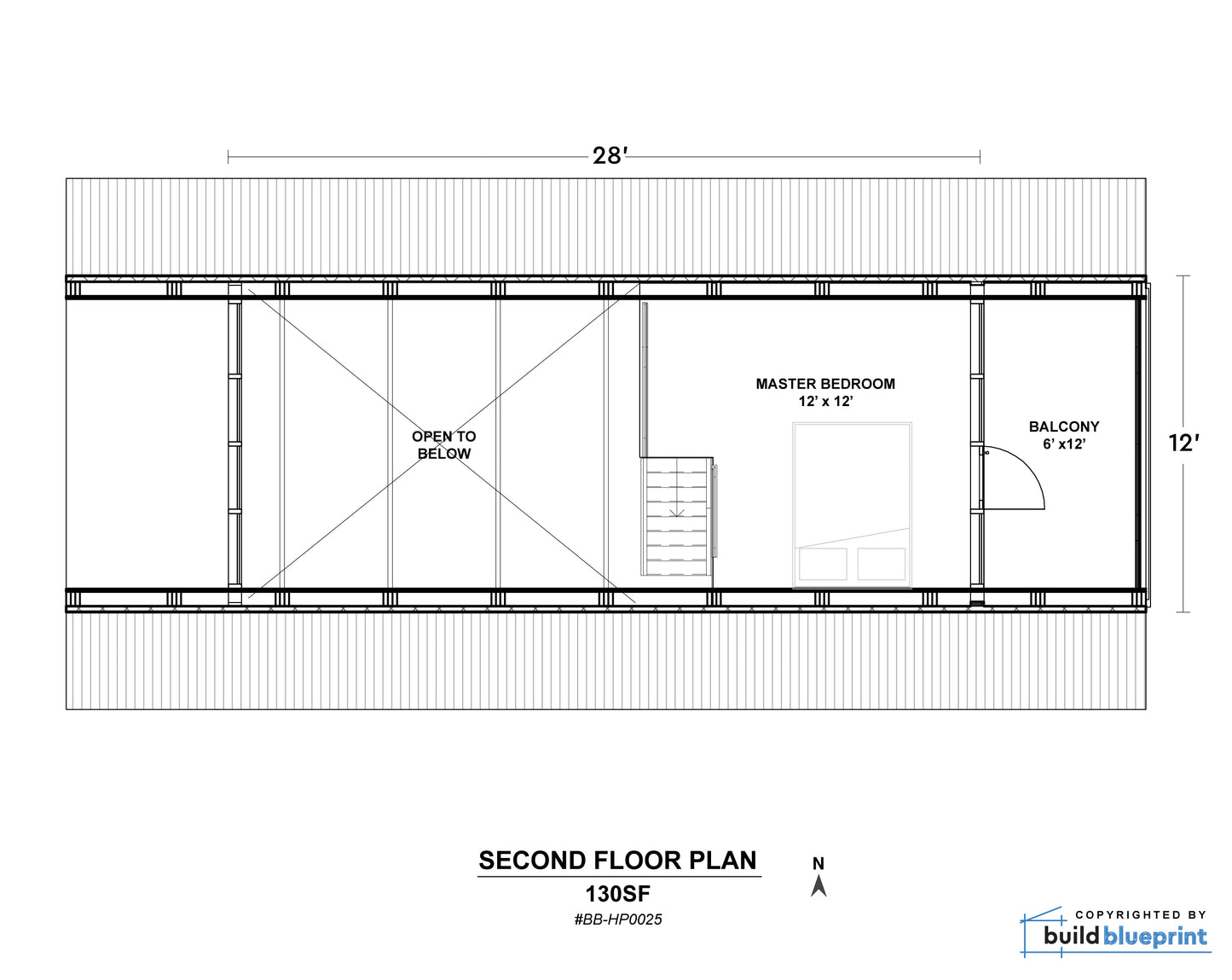

The plans include Materials List, Floor Plan, Foundation Plan, Elevations, Roof framing Plan, Electrical Plan, Section Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 690SF, with 8 feet ceilings on both levels.

Plan is available in both Imperial and Metric units.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details
