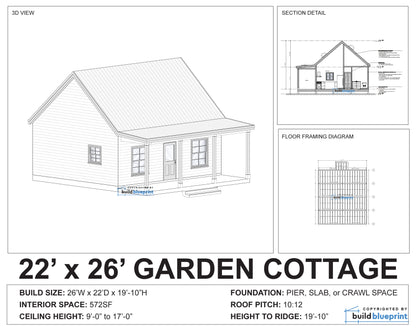

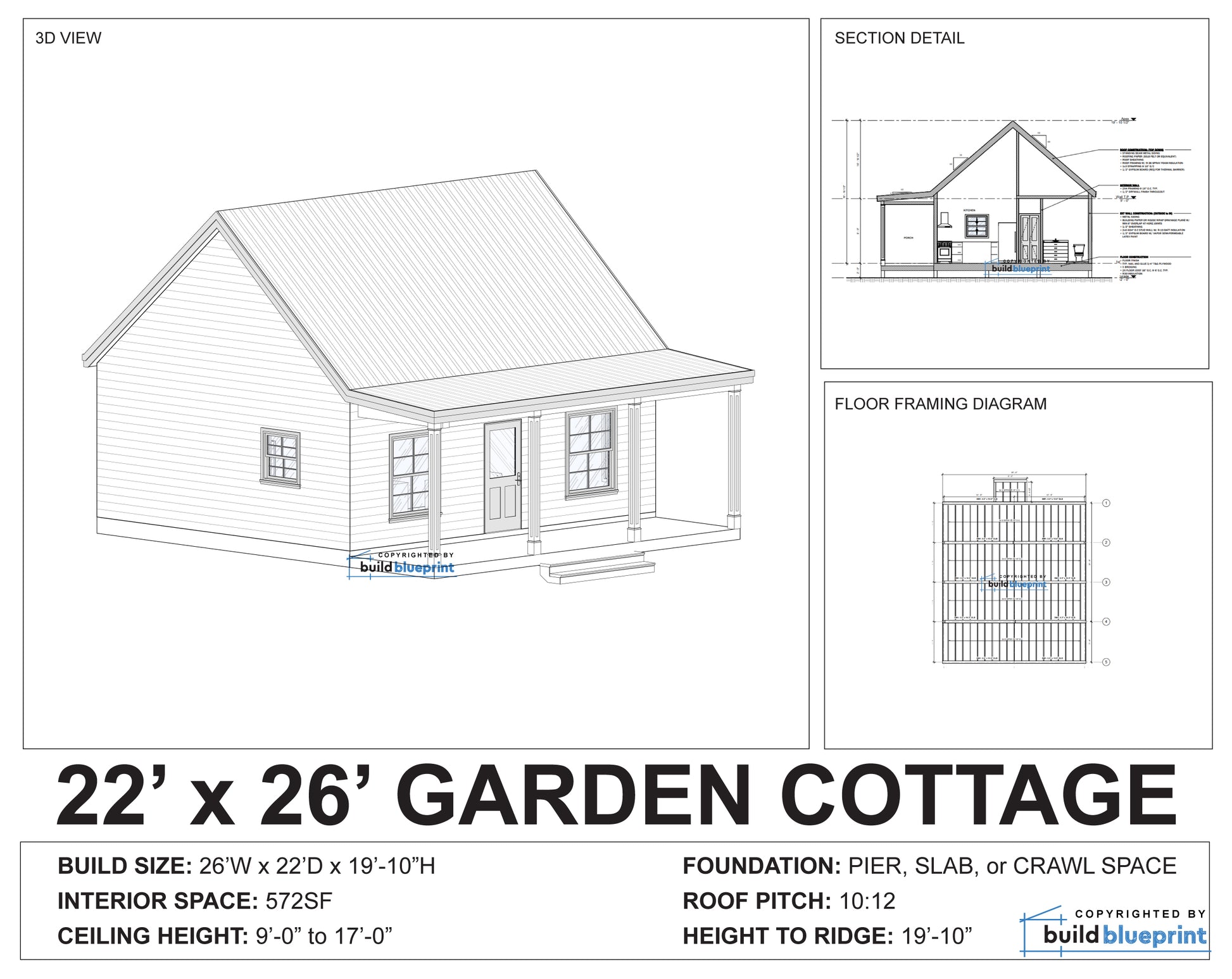

22' x 26' Garden Cottage Architectural Plans

22' x 26' Garden Cottage Architectural Plans

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out

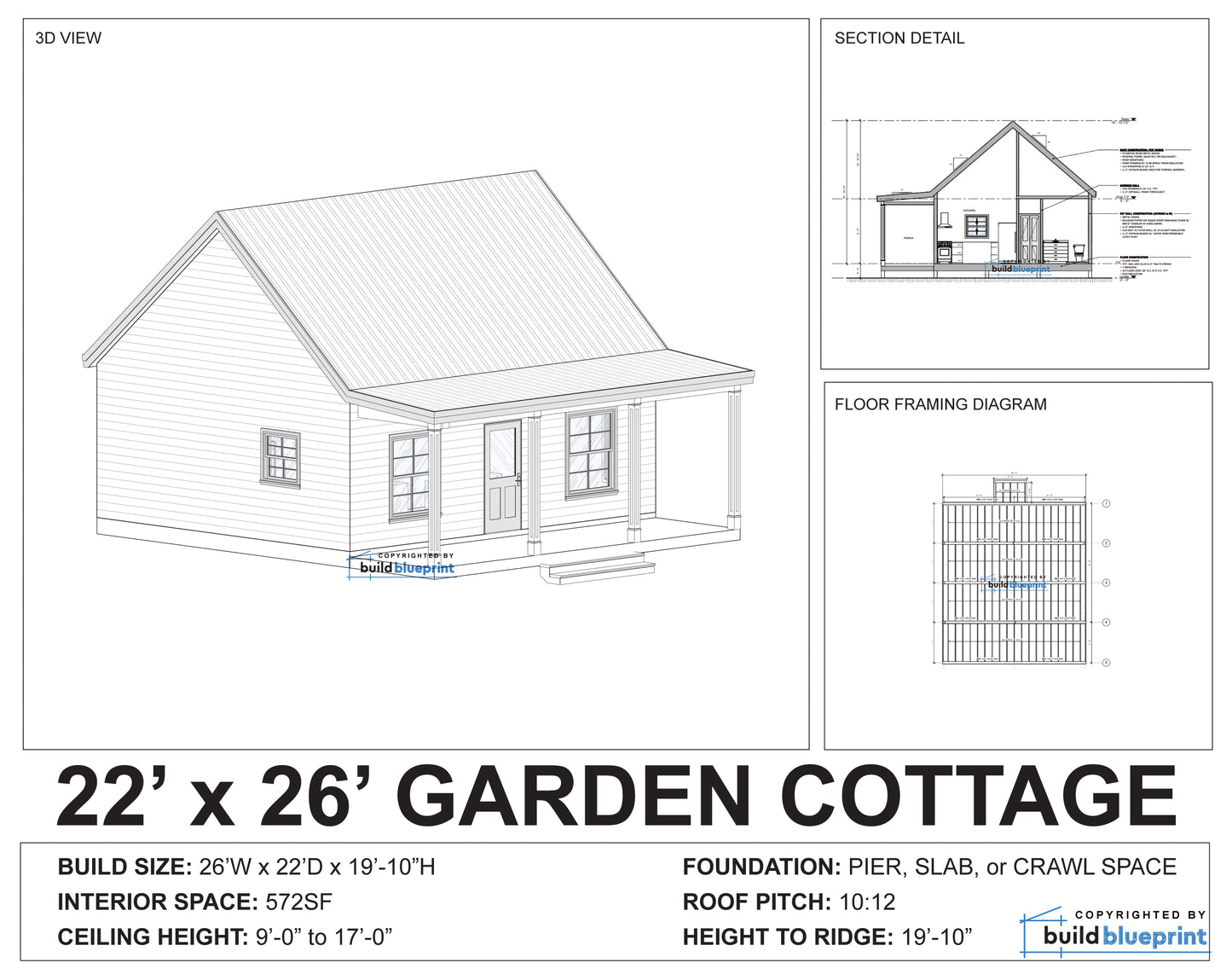

572 SF (26'W x 22'L x 19'-10"H)
1 Bedrooms / 1 Bathroom
Concrete Slab, Pier/Post, Crawlspace
Ceiling Height: 9'-0" to 17'-0"
Est. Materials Cost: $25,000*
Roof Pitch: 10:12



Complete architectural plans to build an affordable and timeless 22x26 modern cottage. This garden cottage is designed to use typical off-the-shelf construction materials, keeping the building cost very low. These plans are ready for construction, and suitable to be built on any plot of land. This is the perfect budget cabin, complete with a front patio, high vaulted ceilings, large windows, and spacious living areas. Plan includes 3 foundation options: crawlspace, concrete slab, and piers/blocks.

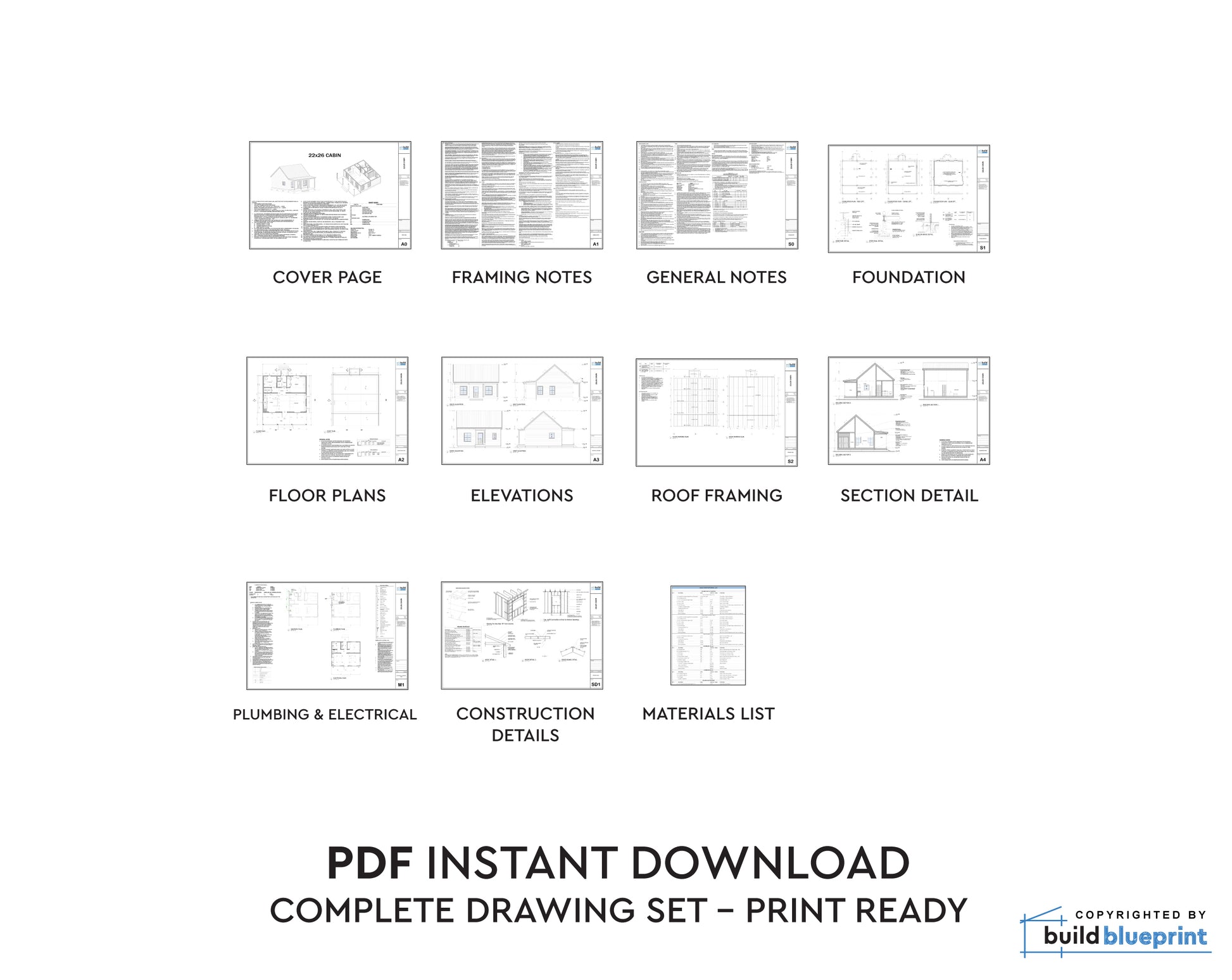

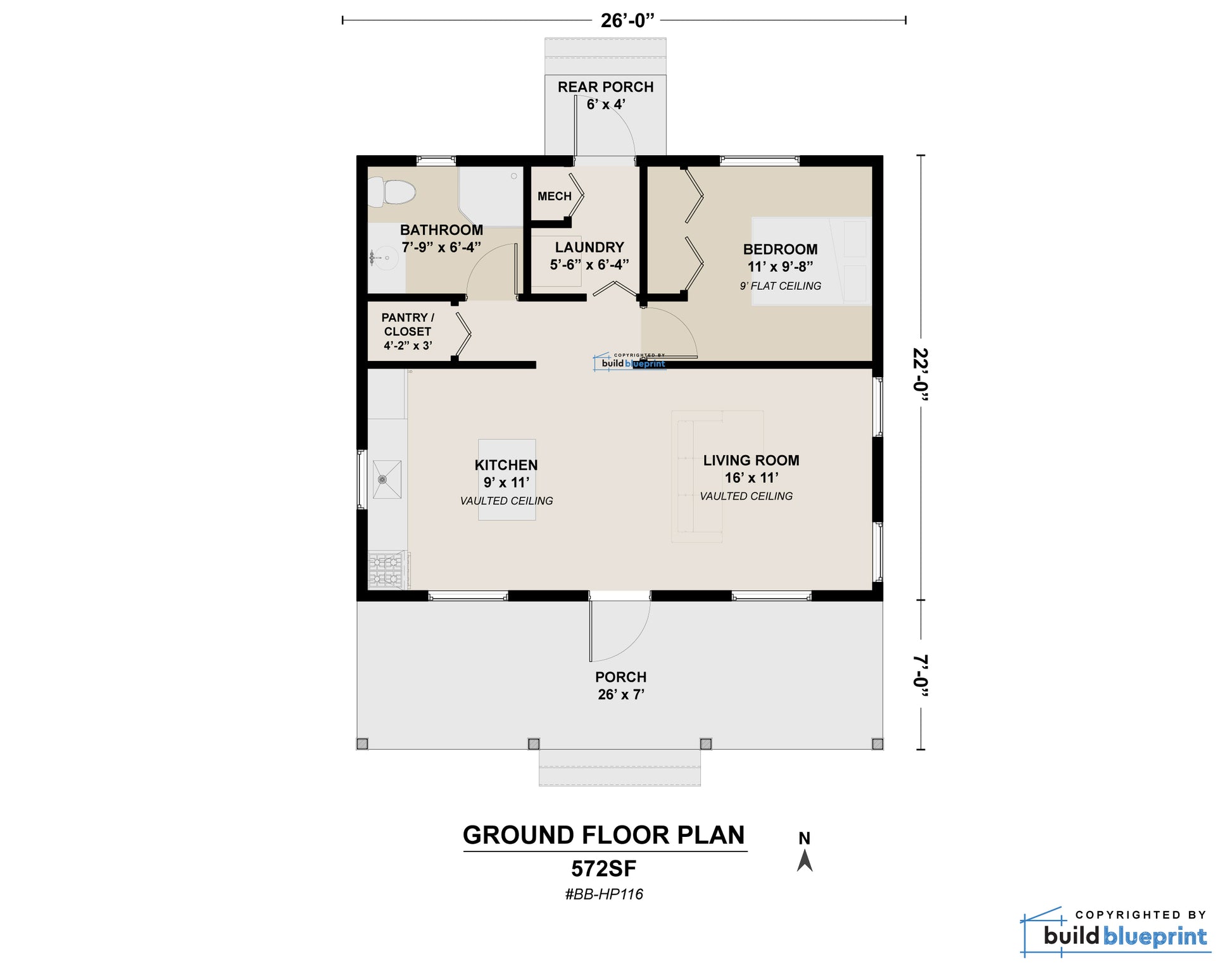

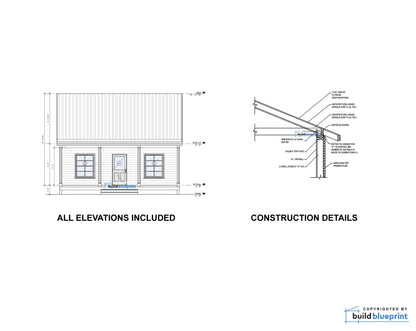

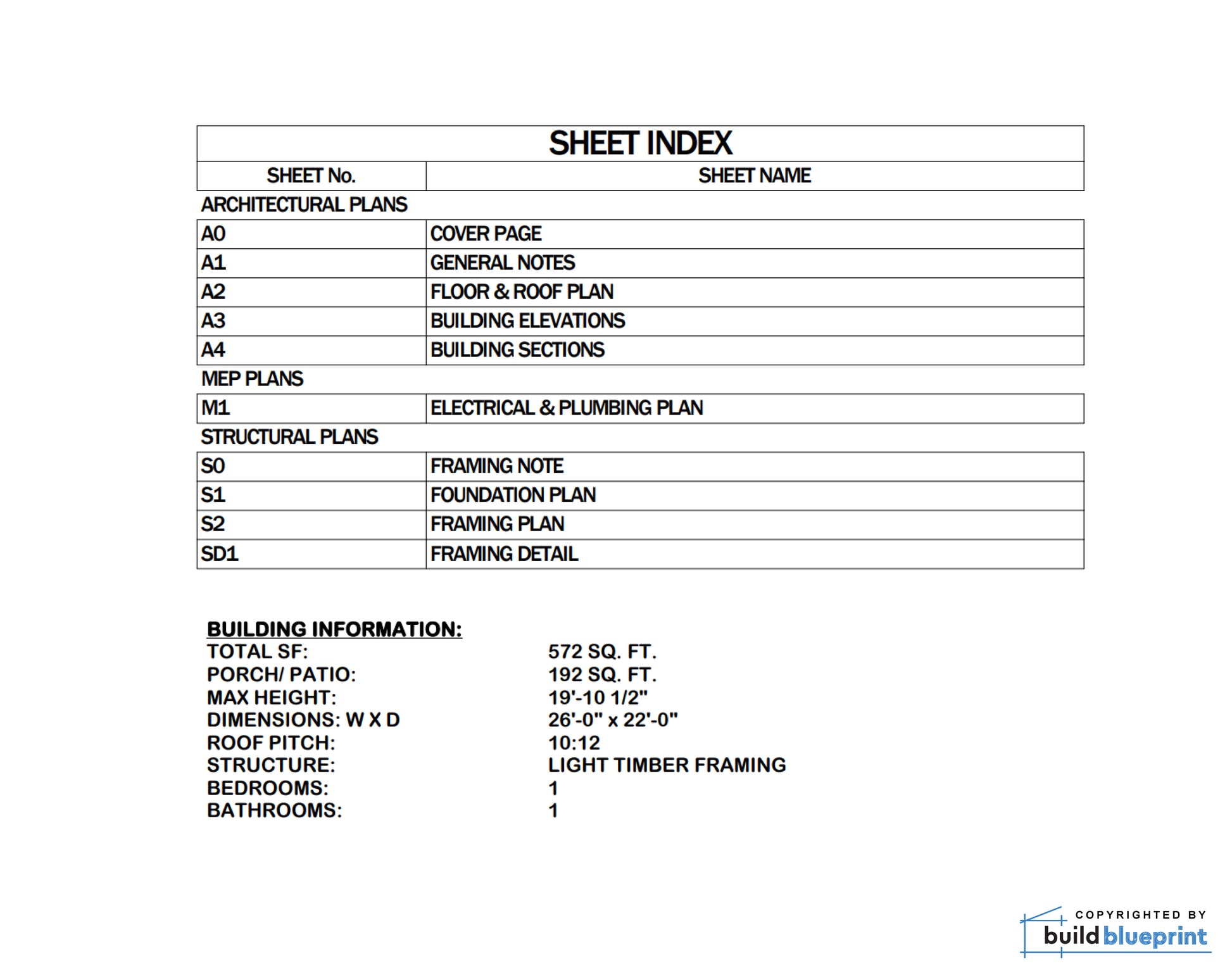

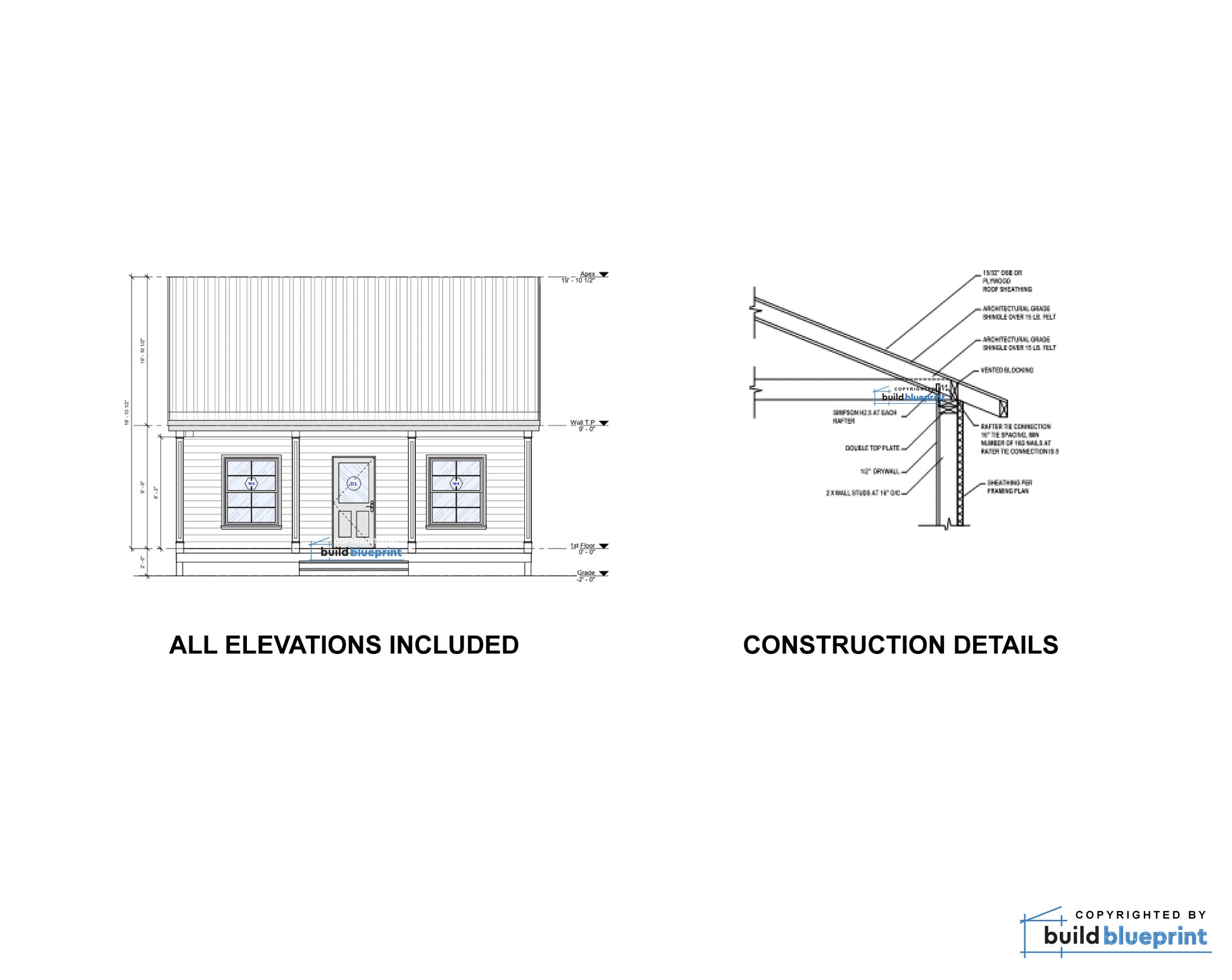

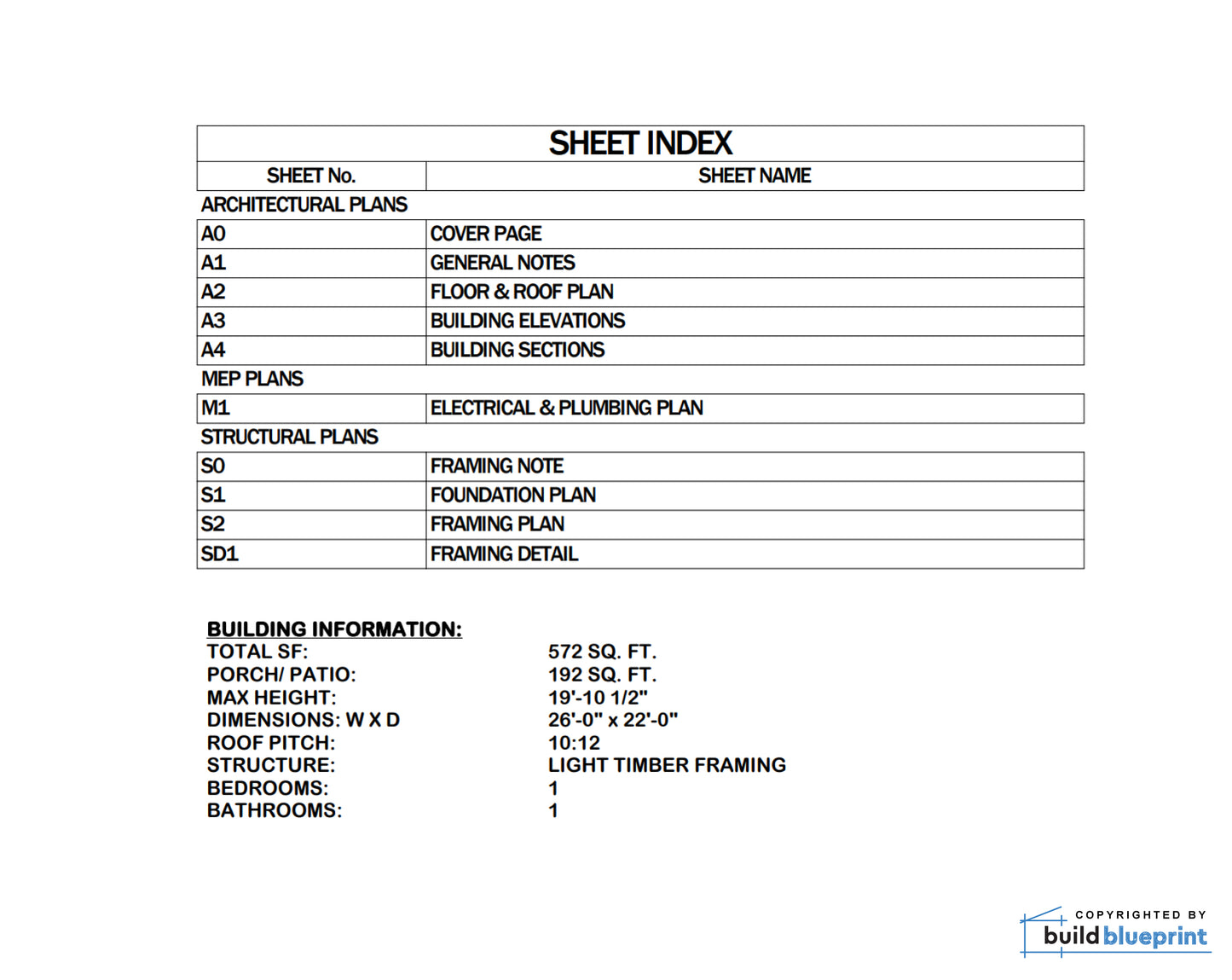

The plans include 101 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Wall Framing, Roof Plan, Electrical Plan, Plumbing Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 572SF, with 9'-0" high ceiling and double height space in the living areas. Plans are designed per standard North American building codes.


Size: 22' D x 26' W x 19'-10" H
Total Area: 572 SF
Bedrooms: 1
Bathrooms: 1

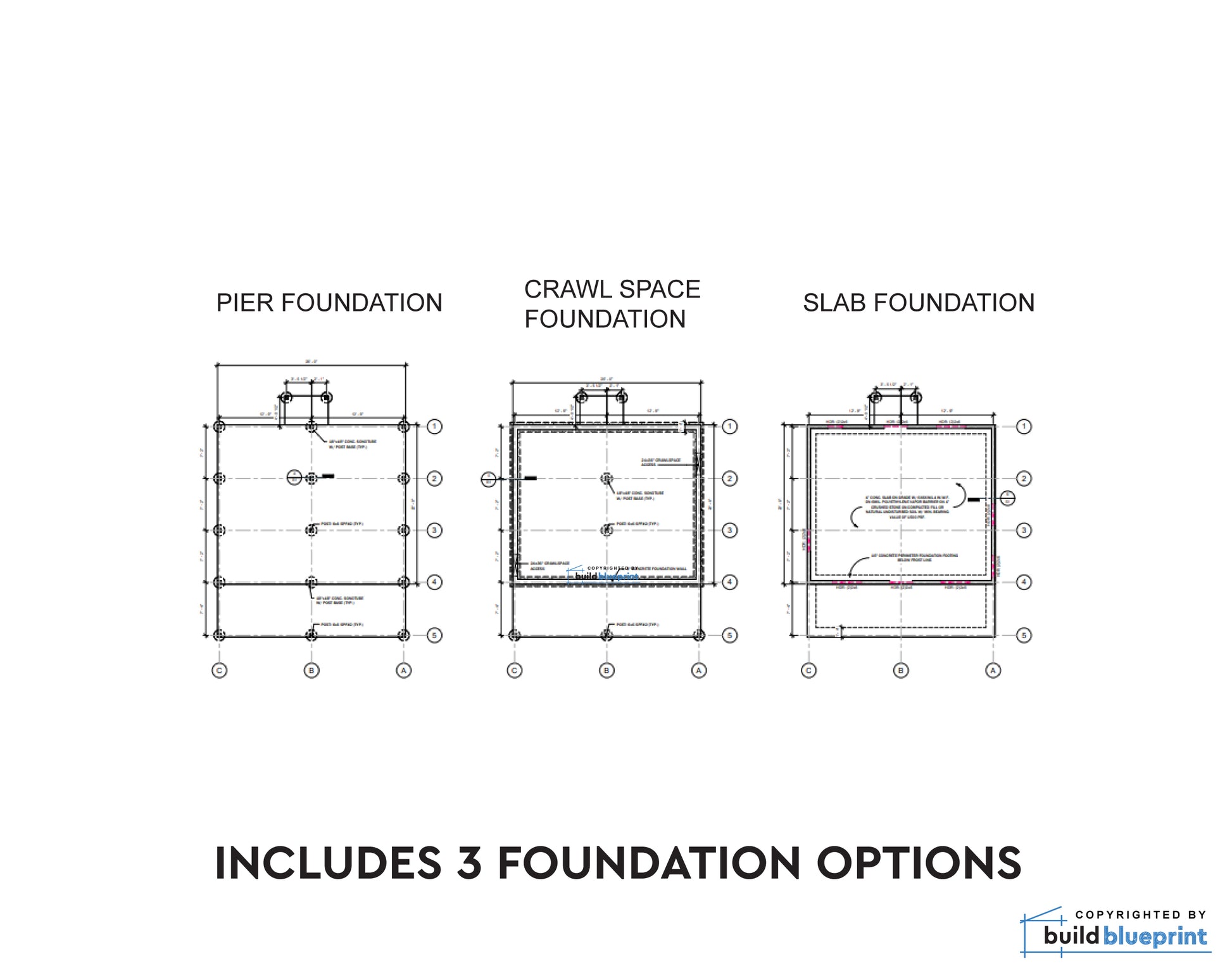

Foundation: Concrete Slab, Pier/Post, and Crawlspace

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Complete Plan Set

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
