24' x 28' Honey Creek Cabin Architectural Plans

24' x 28' Honey Creek Cabin Architectural Plans

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
500 SF (24'W x 28'L x 23'-9"H)
2 Bedrooms / 1 Bathrooms
Concrete Piers / Slab / Crawl Space
Roof Load: 95 PSF
Ceiling Height: 8'-0"
Est. Materials Cost: $30,000*

Complete architectural plans to build a modern style tiny cabin with loft! This cabin is designed to maximize living areas, even on smaller and narrower lots. These plans are ready for construction, and suitable to be built on any plot of land. This is the perfect budget modern cabin, complete with a front patio, high ceilings, large windows for natural light, and optional loft space for sleeping or an office. Plan includes 3 foundation options: crawlspace, concrete slab, and piers/blocks.

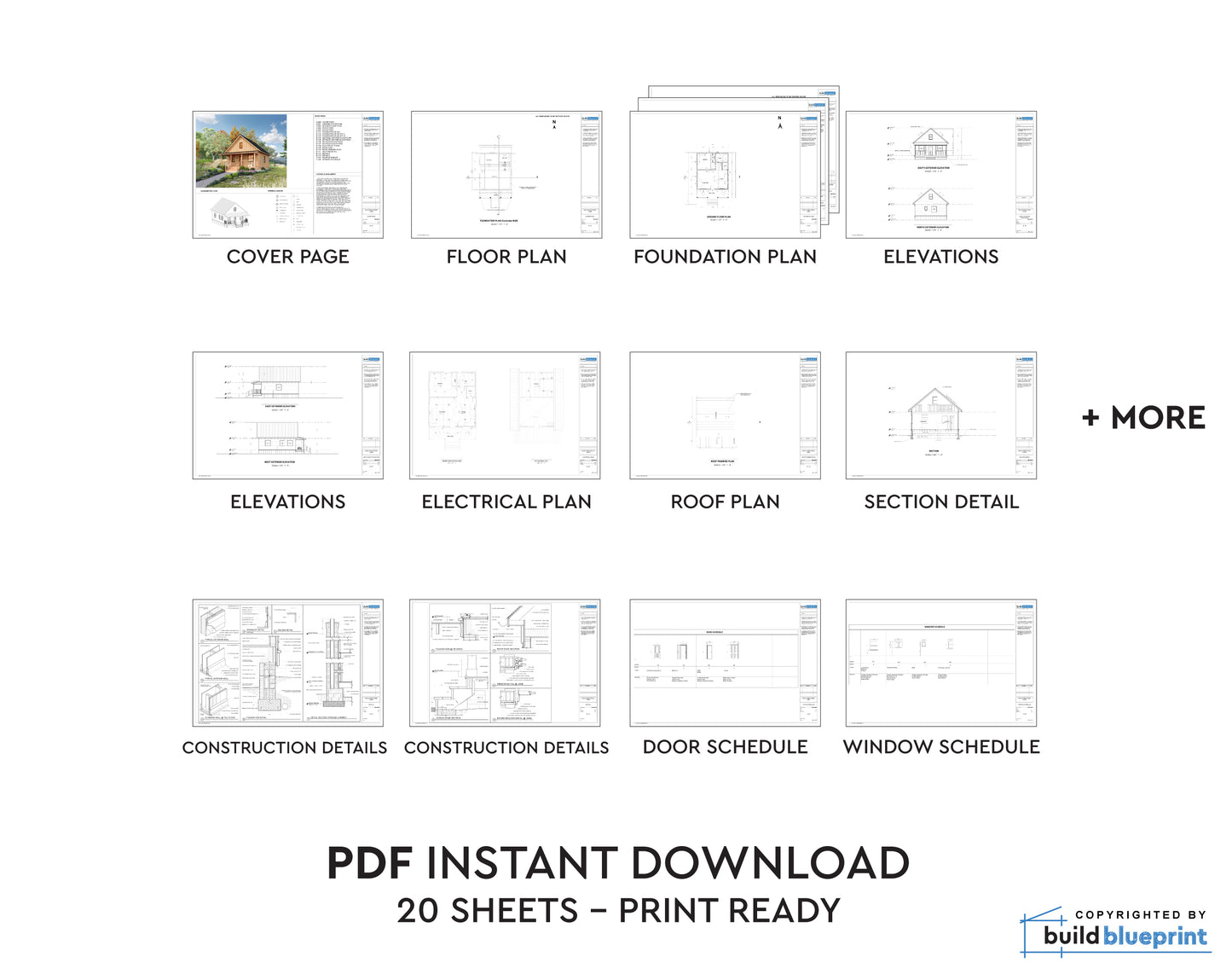

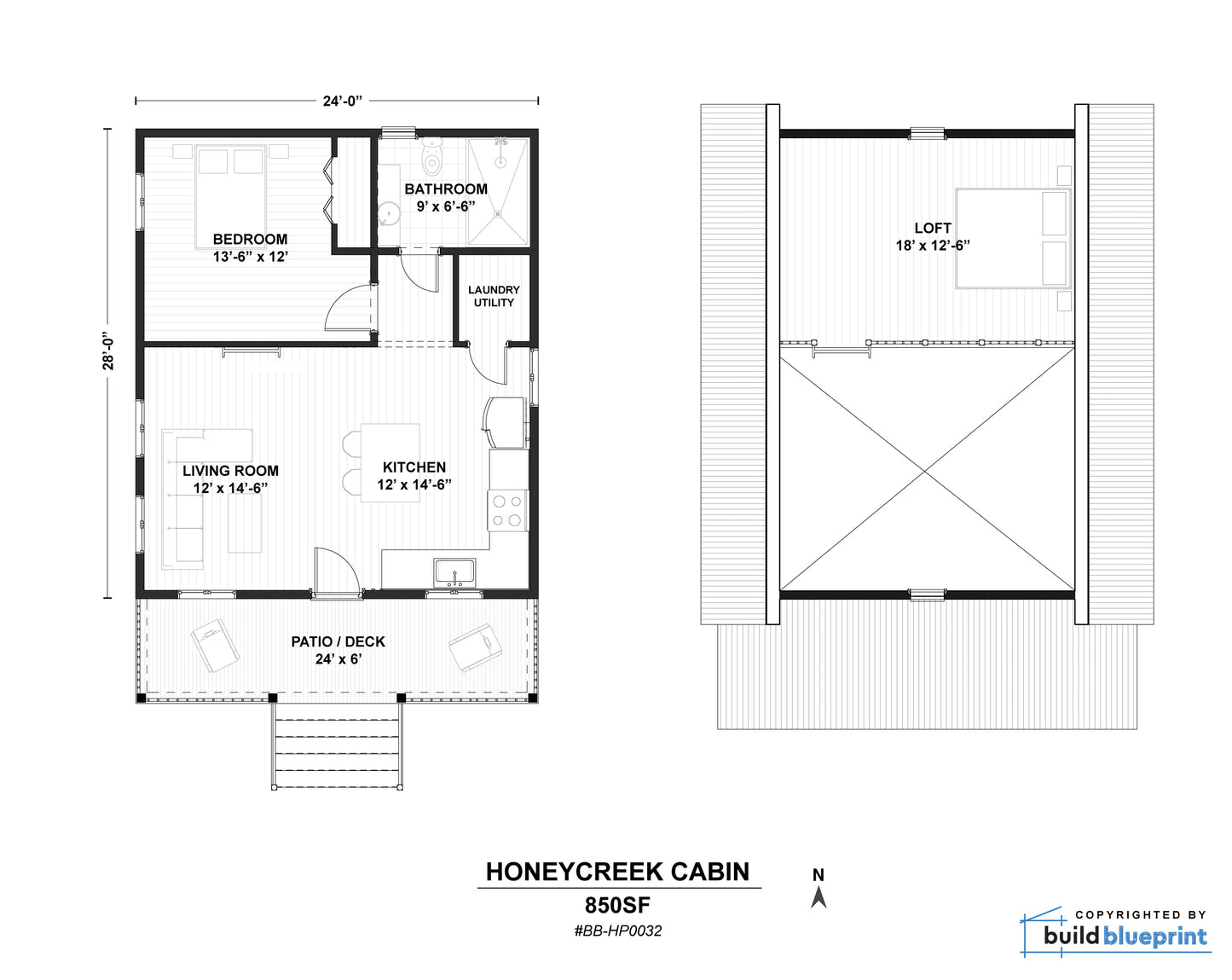

The plans include 21 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Roof Plan, Electrical Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 850SF, with 8'-0" high ceiling and double height space in the living areas. Plans are designed per standard North American building codes and IRC (International Building Code)

All dimensions are in imperial units (feet and inches). Editable CAD plans are available for purchase, please message me for details.

Plan is available in both Imperial and Metric units.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Cal T

Great design easy to follow

L
Louis S

Clair , utilisé avec qqles modifications.

K
Kayo F

Amazing! I look forward to more from the seller ūüėäūü§†

Complete Plan Set

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
