24' x 34' Large Adirondack Cabin Architectural Plans

24' x 34' Large Adirondack Cabin Architectural Plans

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
950 SF (24'W x 34'L x 20'-11"H)
3 Bedrooms / 2 Bathroom
Concrete Slab or Post/Piers, Optional Basement
Roof Load: 115 PSF
Ceiling Height: 19'-0"
Est. Materials Cost: $60,000*

Complete architectural plans of the popular large Adirondack style 3-bedroom and 2-bathroom getaway cabin. These plans are ready for construction, and suitable to be built on any plot of land. This is the perfect budget modern cabin, complete with a large patio, high ceilings, large windows for natural light, and optional loft bathroom. Designed to comfortably house large families or Air BnB rentals.

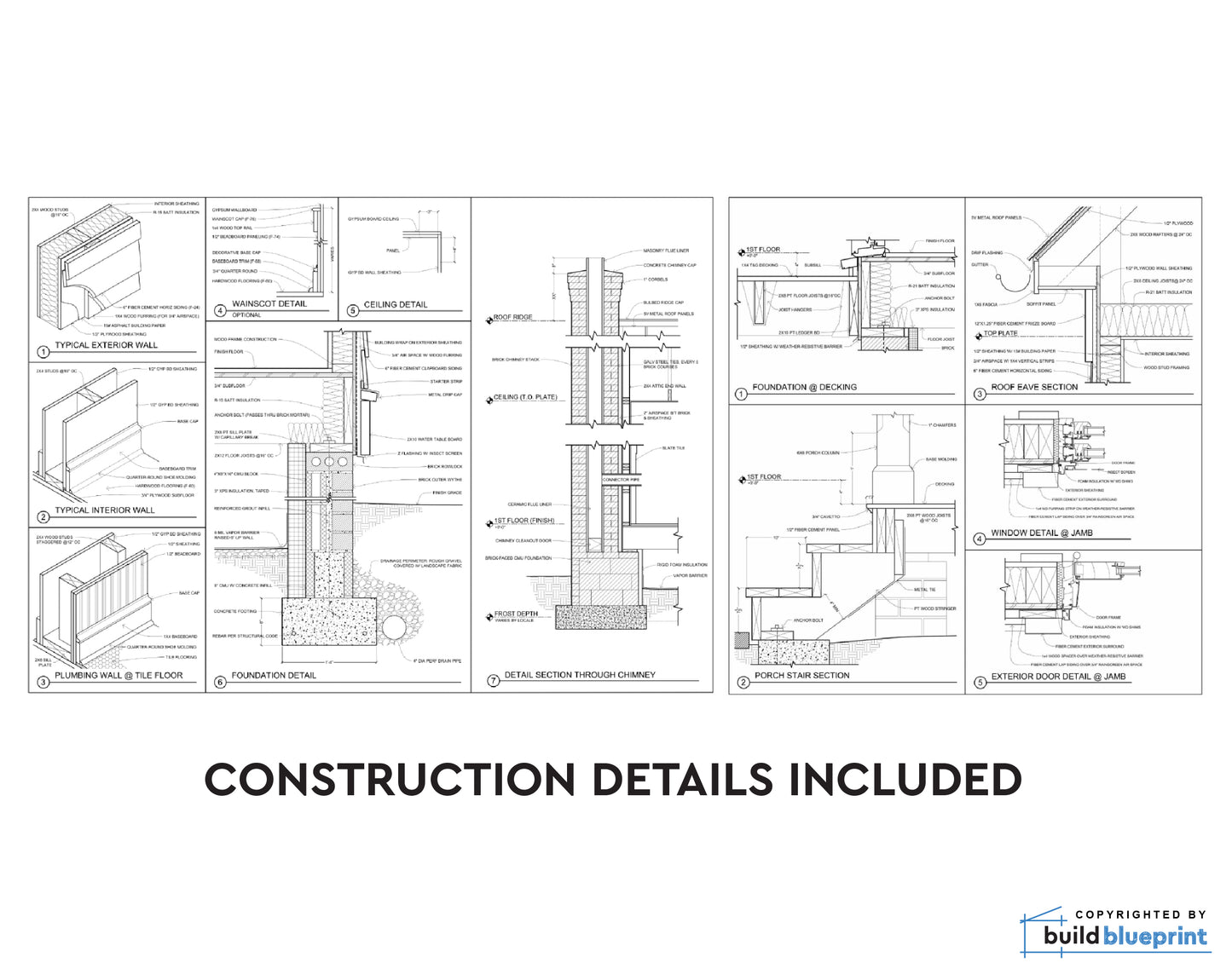

The plans include 18 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Roof Plan, Electrical Plan, Plumbing Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 975SF, with 19'-0" high ceiling. Plans are designed per standard North American building codes. Editable CAD files are available as an add-on, please contact me to order the CAD files if needed.

-Complete Architectural Drawing Set PDF-

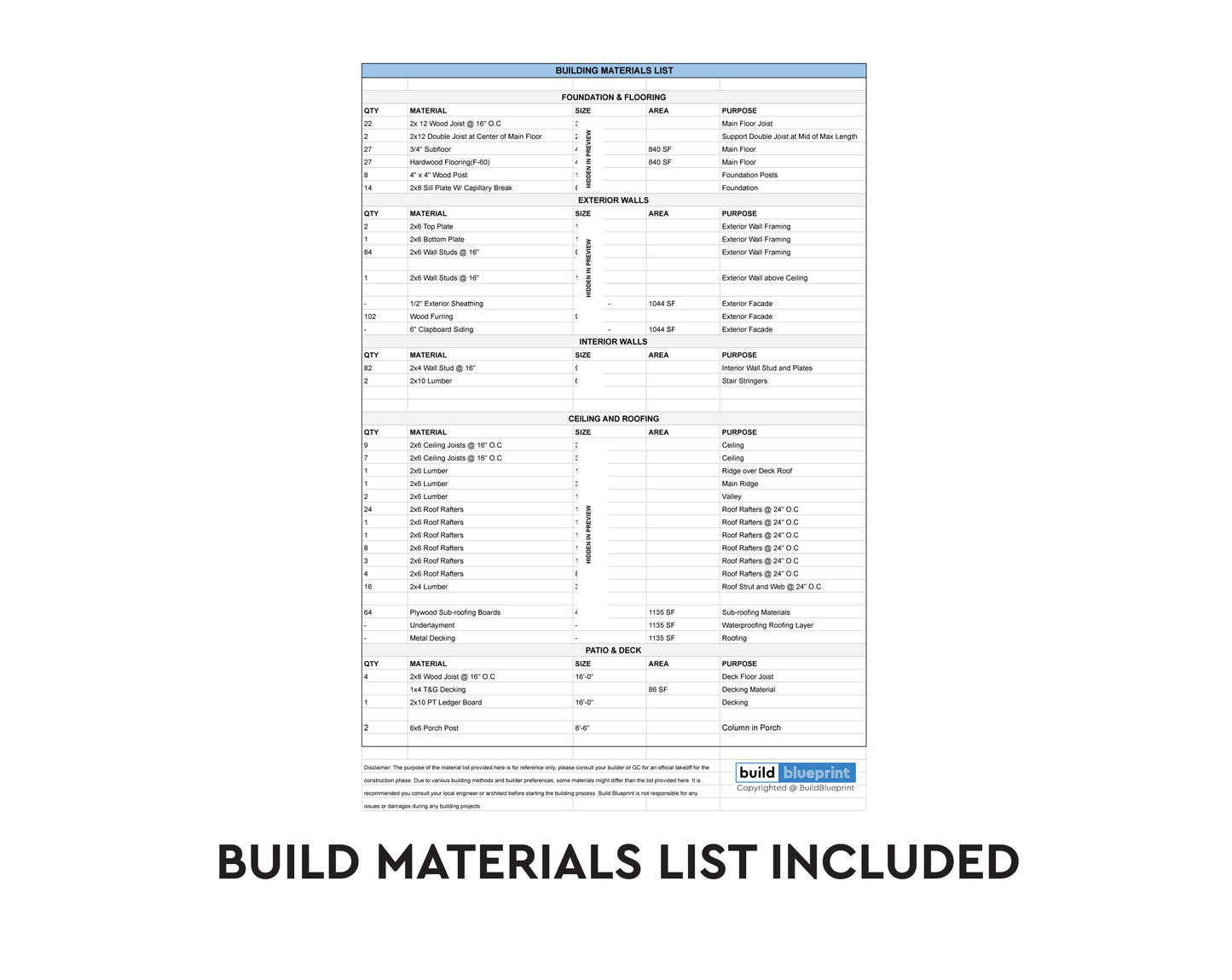

-Full DIY Build Materials List-
-Digital Download Only-
-PDF Printable on Standard Sheets-

Plans are copyrighted by BuildBlueprint, and intended for personal use only. No commercial use or distribution allowed.

*Estimated materials cost does not include site work, demo, or utilities. Cost is estimated on using typical industry finishes and construction materials. Building cost will vary depending on the region and the supplier.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Be the first to write a review

Complete Plan Set

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
