24' x 36' Lean Cottage Architectural Plans
24' x 36' Lean Cottage Architectural Plans
Couldn't load pickup availability
24' x 36' Lean Cottage Architectural Plans

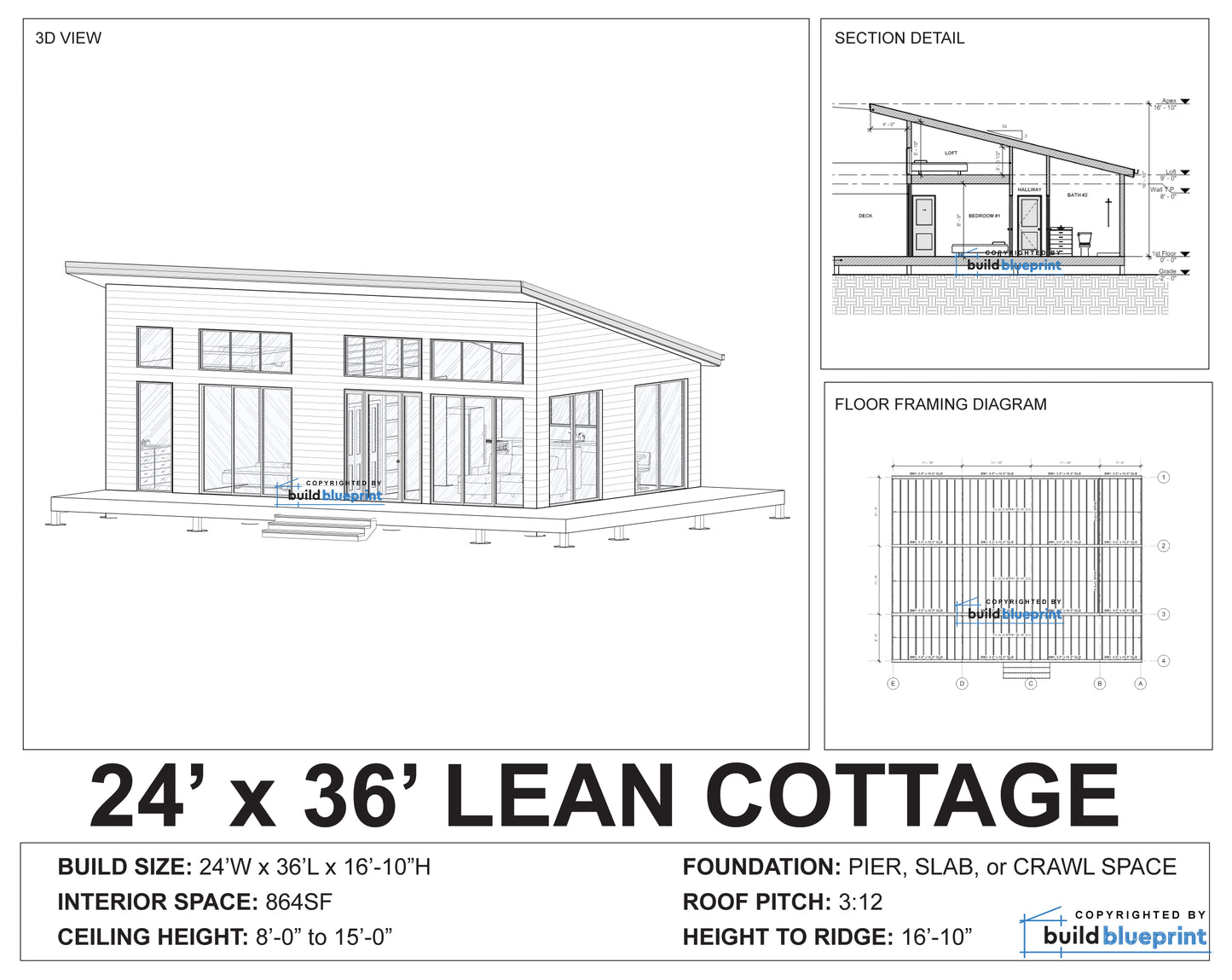

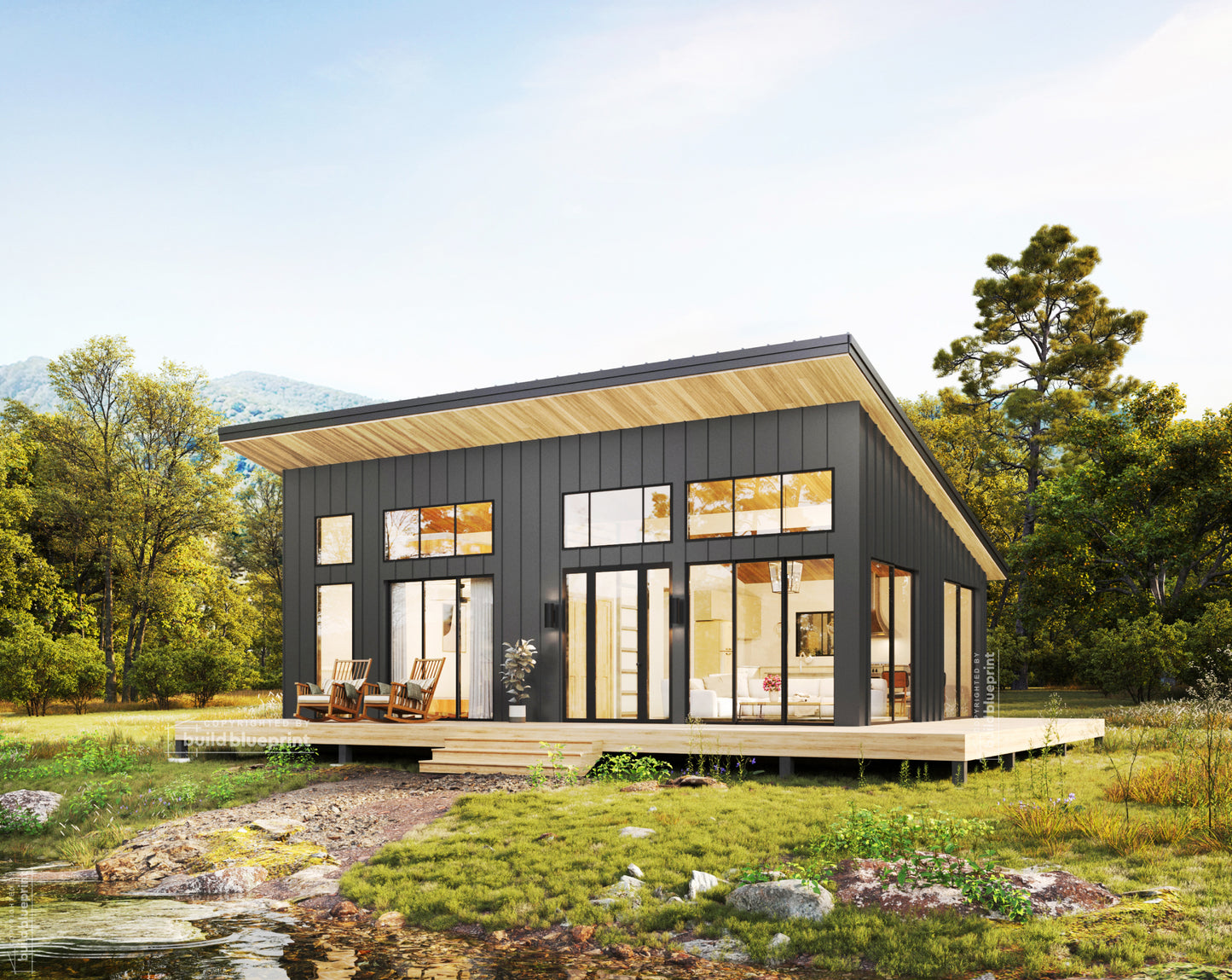

The 24' x 36' Lean Cottage is a two-bedroom, two-bathroom cottage with a loft — 864 square feet of efficiently organized living space under a clean shed roofline. This is the Lean Cottage series plan that crosses into genuine family-cabin territory: enough bedrooms and bathrooms to accommodate a family or a group of guests without anyone feeling cramped.
The contemporary shed roof gives this design a modern, architectural look that distinguishes it from conventional cabin styles. Two full bathrooms are a meaningful upgrade over most plans at this price point, eliminating morning bottlenecks and making this layout well suited to short-term rental use. Three foundation options — piers, slab, or crawlspace — let you match the build to your site conditions.
Plan Specifications
- Footprint: 24' W x 36' L
- Height: 16'-10"
- Floor Area: 864 SF + loft
- Bedrooms: 2 + loft
- Bathrooms: 2

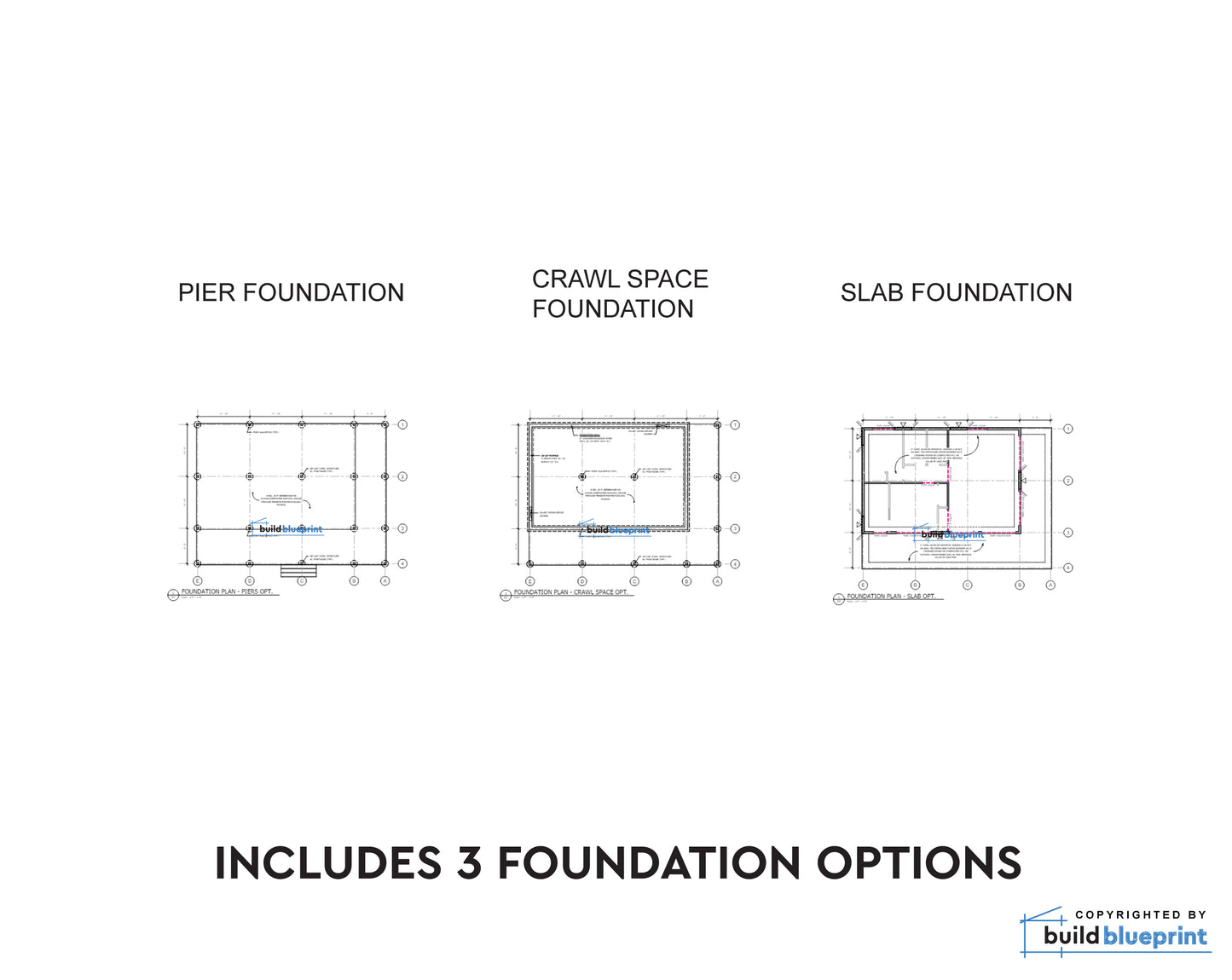

- Foundation: Concrete piers, slab, or crawlspace
- Roof Load: 95 PSF
- Ceiling Height: 8'-0" to vaulted
- Est. Materials Cost: From $55,000
What's Included

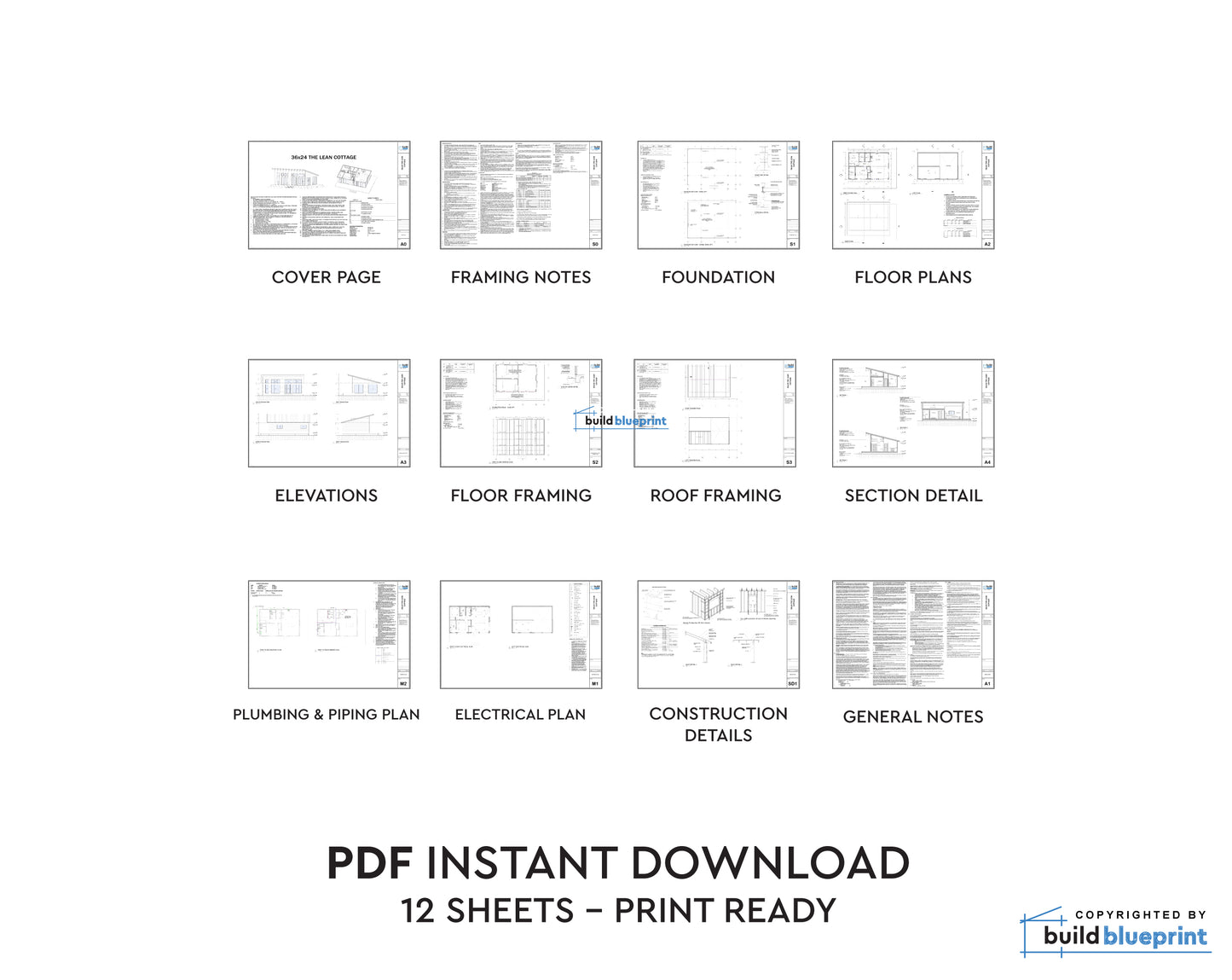

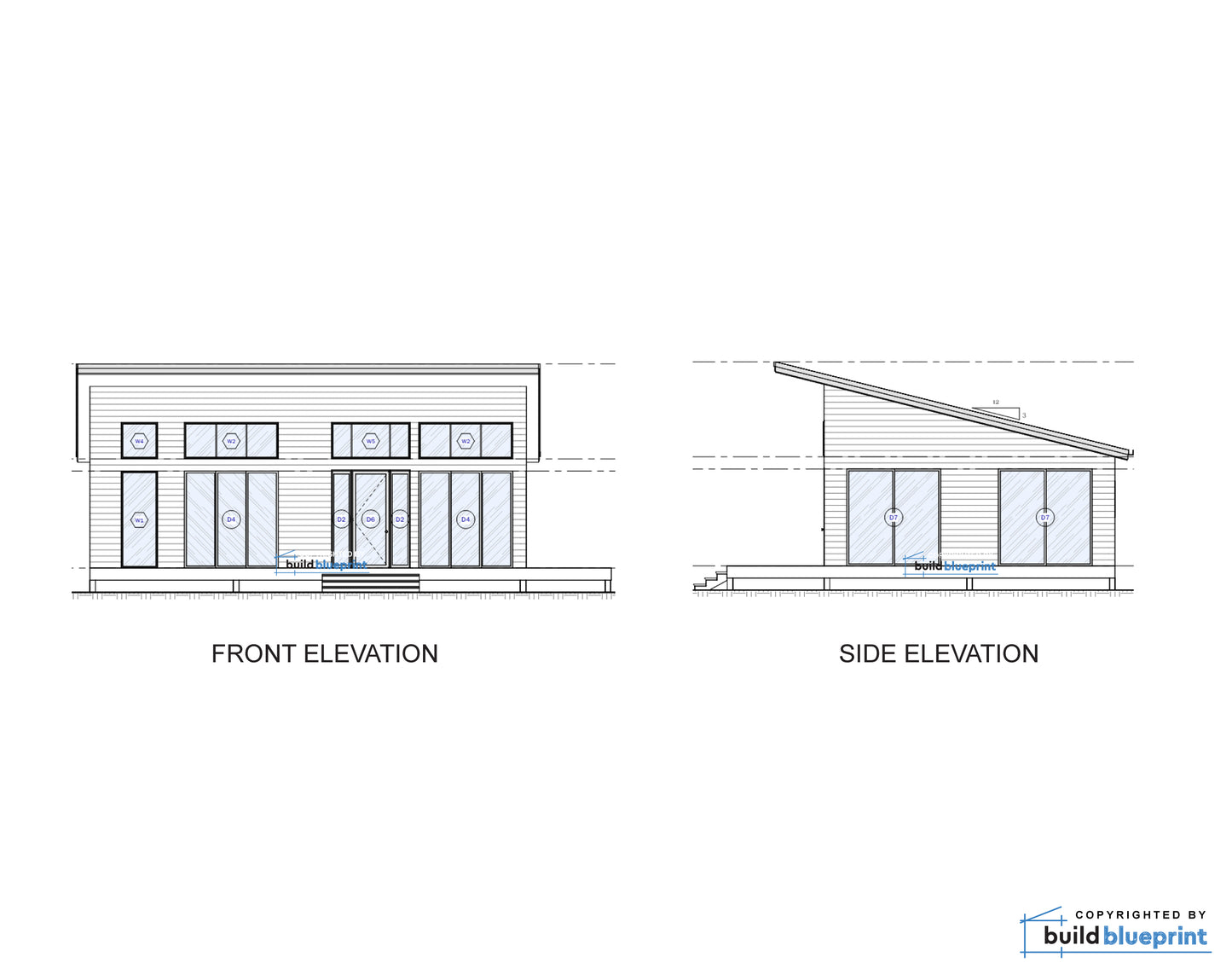

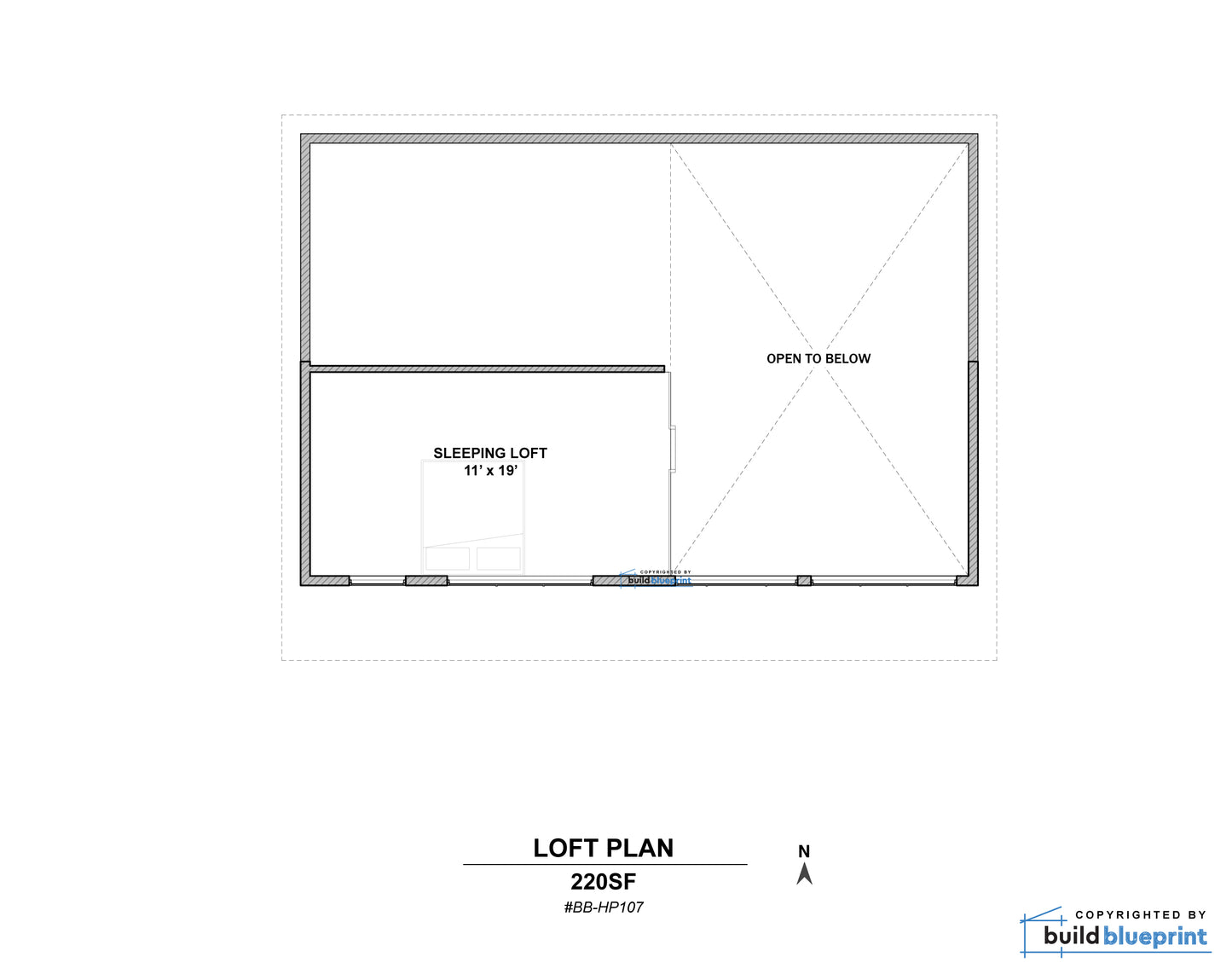

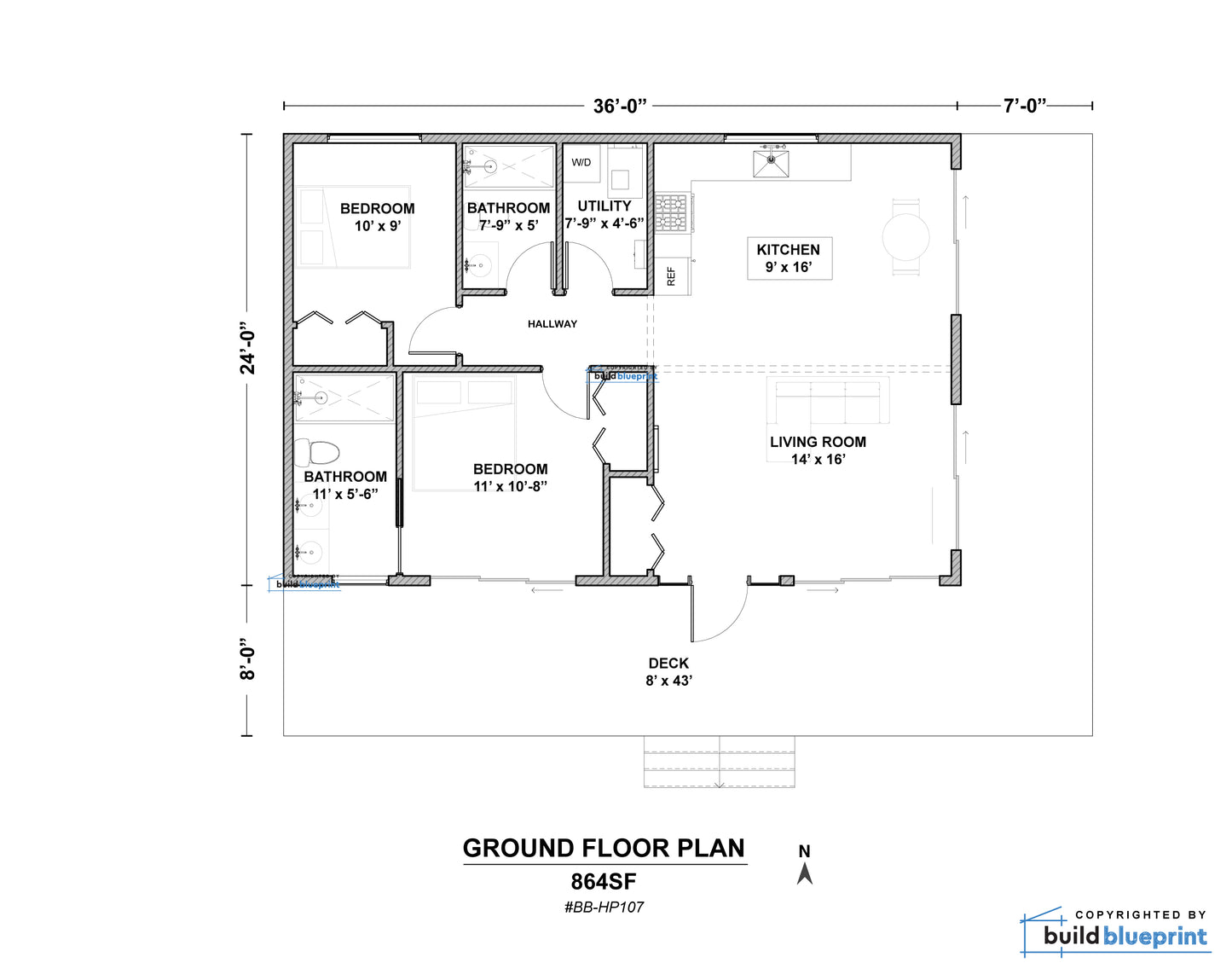

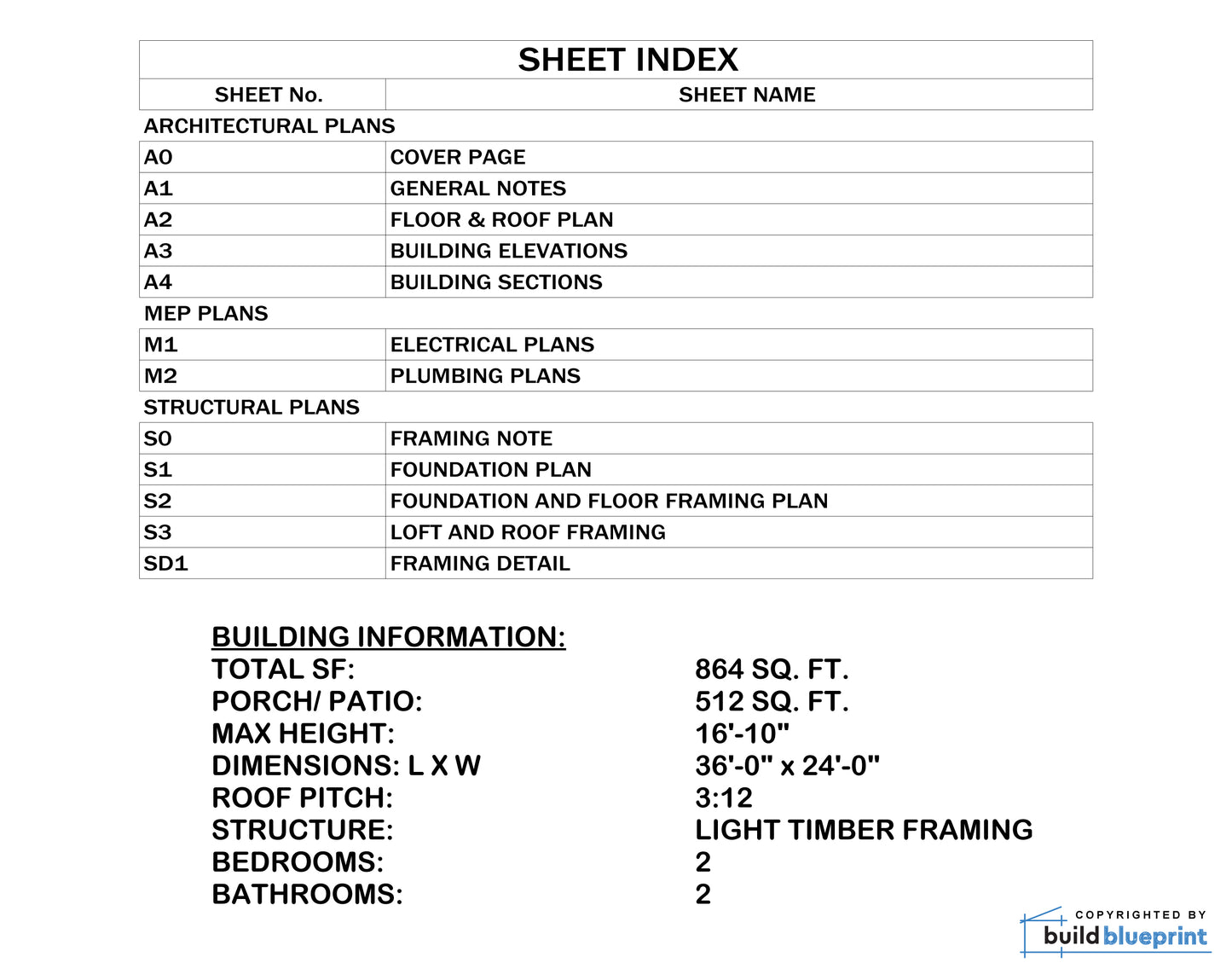

Complete permit-ready plan set including: floor plan, loft plan, foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Ready for building permit submission in most US jurisdictions.
Available Plan Options
- Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
- PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.
Who This Plan Is For
The two-bathroom layout makes this a standout choice for vacation rental investors — two bathrooms at under 900 square feet is a rare configuration that commands stronger nightly rates. Also well suited for families building a permanent cabin retreat or full-time rural residence. The modern shed roofline photographs well and appeals to buyers who want a cabin that looks current, not dated.
Instant Download
Your complete plan set downloads immediately after purchase.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set
All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
