24' x 36' Modern A-Frame Cabin Architectural Plans

24' x 36' Modern A-Frame Cabin Architectural Plans

$225.00 USD
$225.00 USD
Sale Sold out
1150 SF (24'W x 36'L x 26'-11"H)
2 Bedrooms / 1 Bathroom
Concrete Piers
Roof Load: 95 PSF
Ceiling Height: 8'-0"
Est. Materials Cost: $60,000*

Complete architectural plans to build a modern A-frame style cabin, with farmhouse style interiors and double height ceiling height. Suitable to be built on any plot of land. A-frame cabins are designed to be easier and cheaper to build, and consumes less energy than a regular cabin. Elevated off the ground helps to avoid moisture and flooding.

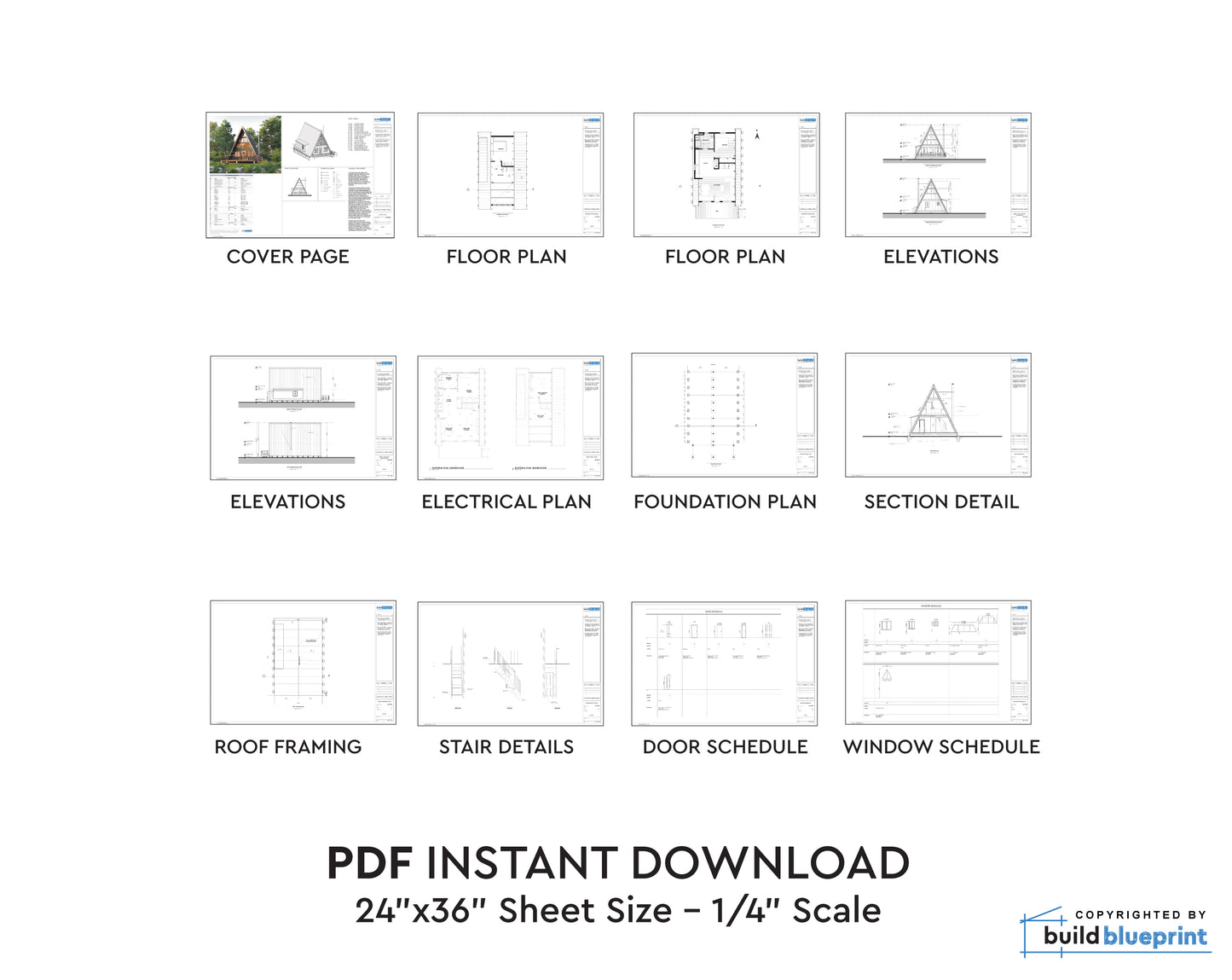

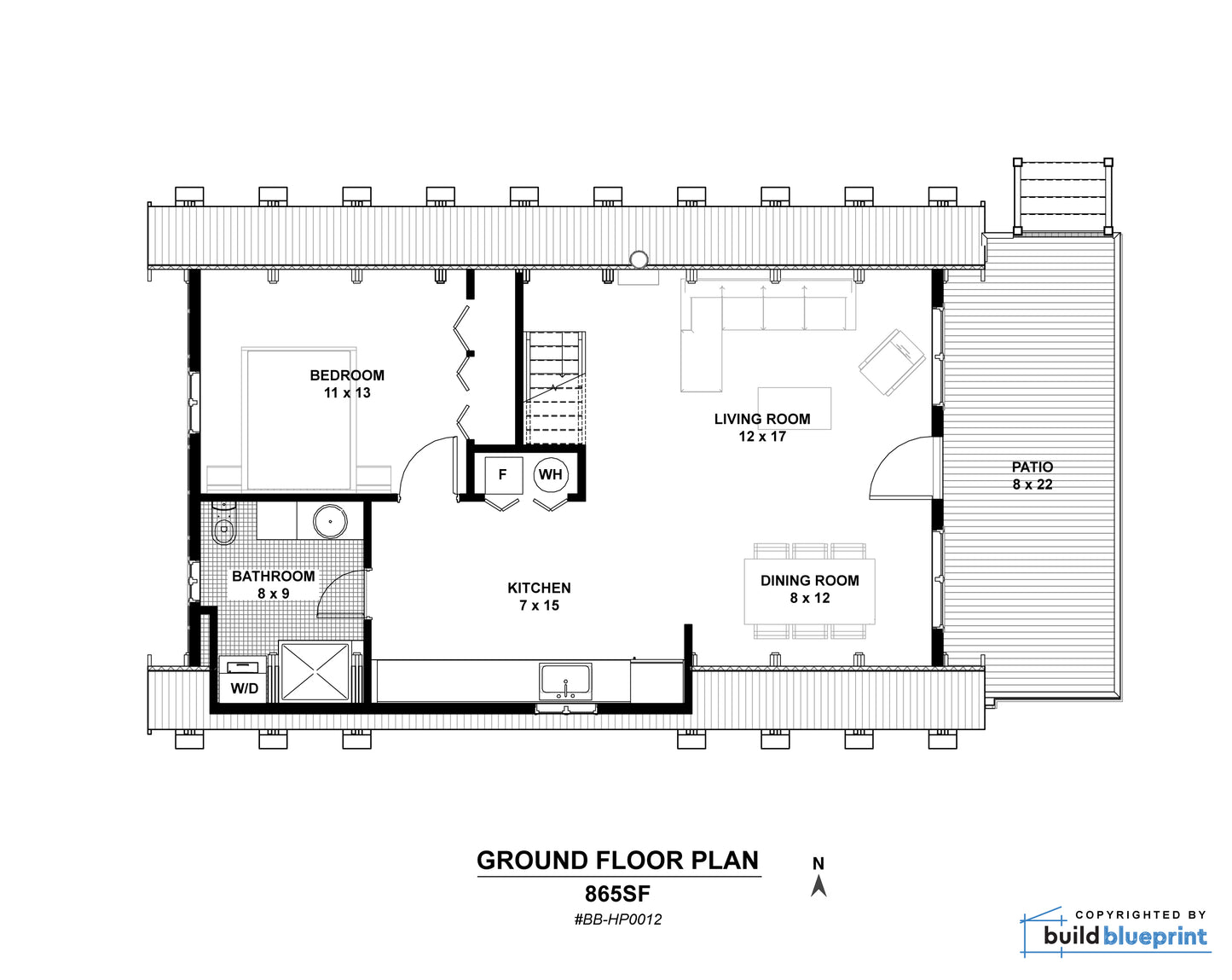

The plans include Materials List, Floor Plan, Foundation Plan, Elevations, Roof framing Plan, Electrical Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 1150SF, with high ceilings. Due to variation in different States and local building departments, these plans are not intended for immediate permitting, but can be adjusted by your builder or designer if required. Modifications and custom plans are available upon on request.

Plan is available in both Imperial and Metric units.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
