24' x 36' Nordic A-Frame House Architectural Plans

24' x 36' Nordic A-Frame House Architectural Plans

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
1145 SF (24'W x 36'L x 21'-6"H)

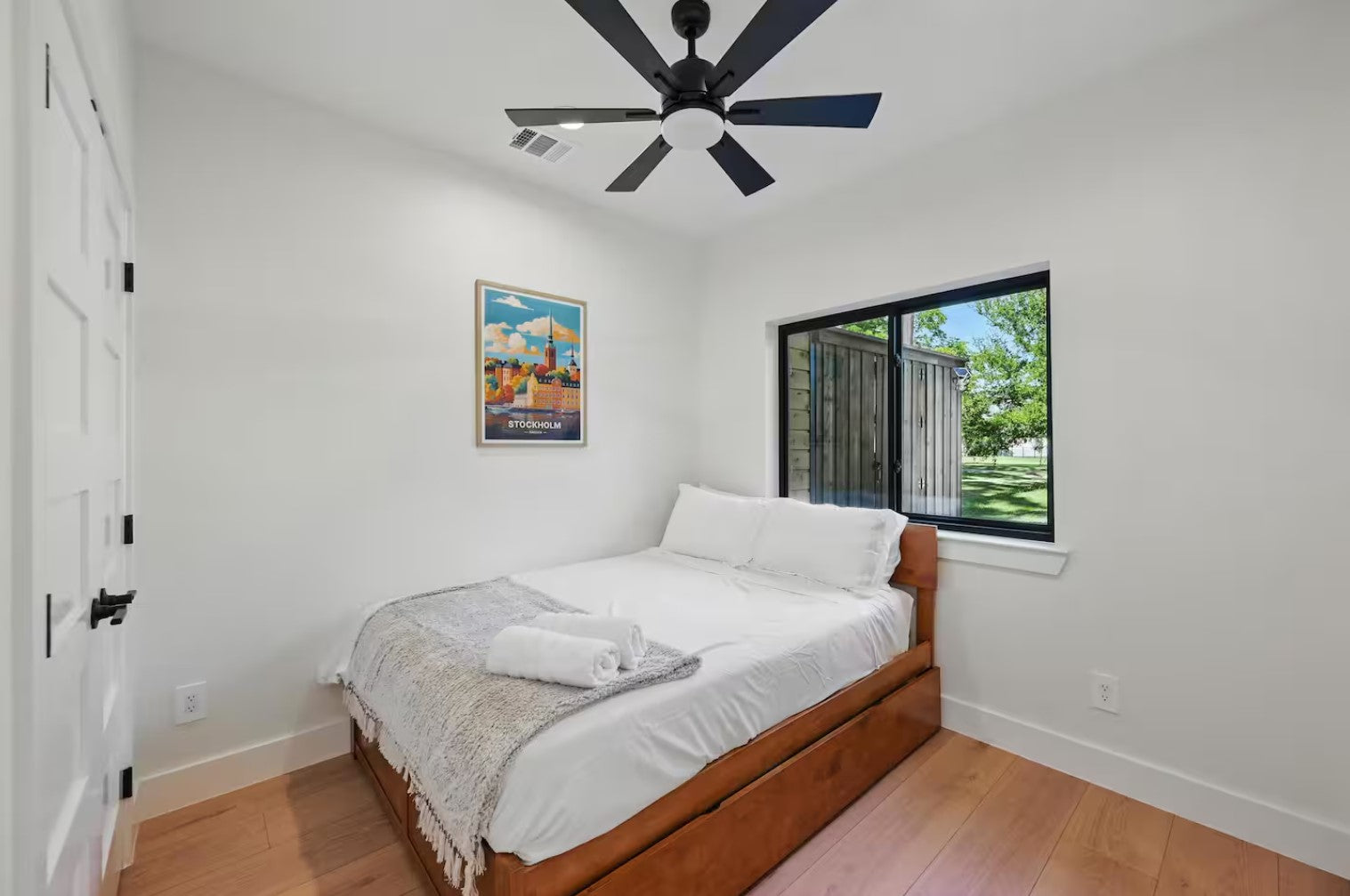

3 Bedrooms / 1 Bathroom

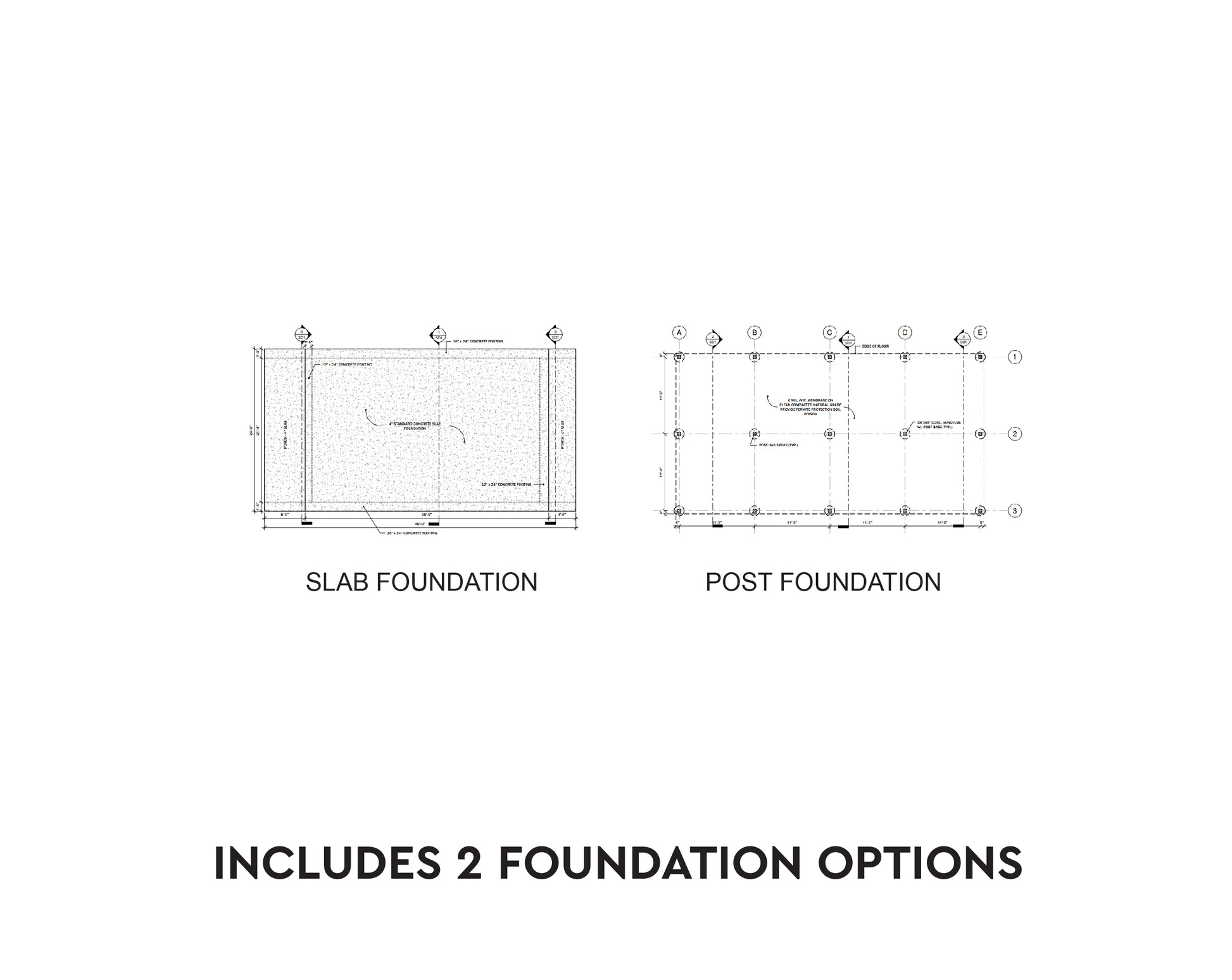

Concrete Pier or Slab
Wind Load: 115 PSF
Ceiling Height: 8'-0"
Est. Materials Cost: $75,000*

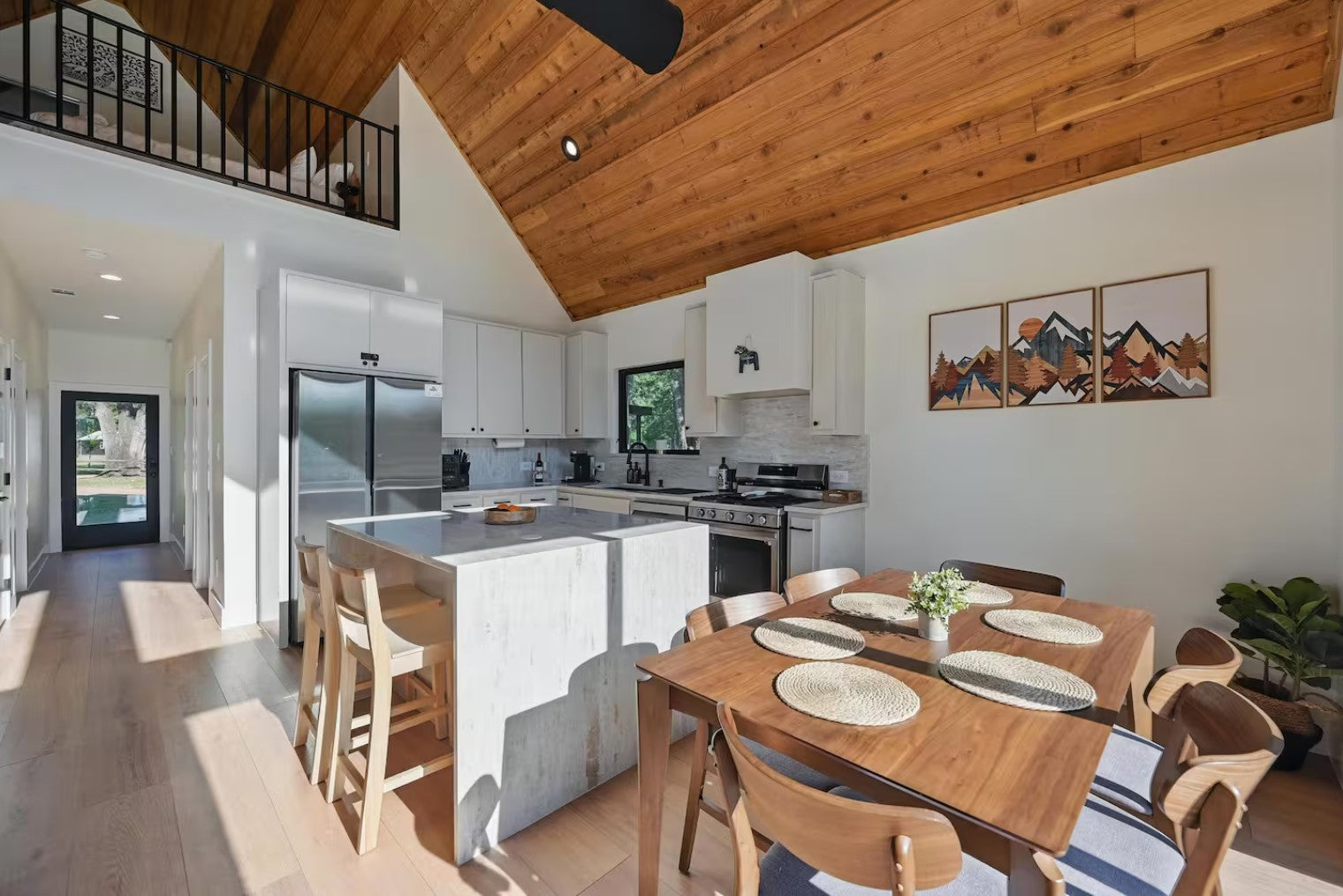

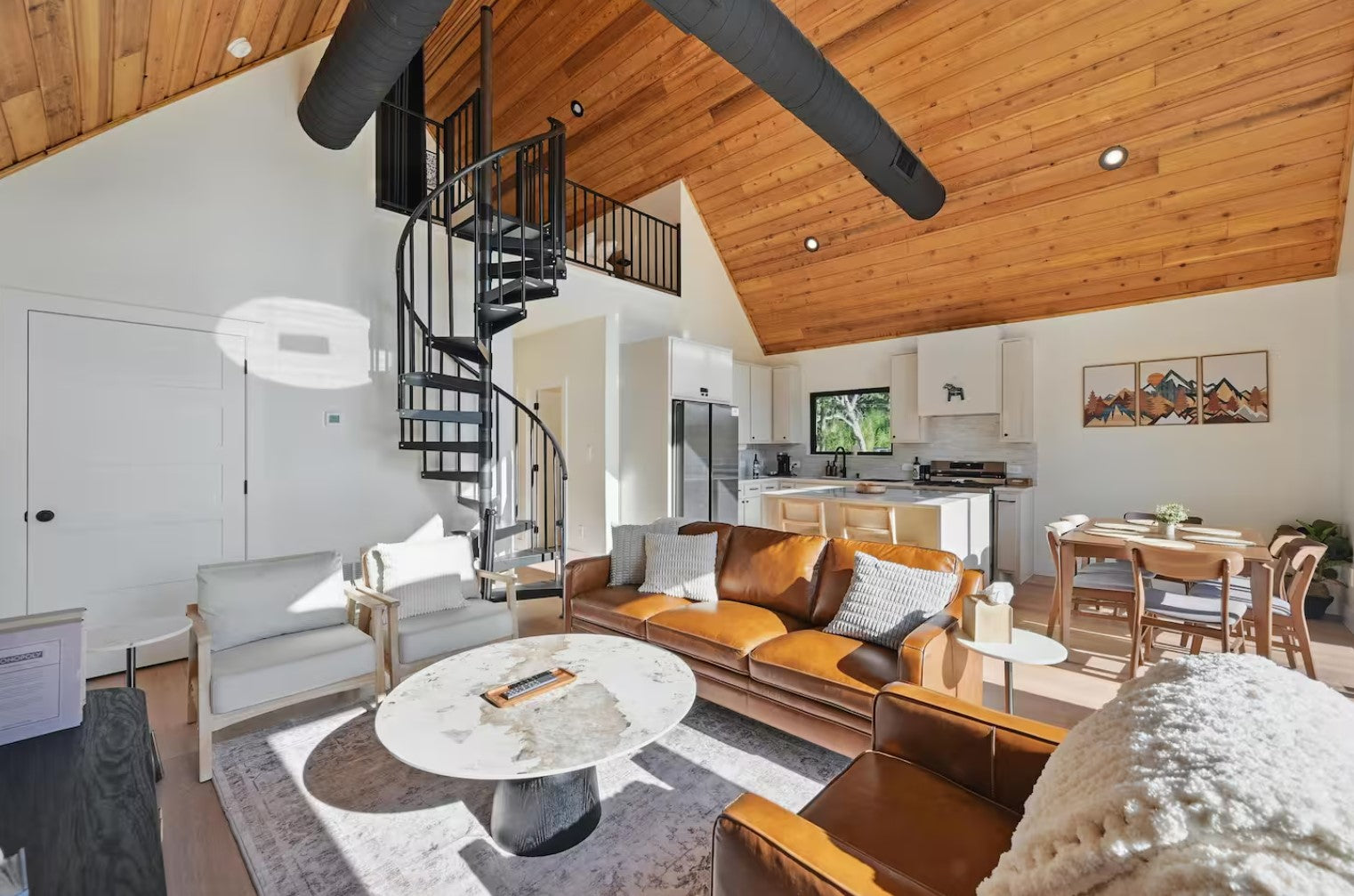

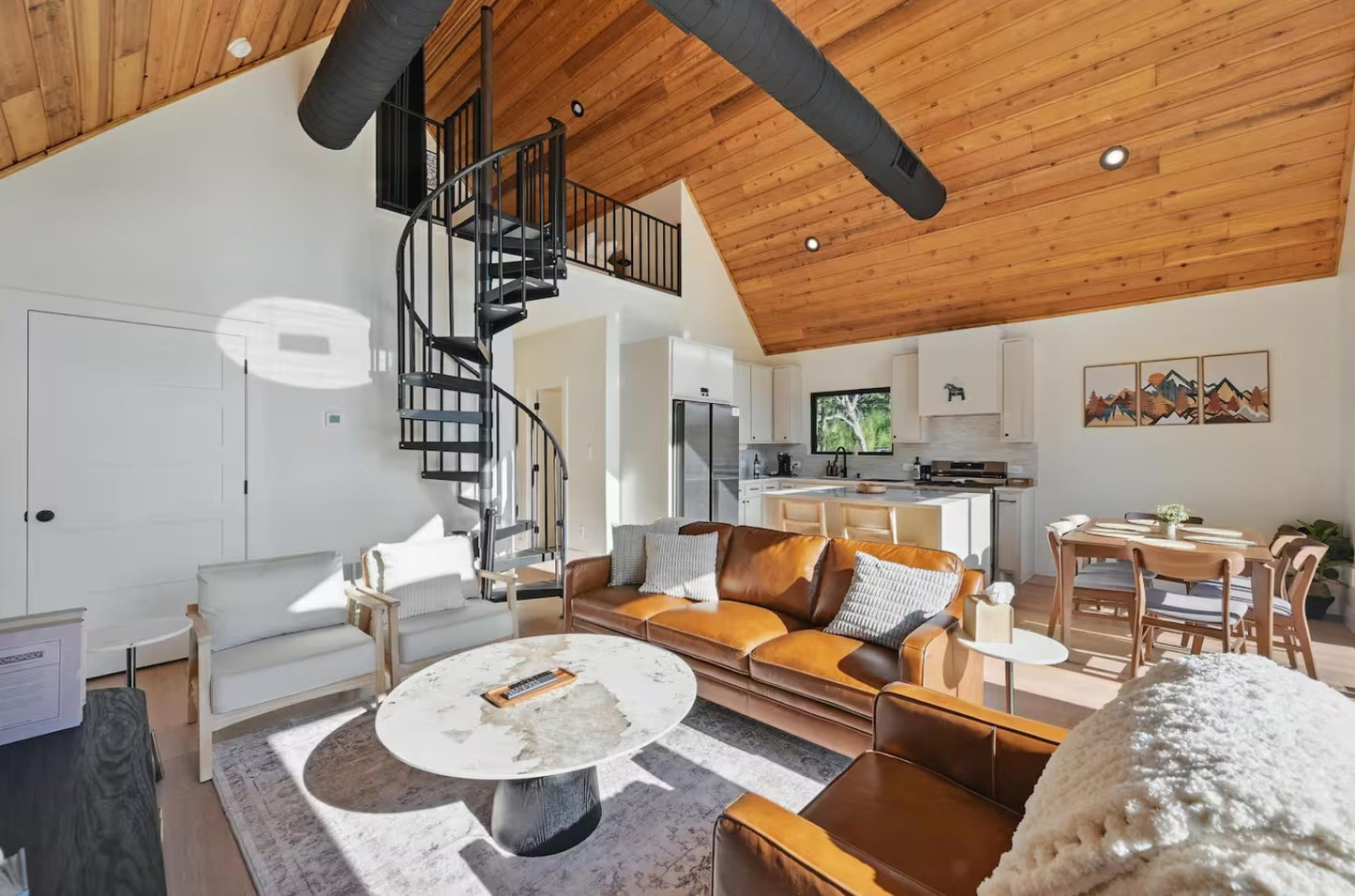

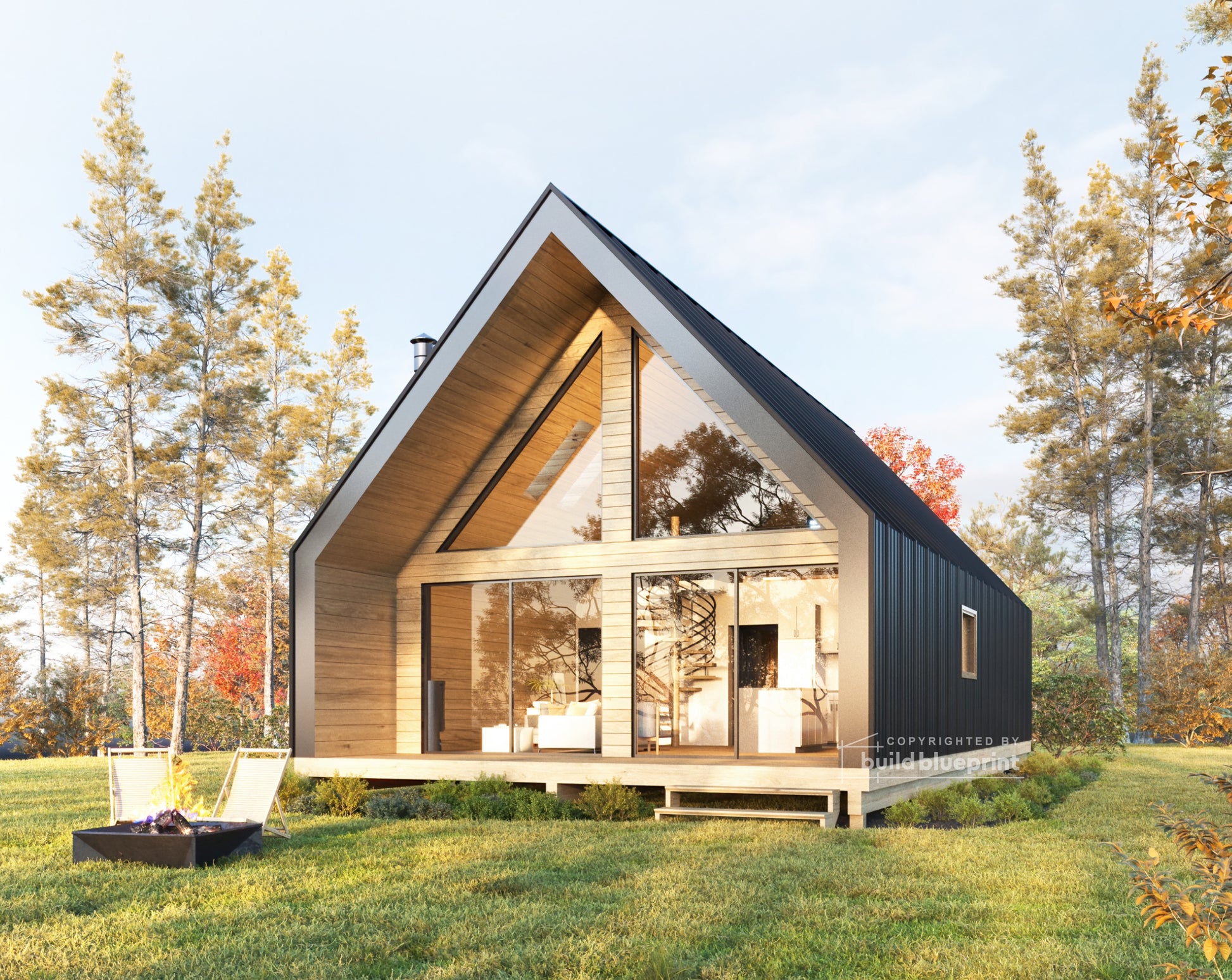

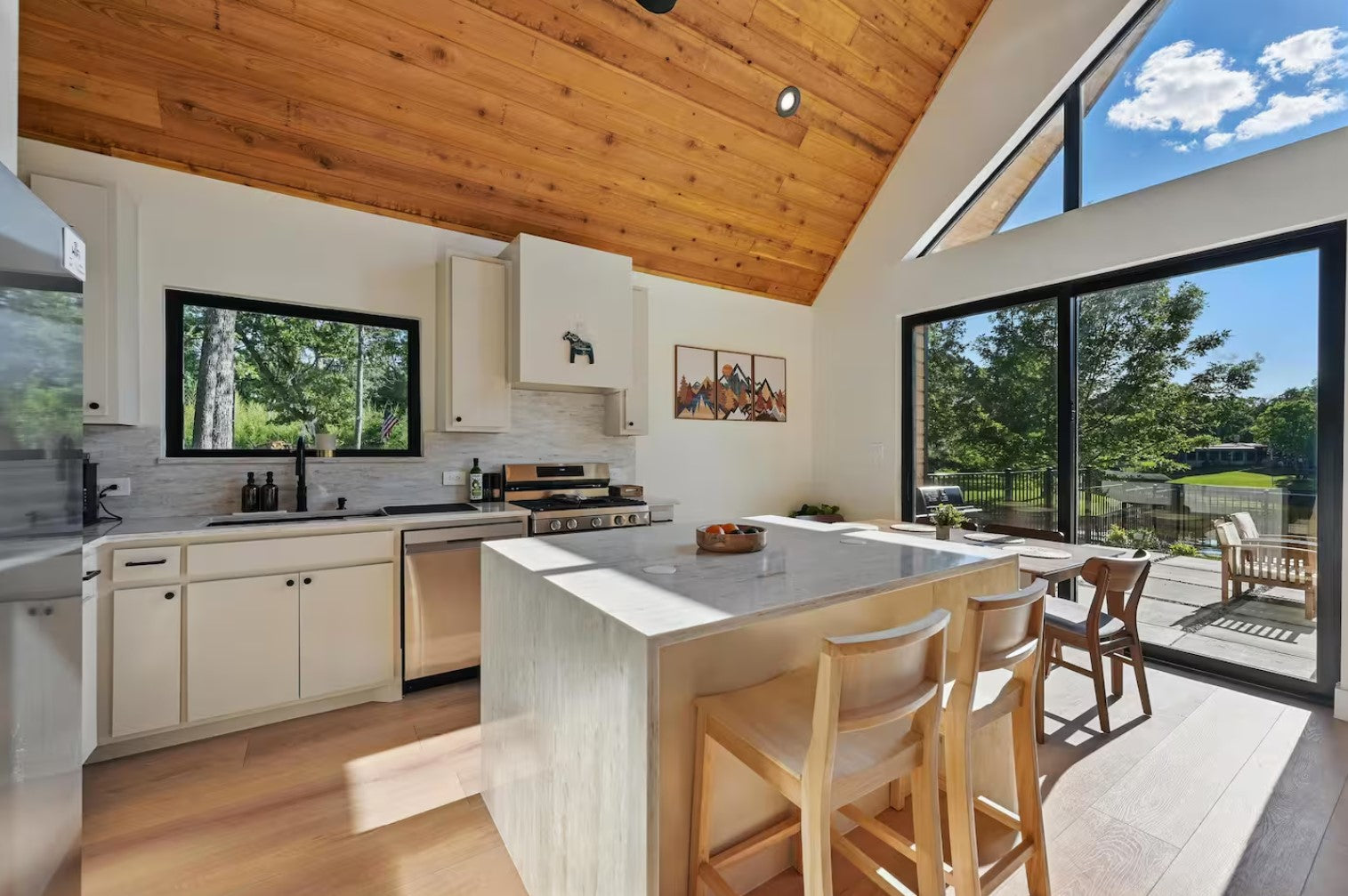

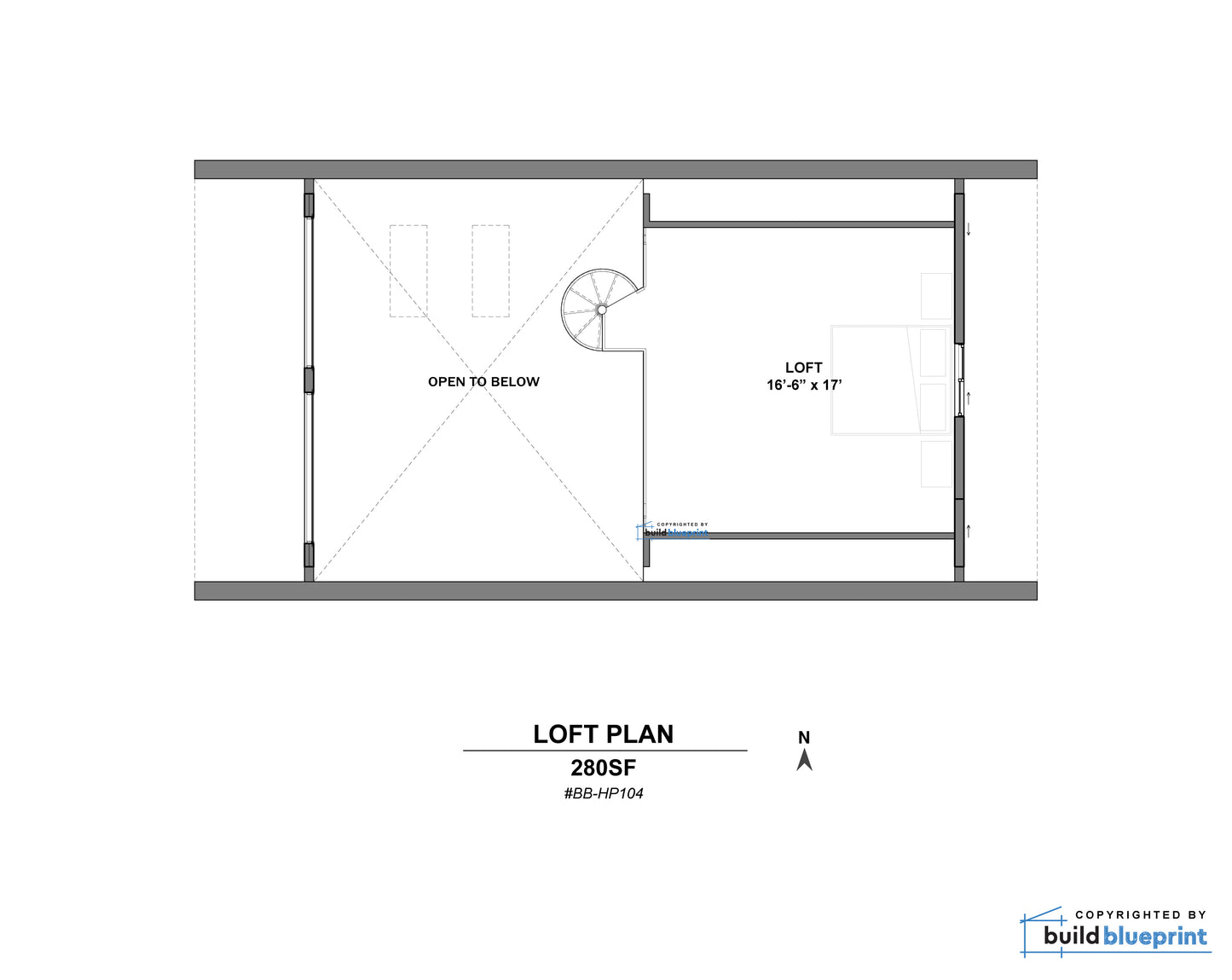

This is the complete architectural plan set of a modern Nordic style A-frame house, great for Air BnB rentals or off-grid building sites. These plans are ready for construction, and suitable to be built on any plot of land. This cabin is complete with front deck, double height ceiling, a large loft, large windows for natural light, and washer/dryer. The interior space is designed to comfortably sleep a family of 3-4 people.

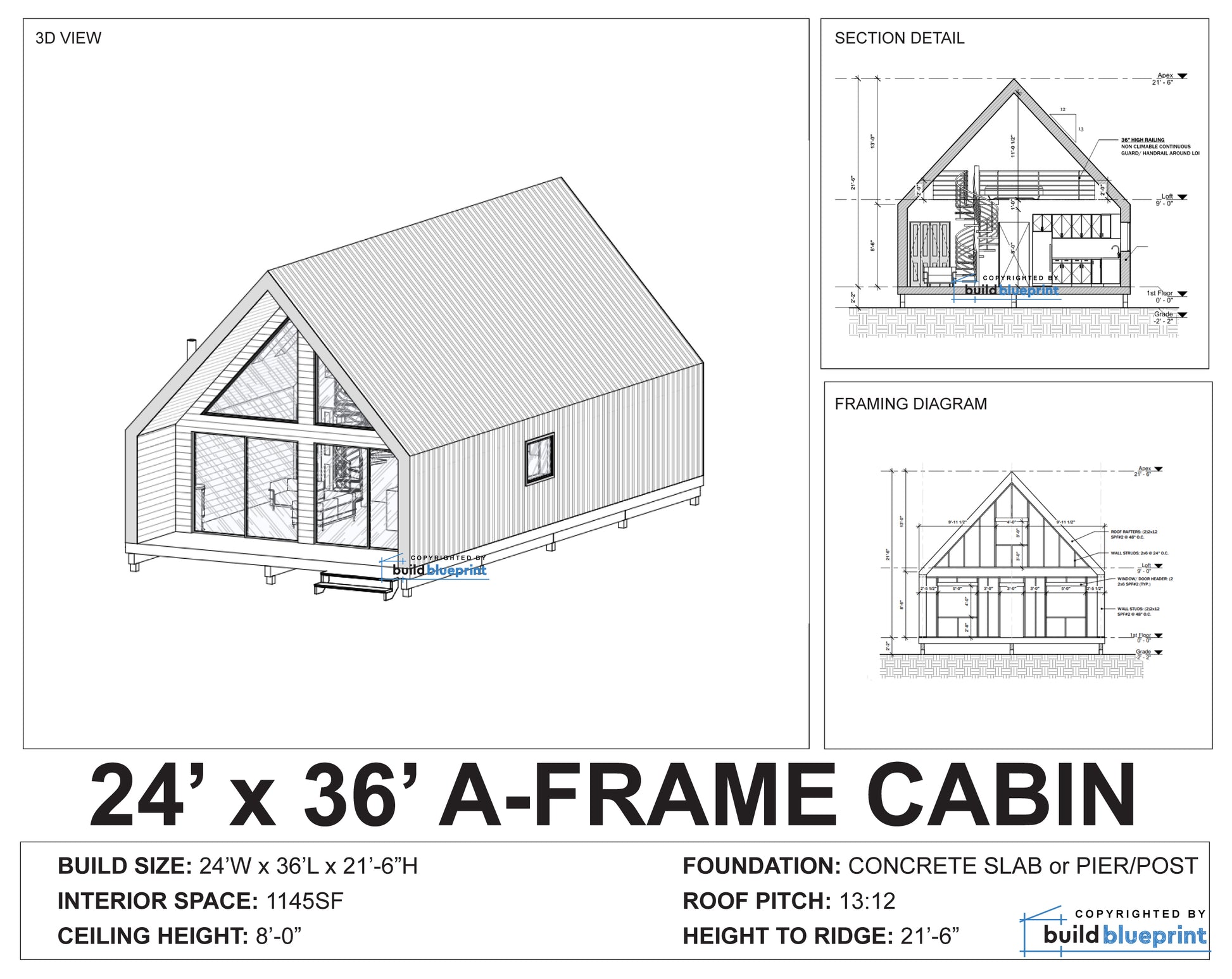

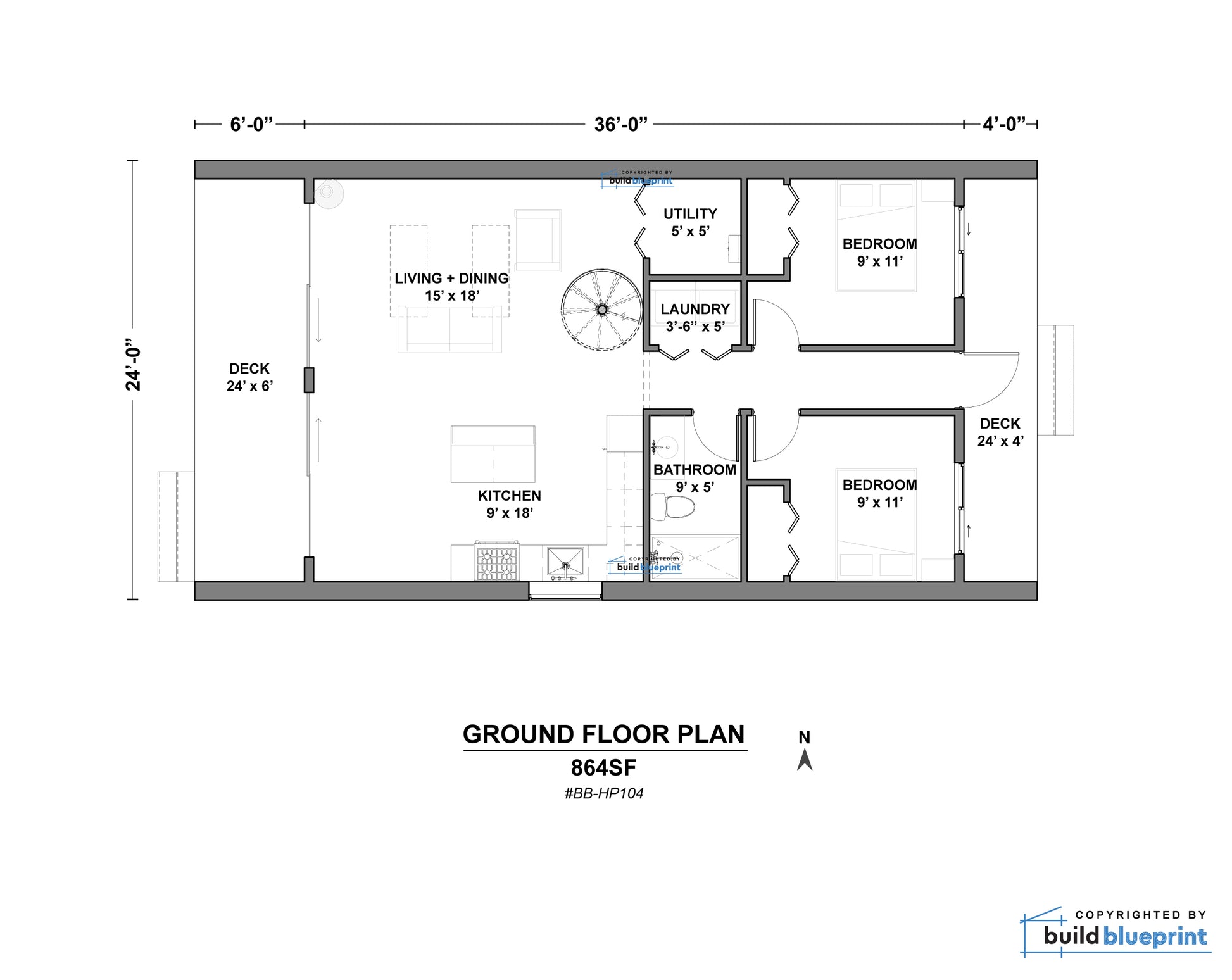

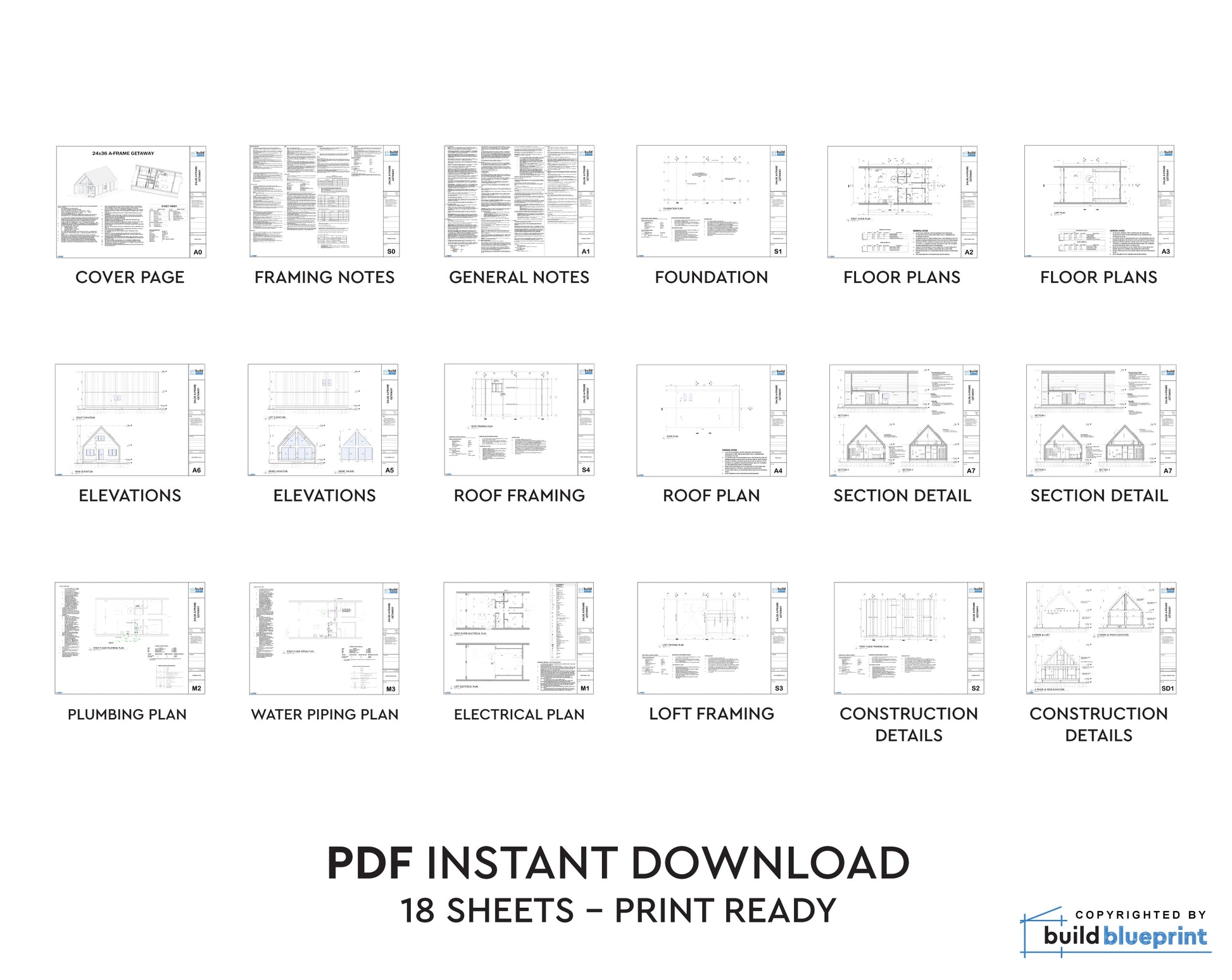

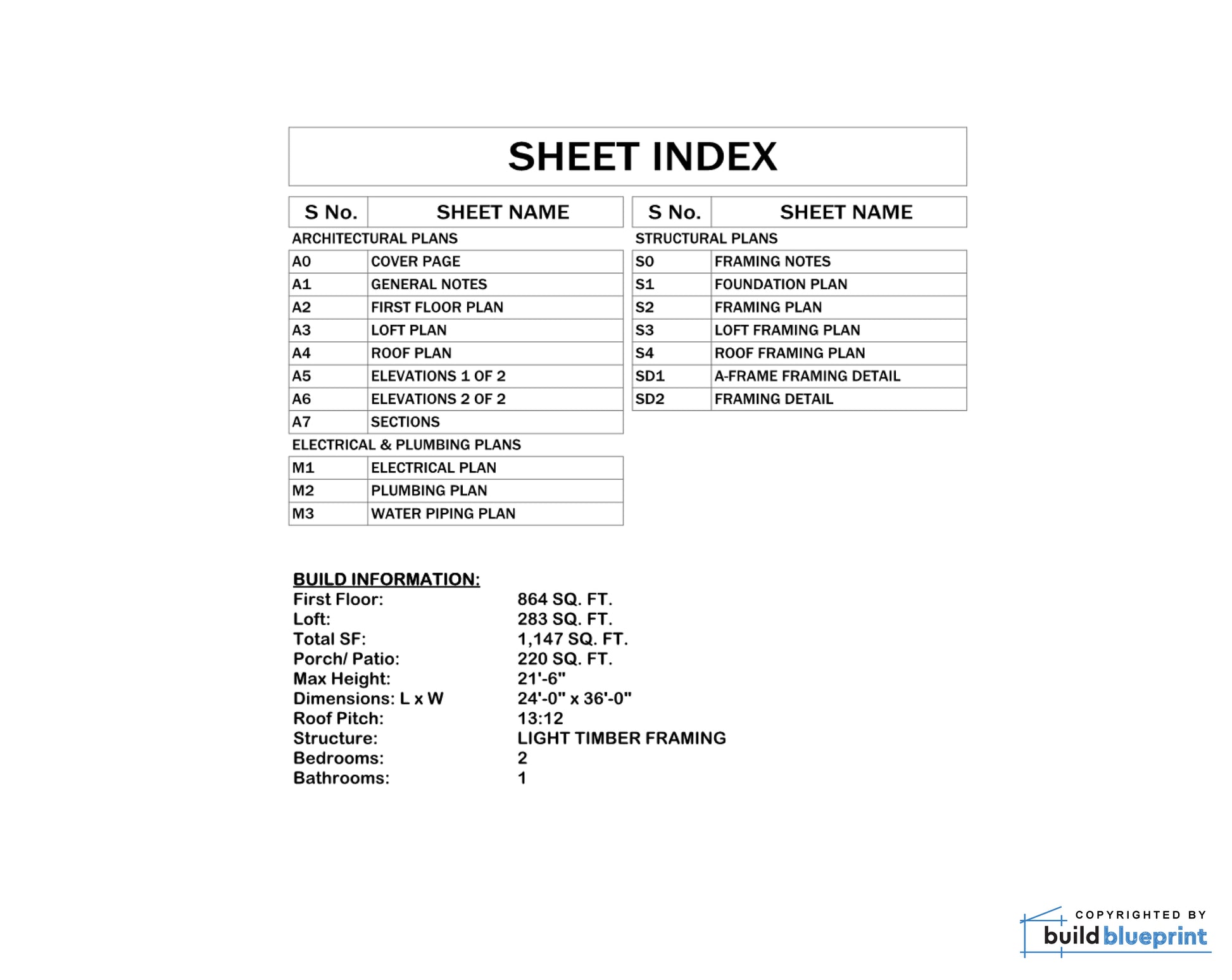

The plans include 18 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Floor Framing, Roof Framing Plan, Electrical Plan, Plumbing Plan, Sections, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 1145SF. Plans are designed per US standards.


Size: 24'x36'
Total Area: 1145 SF

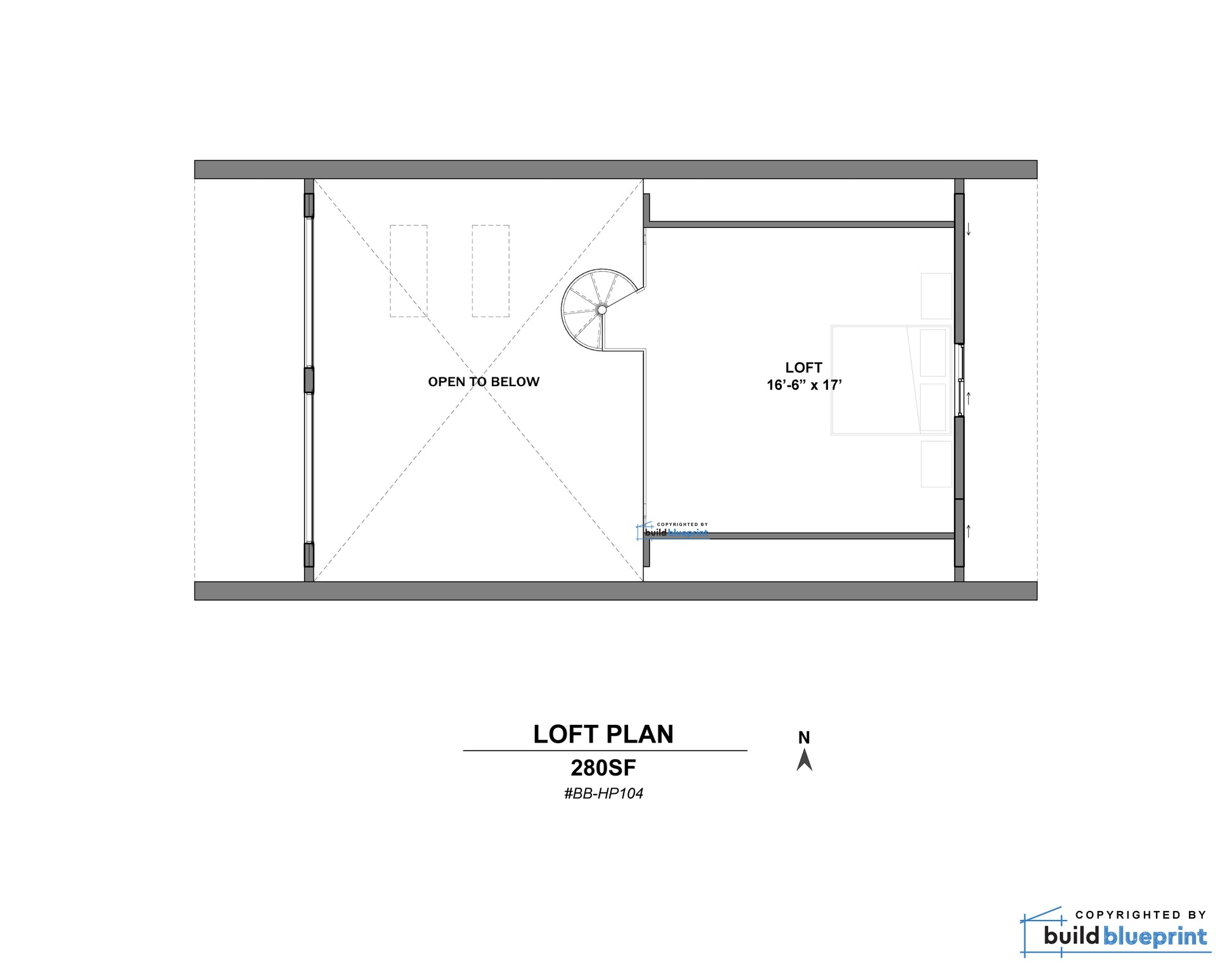

Bedrooms: 2 + 1 Loft
Bathrooms: 1
Wind Load: 115 MPH
Foundation: Concrete Piers

Plan is available in both Imperial and Metric units.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Complete Plan Set

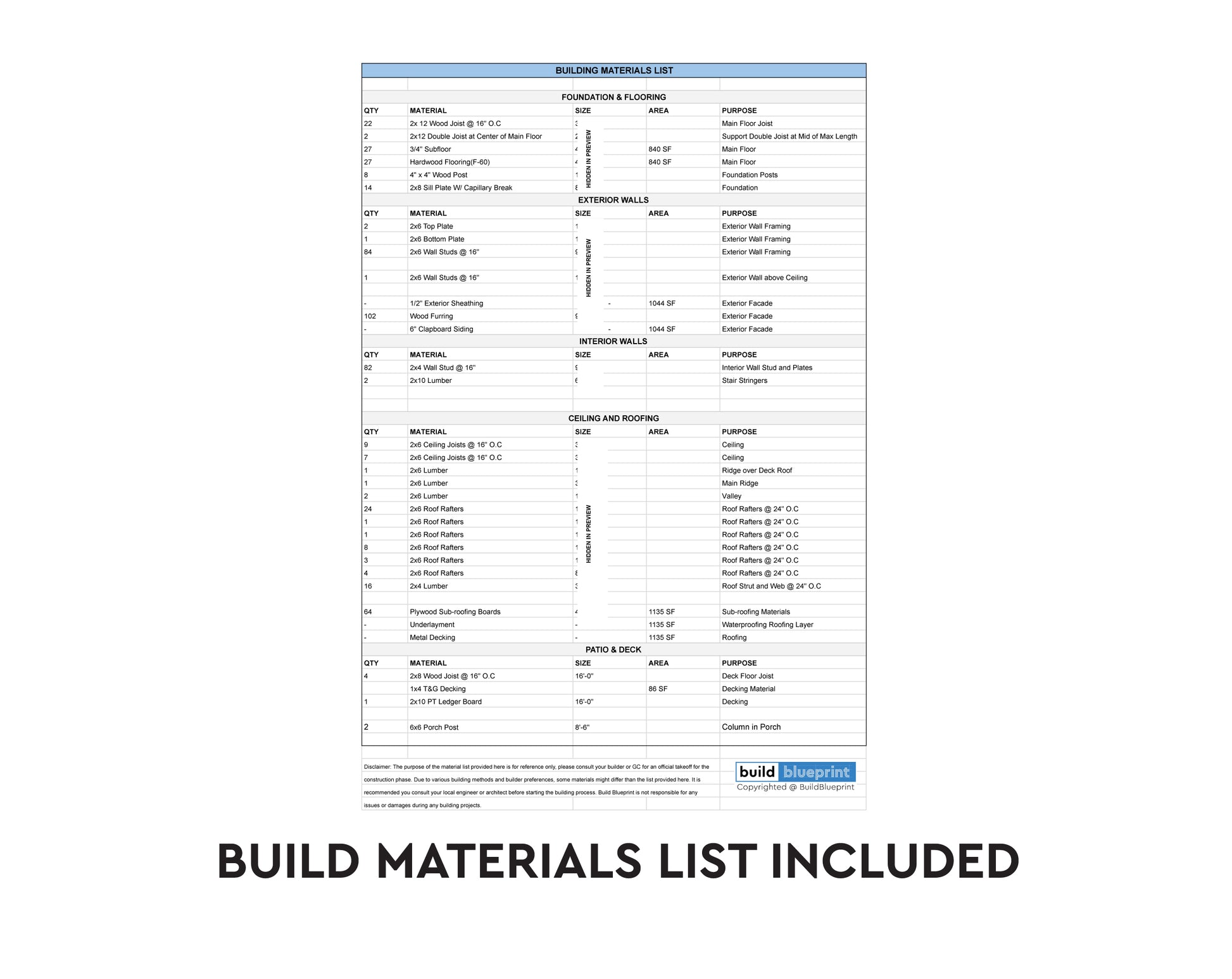

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
