28' x 28' Hilltop Hideout Cabin Architectural Plans
28' x 28' Hilltop Hideout Cabin Architectural Plans
Couldn't load pickup availability
| 1238 SF (28'W x 28'L x 24'-3"H) |
| 3 Bedrooms / 2 Bathrooms |
| Walkout Basement |
| Gabel Roof |
| Ceiling Height: 8'-0" |
| Est. Materials Cost: $120,000* |
Complete architectural plan set to build the perfect getaway cabin on any vacant site. This 1238SF modern cabin is designed with a walkout basement layout, ideal for any type of site elevations. Large windows in the living area allows for ample amount of natural light into this 3 bedroom and 2 bathroom house. Great design for a big family or used as AirBNB or short term rental.

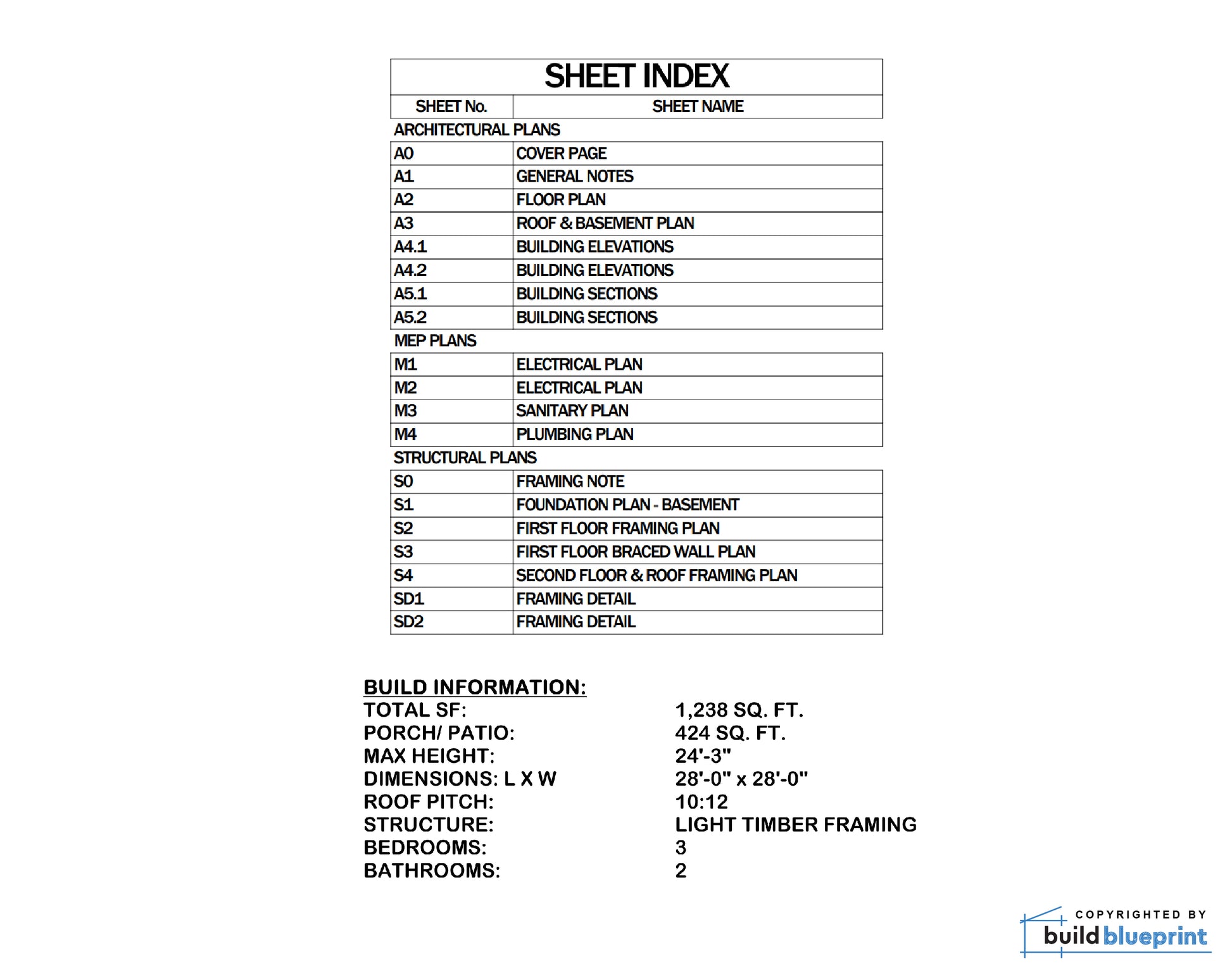

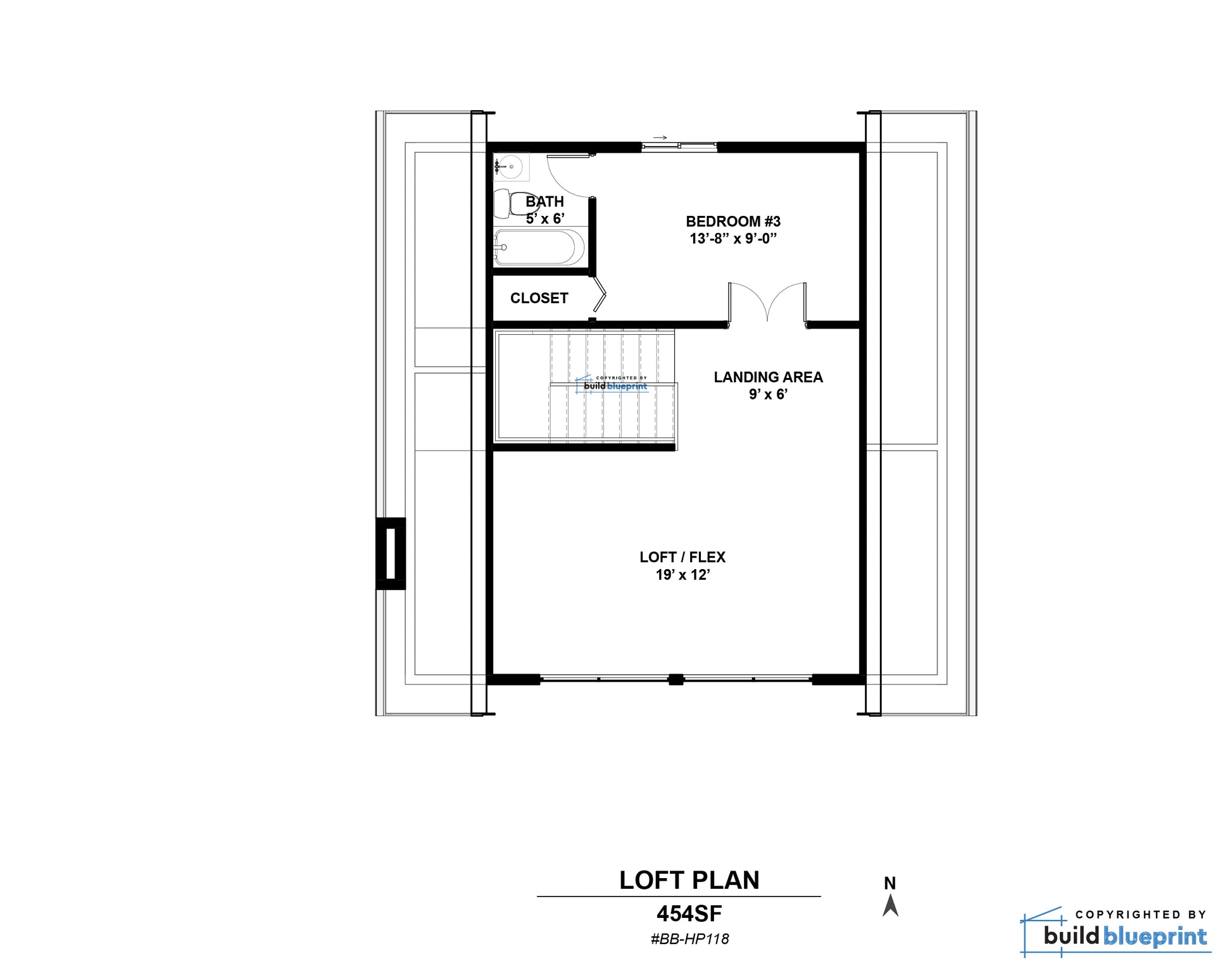

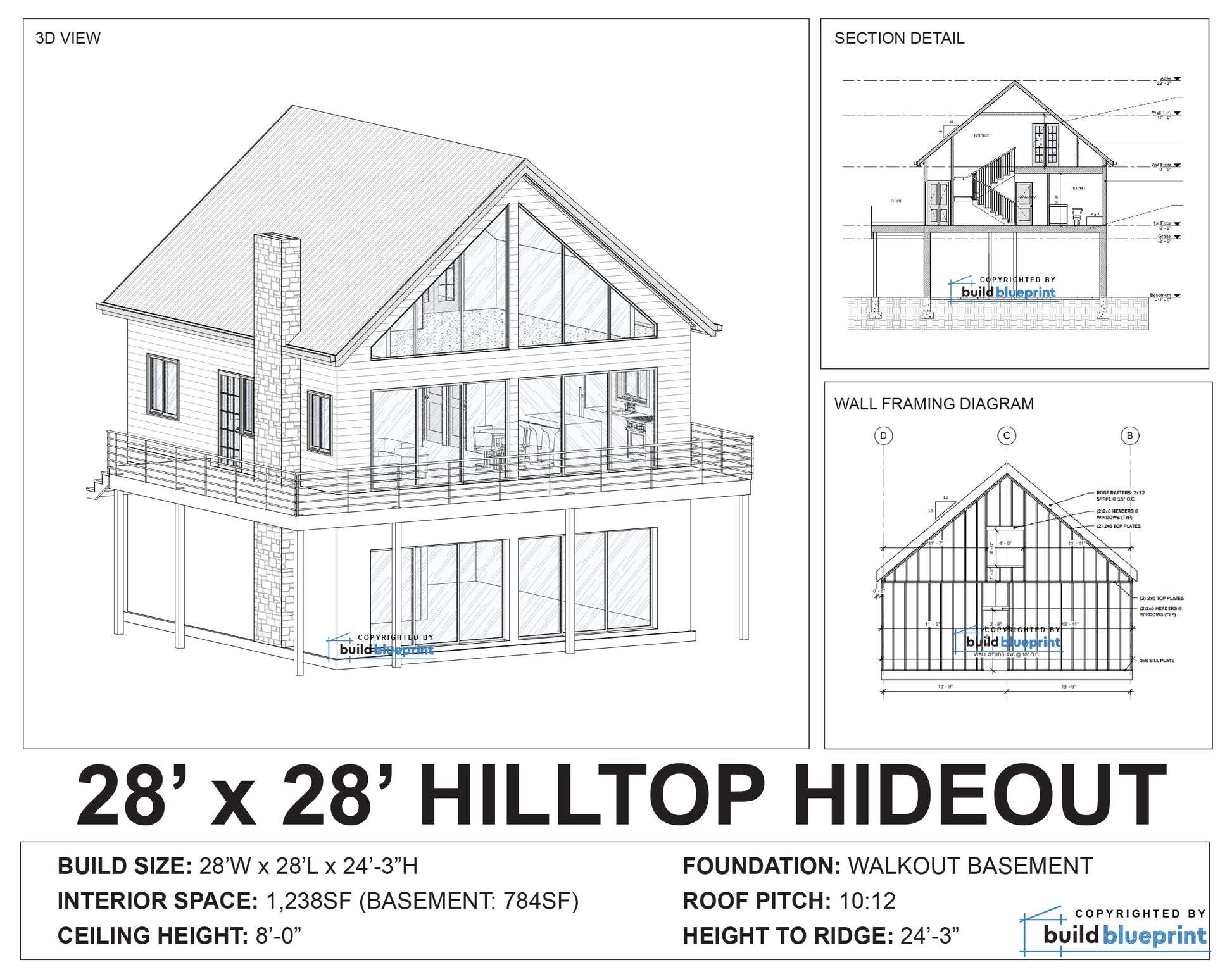

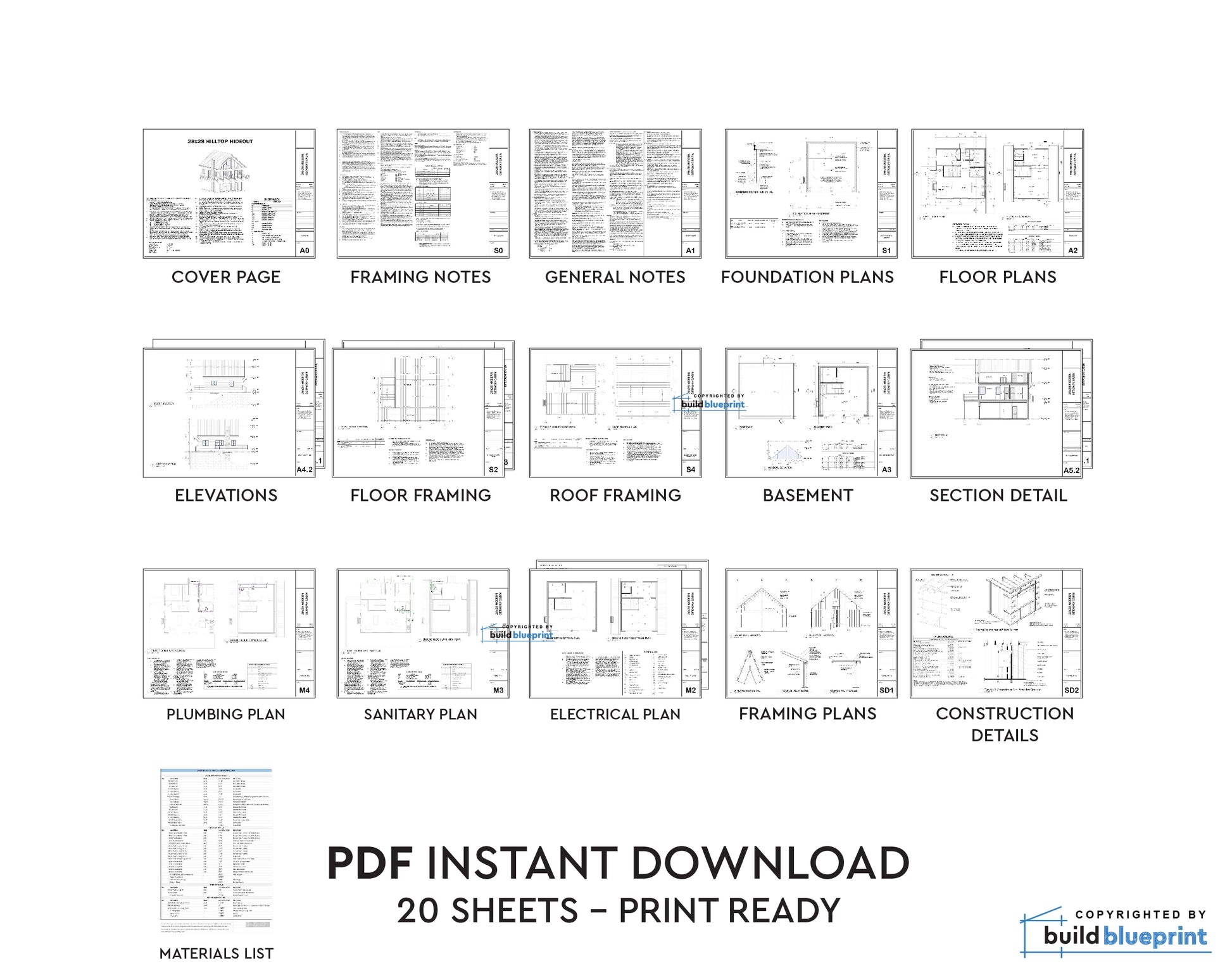

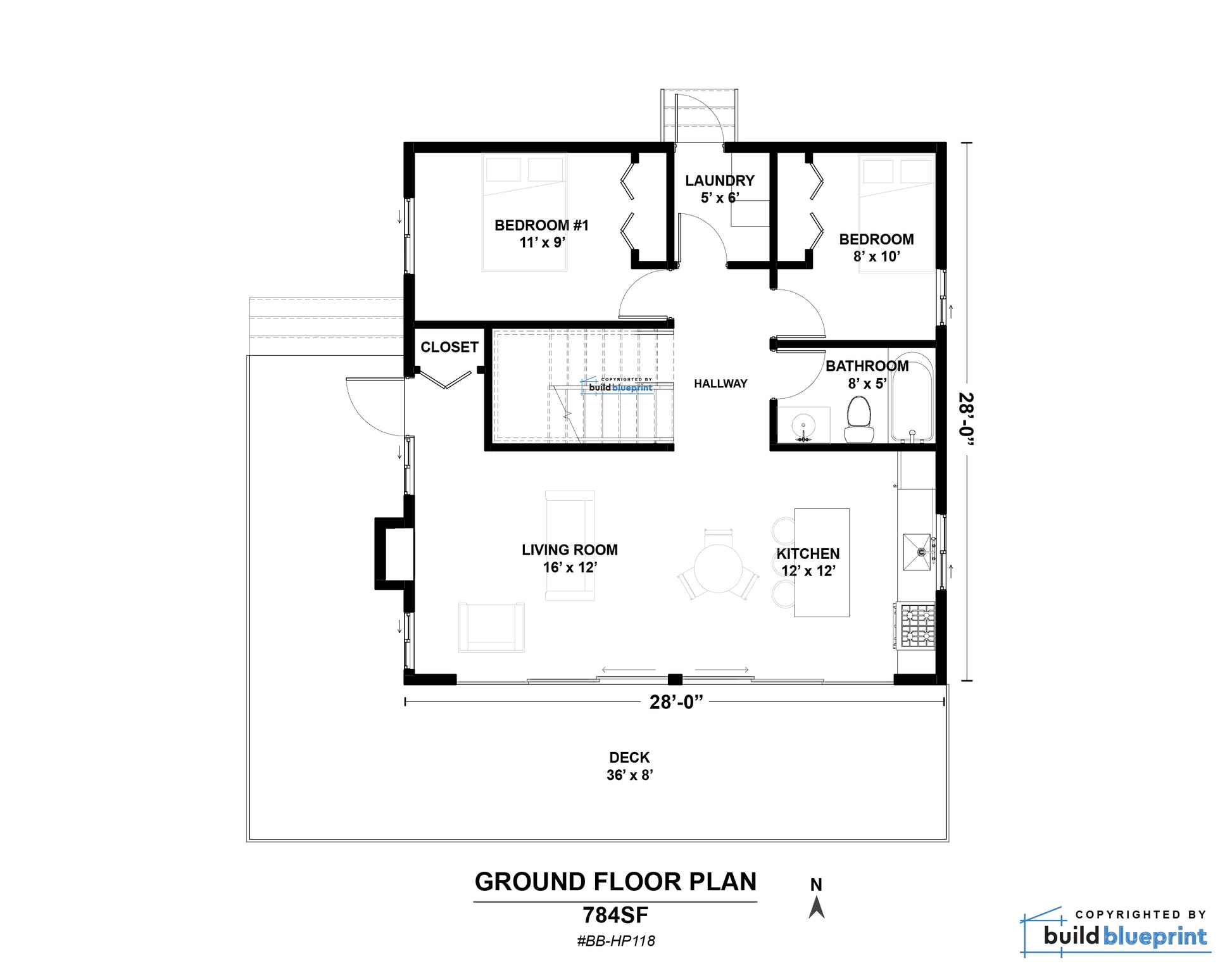

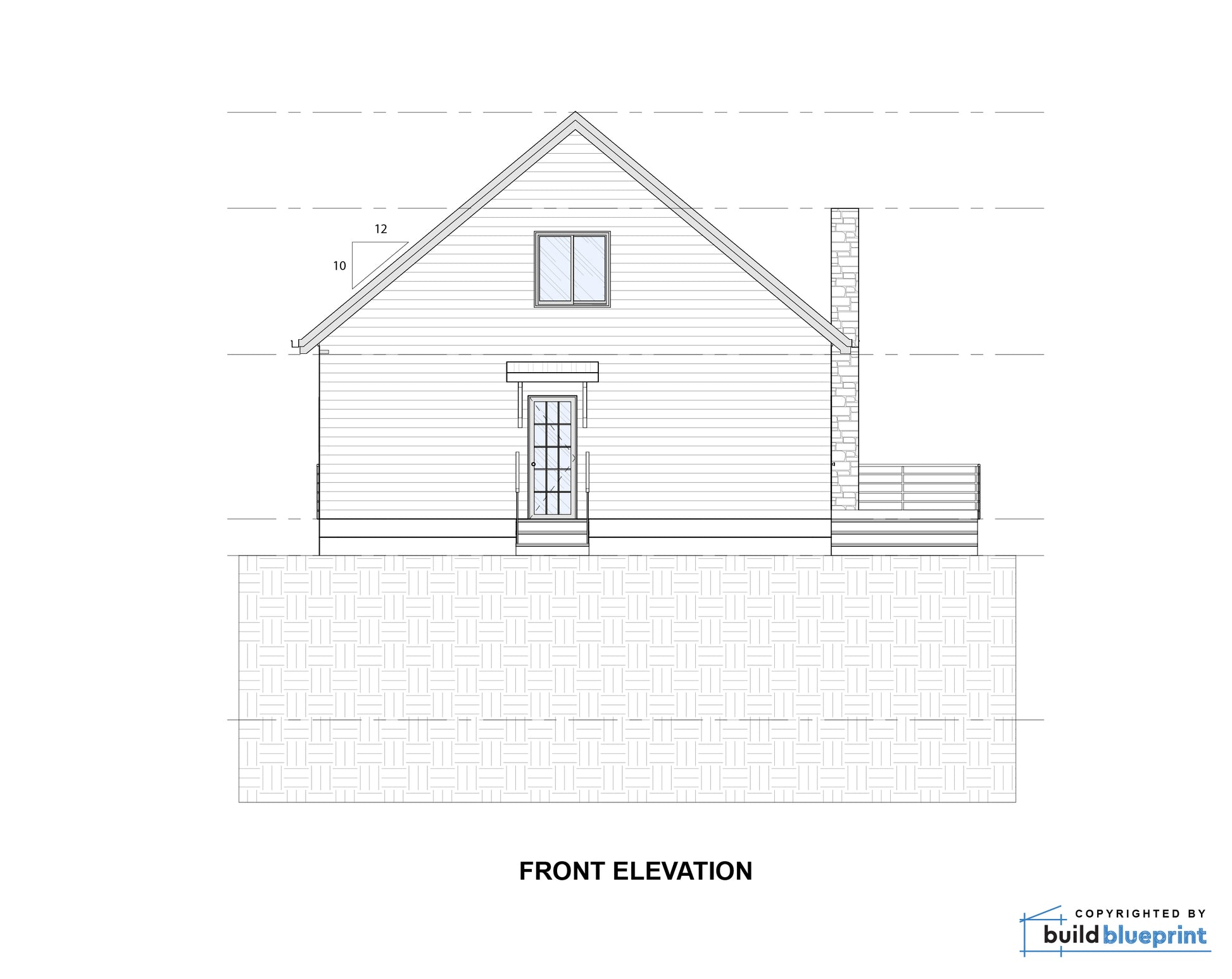

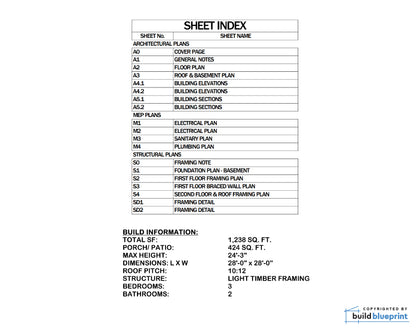

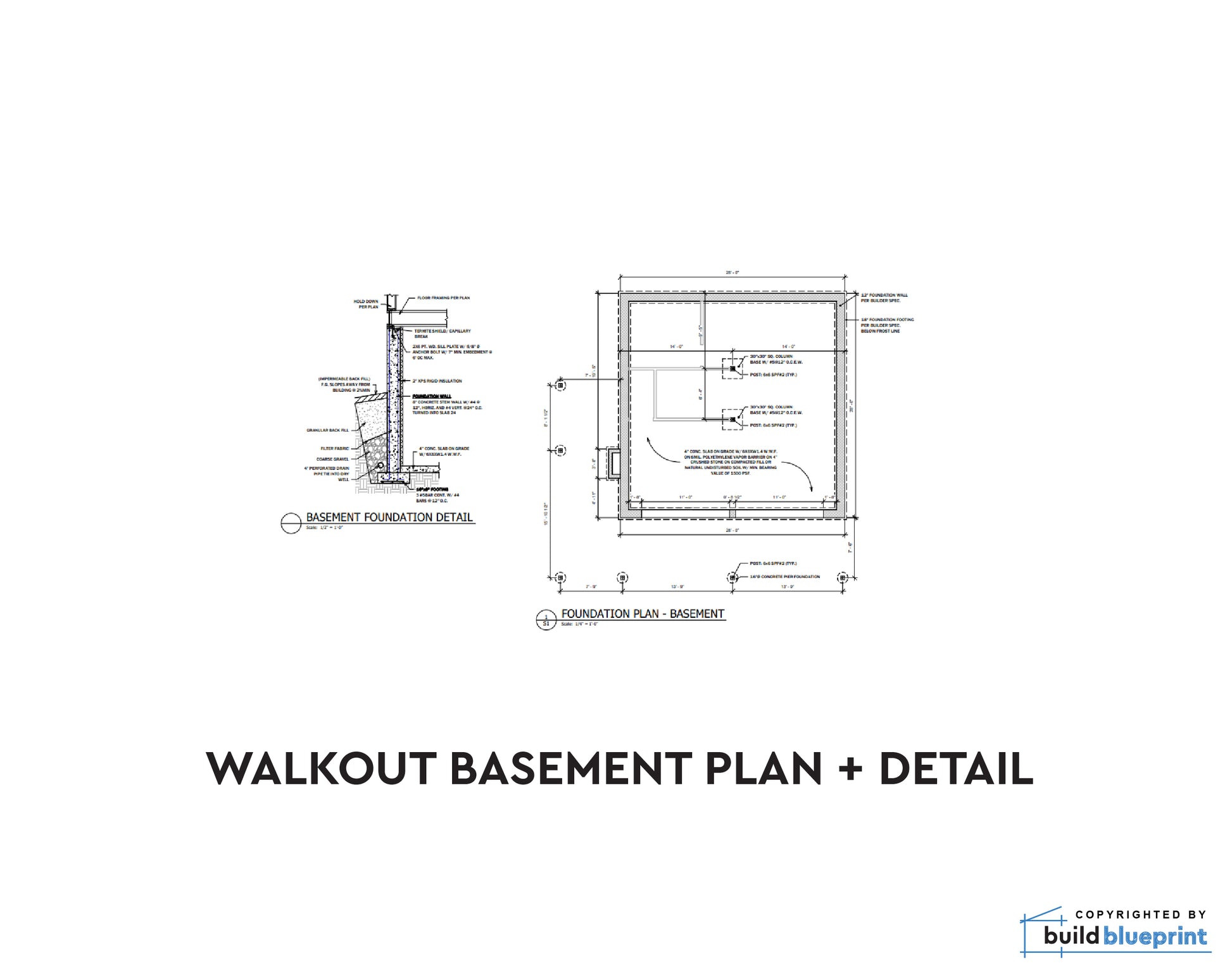

The plans include 20 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Floor Framing, Roof Framing Plan, Electrical Plan, Plumbing Plans, Sections, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 1238SF, walkout basement is 784SF. Plans are designed per US standards. CAD files are available for purchase, please message me for more information.
Size: 28'x28'

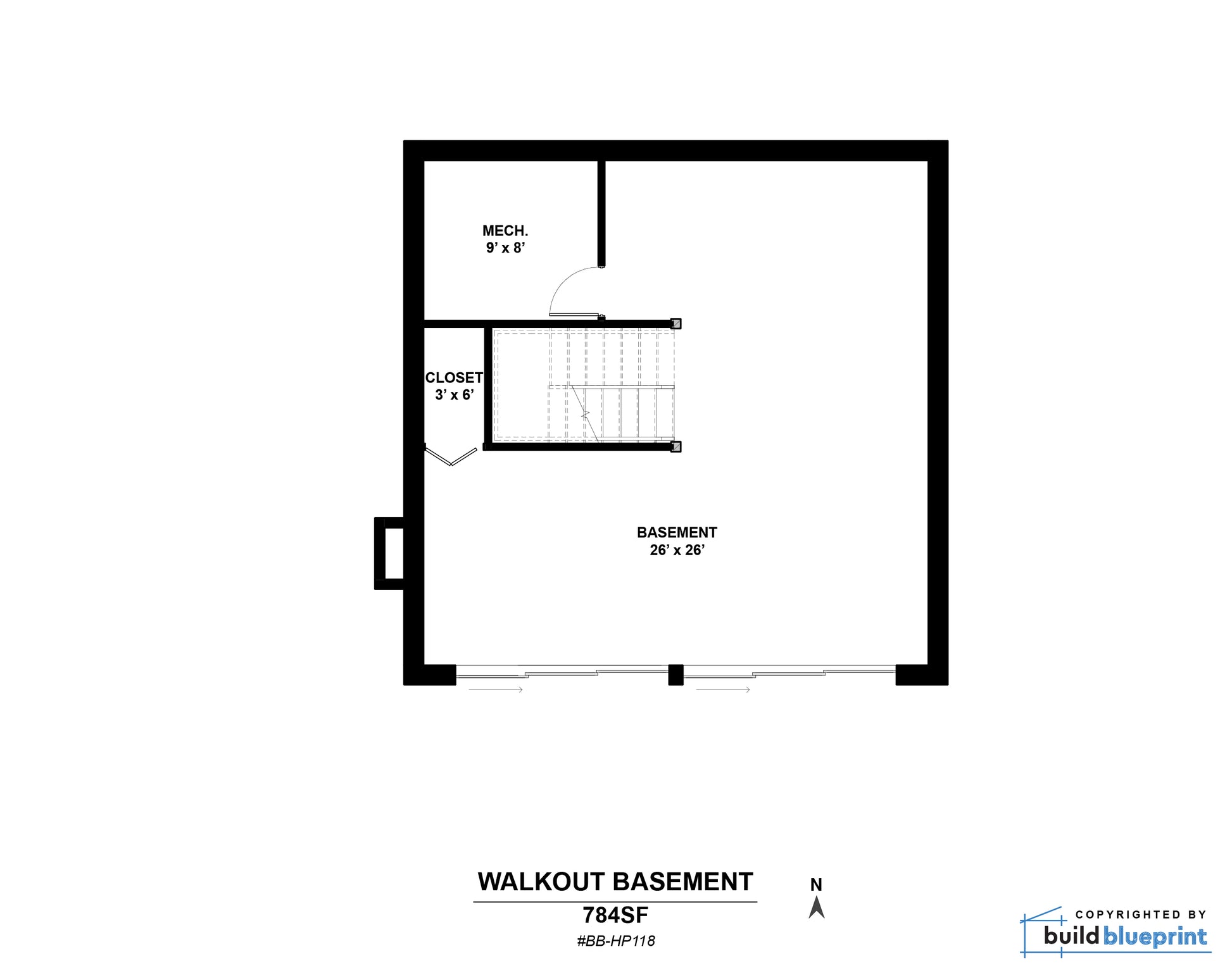

Total Area: 1238 SF + 784 Basement
Bedrooms: 3
Bathrooms: 2
Foundation: Walkout Basement
-Complete Architectural Drawing Set PDF-
-Digital Download Only-
-PDF Printable on 24"x18" Arch C Standard Sheets-
Plans are copyrighted by Build Blueprint, and intended for personal use only. No commercial use or distribution allowed.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set
All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
