30' x 46' Adirondack Cabin Architectural Plans

30' x 46' Adirondack Cabin Architectural Plans

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out

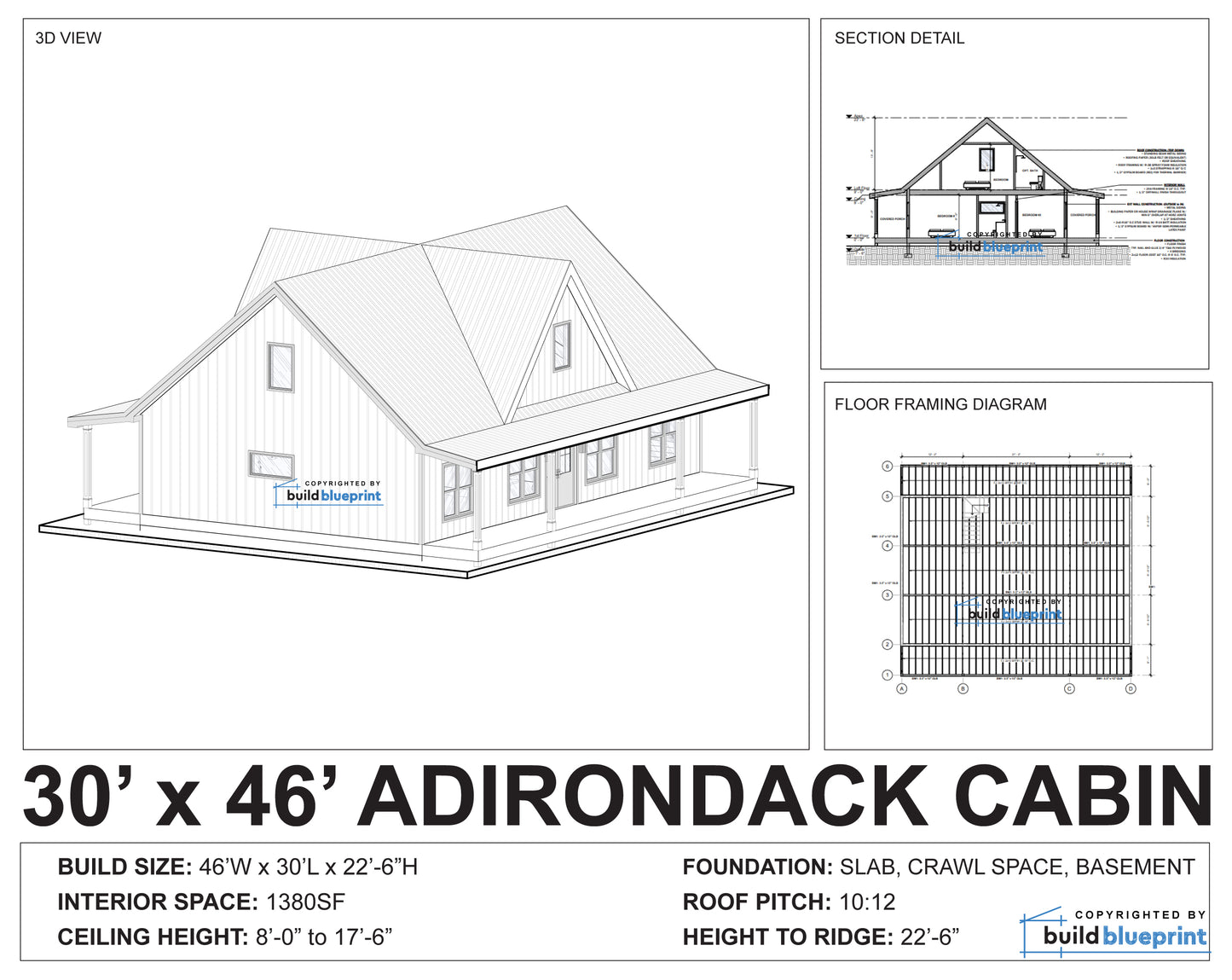

1380 SF (30'W x 46'L x 22'-6"H)
3 Bedrooms / 3 Bathrooms
Concrete Slab or Crawlspace, Optional Basement
Roof Load: 115 PSF
Ceiling Height: 8' to 17'-5"
Est. Materials Cost: $105,000*

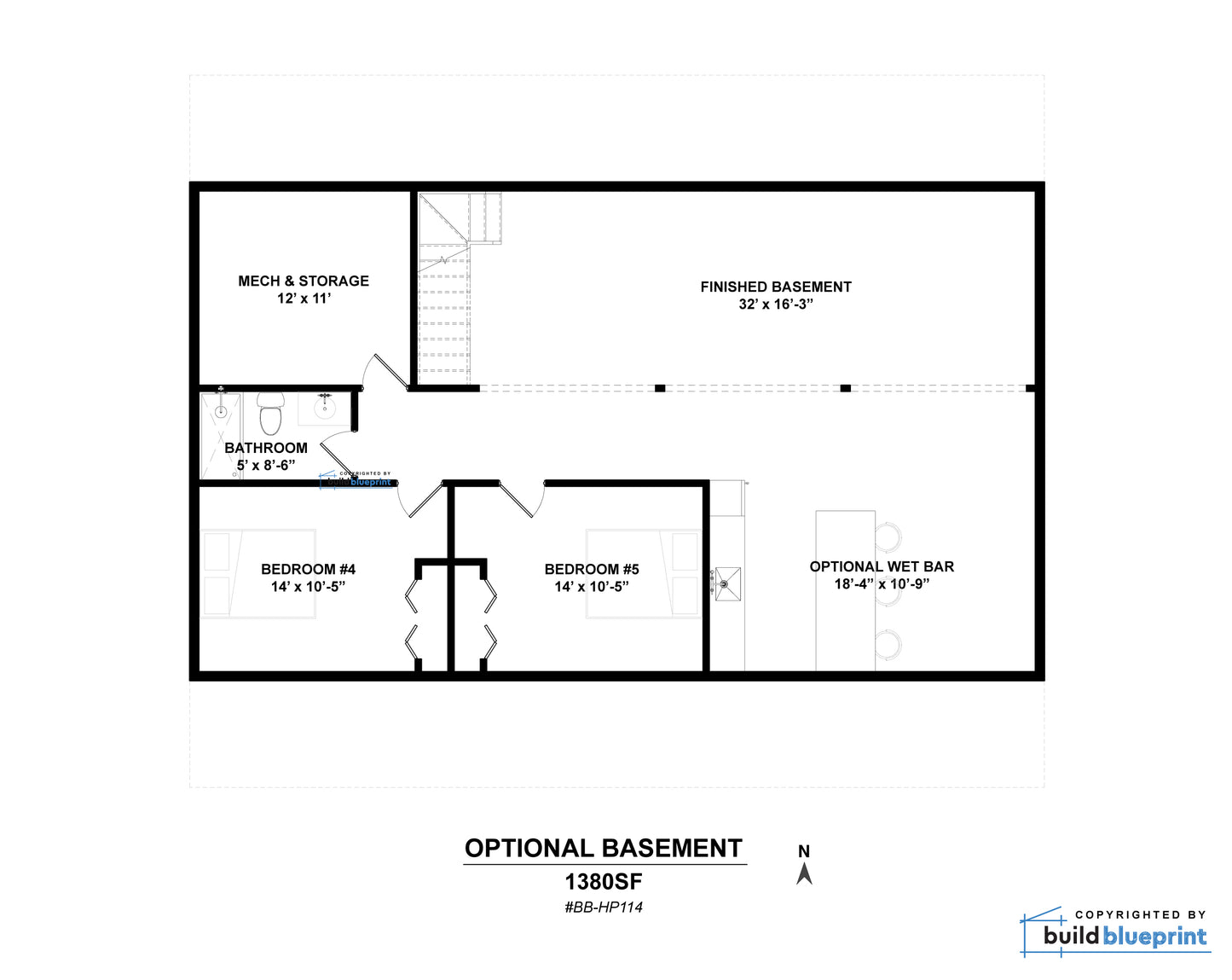

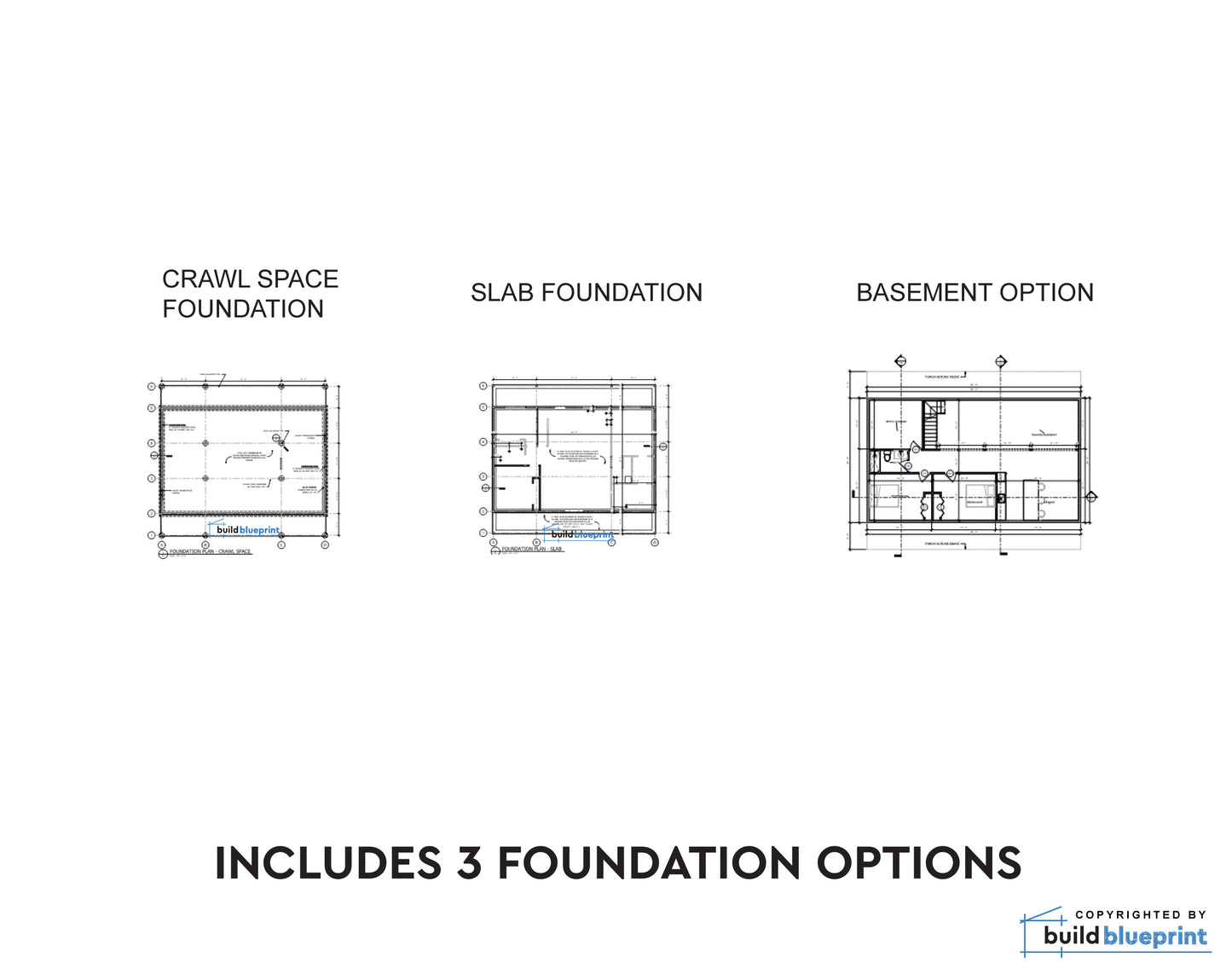

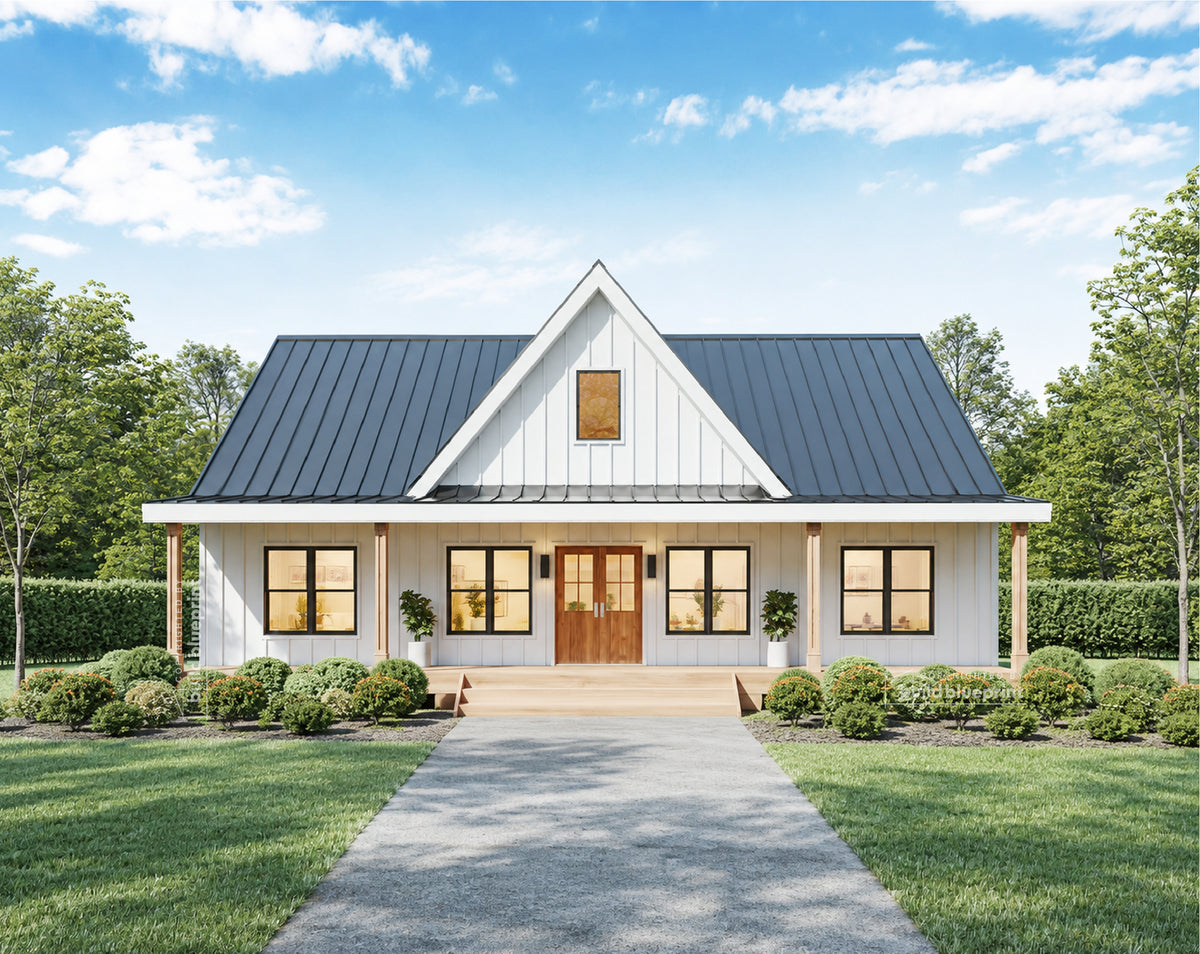

Get the complete architectural plans to build a popular 3 Bedroom and 3 Bathroom Adirondack cabin, suitable to be built on any plot of land. This is the ideal house for a large family, with a symmetrical and open floor plan connecting the large living room to the kitchen, separate master bedroom entrance,  fully covered front and rear porches. Tall 17ft vaulted ceiling in the living room and kitchen areas to make the space feel even more open. The set includes 2 foundation options: Concrete Slab and Standard Crawlspace, and also an optional basement plan included.

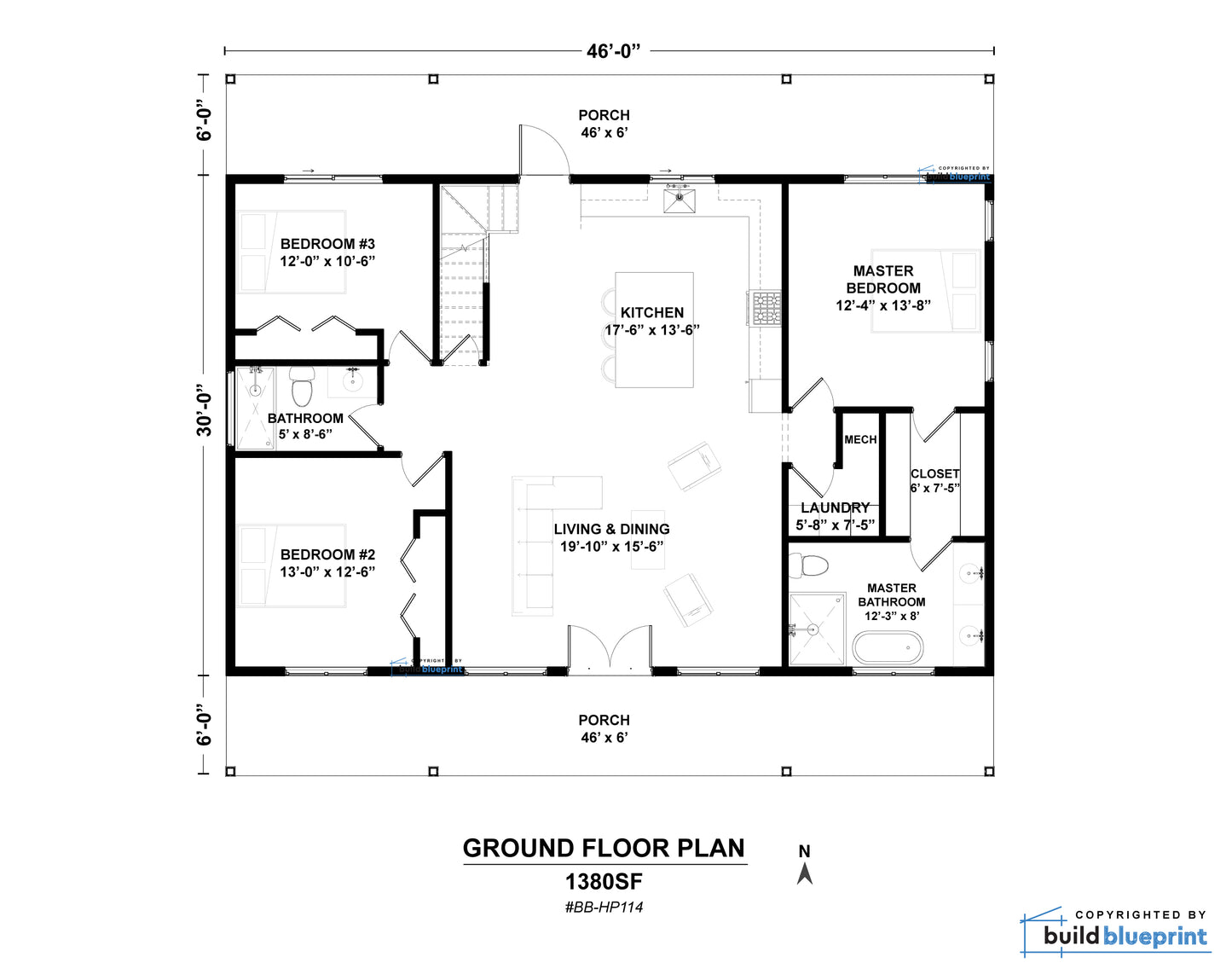

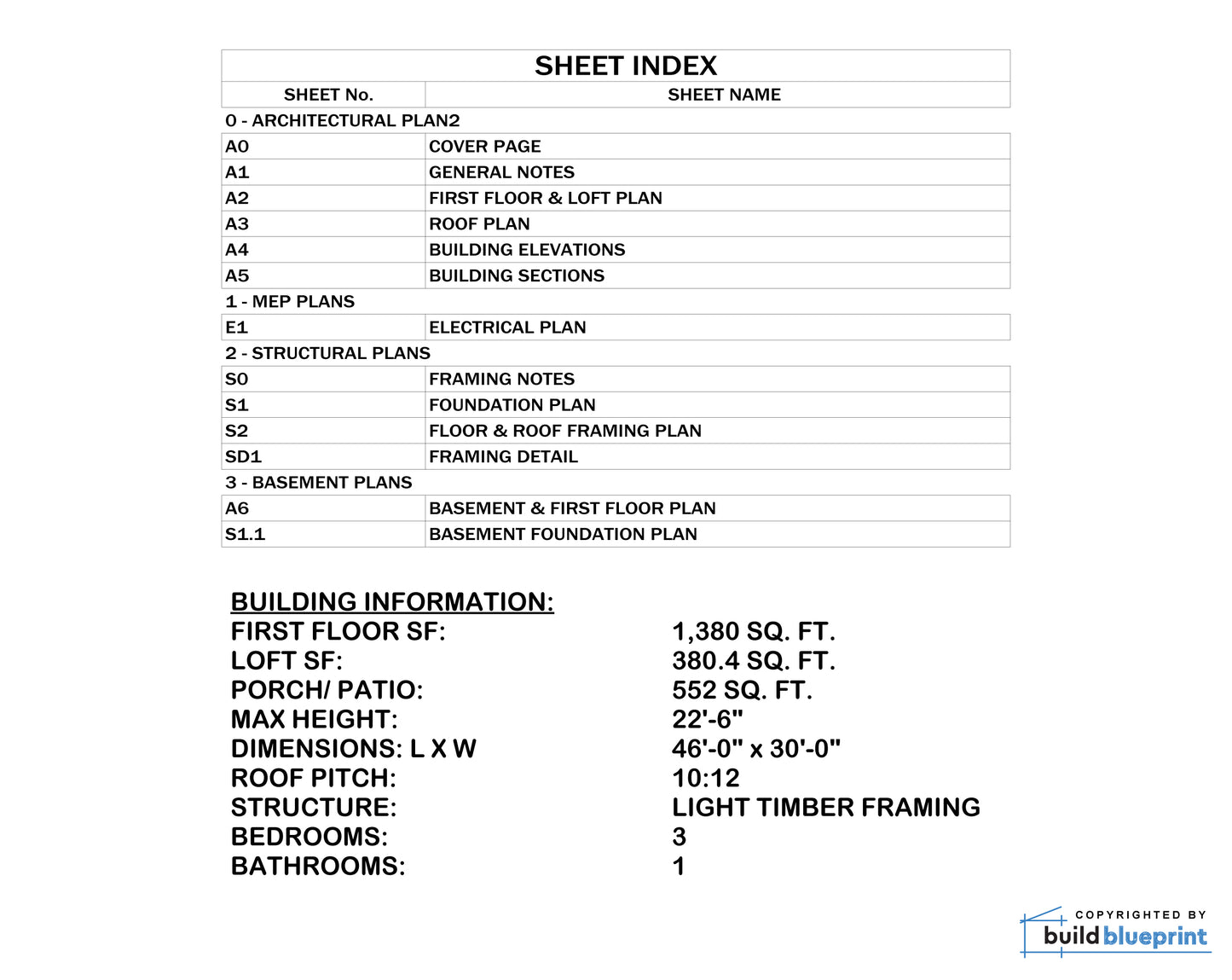

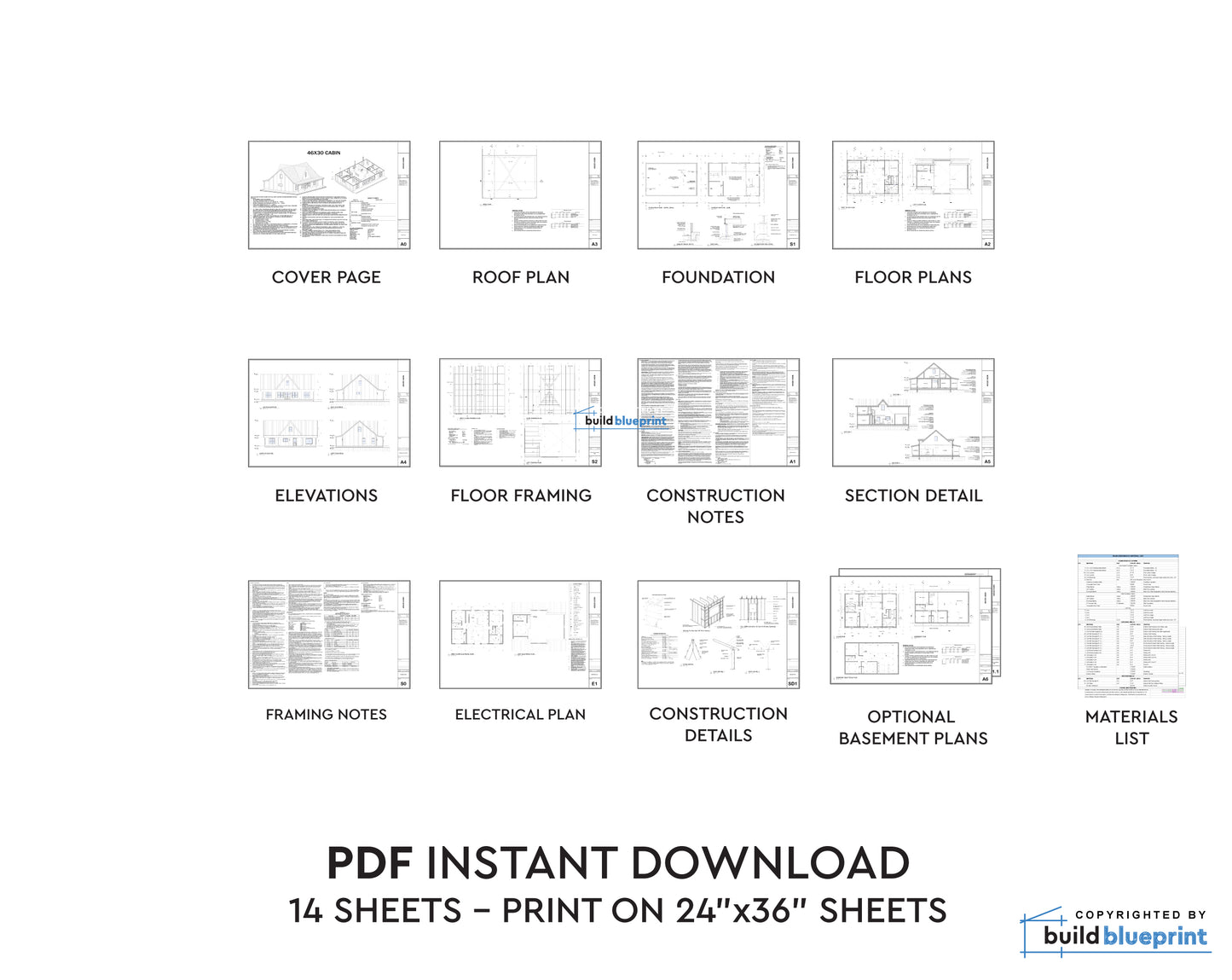

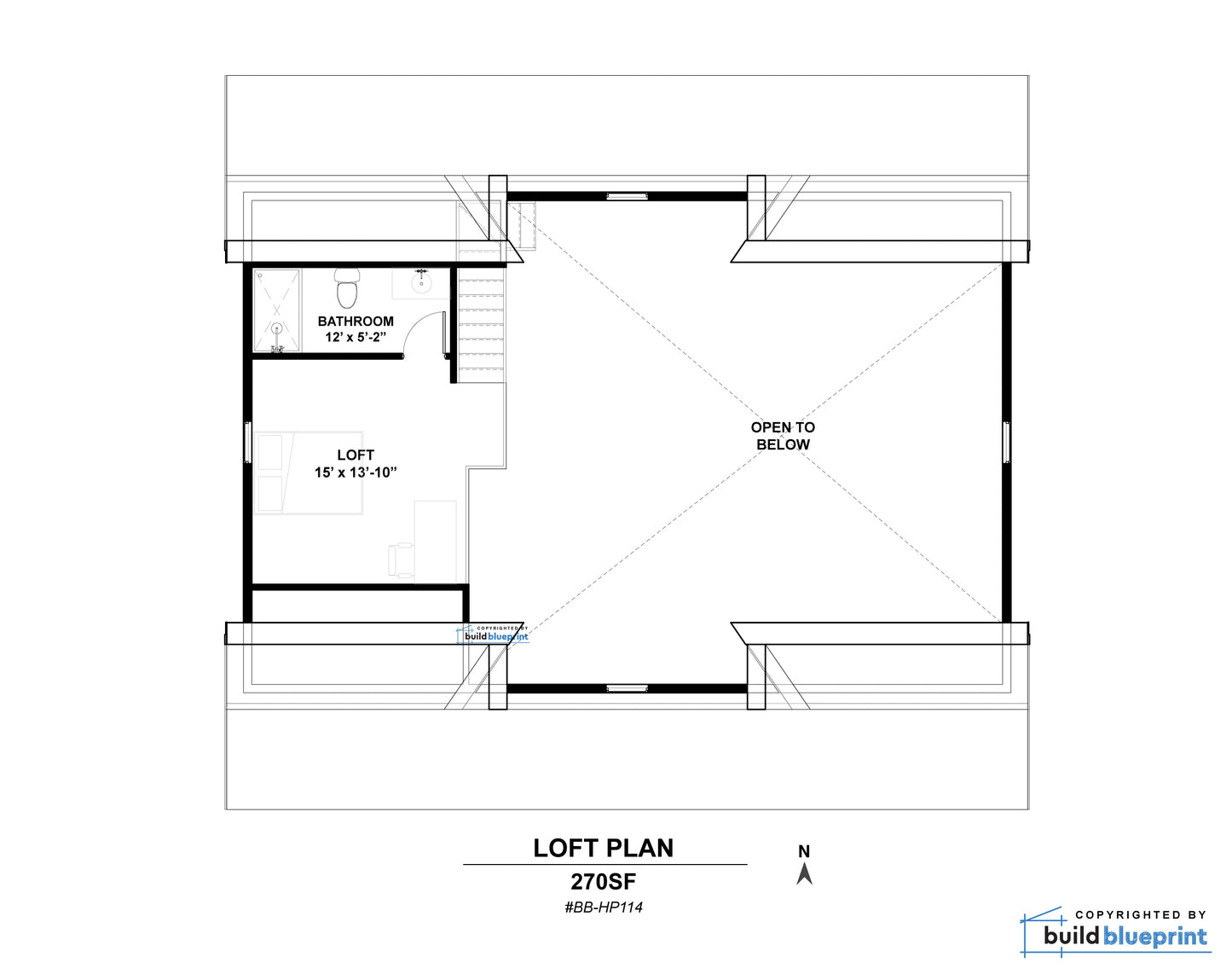

The plans include Materials List, Floor Plans, Foundation Plan, Elevations, Section Detail, Roof framing Plan, Electrical Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated ready to be built. The total heated interior is 1,380SF, with additional 270SF for the loft.


-Complete Architectural Drawing Set PDF-
-Full DIY Build Materials List-
-Digital Download Only-
-PDF Printable on Standard Sheets-

Plans are copyrighted by BuildBlueprint, and intended for personal use only. No commercial use or distribution allowed.

*Estimated materials cost does not include site work, demo, or utilities. Cost is estimated on using typical industry finishes and construction materials. Building cost will vary depending on the region and the supplier.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Complete Plan Set

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
