Build Blueprint

32' x 38' Lean Cabin Architectural Plans

32' x 38' Lean Cabin Architectural Plans

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out

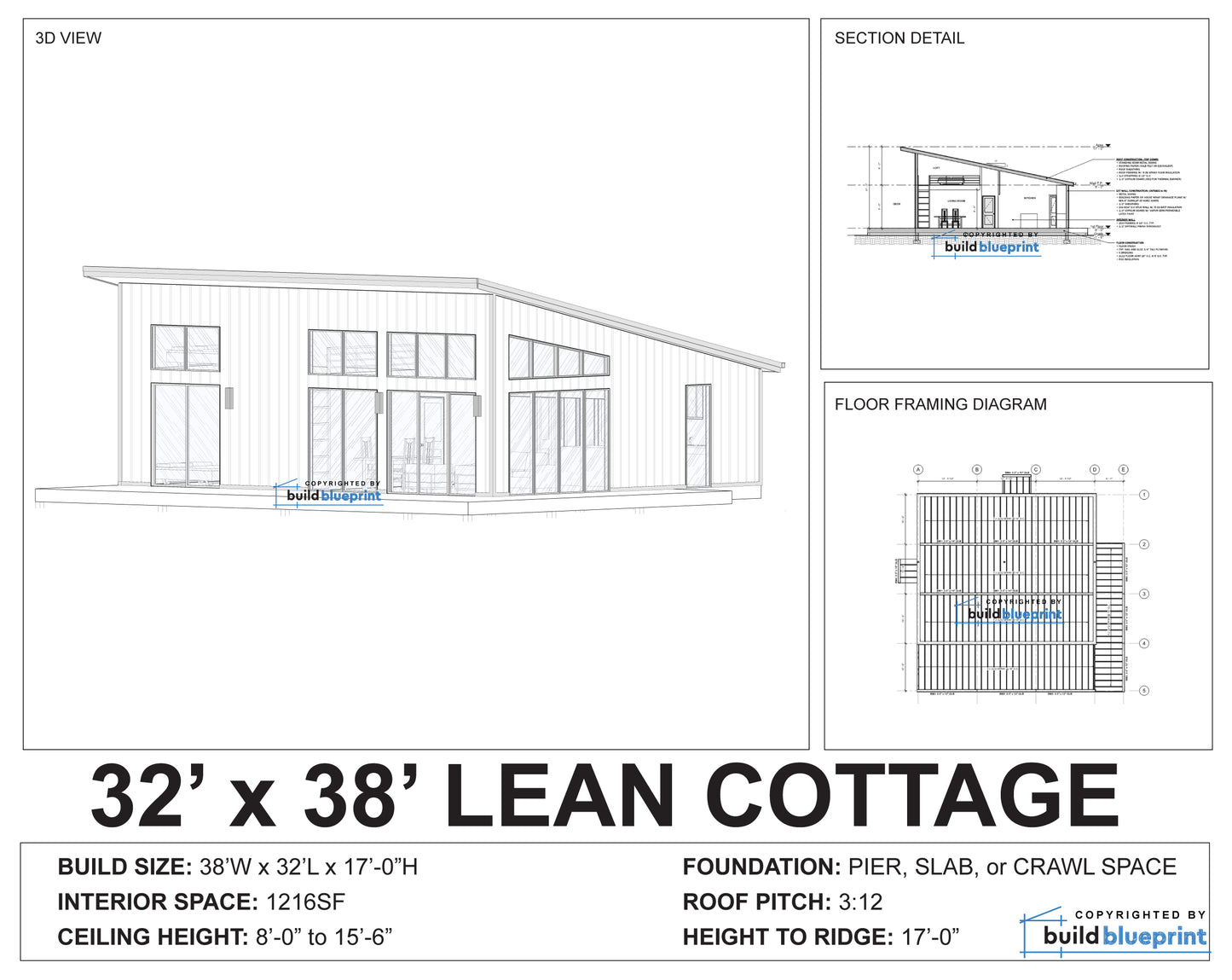

1216SF (38'W x 32'L x 17'-0"H)

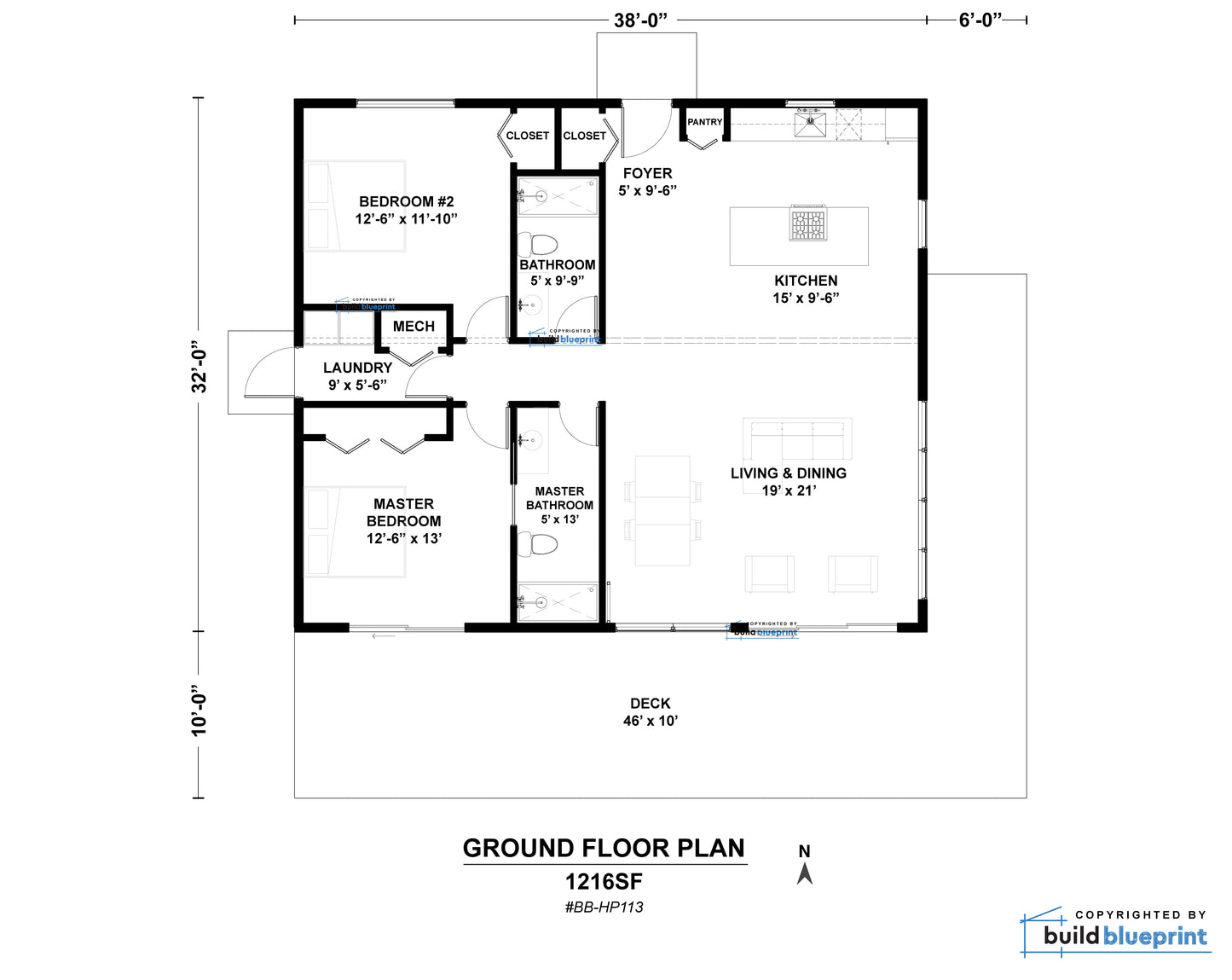

2 Bedroom / 2 Bathroom / 1 Loft

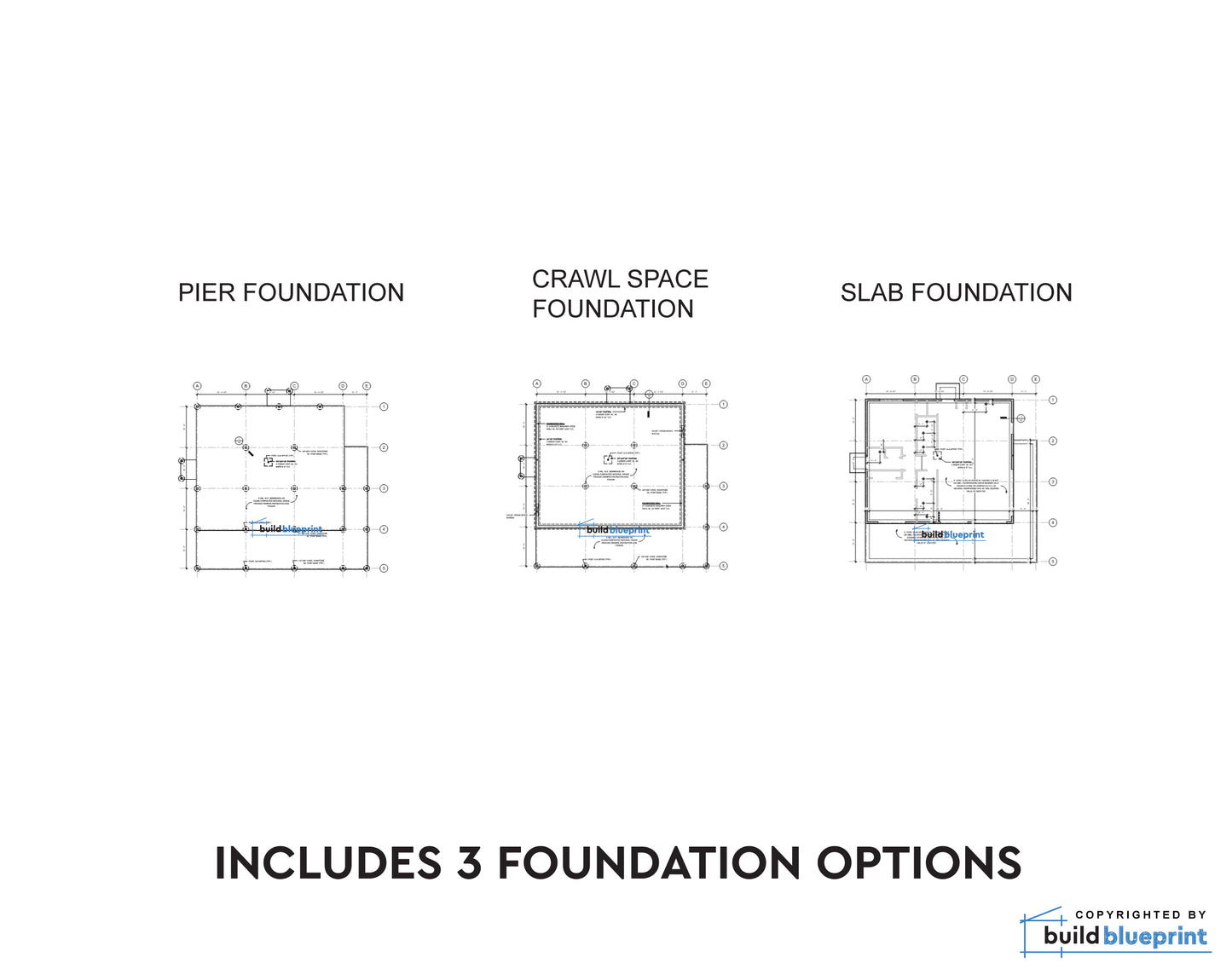

Concrete Piers or Concrete Slab or Crawl Space
Roof Load: 95 PSF
Ceiling Height: 8'-0" to 15'-0"
Est. Materials Cost: $80,000*

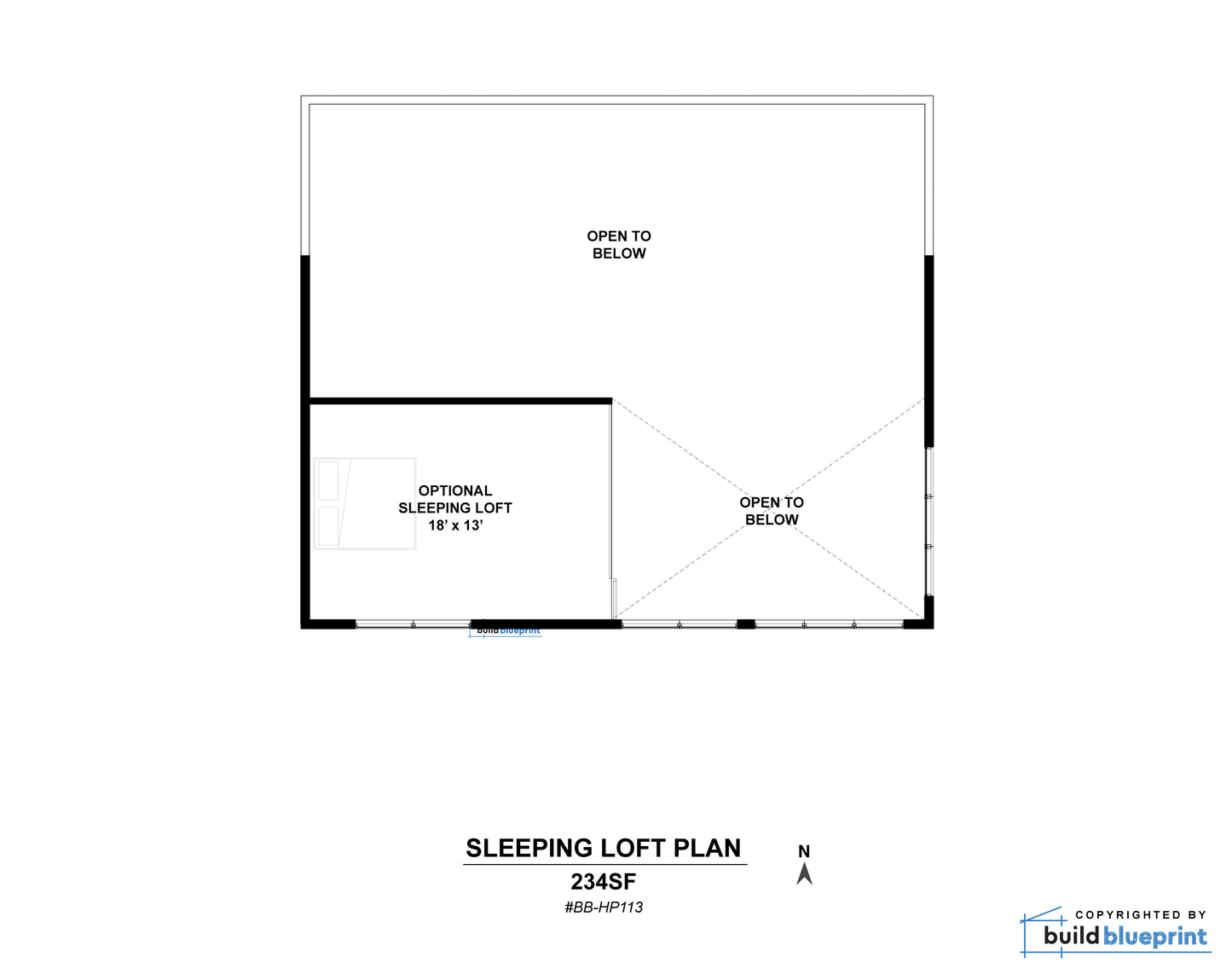

Build a modern 2 bedroom and 2 bathroom lean-style roof cabin, suitable for ADU or full time resident. This is the complete architectural plan set of a modern cottage, with budget friendly and easy-to-build lean style roof! These plans are ready for construction, and suitable to be built on any plot of land. This cabin is complete with optional front deck, high ceilings, a sleeping loft, large windows for natural light, and a standalone laundry room. 3 Foundation options included: concrete slab, concrete pier, and crawl-space foundation.

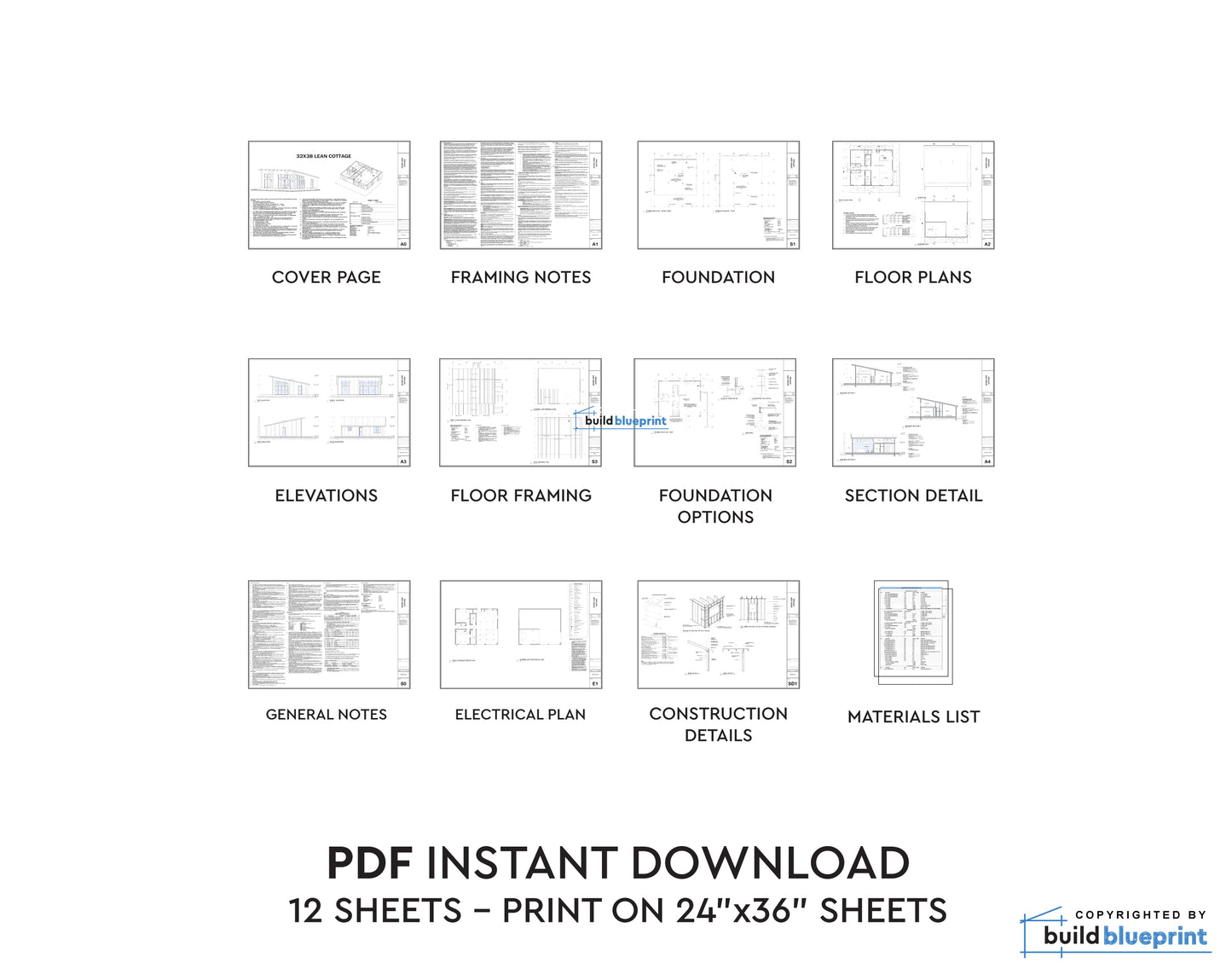

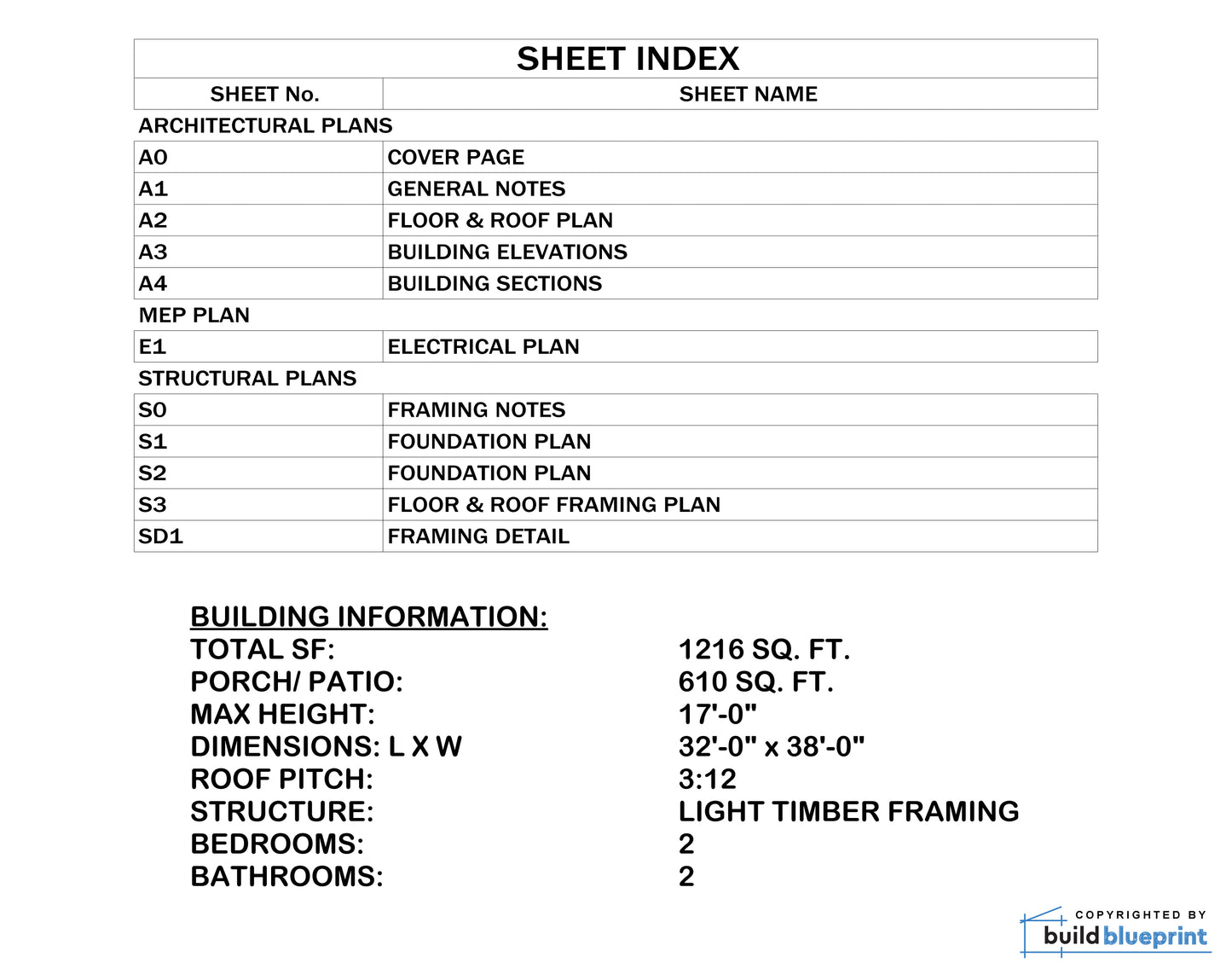

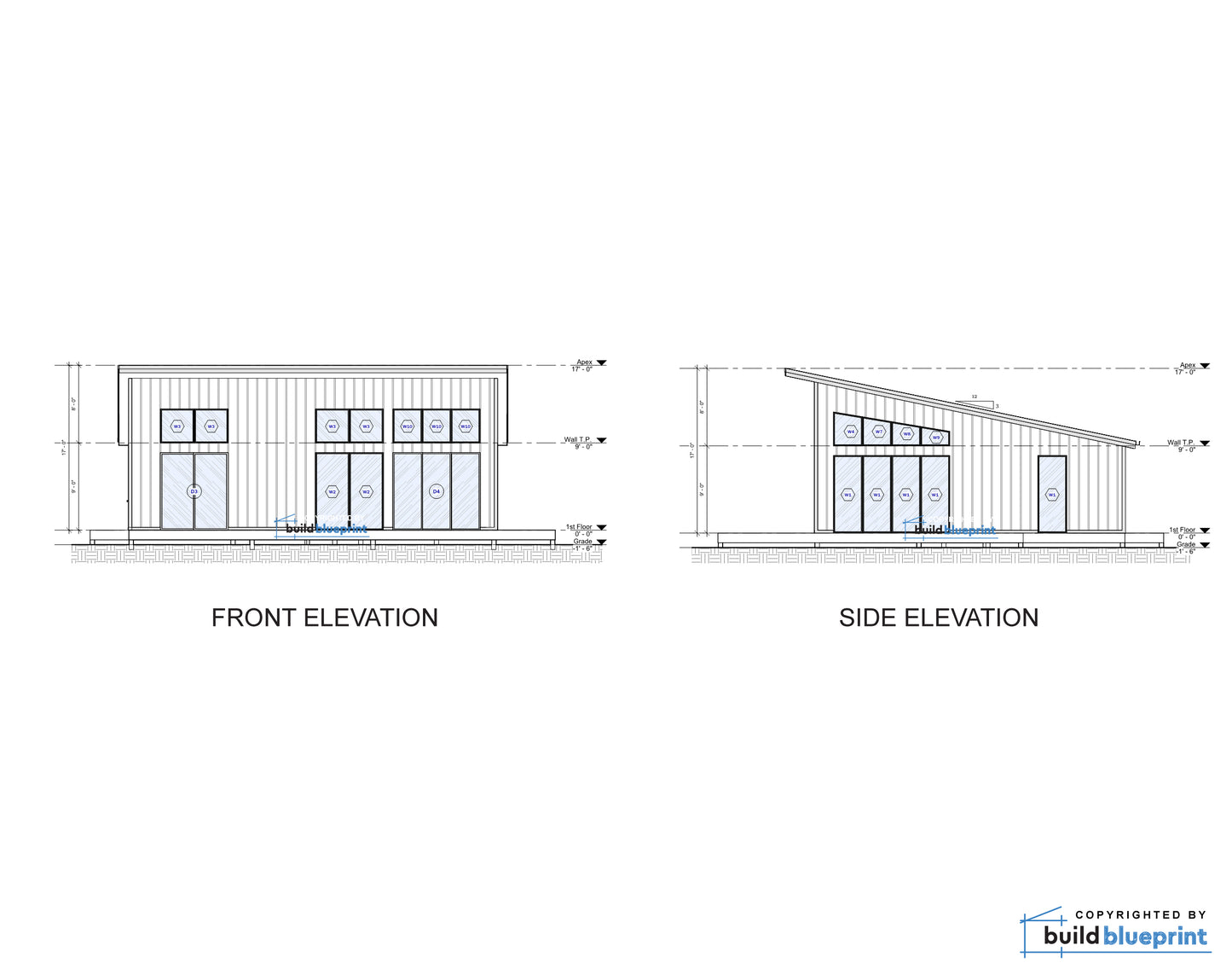

The plans include 12 sheets: Materials List, Floor Plans, Elevations, Foundation Plan, Roof Framing Plan, Electrical Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 1216SF, with 8'-0" - 15'-0" high ceiling. Plans are designed per US standards. CAD files are available for purchase, please message me for more information.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Complete Plan Set

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
