40' x 50' Lean Cottage Architectural Plans

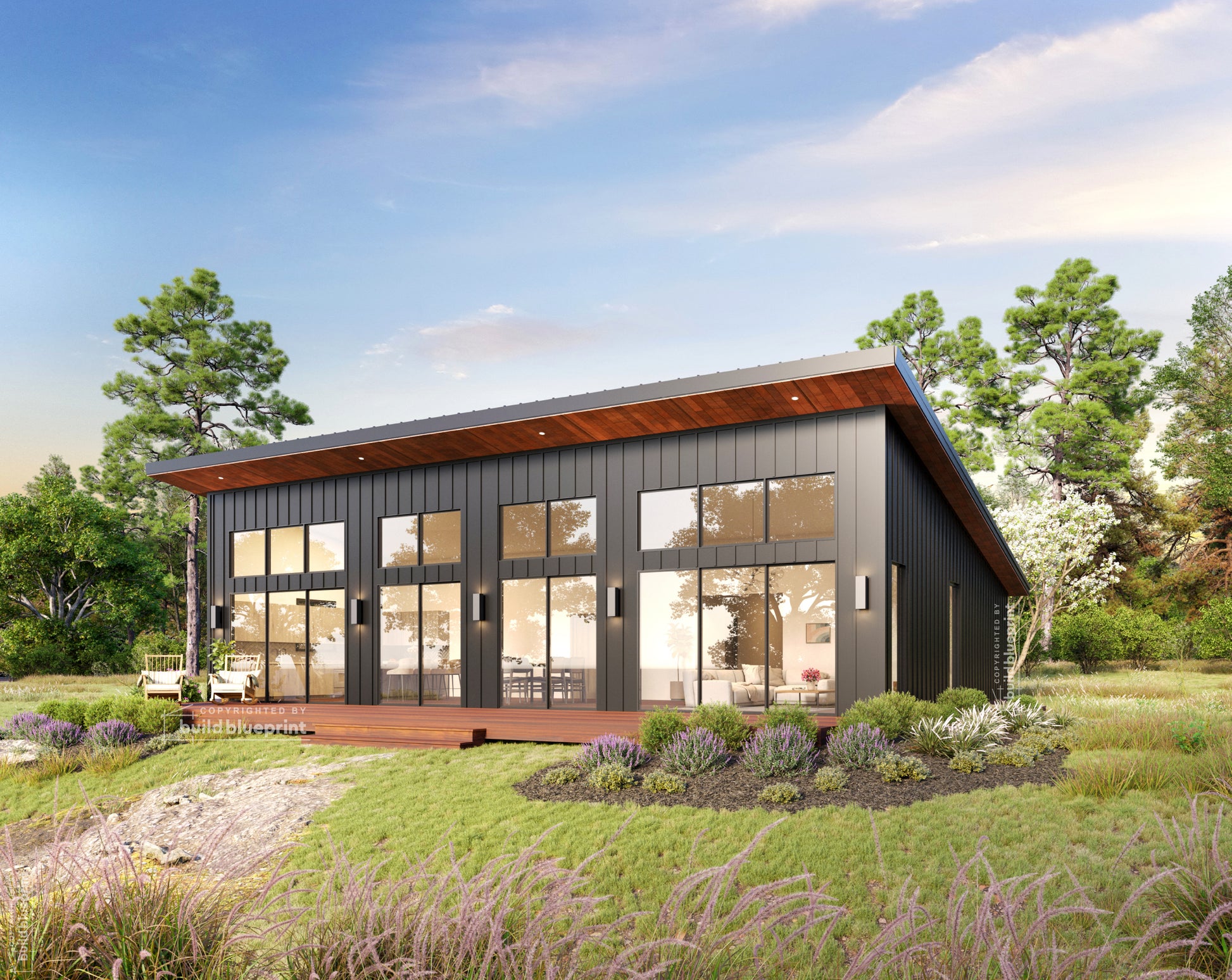

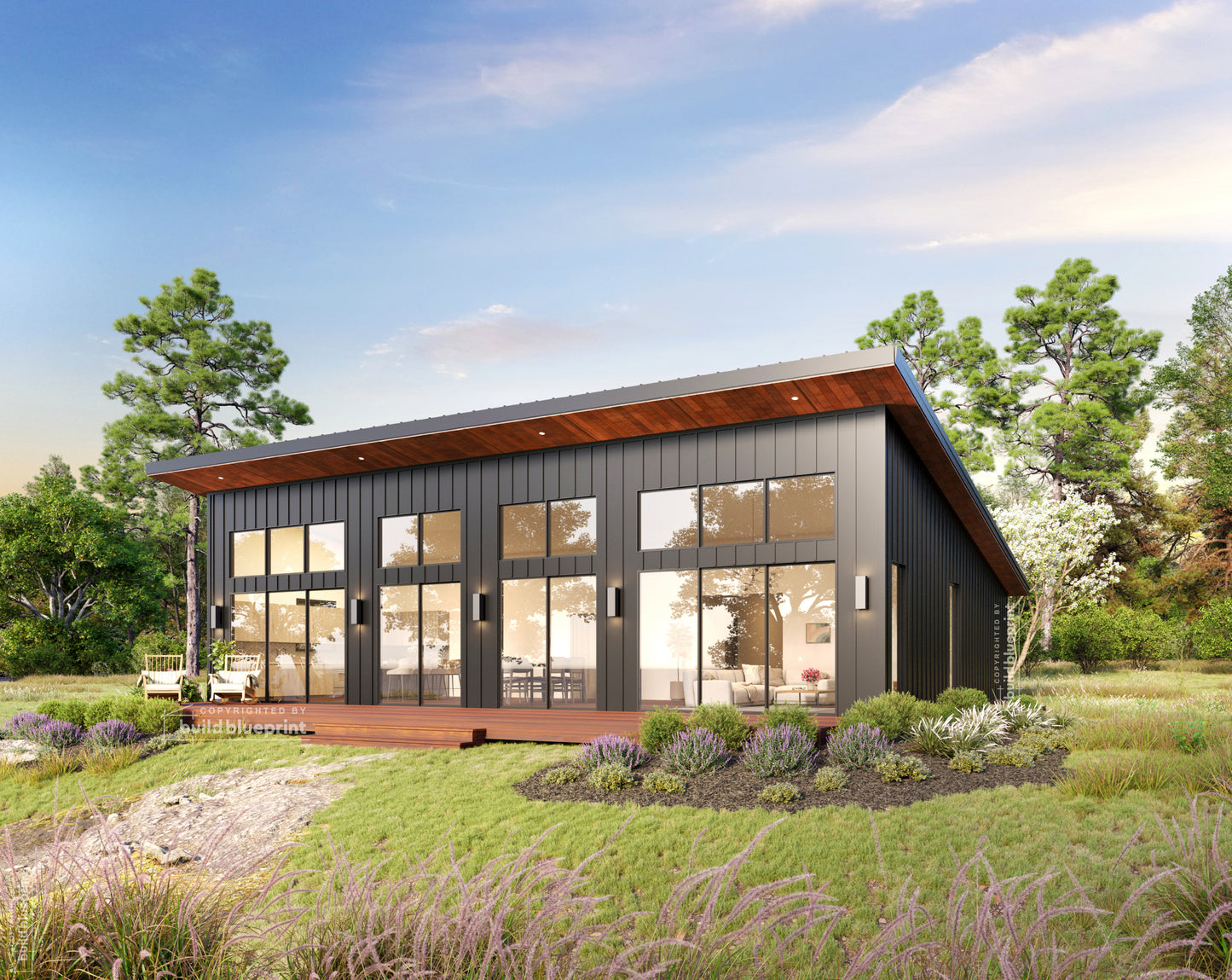

The 40' x 50' Lean Cottage is the largest plan in the Lean series — 2,000 square feet with three bedrooms, two bathrooms, and the signature contemporary shed roofline that defines this collection. At 50 feet long and 40 feet wide, this is a full-size family home with serious square footage, delivered under a clean single-slope roof that keeps the exterior looking modern and the framing efficient.
Ceiling heights ranging from 8 to 15 feet give the main living areas real volume without the complexity of a two-story build. Two full bathrooms and three well-separated bedrooms make this plan work equally well as a permanent primary residence or a high-capacity vacation rental. The concrete pier or slab foundation adapts to both flat and gently sloped sites.

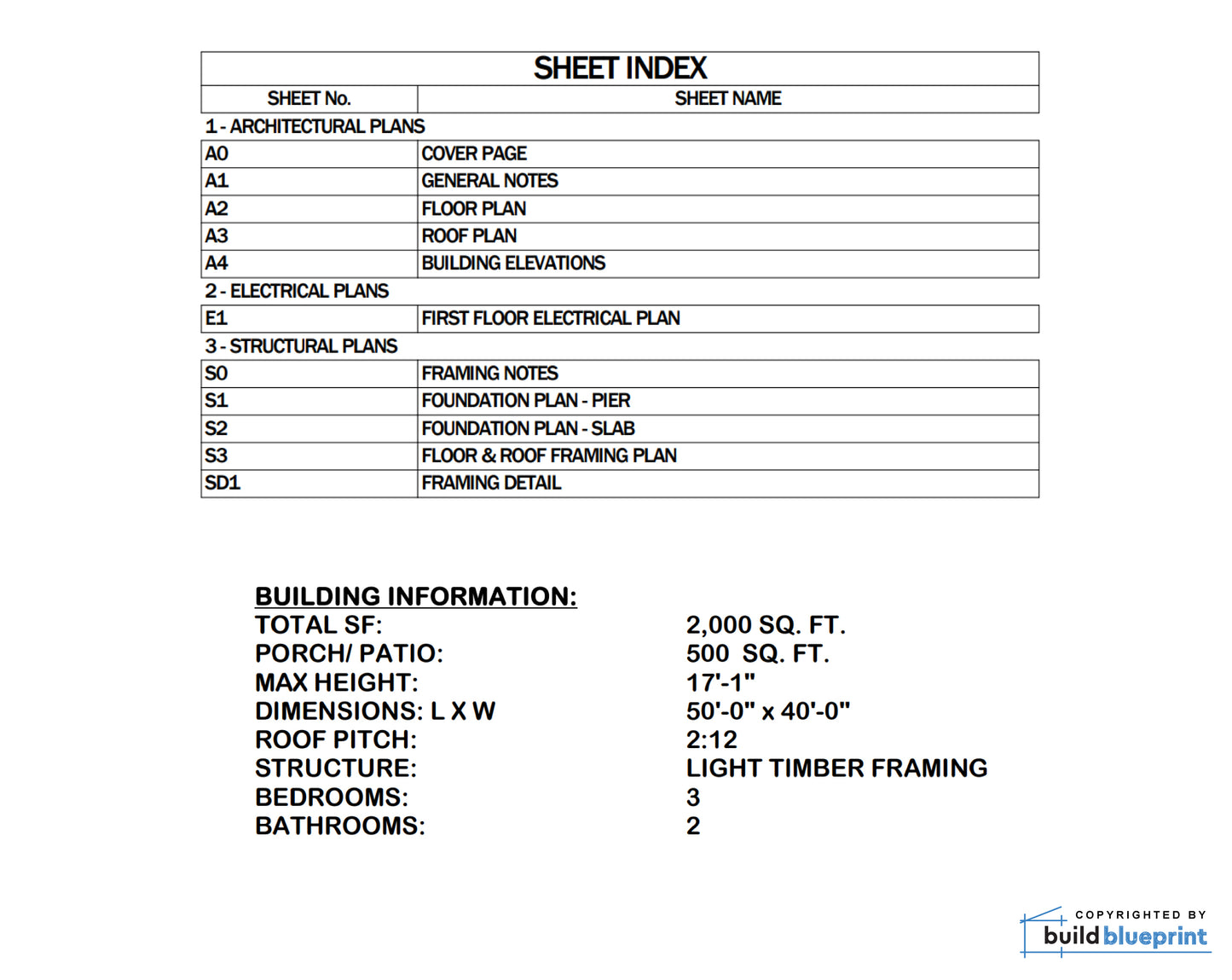

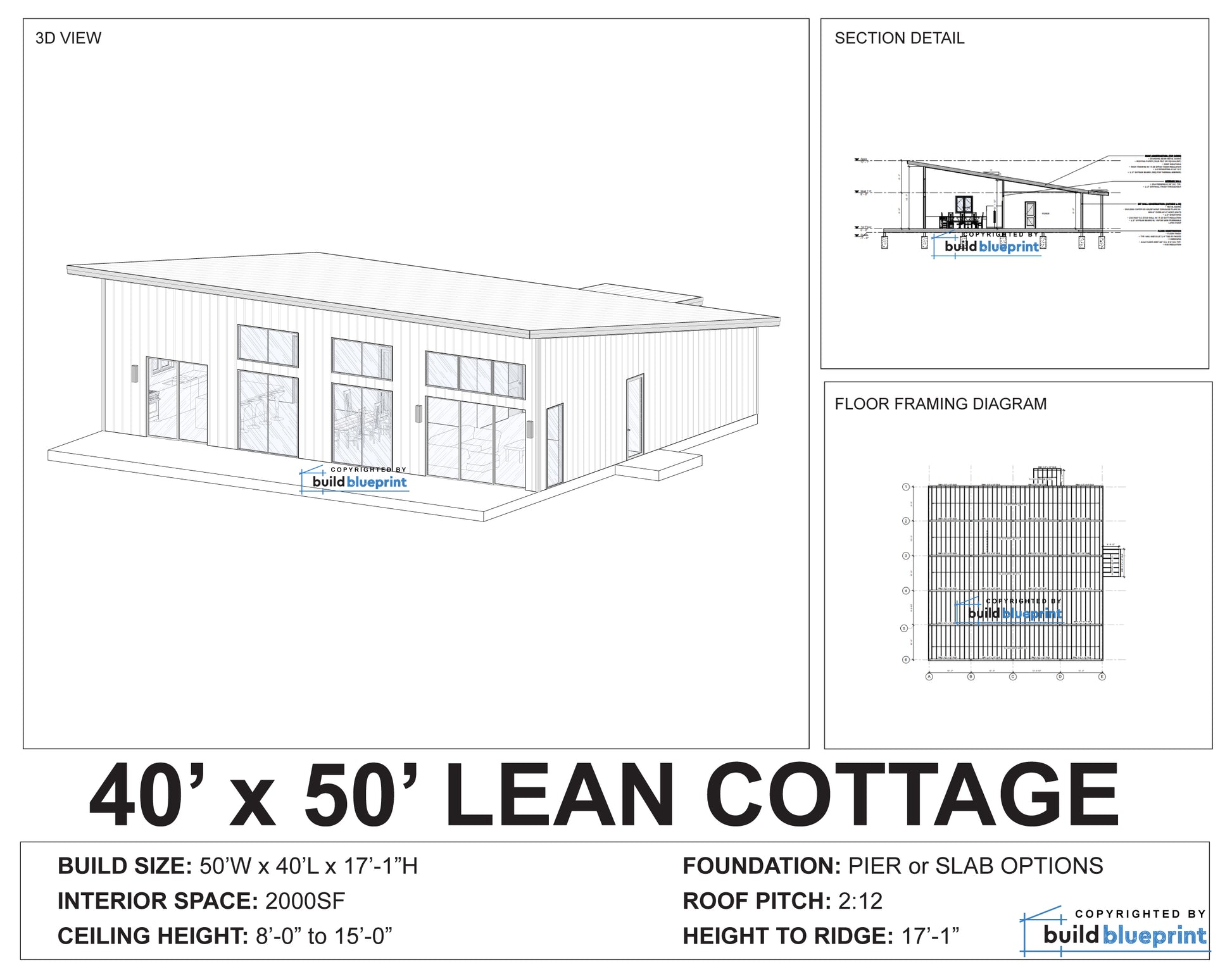

Plan Specifications
- Footprint: 50' W x 40' L
- Height: 17'-1"
- Floor Area: 2,000 SF
- Bedrooms: 3
- Bathrooms: 2

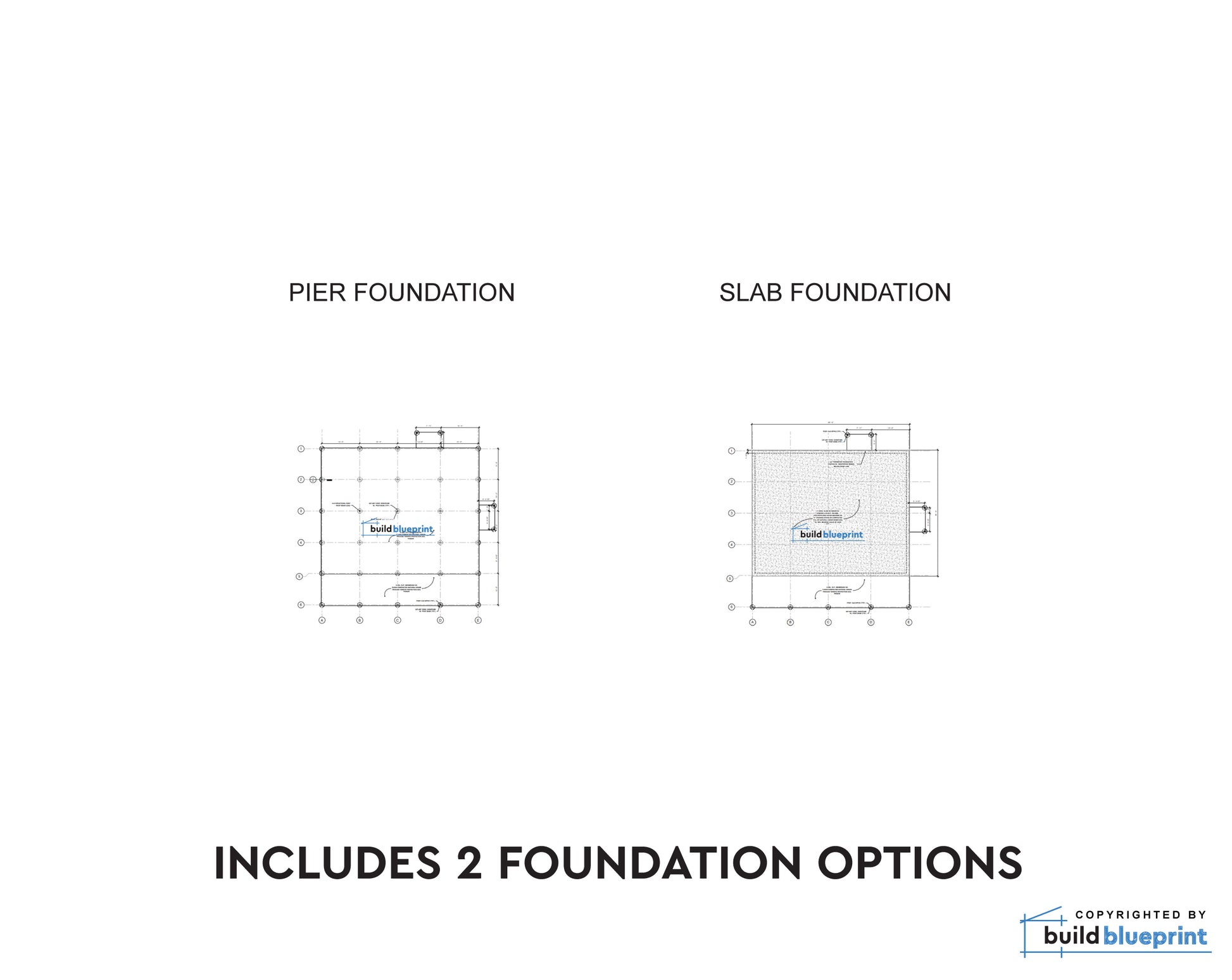

- Foundation: Concrete piers or concrete slab
- Roof Pitch: 2:12
- Ceiling Height: 8'-0" to 15'-0"
- Est. Materials Cost: From $100,000
What's Included

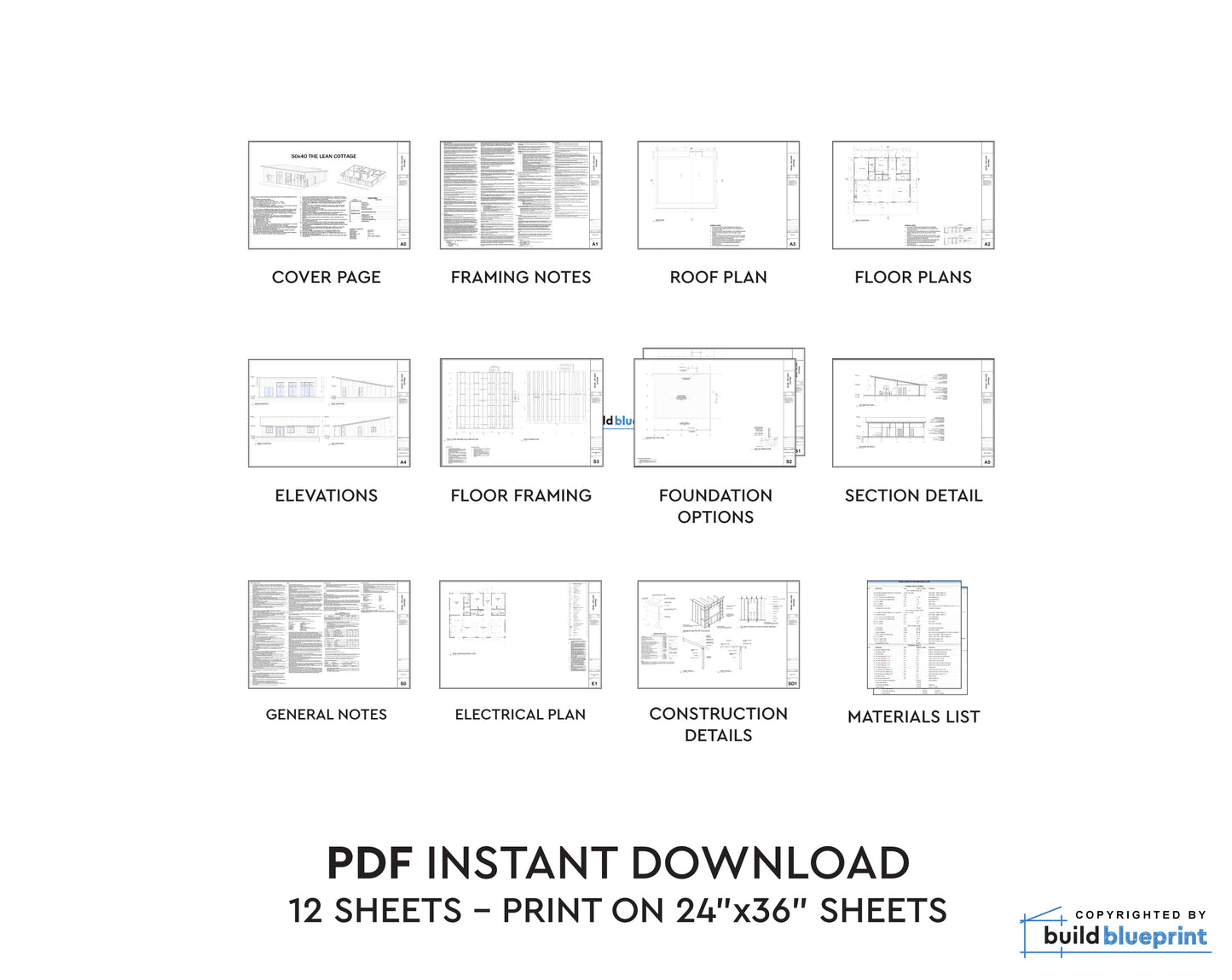

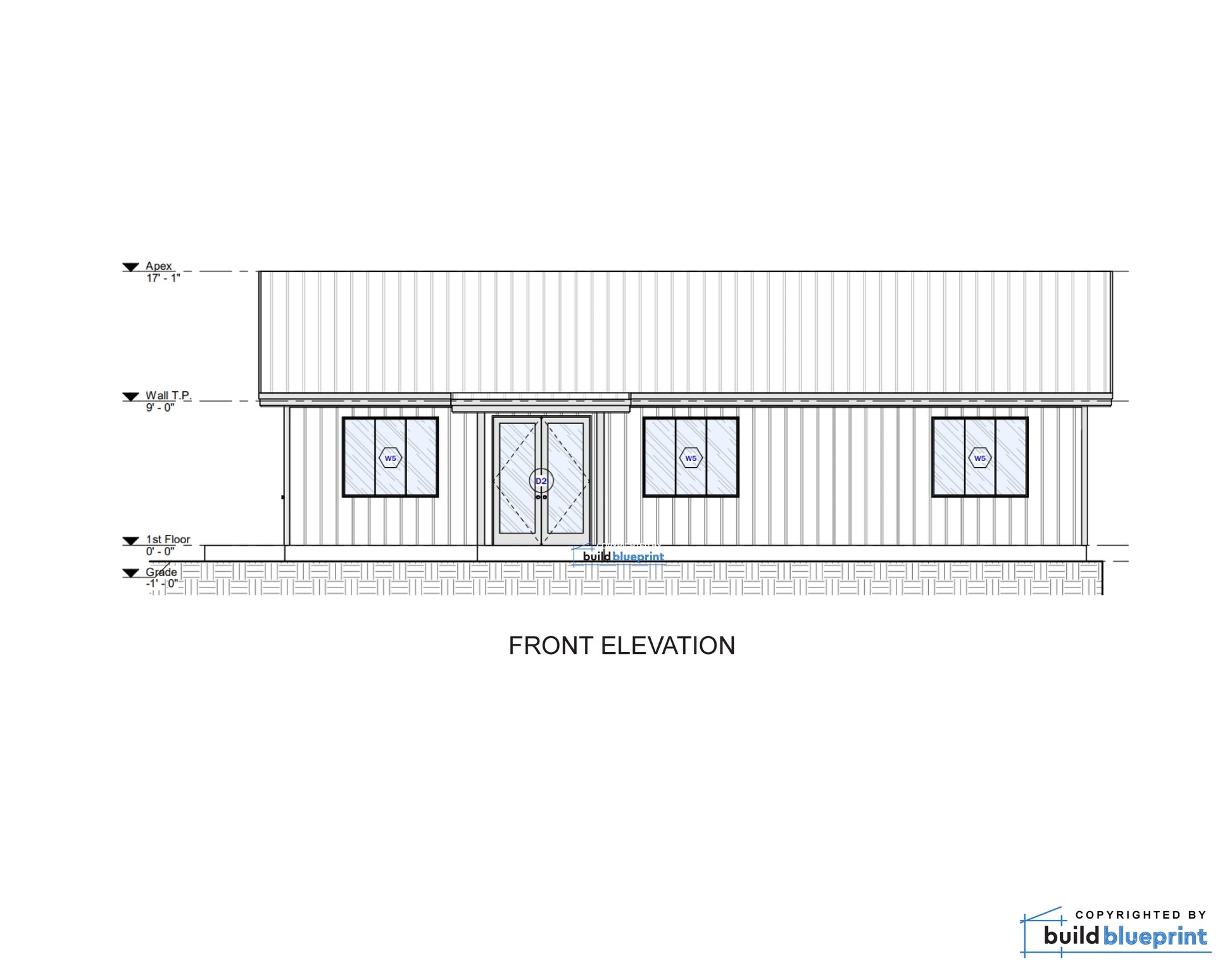

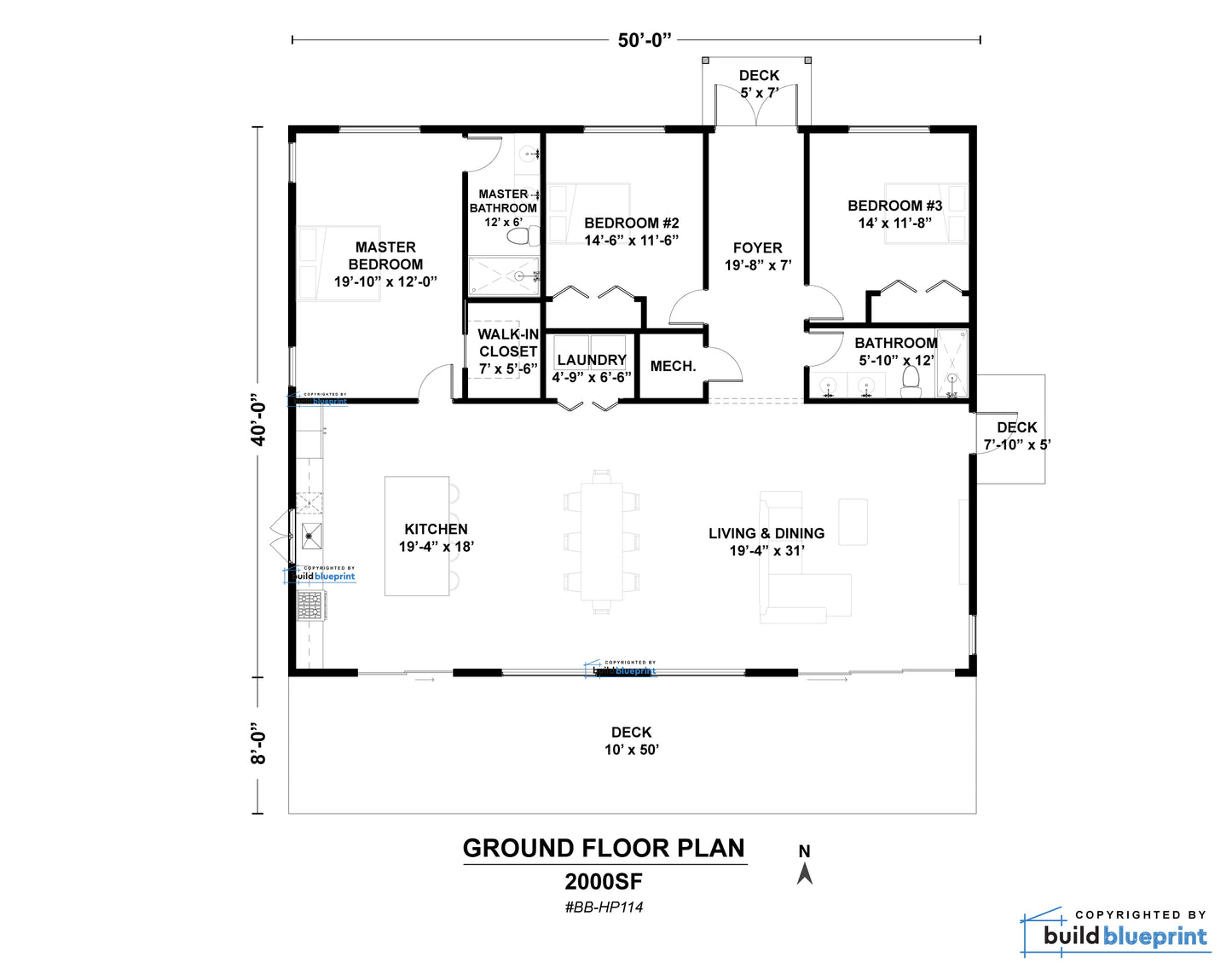

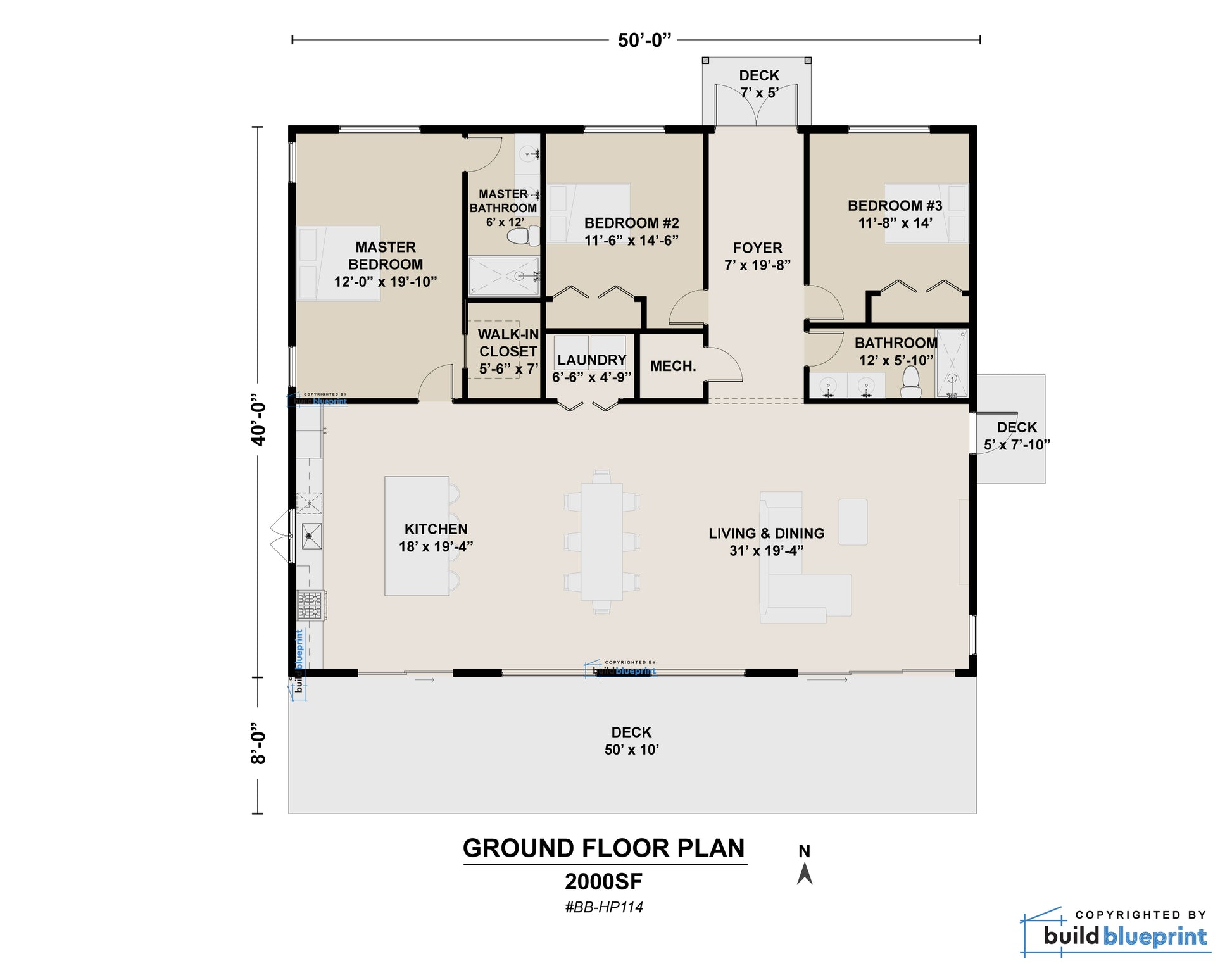

Complete permit-ready plan set including: floor plan, foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Ready for building permit submission in most US jurisdictions.
Available Plan Options
- Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
- PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.
Who This Plan Is For
The right choice for buyers who want a large modern home with the clean aesthetic of the Lean series at a scale suited to full-time family living. At 2,000 square feet, this is the largest single-story lean-roof design in our catalog — ideal for rural acreage, mountain lots, and lakefront properties where a modern, low-profile roofline complements the landscape. Also a strong performer as a large-group vacation rental where square footage drives occupancy and revenue.
Instant Download
Your complete plan set downloads immediately after purchase. No waiting, no shipping.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set
All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
