Yosemite Modern Cabin Architectural Plans

Yosemite Modern Cabin Architectural Plans

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
1500 SF (28'W x 40'L x 26'-5"H)
2 Bedrooms / 2 Bathrooms
Concrete Footing
Roof Load: 95 PSF
Ceiling Height: 8'-0"
Est. Materials Cost: $80,000*

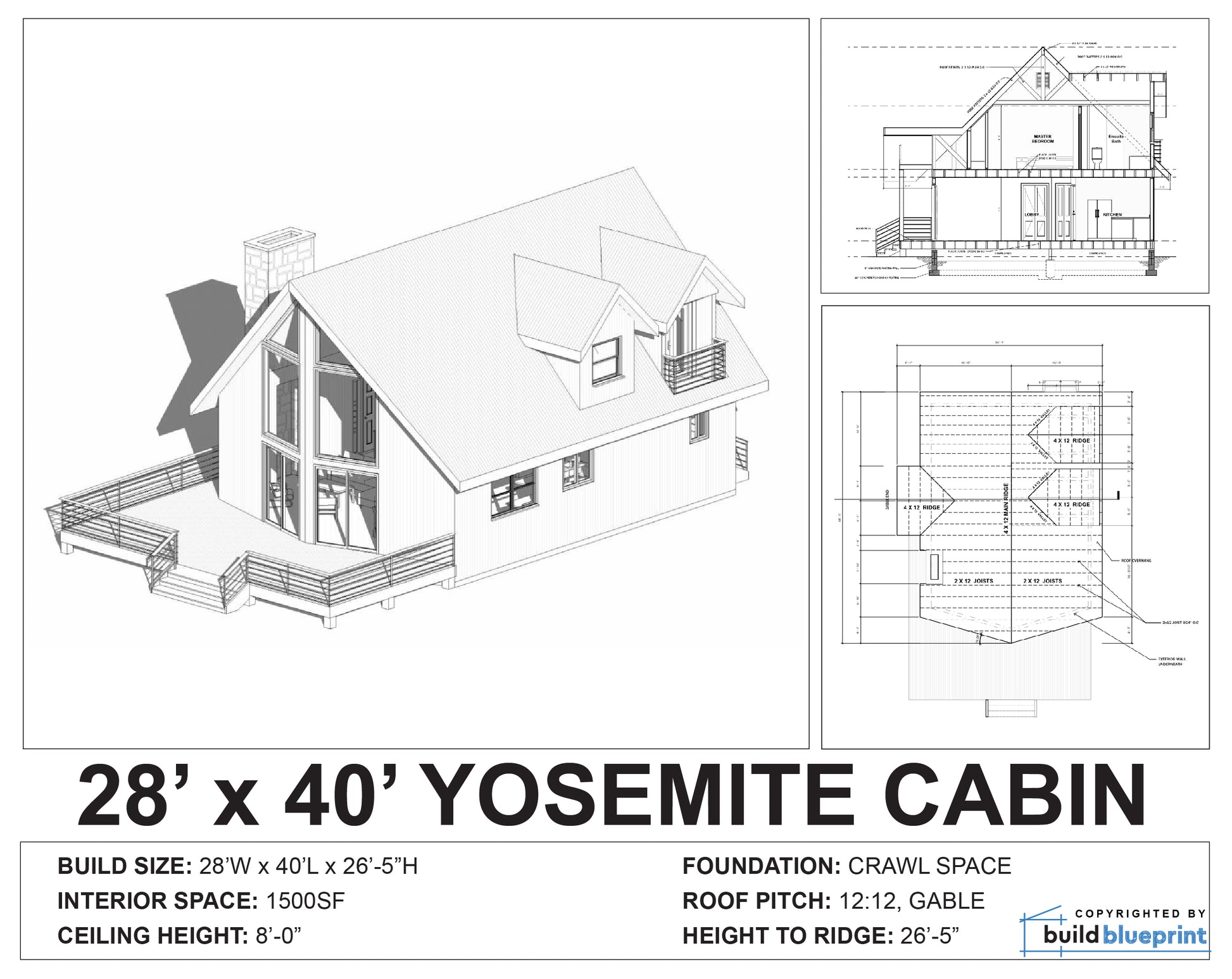

Complete architectural plans of a modern vacation cabin, this design can be built on any plot of land. The cabin has large windows opening into the living space and the loft, providing scenic views to the exterior landscape. Plans are suitable to hand off to a builder or architect for building or modifications.

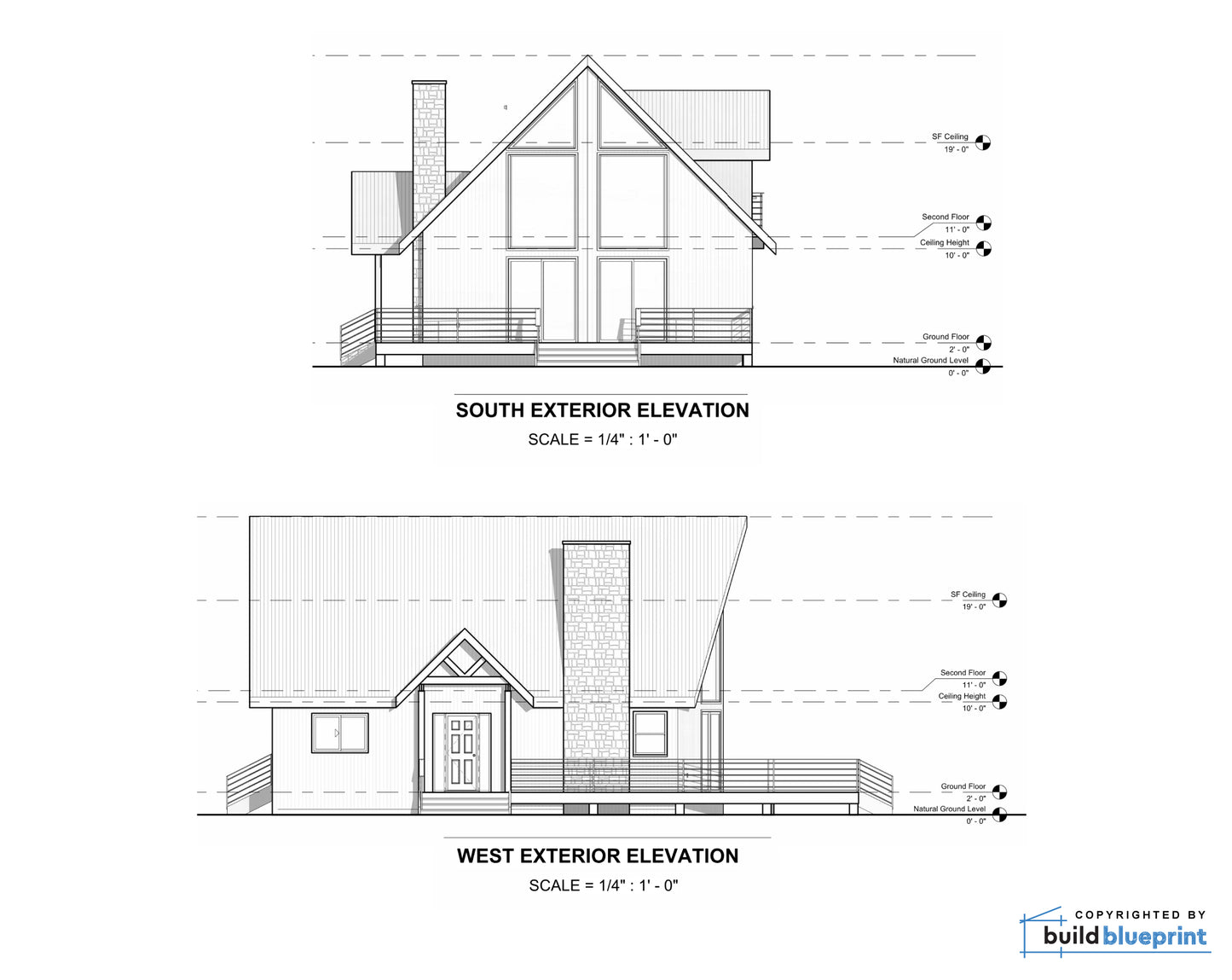

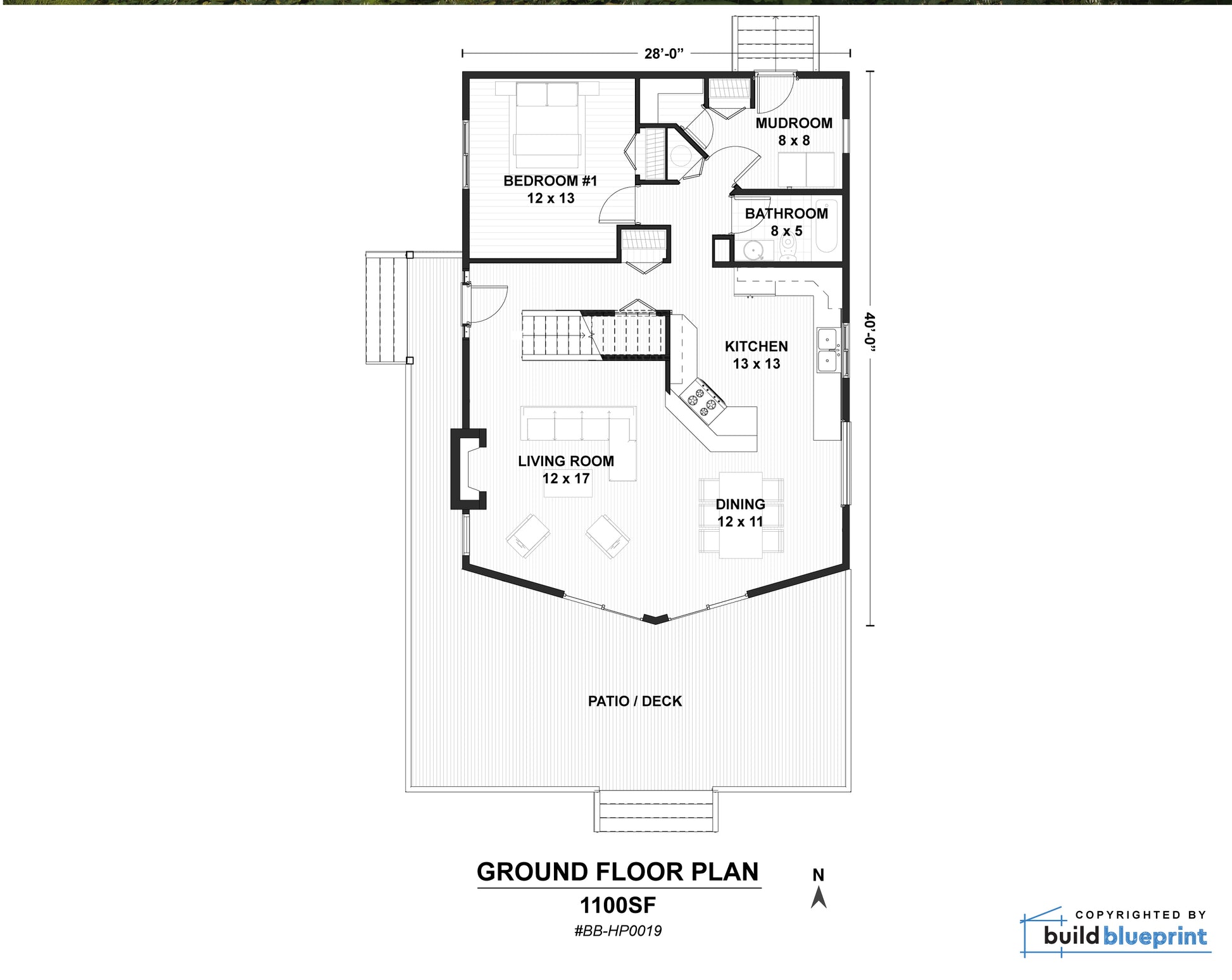

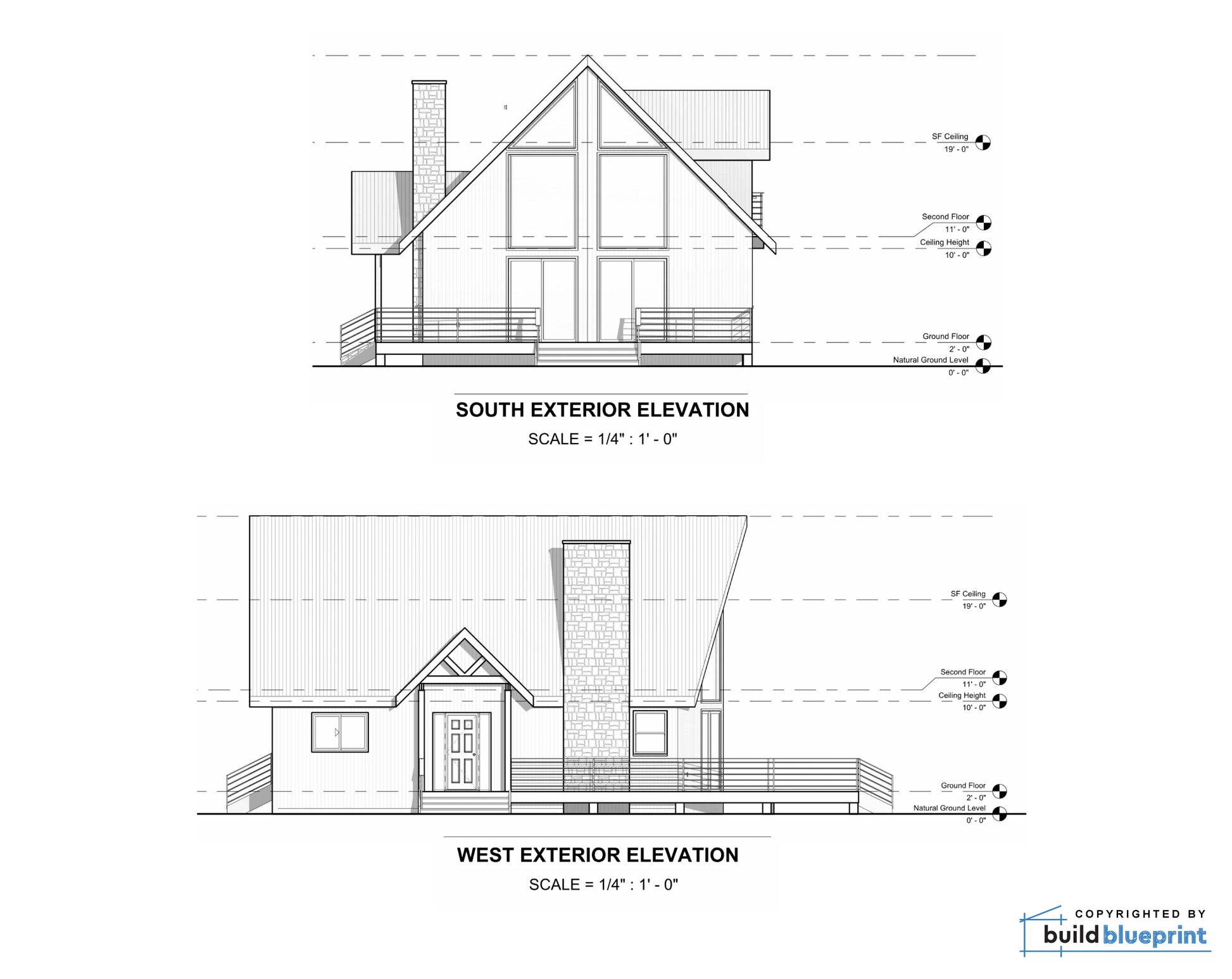

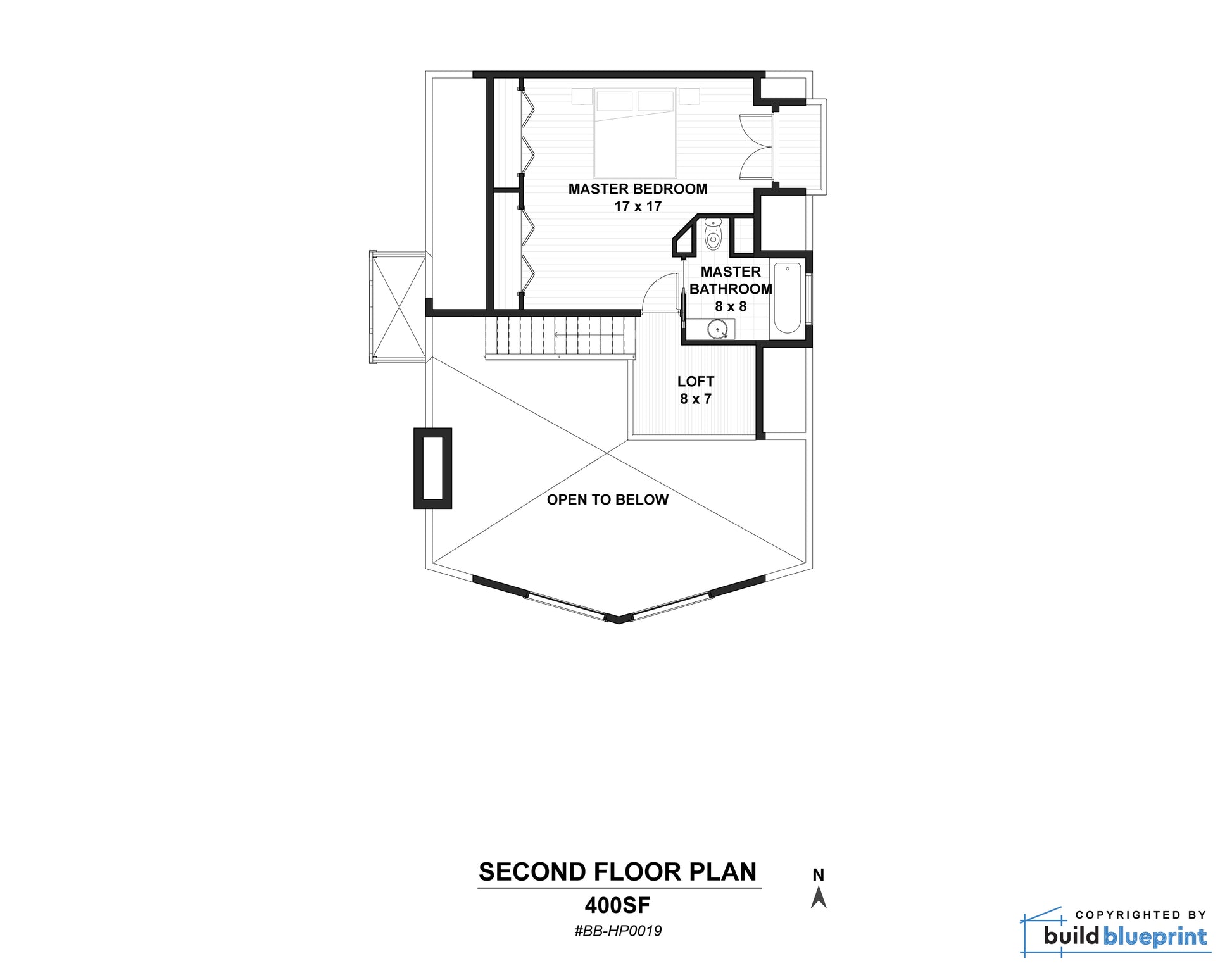

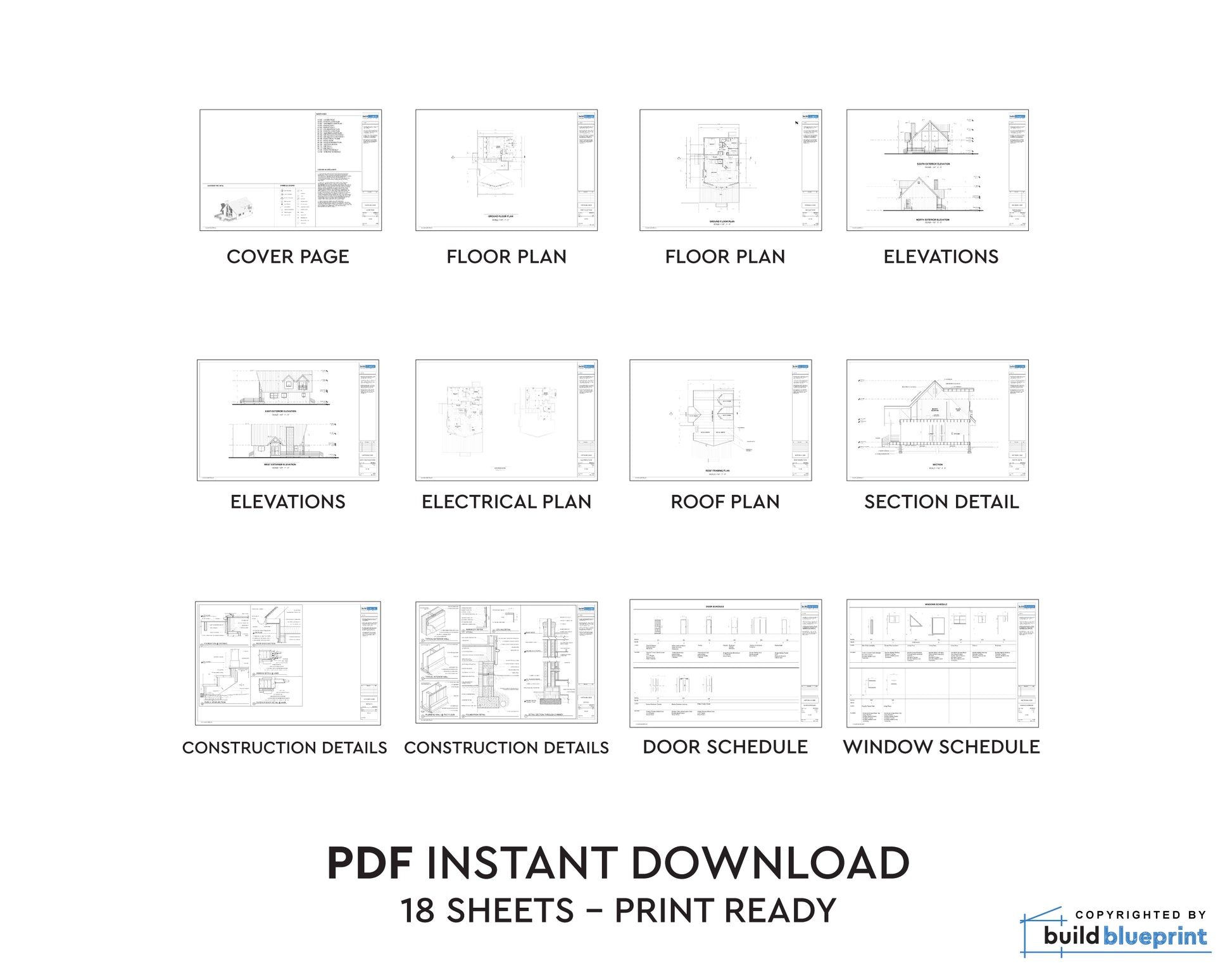

The set include a total of 18 sheets: Floor Plans, Elevations, Roof Plan, Electrical Plan, Foundation, Roof Framing, Section Detail, Construction Details, and Door/Window Schedule, fully dimensioned and annotated. The total heated interior is 1500SF, with 8'-0" high ceiling, large porch, and an optional fireplace. Foundation is built on crawl space. Due to variation in different States and local building departments, these plans are not intended for immediate permitting, but can be adjusted by your builder or designer if needed.

Plan is available in both Imperial and Metric units.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Based on 1 review
Mariano Pache P

Great product and service. Rapid replies.

Complete Plan Set

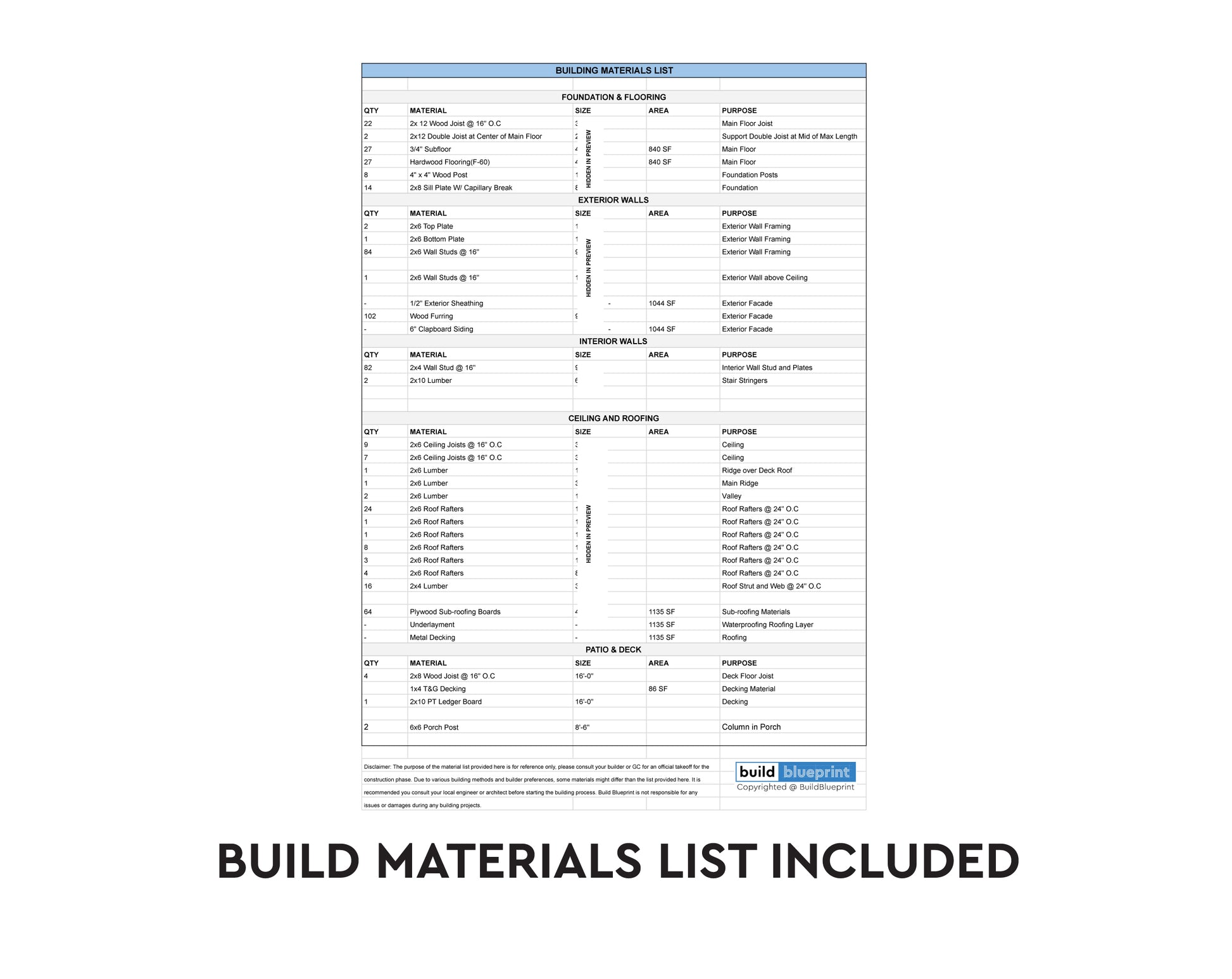

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
