28' x 28' Long Creek Cabin Architectural Plans

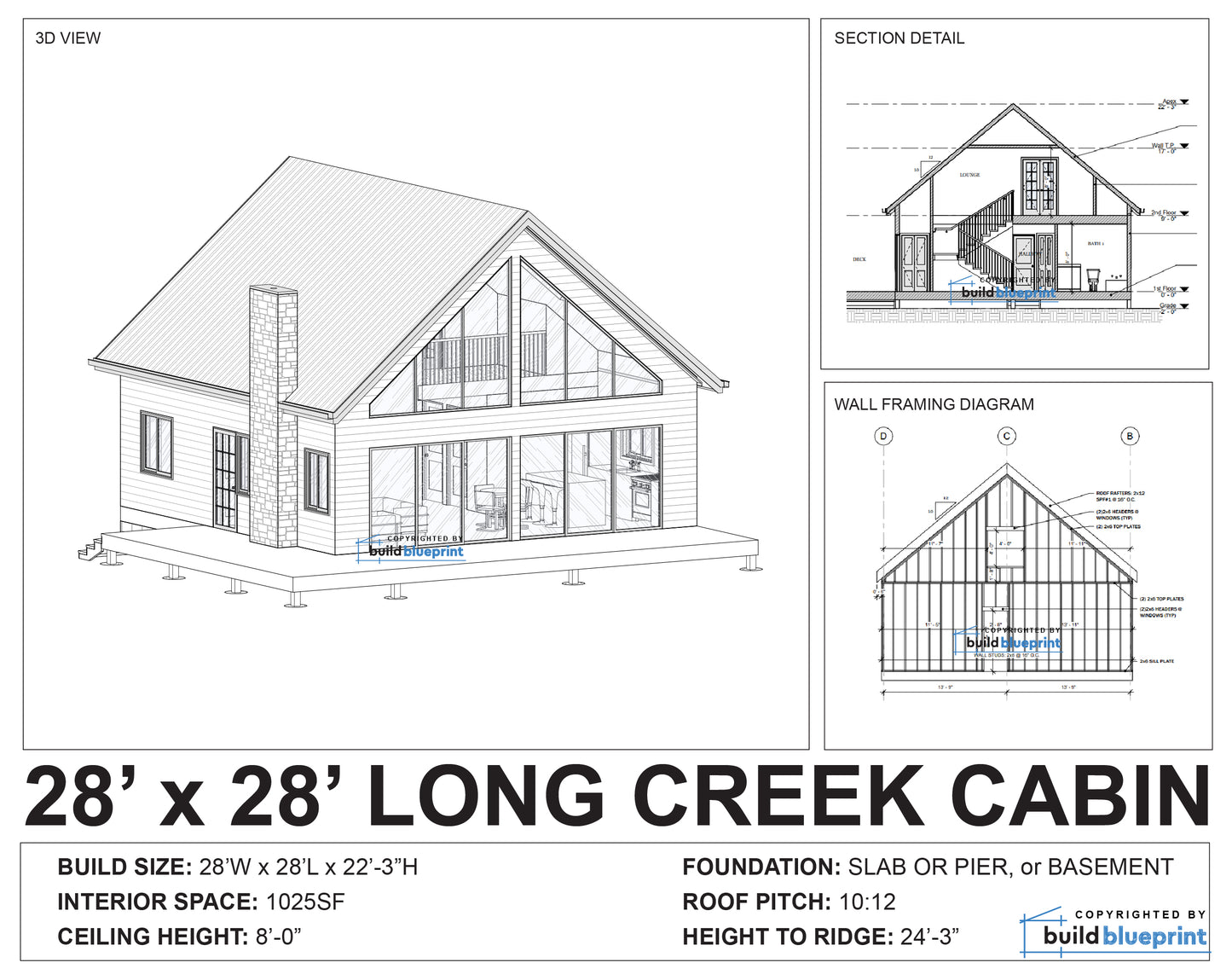

The 28' x 28' Long Creek Cabin is a three-bedroom, two-bathroom cabin plan at 1,025 square feet — a compact but fully capable family cabin with a roofline that peaks at over 24 feet. Optional basement adds significant square footage and storage for builds on suitable terrain. This is a proven layout that delivers real livability in a footprint that keeps construction costs in check.
Three bedrooms and two bathrooms at just over 1,000 square feet is an efficient use of space — every room earns its place, and nothing is wasted. The wind load rating of 115 PSF makes this one of our most weather-resilient designs, appropriate for exposed properties, high-wind regions, and northern climates where structural rating matters.
Plan Specifications
- Footprint: 28' W x 28' L
- Height: 24'-3"
- Floor Area: 1,025 SF
- Bedrooms: 3
- Bathrooms: 2

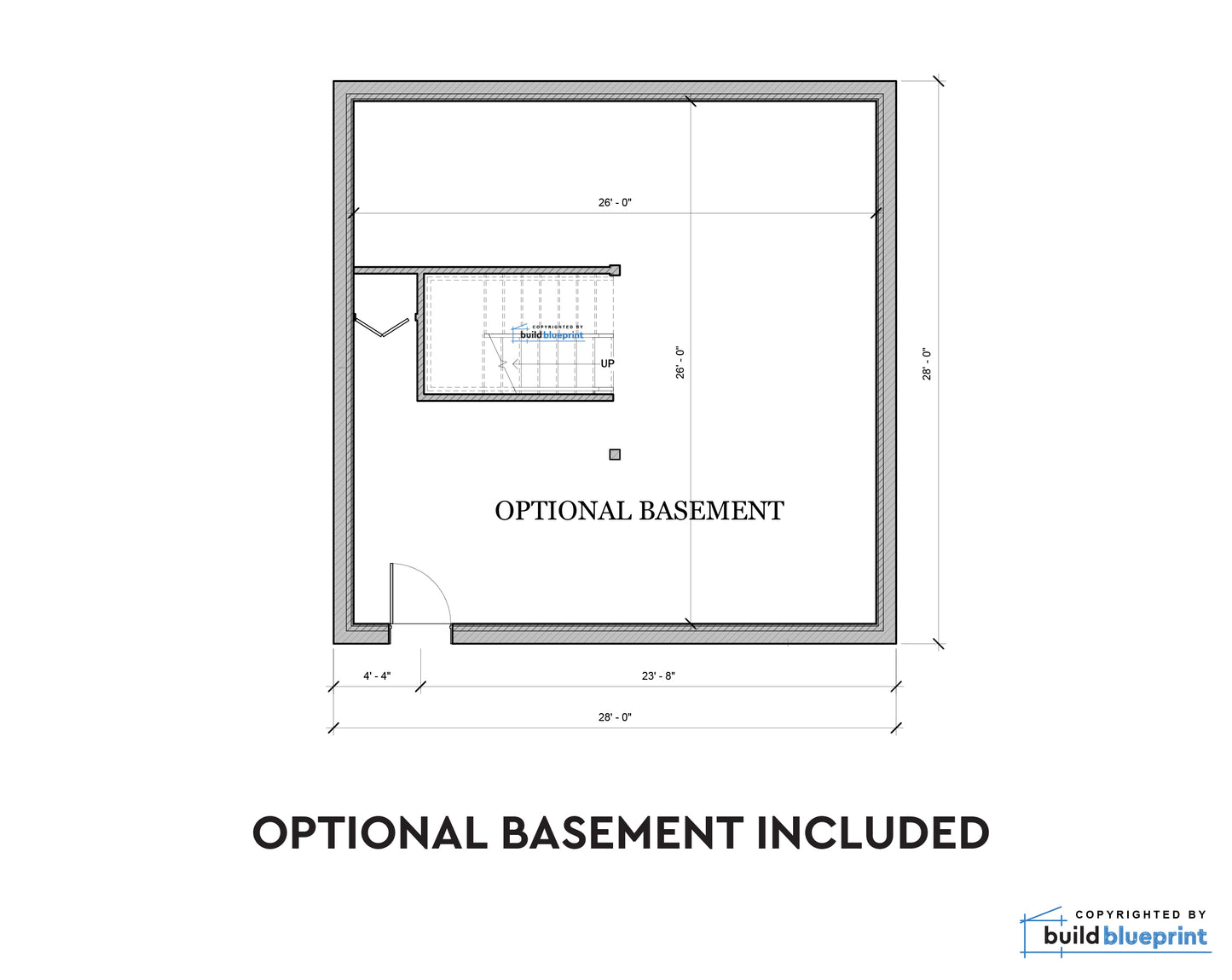

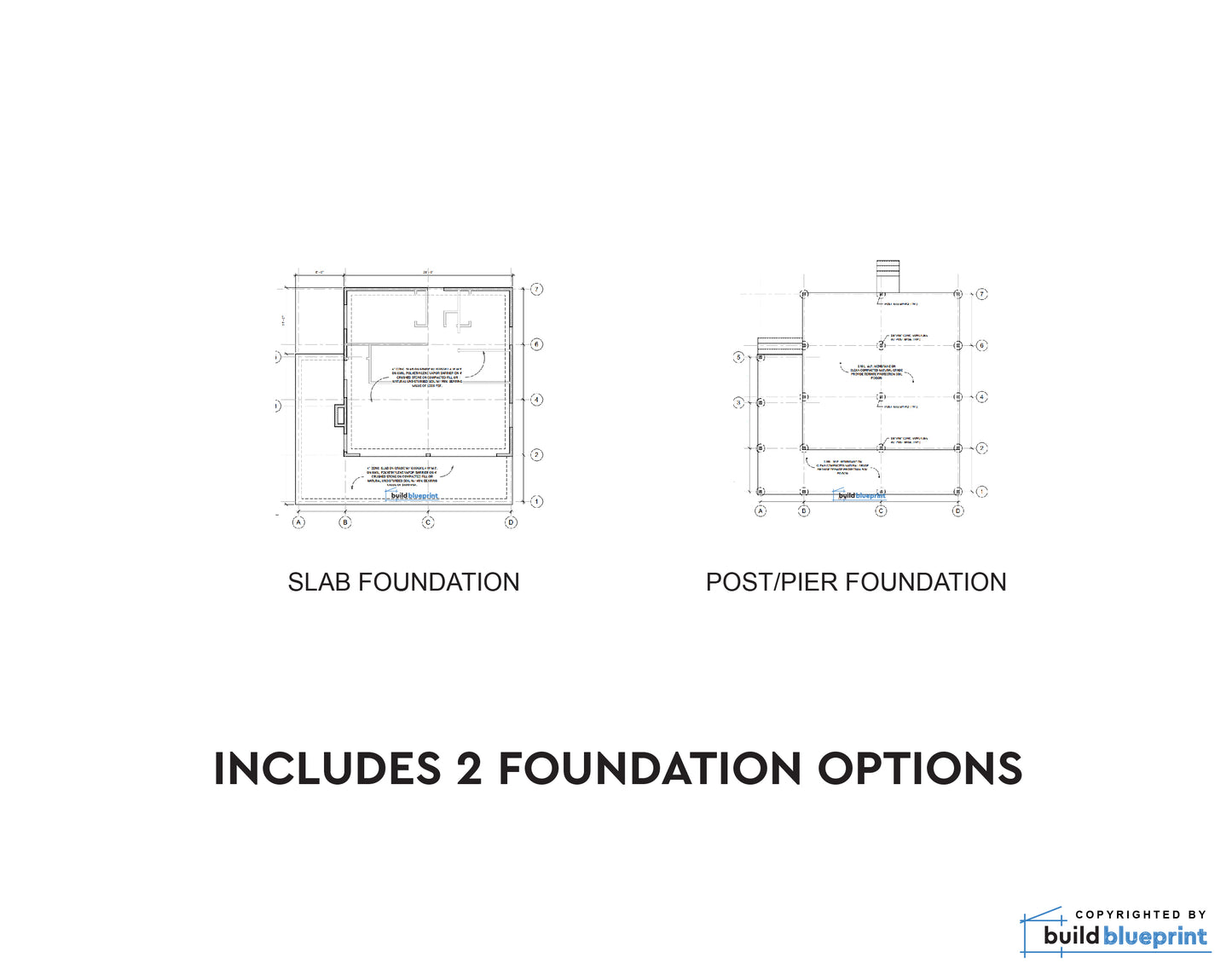

- Foundation: Concrete pier or slab, optional basement
- Wind Load: 115 PSF
- Ceiling Height: 8'-0"
- Est. Materials Cost: From $60,000
What's Included

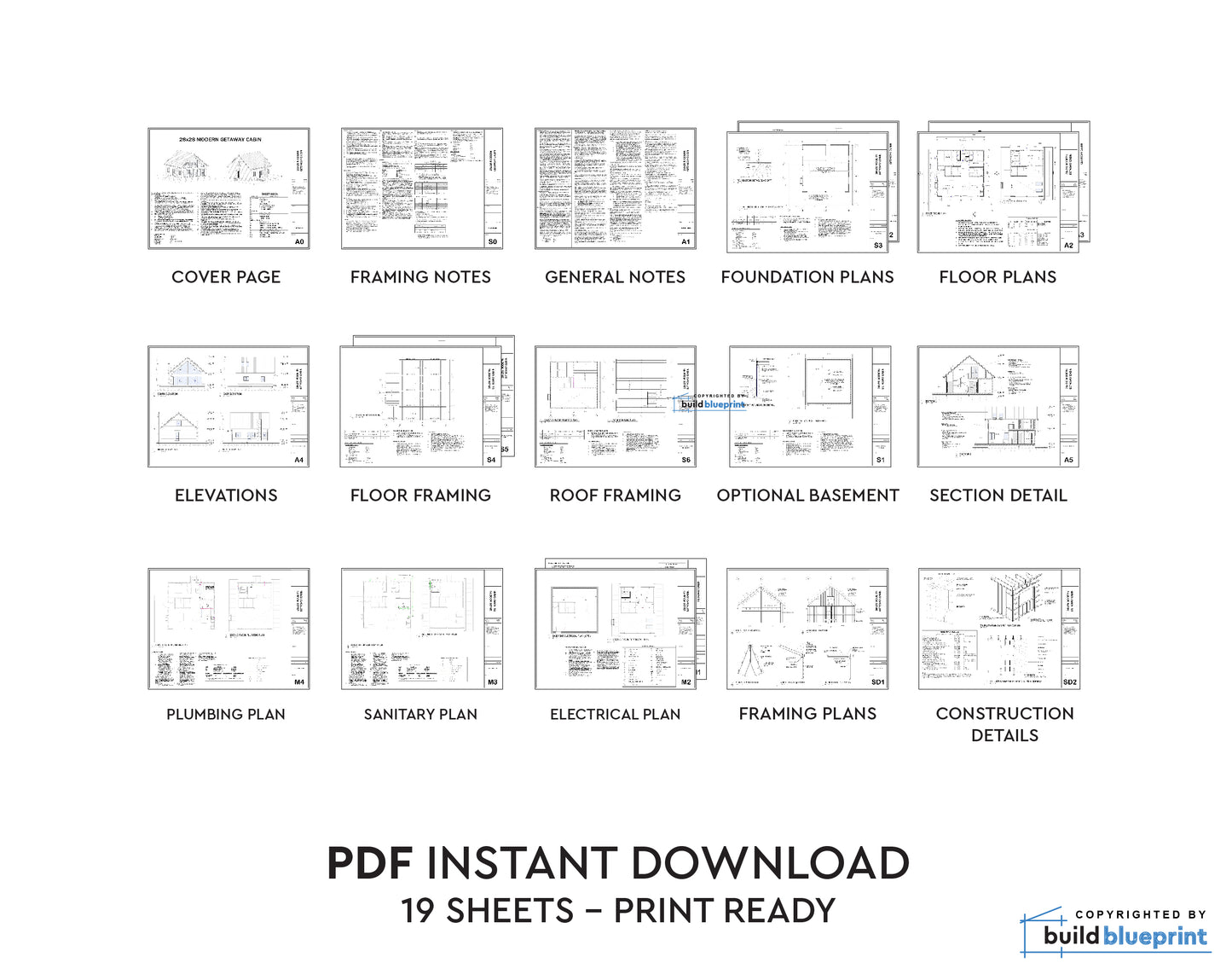

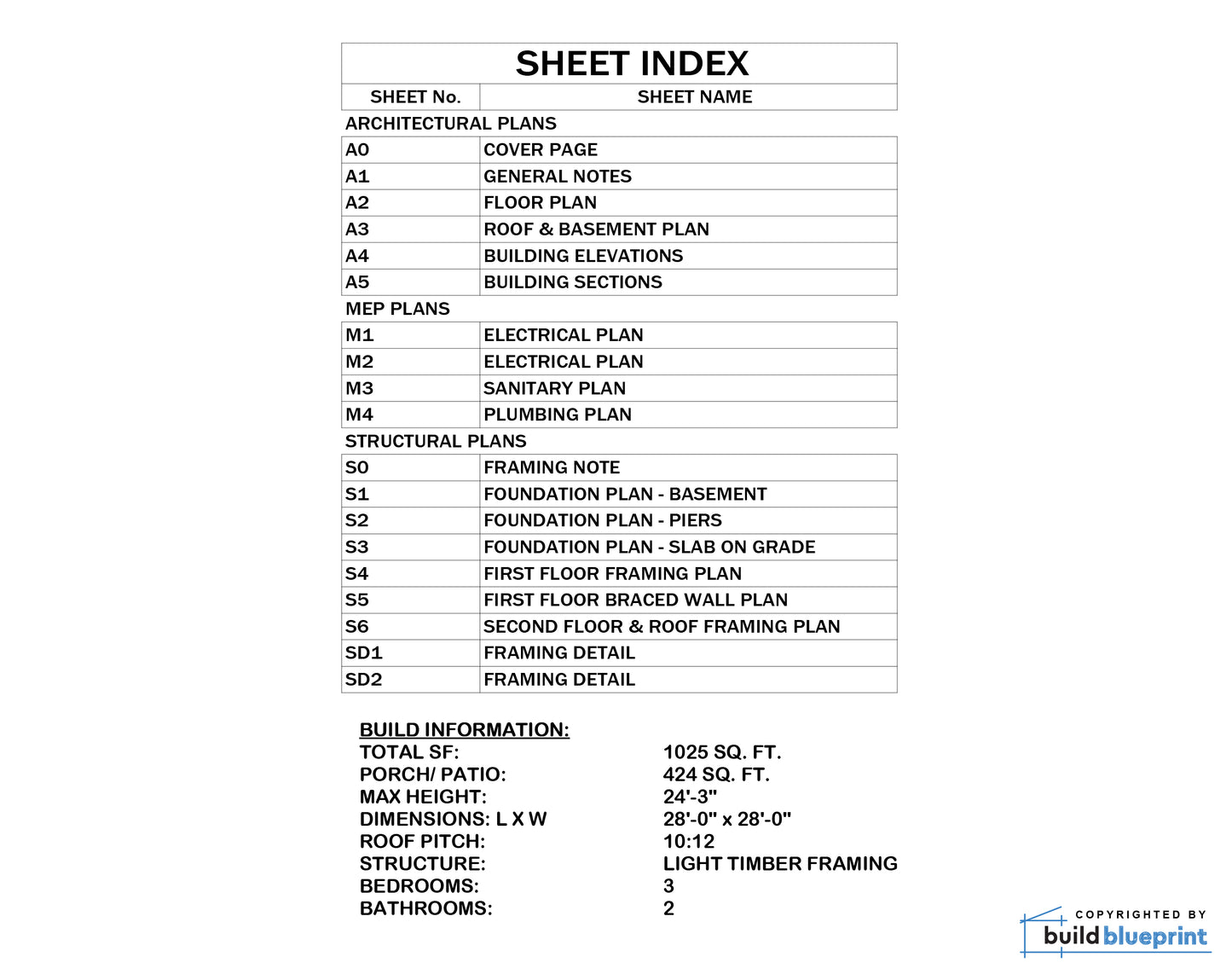

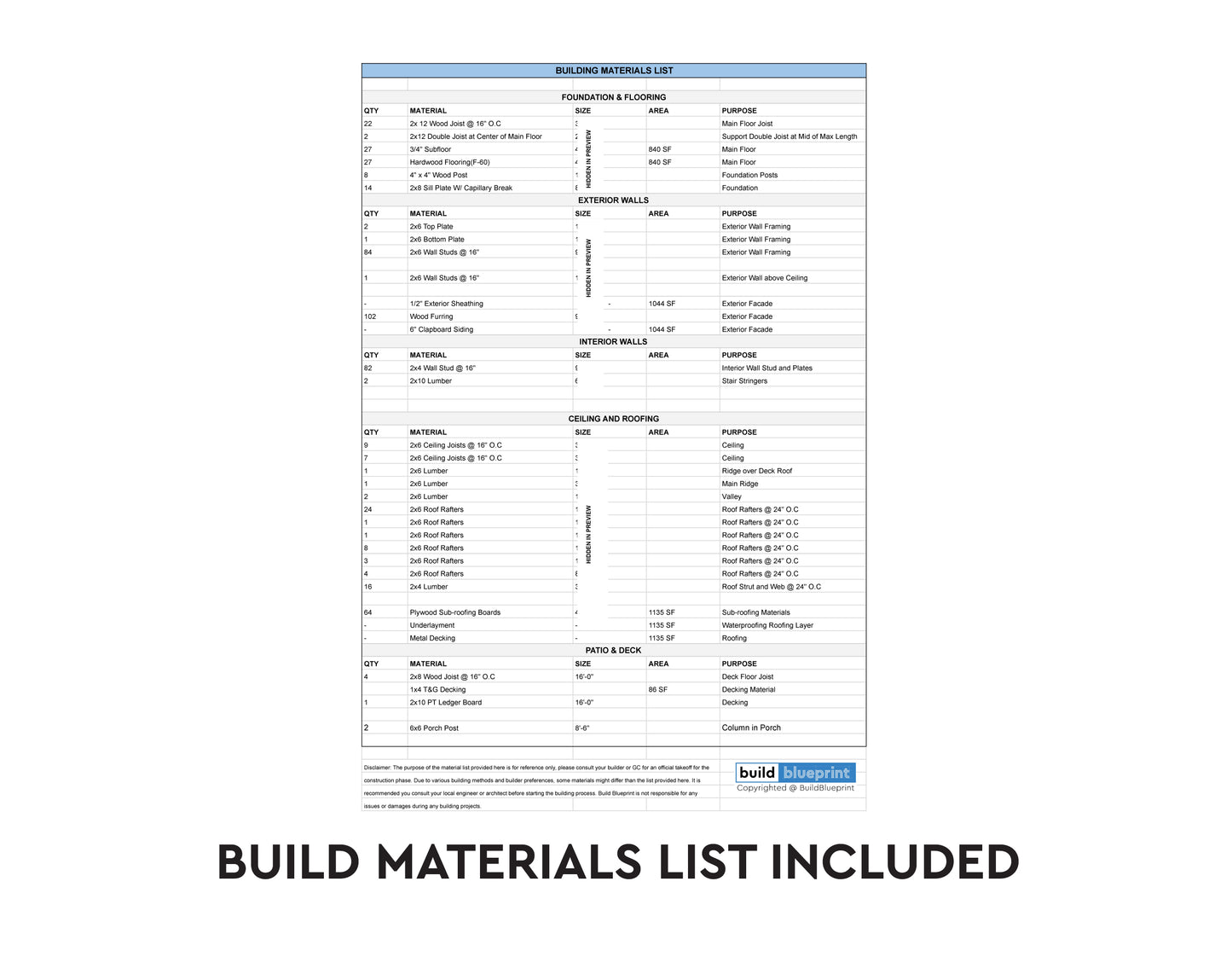

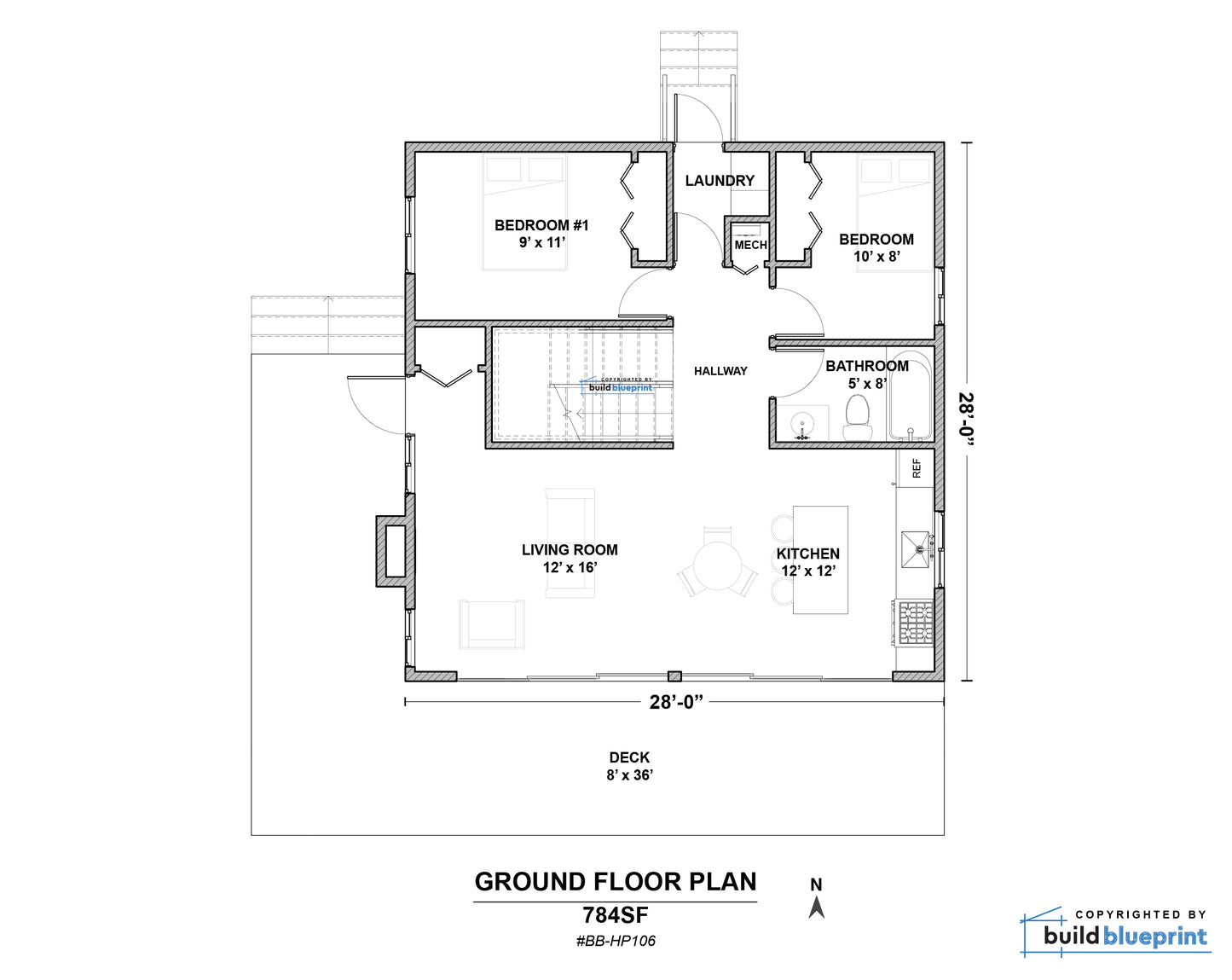

Complete permit-ready plan set including: floor plan, foundation plan (with optional basement layout), roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Ready for building permit submission in most US jurisdictions.
Available Plan Options
- Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
- PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.
Who This Plan Is For
A well-rounded choice for families building a primary mountain or lakefront cabin, or investors building a short-term rental with enough bedrooms to compete for group bookings. The optional basement adds substantial square footage for buyers whose site and budget allow for it. The 115 PSF wind load rating makes this design a sound engineering choice in high-exposure locations.
Instant Download
Your complete plan set downloads immediately after purchase.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set
All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
