Most buyers know they need a set of plans before they can break ground. What they don't know β until they're standing at the permit counter β is exactly what those plans need to contain. A complete, buildable plan set is not a single drawing. It's a coordinated package of sheets that guides every trade from foundation to finish and satisfies what your local building department requires to issue a permit.
Here's exactly what a professional set of cabin plans includes, what each sheet does, and what to verify before you buy.
The Cover Sheet
Every plan set opens with a cover sheet. This page contains the project name, the designer's contact information, a general notes section, a list of applicable building codes, and an index of all included sheets. Building departments use this page to confirm the plan set is complete before they begin their review. If your plans don't have a cover sheet, that's a red flag about the quality of what follows.
The Site Plan
The site plan shows the footprint of the structure on the lot β setbacks from property lines, access points, utility connections, and any site-specific drainage or grading notes. Some permit jurisdictions require a site plan drawn to your specific parcel; others accept a generic site plan from the designer. Confirm with your local building department which they require before submitting.
Floor Plans
Floor plans are the horizontal cross-section of the structure at each level. They show wall locations, room dimensions, door and window placement, stair locations, and room labels. A good floor plan gives your framing crew, your electrician, and your plumber a shared reference point. If a plan set has multiple levels β main floor, loft, or basement β each level gets its own dedicated sheet.
When evaluating floor plans, look for dimensioned walls (not just room labels), door swing indicators, and interior notes calling out insulation values or wall assembly types. Vague floor plans create expensive field questions that slow your build.
Exterior Elevations
Elevations are the four exterior views of the structure β front, rear, left side, right side. They show roofline, siding, window placement, door heights, and finish materials. Building departments use elevations to verify the structure meets height limits and, where applicable, aesthetic standards. Your contractor uses them to confirm material quantities and window and door rough openings.
Building Sections
A building section is a vertical cut through the structure showing how it's assembled from foundation to ridge. Sections reveal floor-to-ceiling heights, roof pitch, insulation placement, and structural member sizes. This is where the engineering lives. A plan set without clear sections is incomplete β this sheet tells your framing crew how thick the floor assembly is and how steep the roof slope is. Missing it guarantees field errors.
Foundation Plan
The foundation plan shows the layout, dimensions, and specifications for the structural base of the building. Depending on the foundation type β concrete slab, crawl space, or pier β this sheet will show footing sizes, reinforcement requirements, anchor bolt locations, and any grade beam details. This sheet goes directly to your concrete contractor. If it's missing or vague, expect requests for information that slow your schedule and inflate your costs.
For a detailed breakdown of foundation options and costs: Concrete Slab vs. Pier Foundation: Which Is Right for Your Cabin?
Roof Framing Plan
The roof framing plan shows rafter or truss layout, ridge beam location, bearing points, and any special framing conditions such as dormers or valley intersections. Simple gable roofs may combine this with the floor framing plan; more complex roof structures get their own dedicated sheet. Your framing crew needs this to order lumber correctly and sequence the framing without delays.
Electrical Plan
An electrical plan shows outlet locations, switch placements, fixture locations, panel location, and circuit notes. In most jurisdictions, an electrical plan is required as part of your permit submission β even if the final electrical permit is pulled separately by a licensed electrician. A plan set without an electrical layout is not permit-ready. Your electrician will draw one from scratch and bill you for the time.
What's NOT Included β And Why That's Normal
No pre-drawn plan set includes a site-specific engineered foundation stamped for your lot's soil conditions β that's a separate service from a local geotechnical engineer if your jurisdiction requires it. Pre-drawn plans also do not include a site plan drawn to your specific parcel; a surveyor or your contractor handles that. Mechanical, plumbing, and HVAC plans are typically handled by the trade contractors pulling their own sub-permits.
None of this makes a pre-drawn plan set incomplete. It means you understand what each party in the permitting process is responsible for β and what you're actually paying for when you buy plans.
PDF vs. CAD β Which Format Do You Need?
PDF plans print at full architectural scale and are ready to submit directly to your building department and hand to your contractor. CAD files (DWG format) allow a local designer or architect to modify the drawings β adjusting a wall location, adding a room, or adapting the design for a specific site condition. Most buyers need the PDF only. If you're planning modifications, add the CAD files at checkout.
Full breakdown of when each format makes sense: PDF vs. CAD Files: Which Plan Format Do You Actually Need?
What Build Blueprint Plan Sets Include

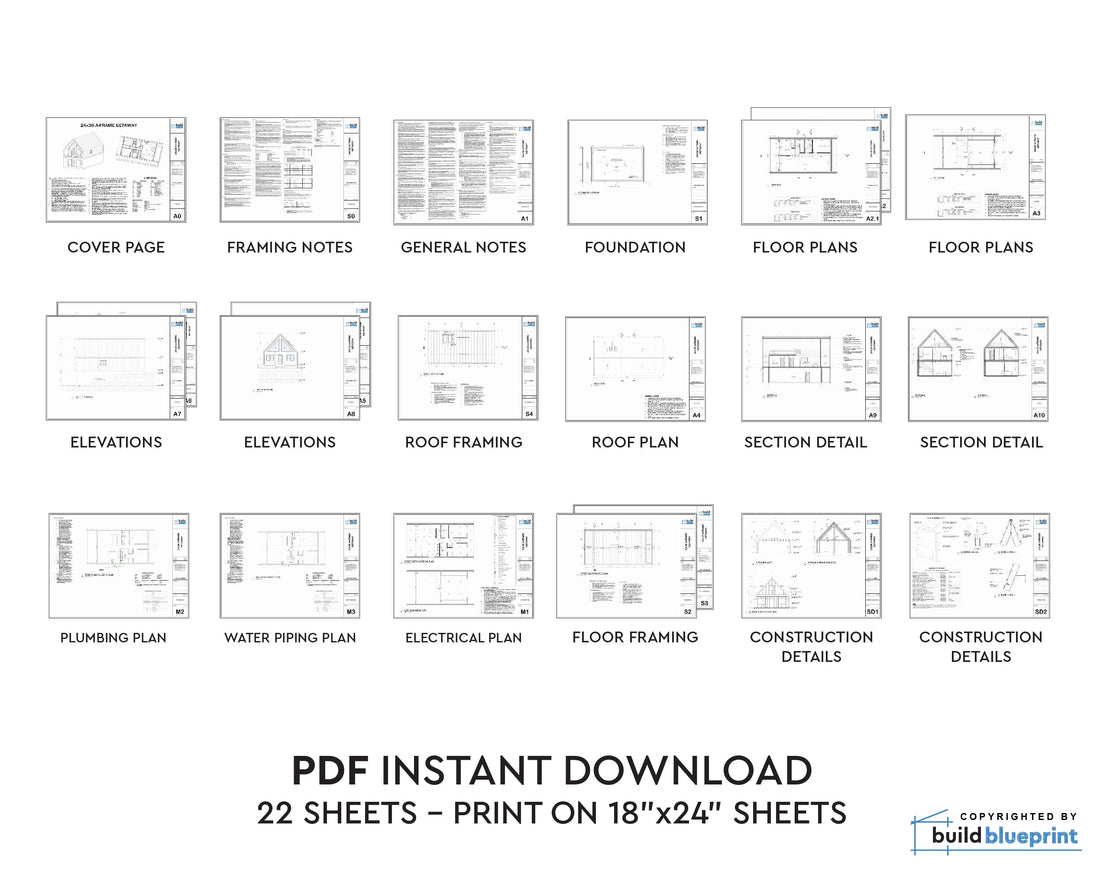

Every permit-ready set from Build Blueprint includes a cover sheet, floor plan or plans, four exterior elevations, a building section, foundation plan, roof framing plan, and electrical plan. Plans are drawn to standard wood frame construction using standard lumber dimensions β no custom structural members required. They print at full architectural scale on standard sheet sizes and are accepted by building departments across the United States.
Popular starting points across a range of sizes:
- 20' x 26' Adirondack permit-ready set β 2 bed, 1 bath, 650 SF, loft, most popular plan
- 24' x 34' Large Adirondack permit-ready set β 3 bed, 2 bath, 816 SF, full main floor layout
- 32' x 32' Alpine permit-ready set β 3 bed, 2 bath, 1,024 SF, open plan with large covered porch
- 34' x 48' Modern Farmhouse permit-ready set β 3 bed, 2 bath, 1,632 SF, single-story farmhouse layout
The Bottom Line
A complete plan set contains six to eight coordinated drawing sheets that cover every trade involved in building your structure. Before you buy any plans, confirm the set includes floor plans, elevations, sections, a foundation plan, and an electrical layout. Plans missing any of those sheets are not permit-ready β and that gap will cost you time and money at the permit counter. Build Blueprint plan sets include every required sheet, drawn to standard construction methods, ready to submit as-is in most U.S. jurisdictions.
