16' x 20' Redwood Cabin Loft DIY Build Plans

16' x 20' Redwood Cabin Loft DIY Build Plans

Regular price $89.00 USD
Regular price Sale price $89.00 USD
Sale Sold out

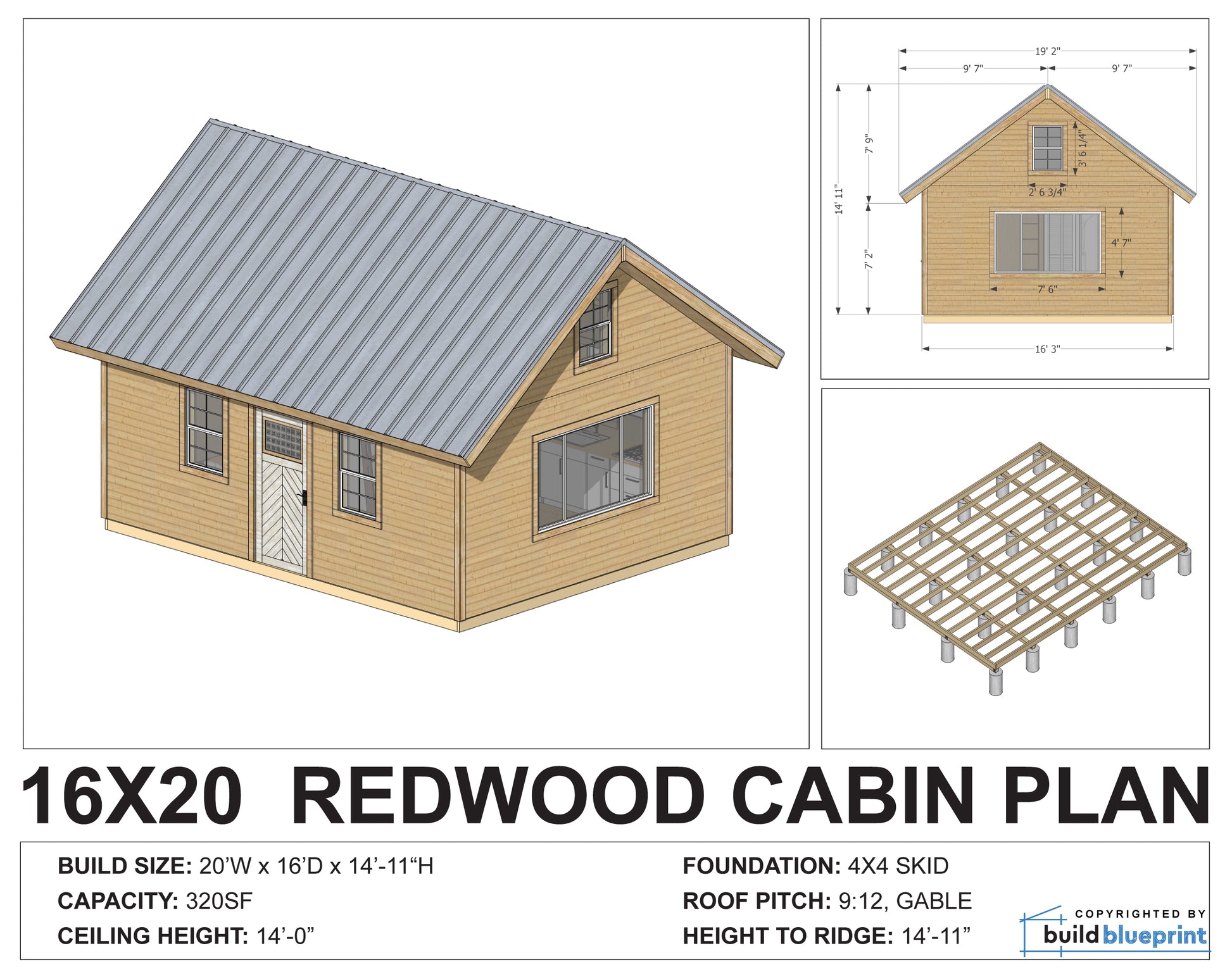

320 SF (20'W x 16'L x 14'-11"H)

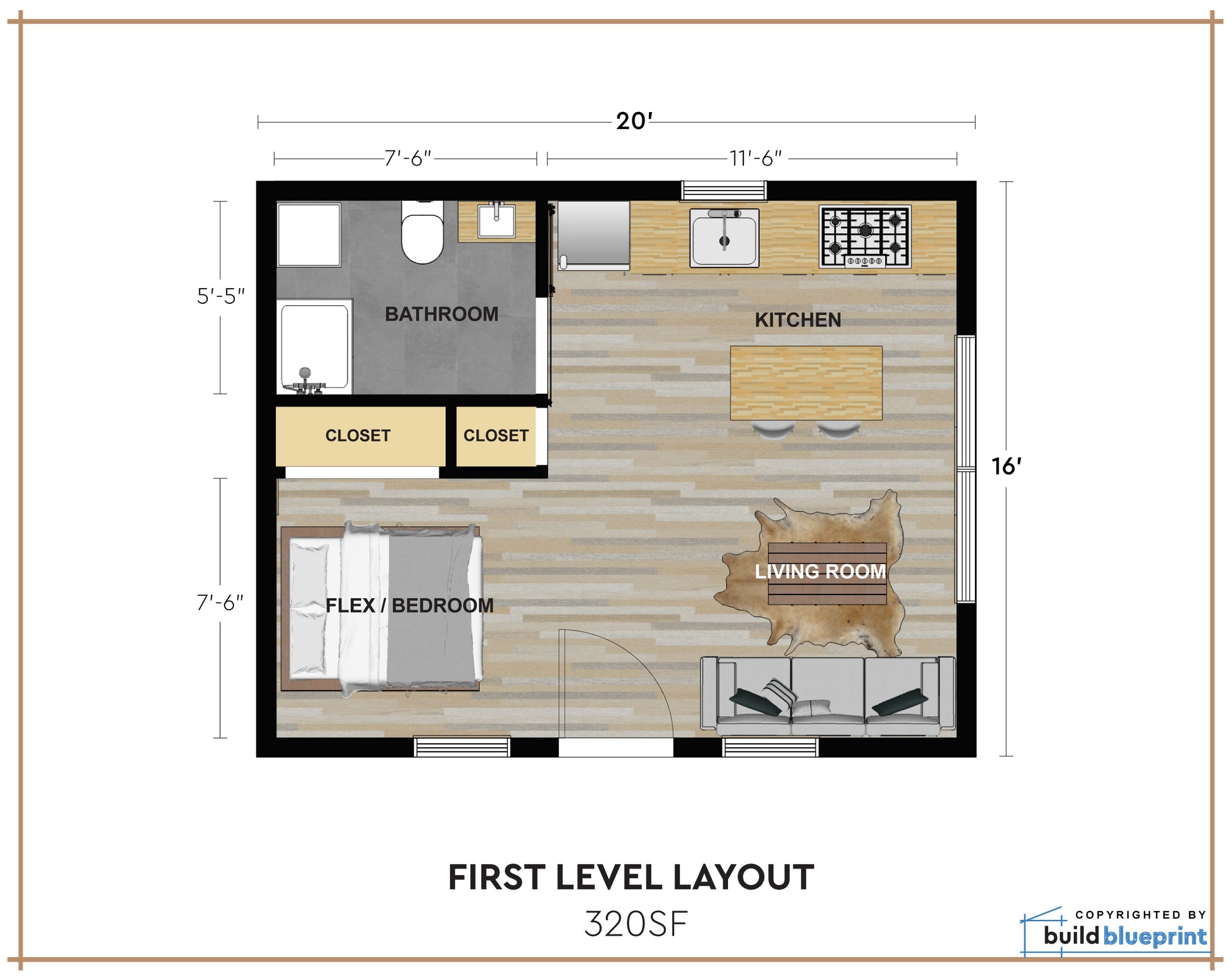

1 Bedroom / 1 Bathroom / Loft
Concrete Piers
Roof Load: 105 PSF
Ceiling Height: 8'-0"
Est. Materials Cost: $5,500*

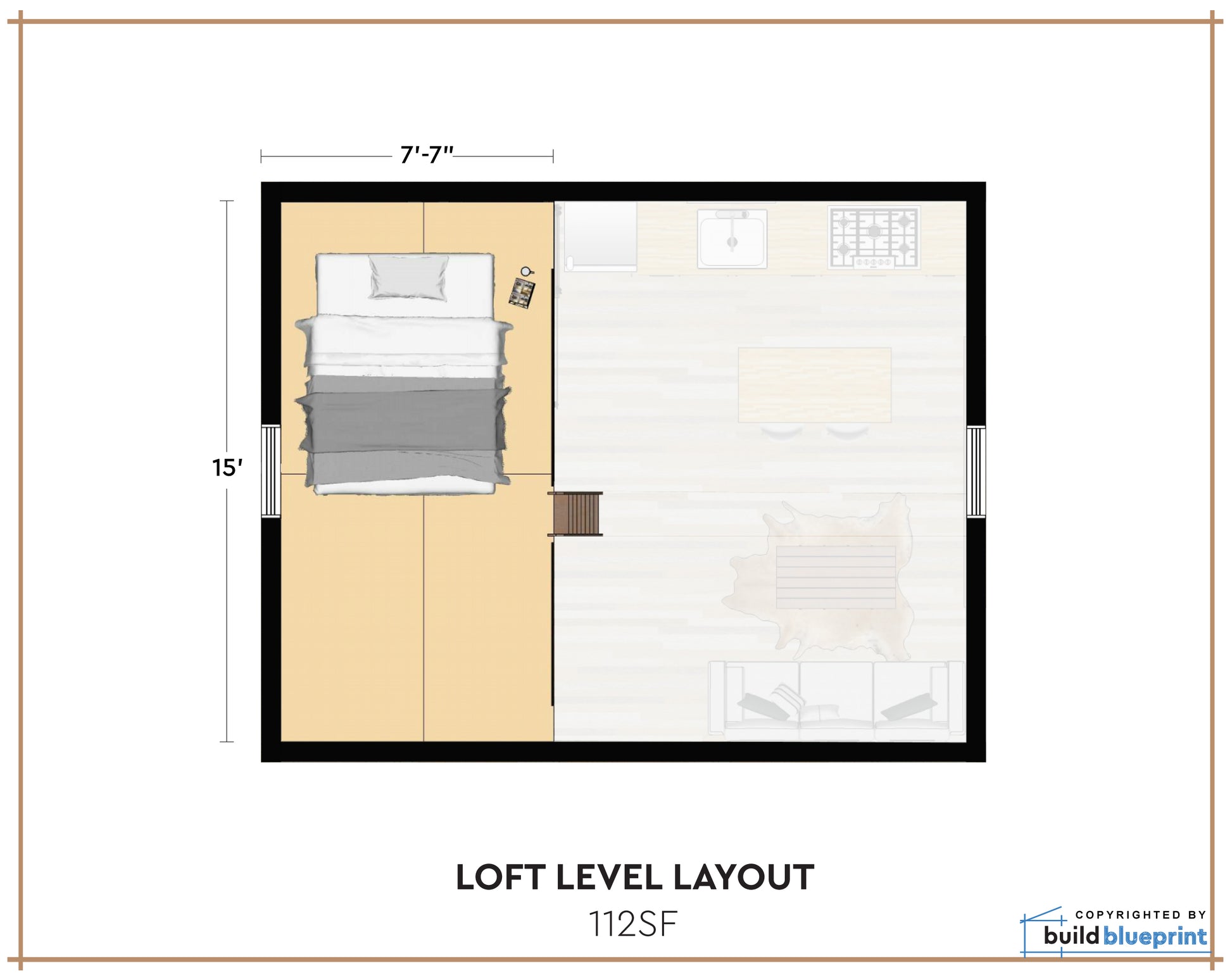

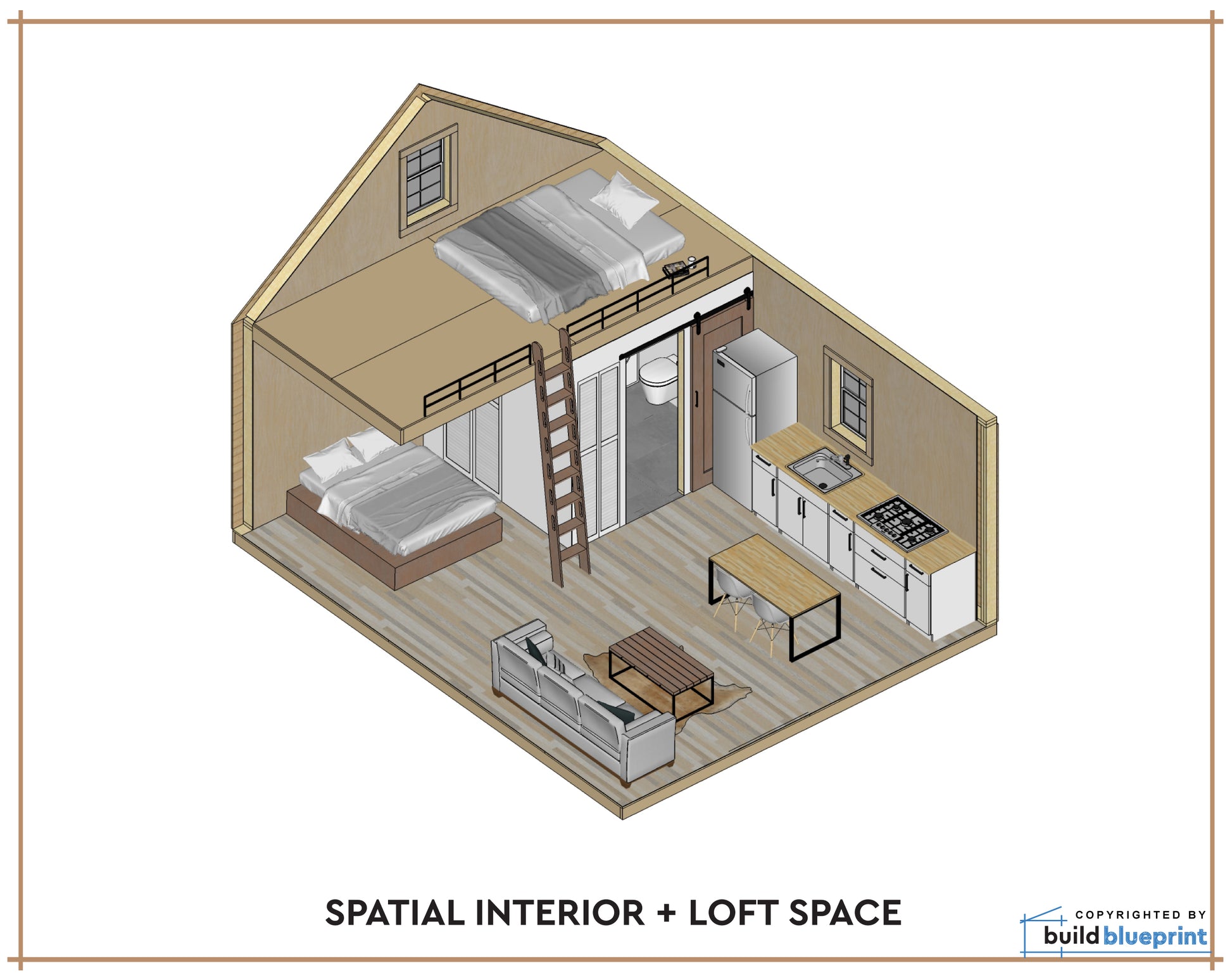

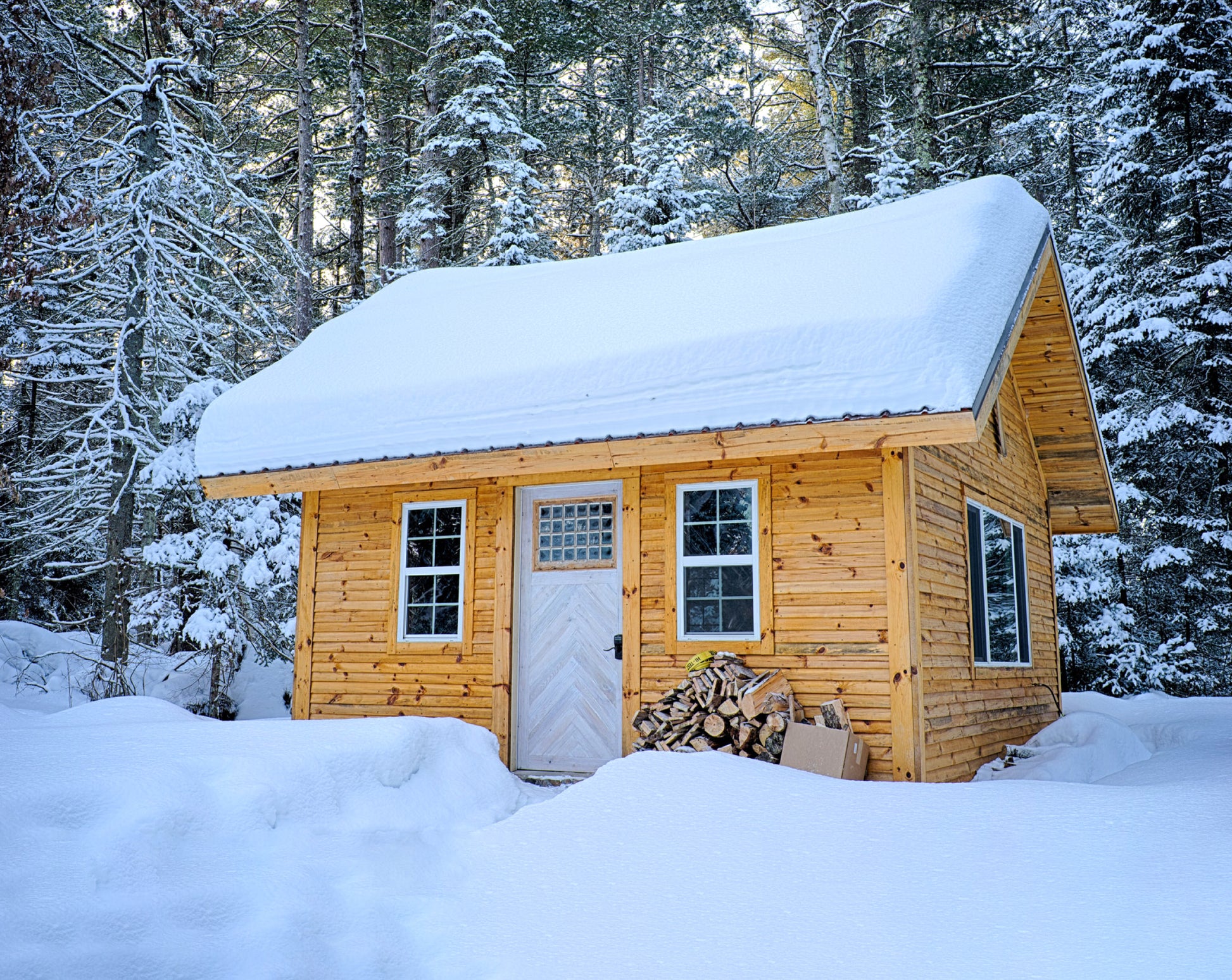

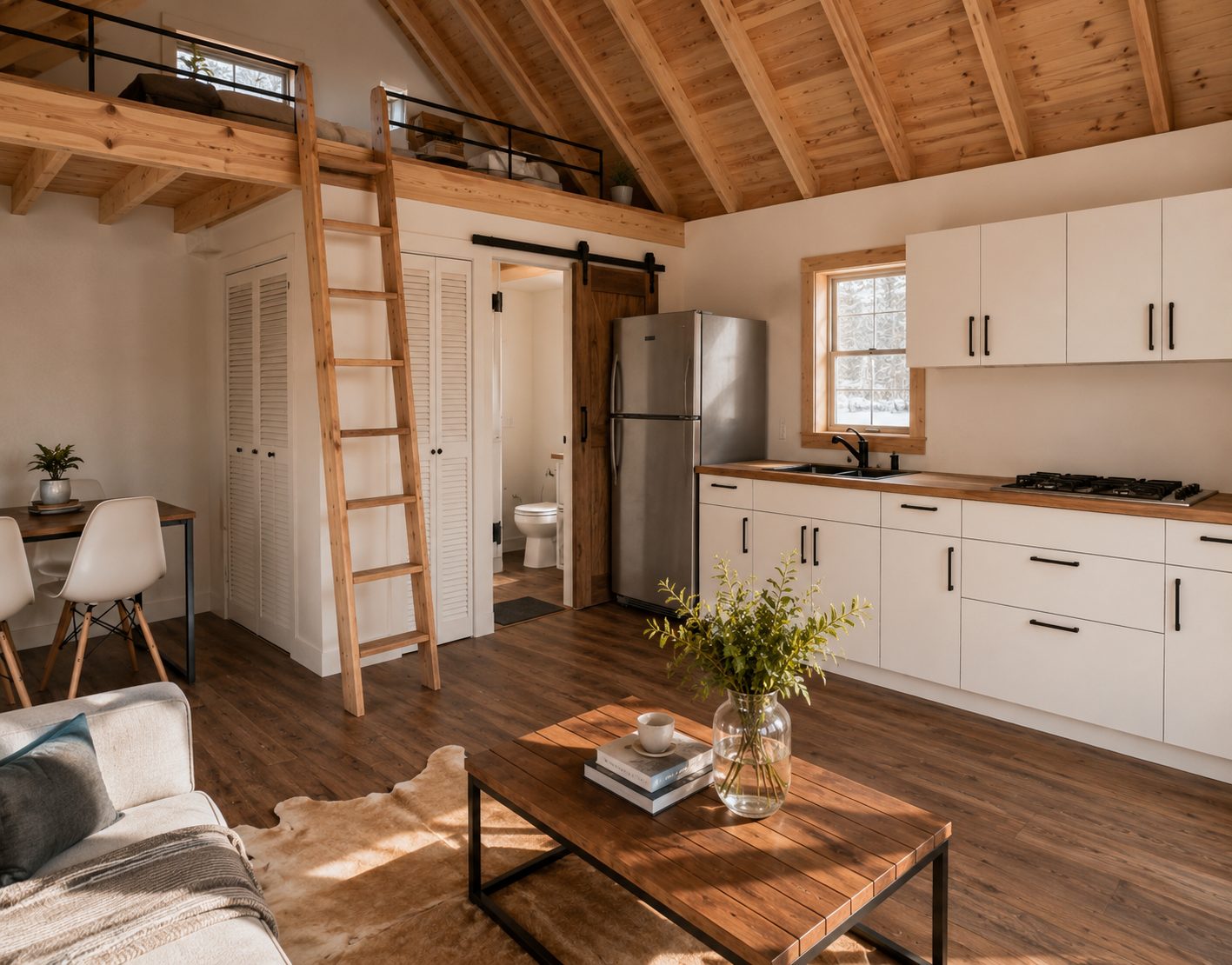

Build your own compact off-grid cabin using these DIY plans! The interior of this cabin is 320SF, plus a large loft space for sleeping or storage. This cabin is designed to be heavy-duty and withstand heavy snowfalls.

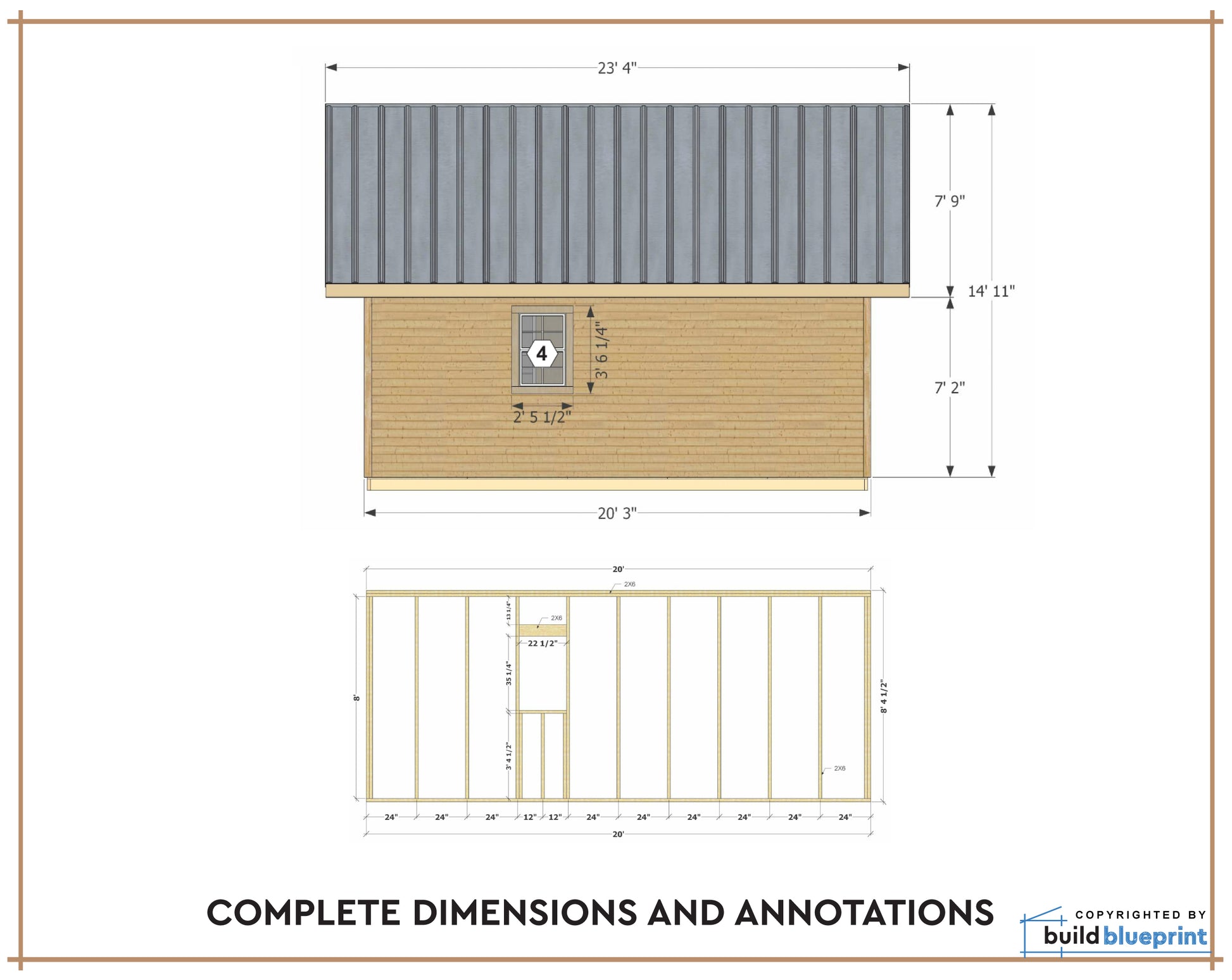

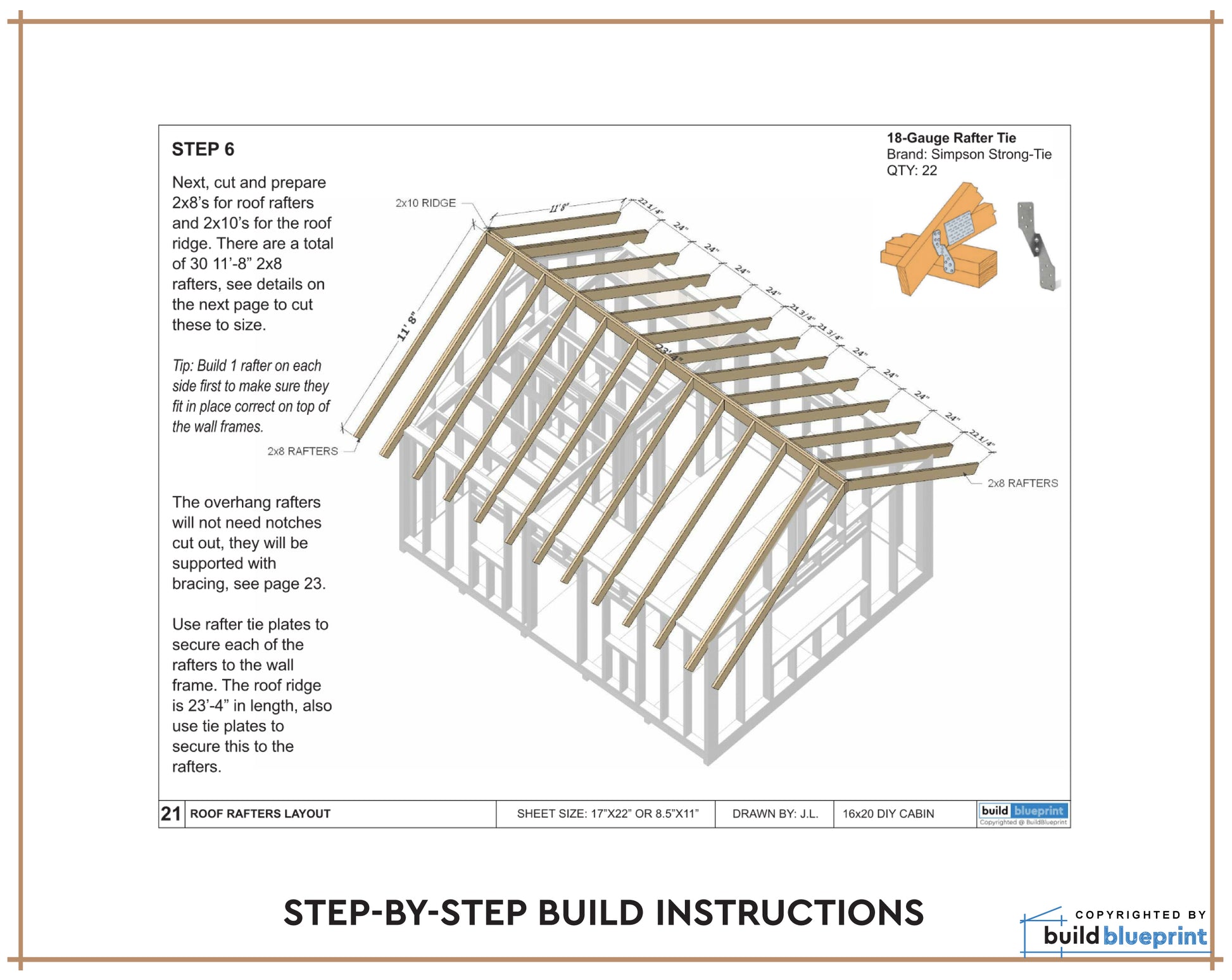

Complete DIY build plans for a 16' x 20' Wooden Cabin, including plans, elevations, foundation plan, framing plans, roof framing plan, electrical and plumbing information. This set of plans have everything you need to build the cabin, suitable for DIYer's or give it to a professional builder. This set of plans are fully dimensioned and annotated, including step-by-step instructions and tips.

The estimated cost for the wood materials is approximately $6,000, all materials can be found at Home Depot or your local hardware store. You will need basic woodworking tools like miter saw, power drill, measuring tape, and framing square.

Plan is available in both Imperial and Metric units.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

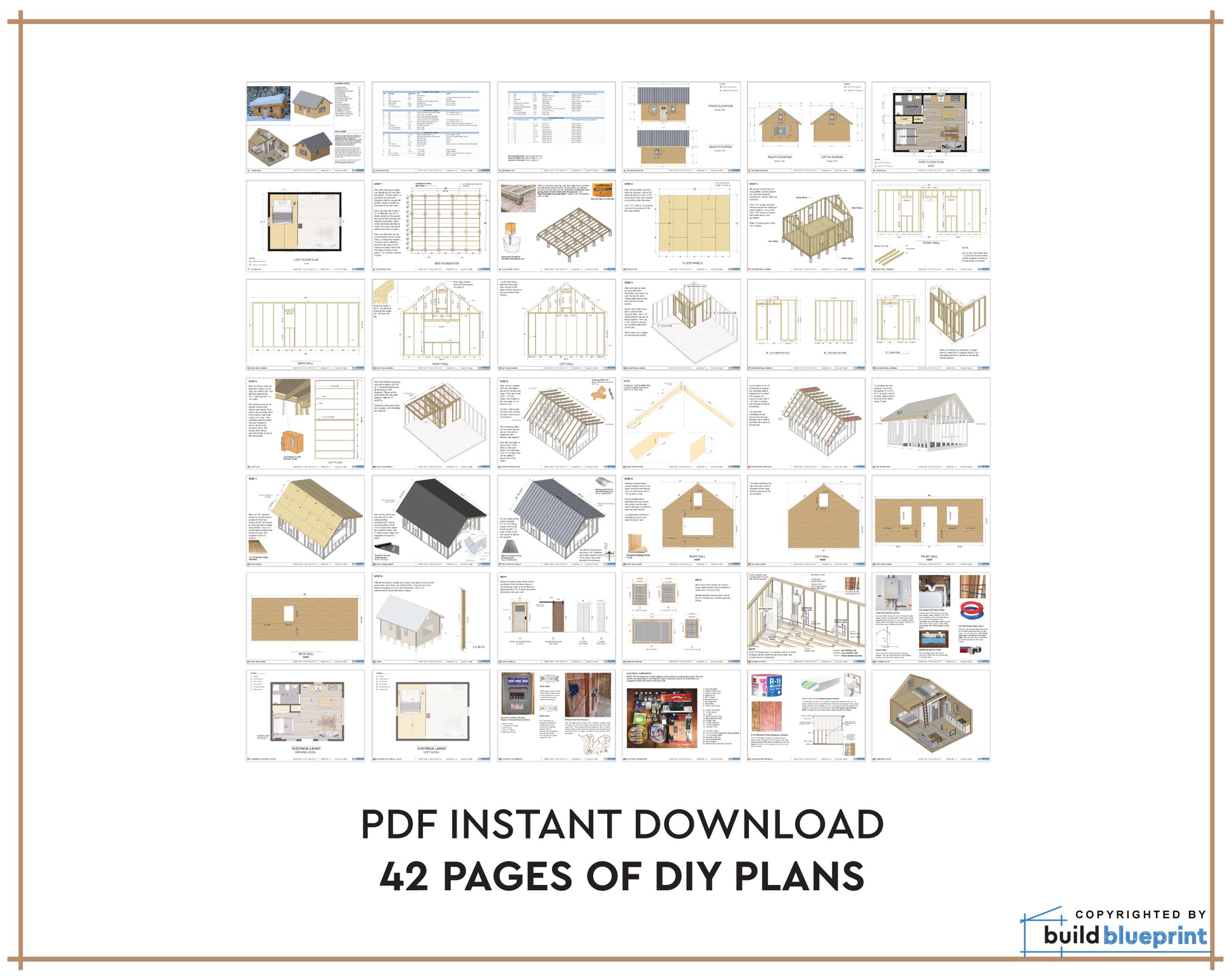

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Based on 38 reviews

5 stars review from Frank

Arianna E

5 stars review from Arianna

Thomas T

Exactly as described. Easy to follow.

Mekena G

5 stars review from Mekena

Jesse O

Clear, high resolution, step-by-step instructions.

Exactly what I was looking for, exactly as described.

Complete Plan Set

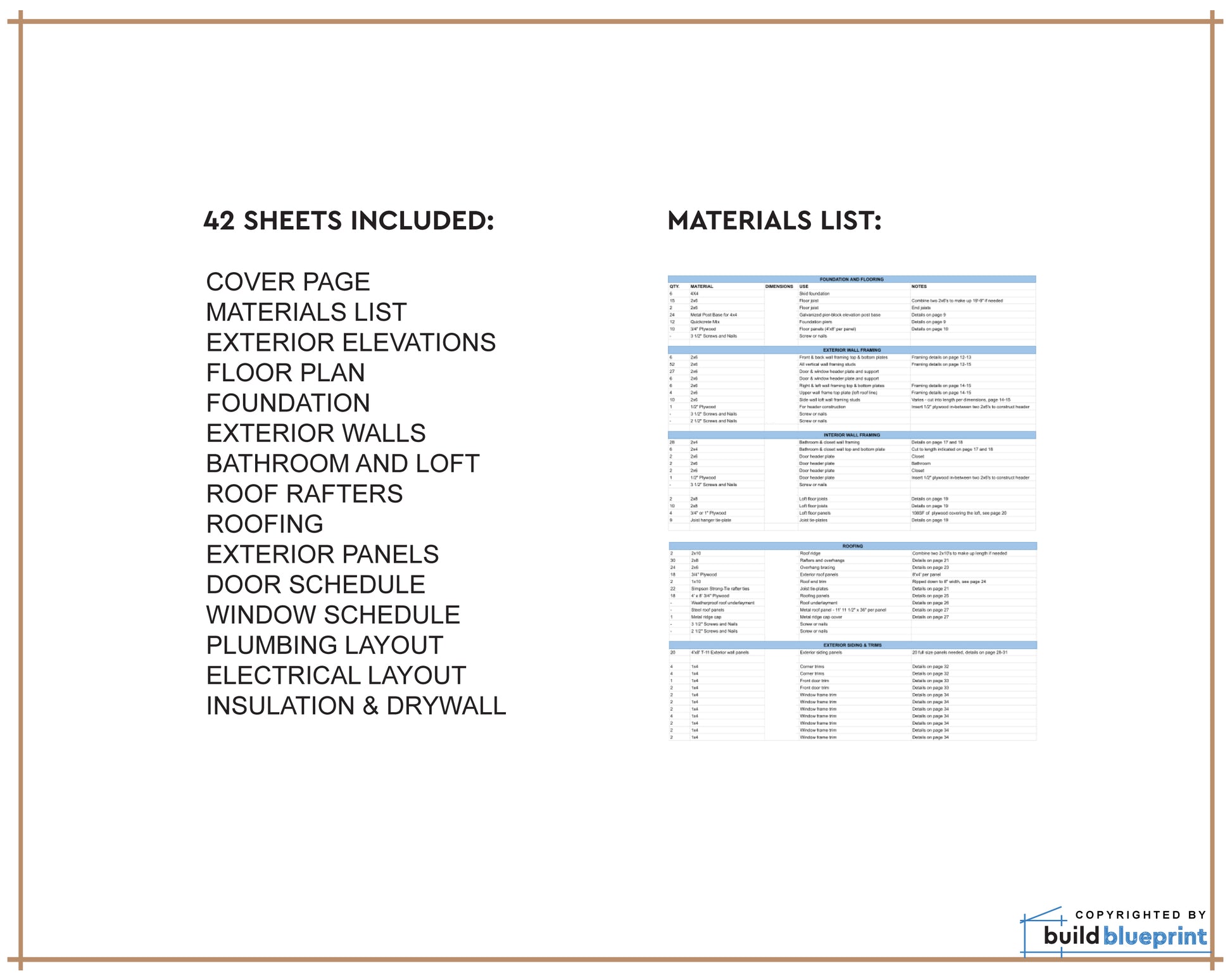

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
