40' x 60' Modern House Architectural Plans
40' x 60' Modern House Architectural Plans
Couldn't load pickup availability
40' x 60' Modern House Architectural Plans
The 40' x 60' Modern House is the largest plan in our catalog — 2,400 square feet with four bedrooms, two and a half bathrooms, and 10-foot ceilings throughout. This is a full-size contemporary home design, not a cabin: it has the floor plan depth, the room count, and the ceiling heights to function as a permanent primary residence for a large family, with all the livability expectations that come with it.
The concrete footing foundation and 95 PSF roof load are engineered for the long-term demands of full-time occupancy. The clean modern roofline and open-plan living configuration make this design as current in its aesthetic as it is practical in its layout — a home that looks good today and will continue to look good in twenty years.
Plan Specifications

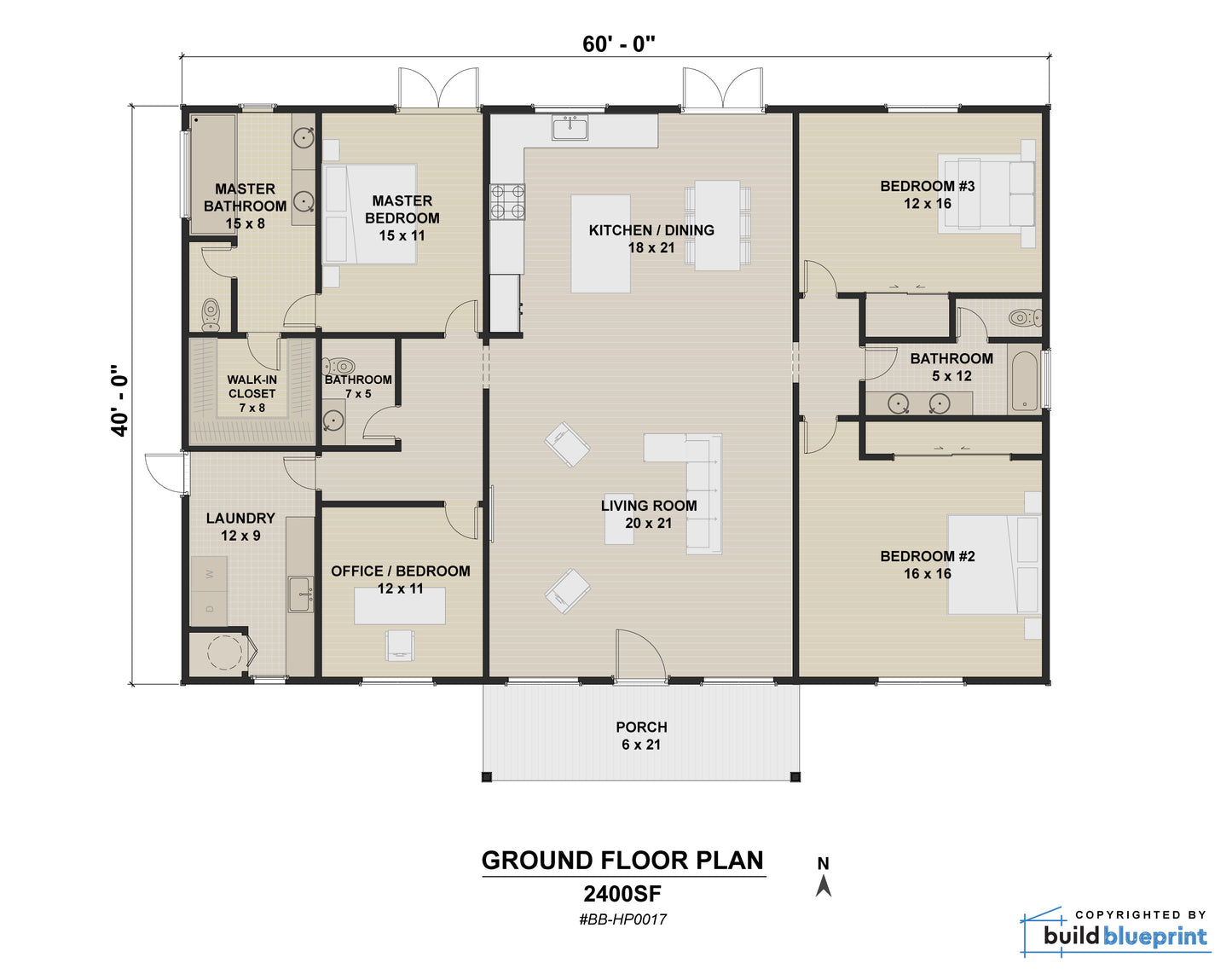

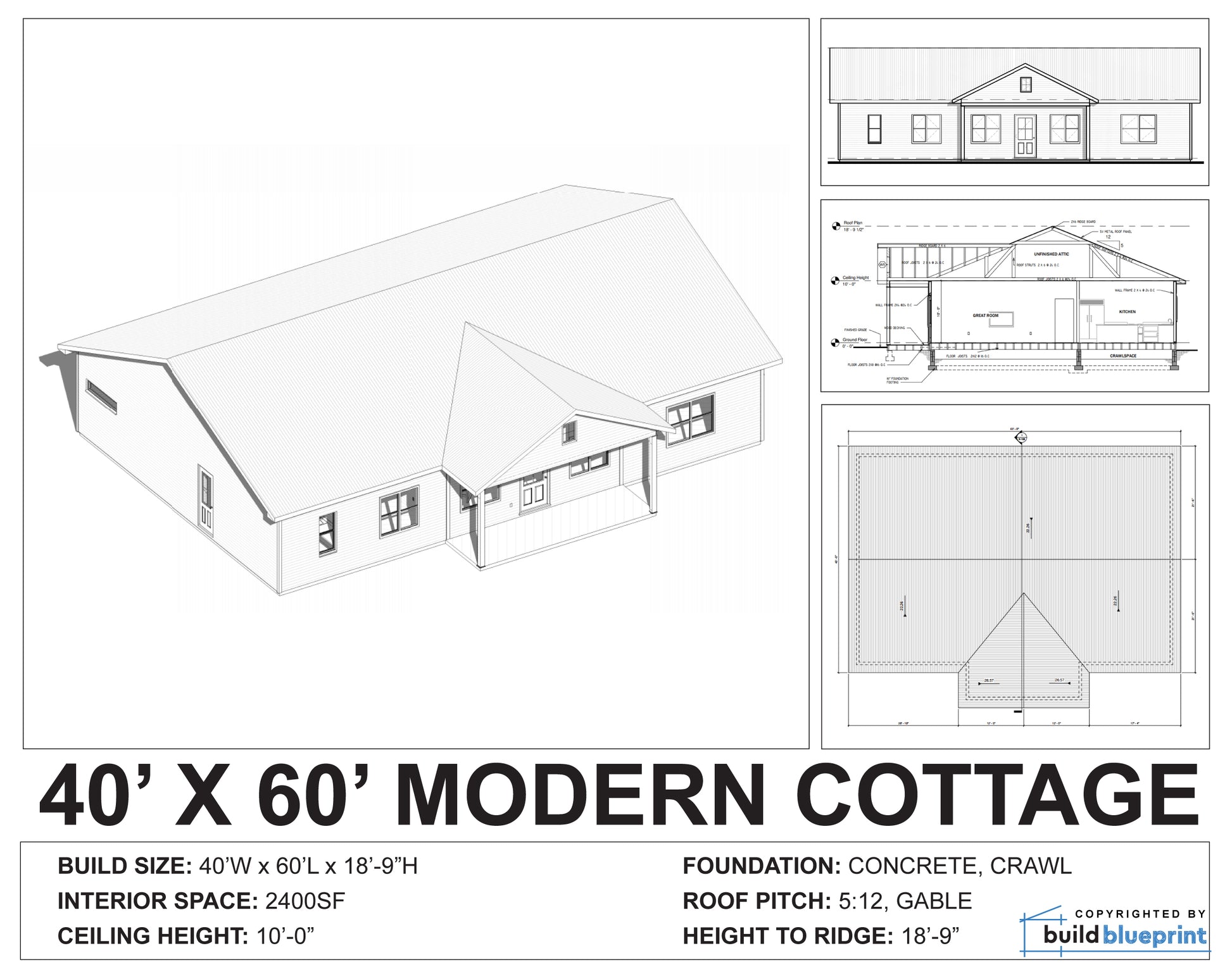

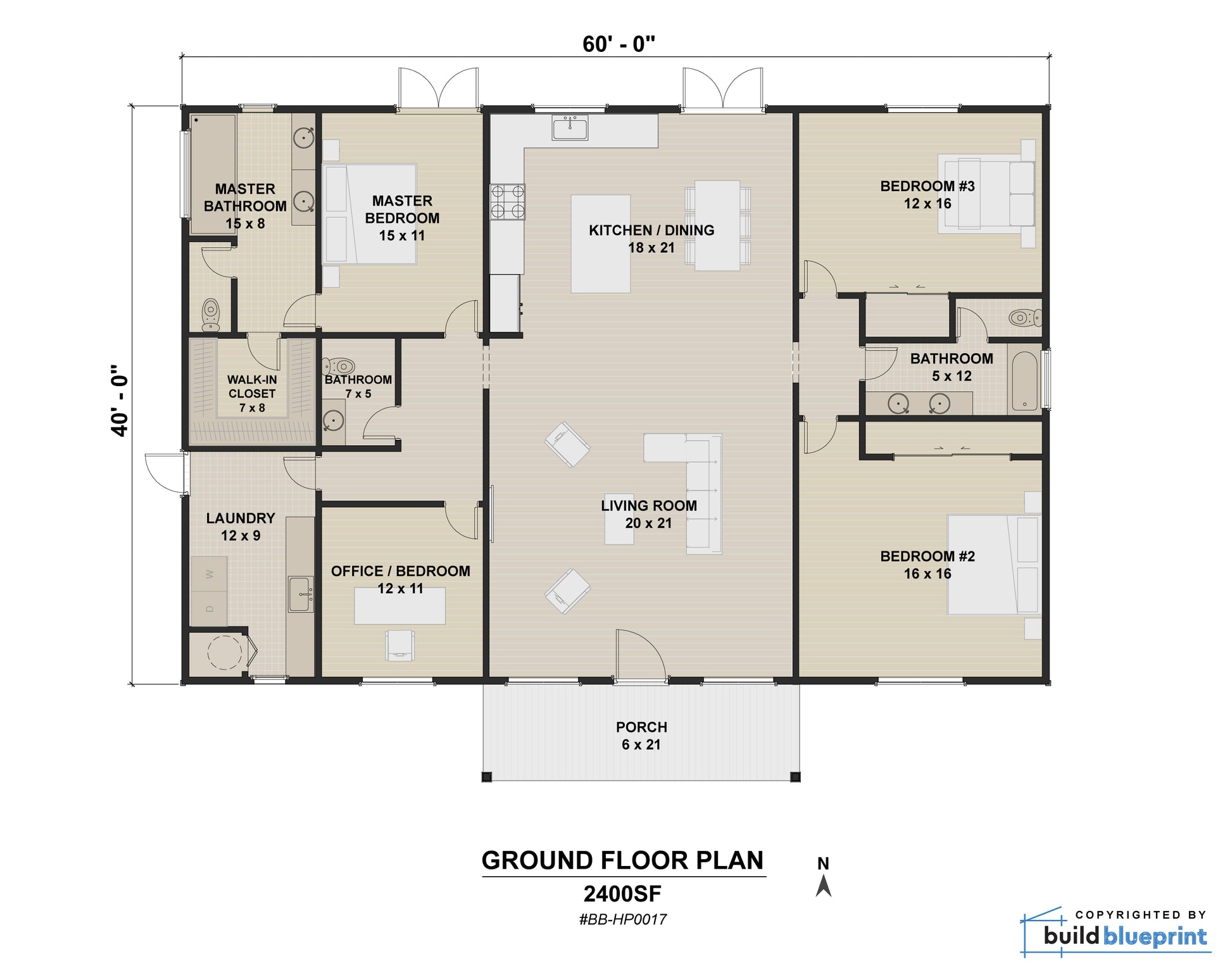

- Footprint: 40' W x 60' L
- Height: 18'-9"
- Floor Area: 2,400 SF
- Bedrooms: 4
- Bathrooms: 2.5
- Foundation: Concrete footing
- Roof Load: 95 PSF
- Ceiling Height: 10'-0"
- Est. Materials Cost: From $95,000
What's Included

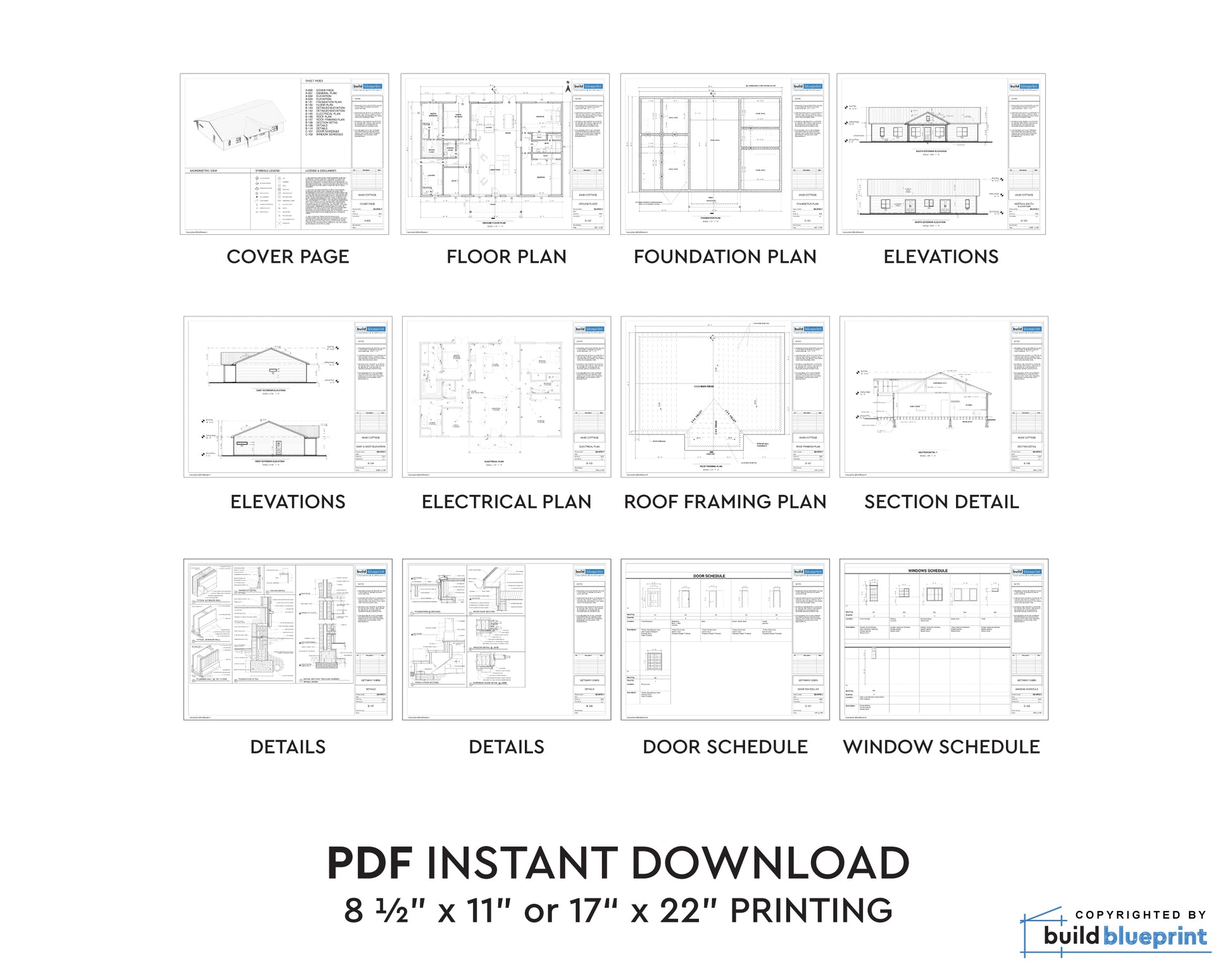

Complete permit-ready plan set including: floor plan, foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Ready for building permit submission in most US jurisdictions.
Available Plan Options
- Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
- PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD.
Who This Plan Is For
Built for buyers who want a full-size modern home with four bedrooms, not a cabin. The 2,400 square foot layout with 10-foot ceilings throughout is well suited for a family primary residence on rural acreage, a large vacation property, or a multi-generational home where space and privacy for each generation matter. At an estimated materials cost starting at $95,000, this is one of the highest-value plan sets in our catalog on a cost-per-square-foot basis.
Instant Download
Your complete plan set downloads immediately after purchase.
Instant Digital Download
Instant Digital Download
You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.
Drawing Scale
Drawing Scale
All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.
Complete Plan Set

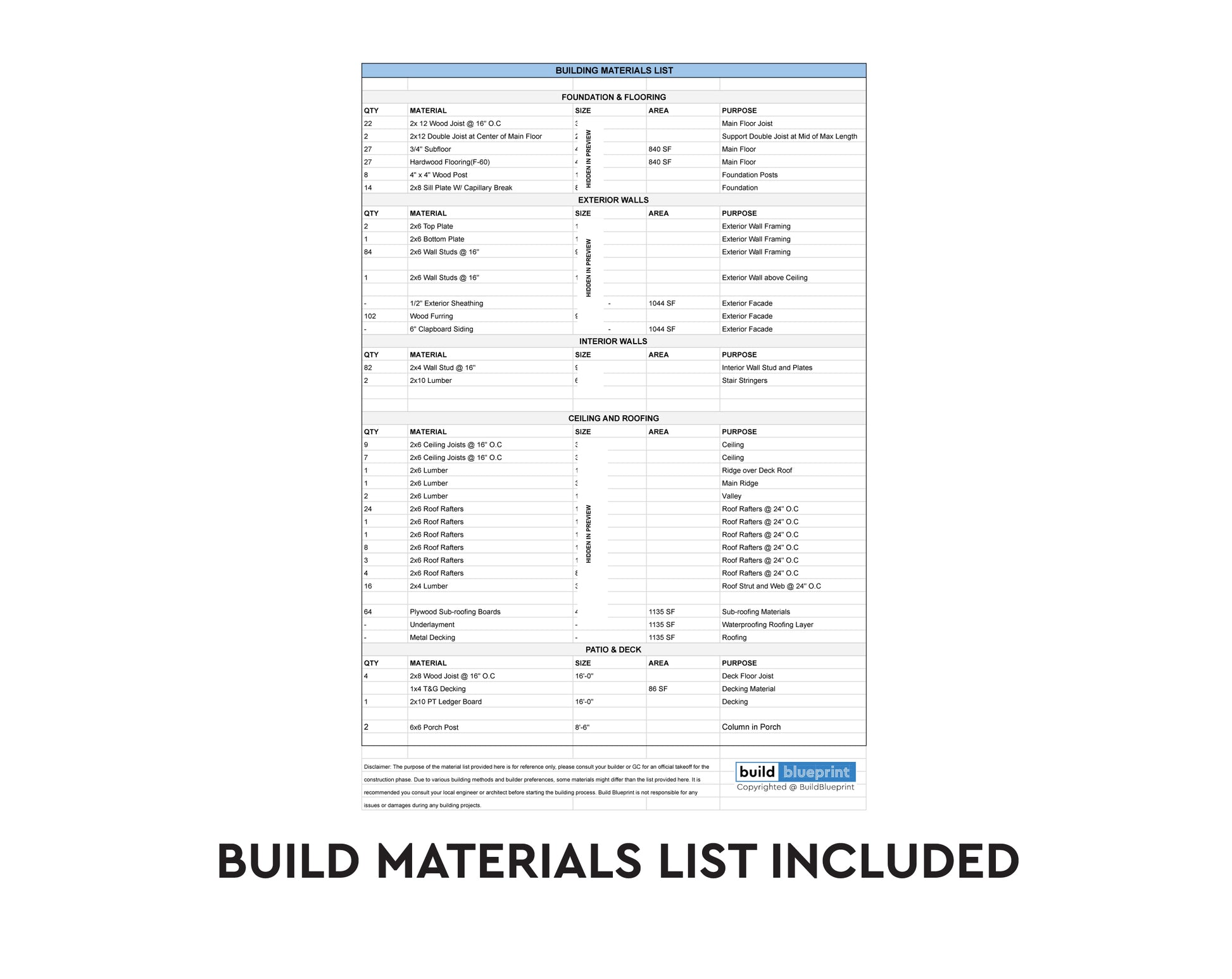

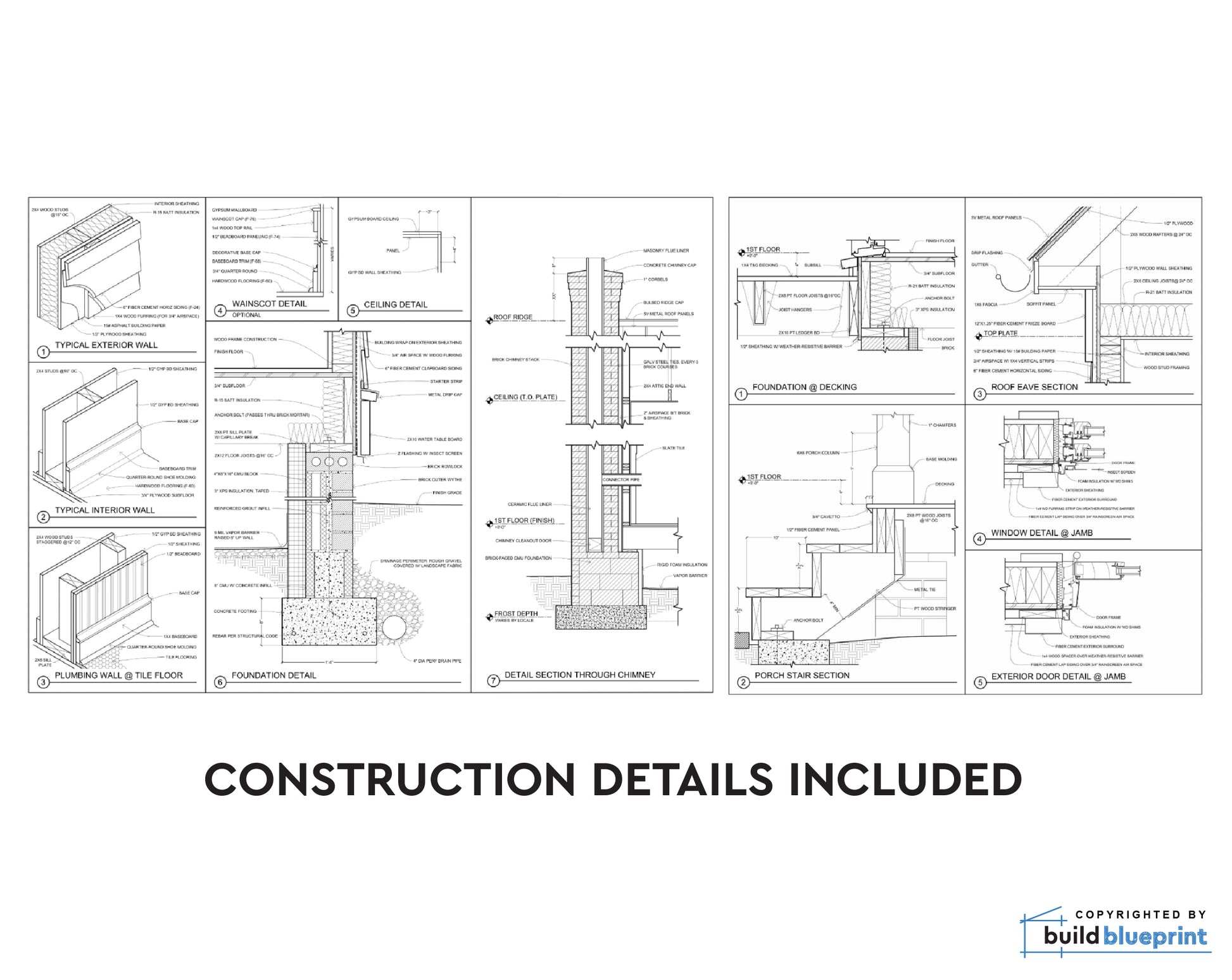

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
