22'x22' Two Car ADU Garage Loft Architectural Plans

22' x 22' Two Car ADU Garage Loft Architectural Plans

The 22' x 22' Two Car ADU Garage Loft is a complete architectural plan set for a detached two-car garage with a full livable loft apartment above — 960 square feet of combined space that adds real value to any property. Compact enough to fit on lots where a larger garage footprint isn't possible, but complete enough to function as a genuine accessory dwelling unit with one bedroom and one bathroom above a full two-car garage below.

The loft apartment is suited for a rental unit, a guest suite, a home office, or housing for a family member. The concrete slab foundation is the standard for garage construction and provides a durable, permanent base. The 95 PSF roof load handles moderate to heavy snowfall across most US climates.

Plan Specifications

• Footprint: 22' W x 22' L
• Height: 23'-6"

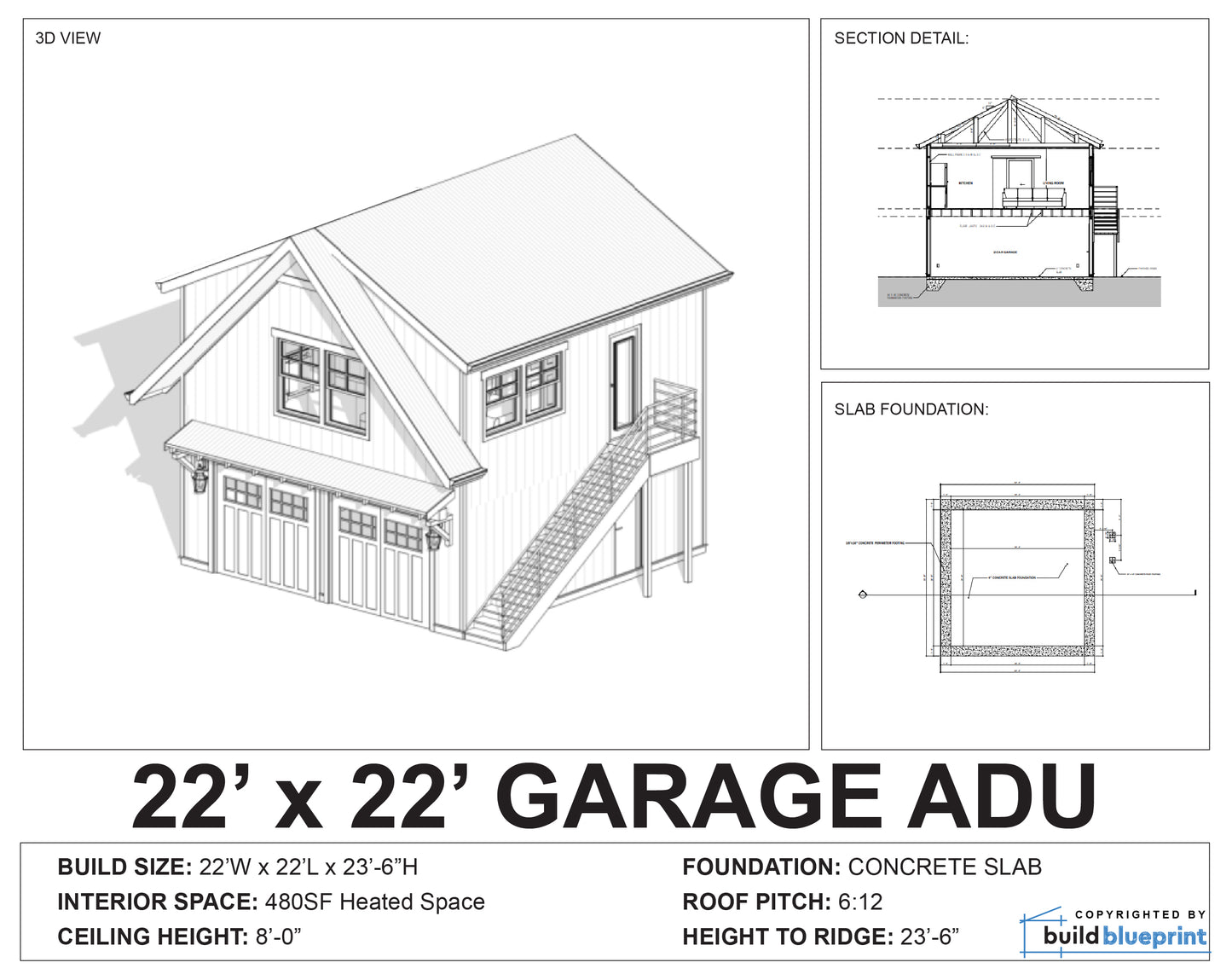

• Total Area: 960 SF (garage + loft)
• Bedrooms: 1 (loft)
• Bathrooms: 1
• Foundation: Concrete slab
• Roof Load: 95 PSF
• Ceiling Height: 8'-0" garage / loft above
• Est. Materials Cost: From $40,000

What's Included

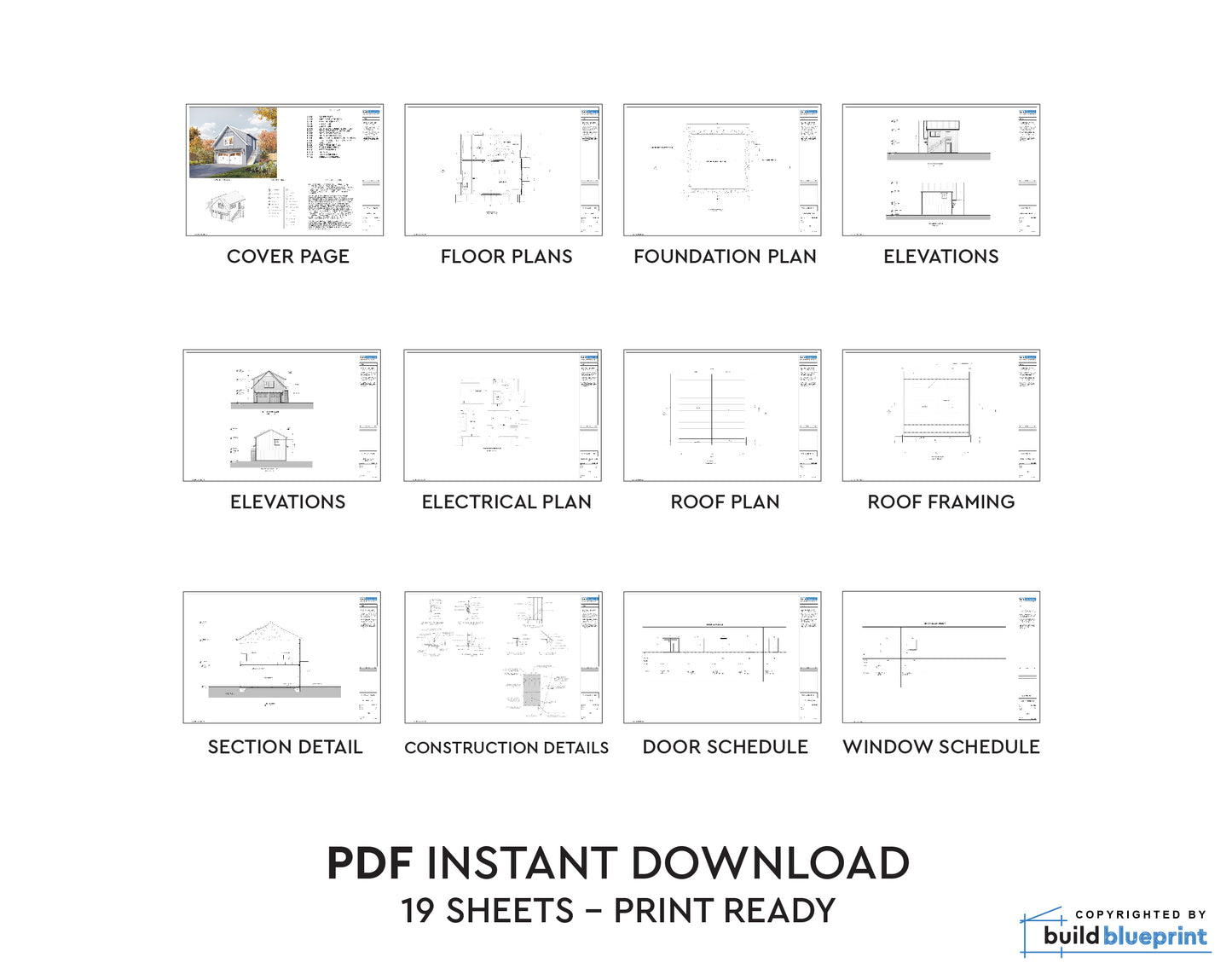

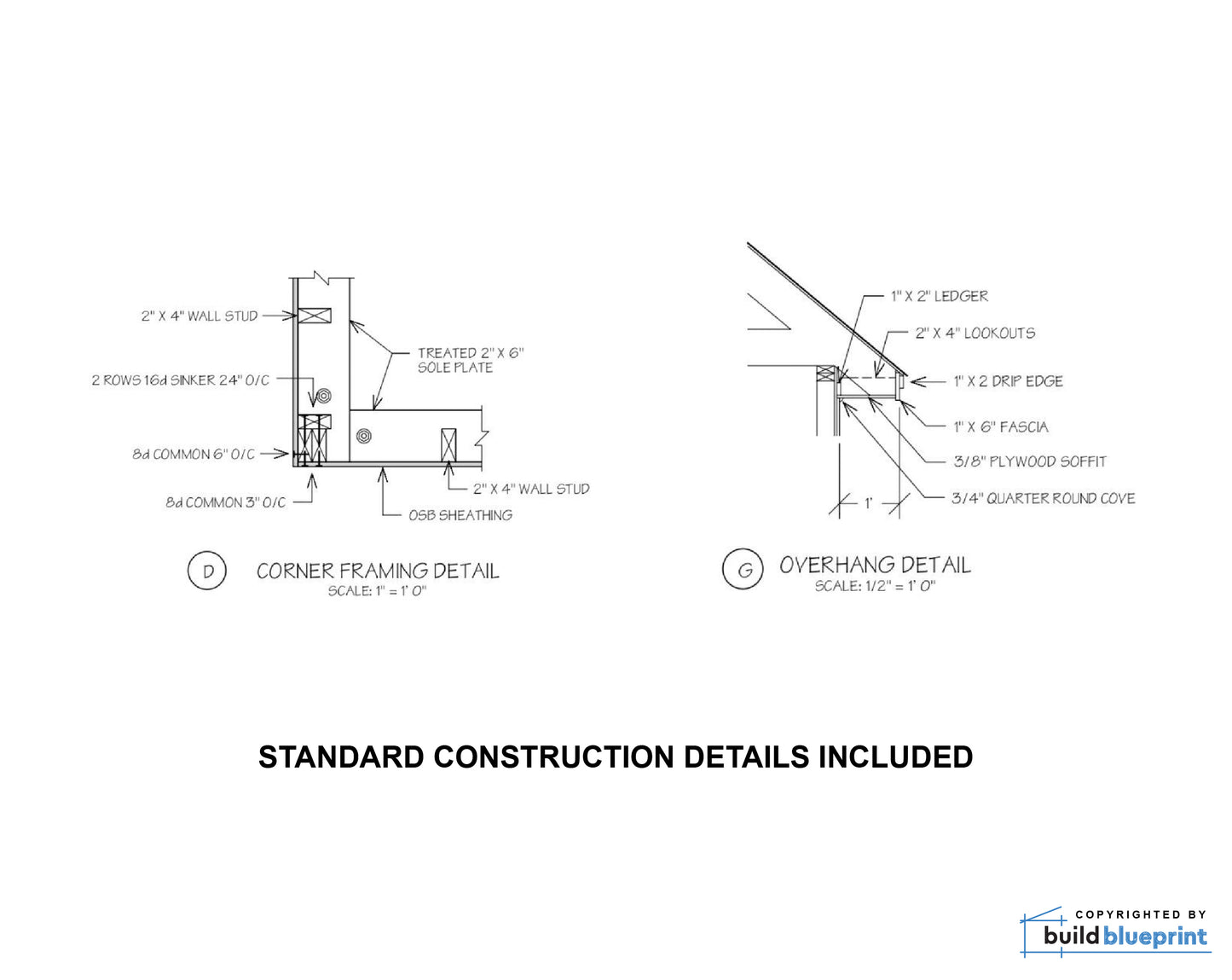

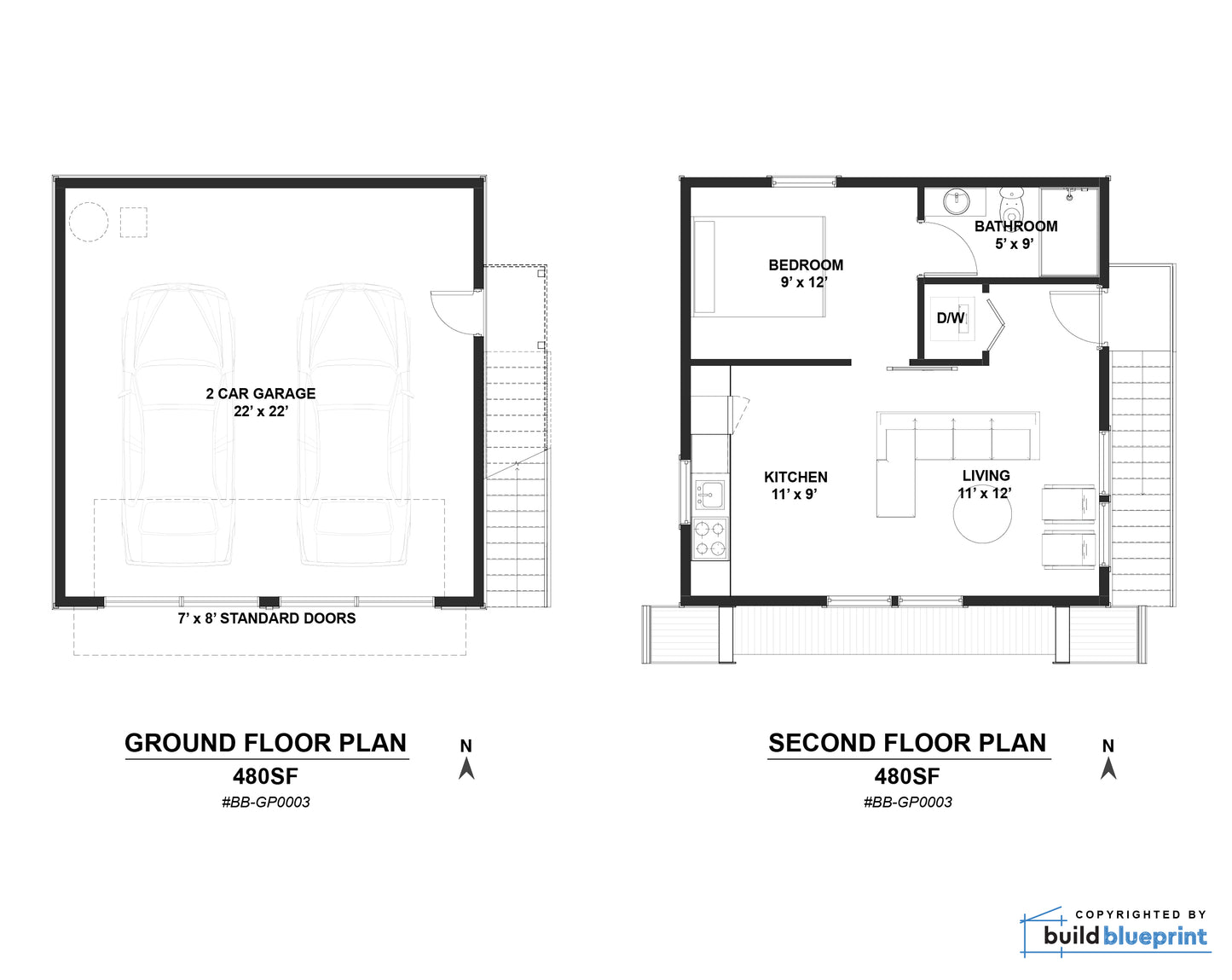

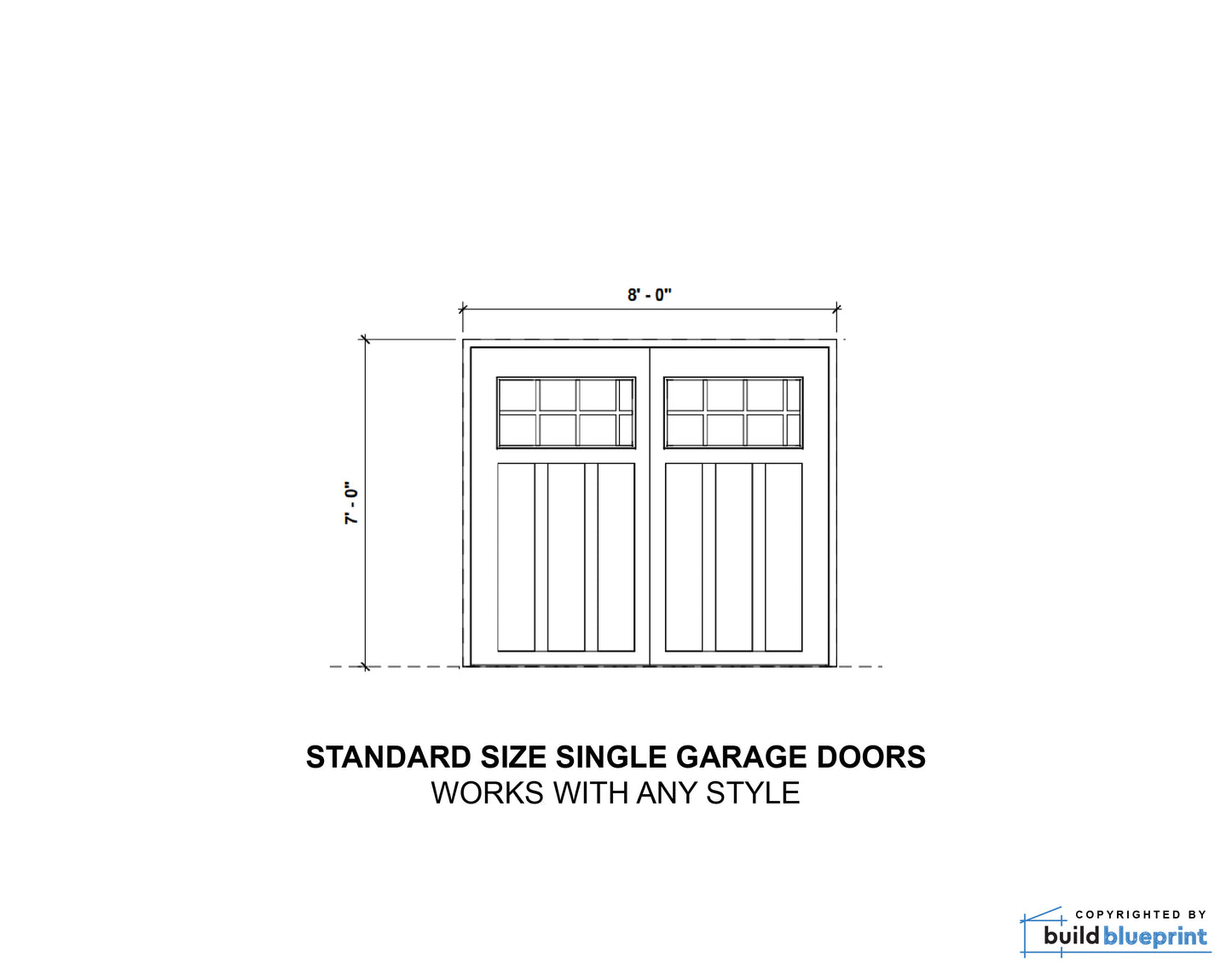

Complete permit-ready plan set including: floor plan (both levels), foundation plan, roof framing plan, all four exterior elevations, wall sections, structural details, window and door schedule, and a full materials list. Drawn to professional architectural standards and ready for ADU permit submission in most US jurisdictions.

Available Plan Options

• Complete PDF Plan — Full plan set as a print-ready PDF. Instant download.
• PDF + CAD Files — Includes editable DWG CAD files compatible with AutoCAD, Illustrator, and TurboCAD. Ideal if you need to make site-specific modifications.

Who This Plan Is For

Property owners who want to add an Accessory Dwelling Unit on a tighter lot where a larger garage footprint isn't feasible. The 22x22 square footprint is one of the most lot-friendly configurations in our ADU Garage series while still delivering a true two-car bay below and a complete one-bedroom apartment above. The loft generates rental income, houses family members, or serves as a dedicated workspace. ADU regulations vary by municipality — check your local zoning ordinance for setback and square footage requirements before purchasing.

Instant Download

Your complete plan set downloads immediately after purchase. No waiting, no shipping.
