30' x 50' Ranch Farmhouse Architectural Plans

30' x 50' Ranch Farmhouse Architectural Plans

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out

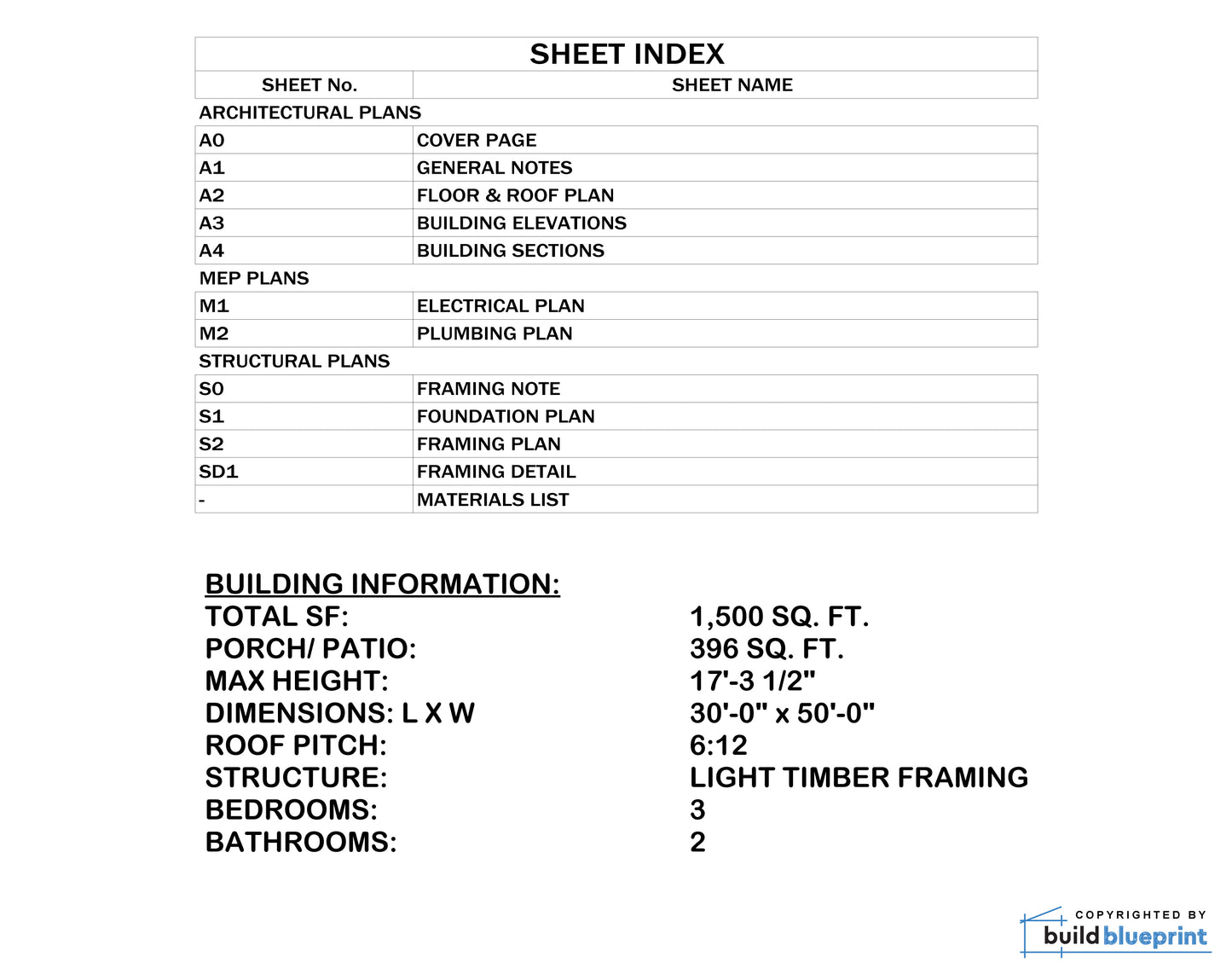

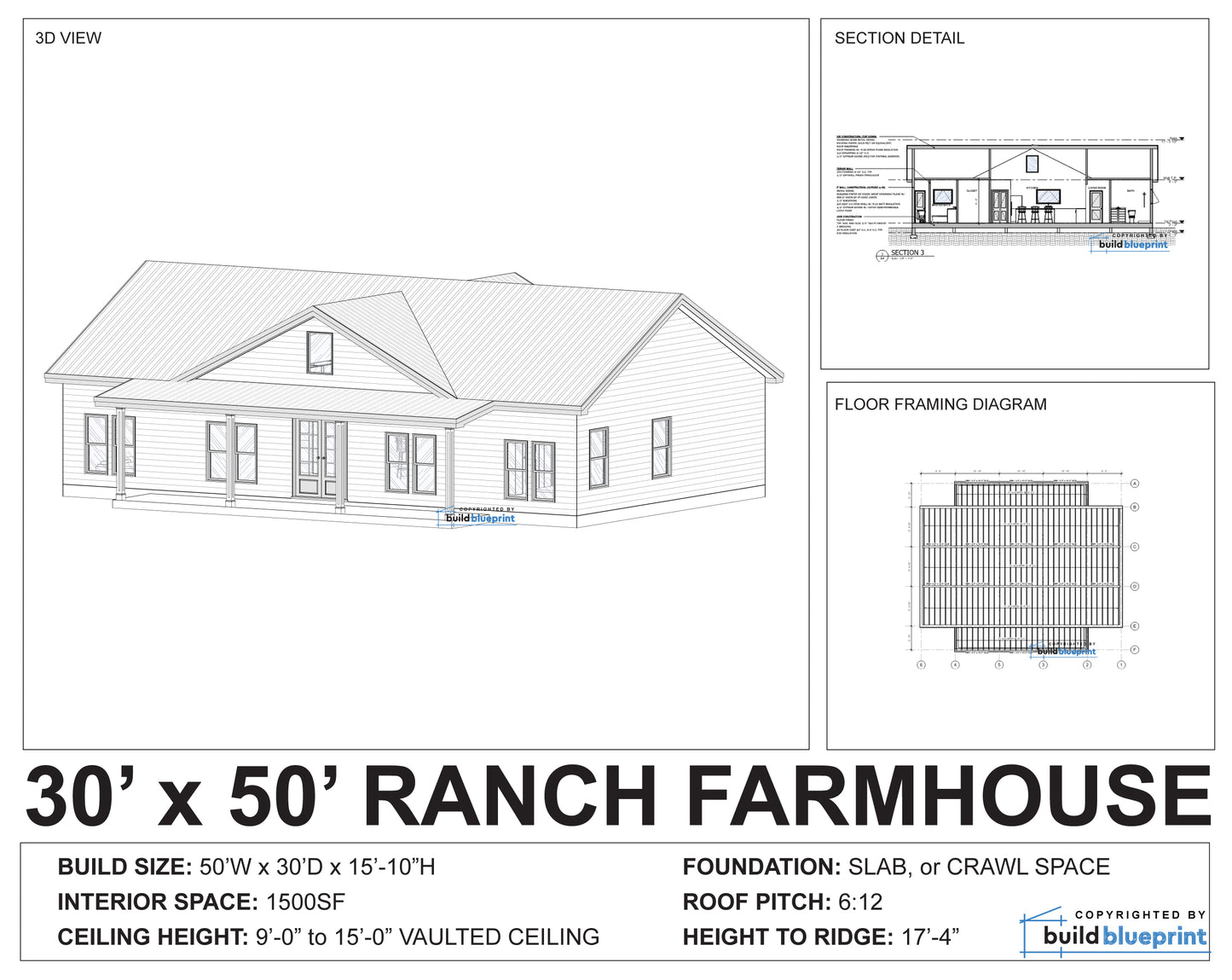

1500 SF (50'W x 30'L x 17'-4"H)
3 Bedrooms / 2 Bathroom
Concrete Slab or Crawlspace
Wind Load: 115 PSF
Ceiling Height: 9'-0" to 15'-0"
Est. Materials Cost: $105,000*

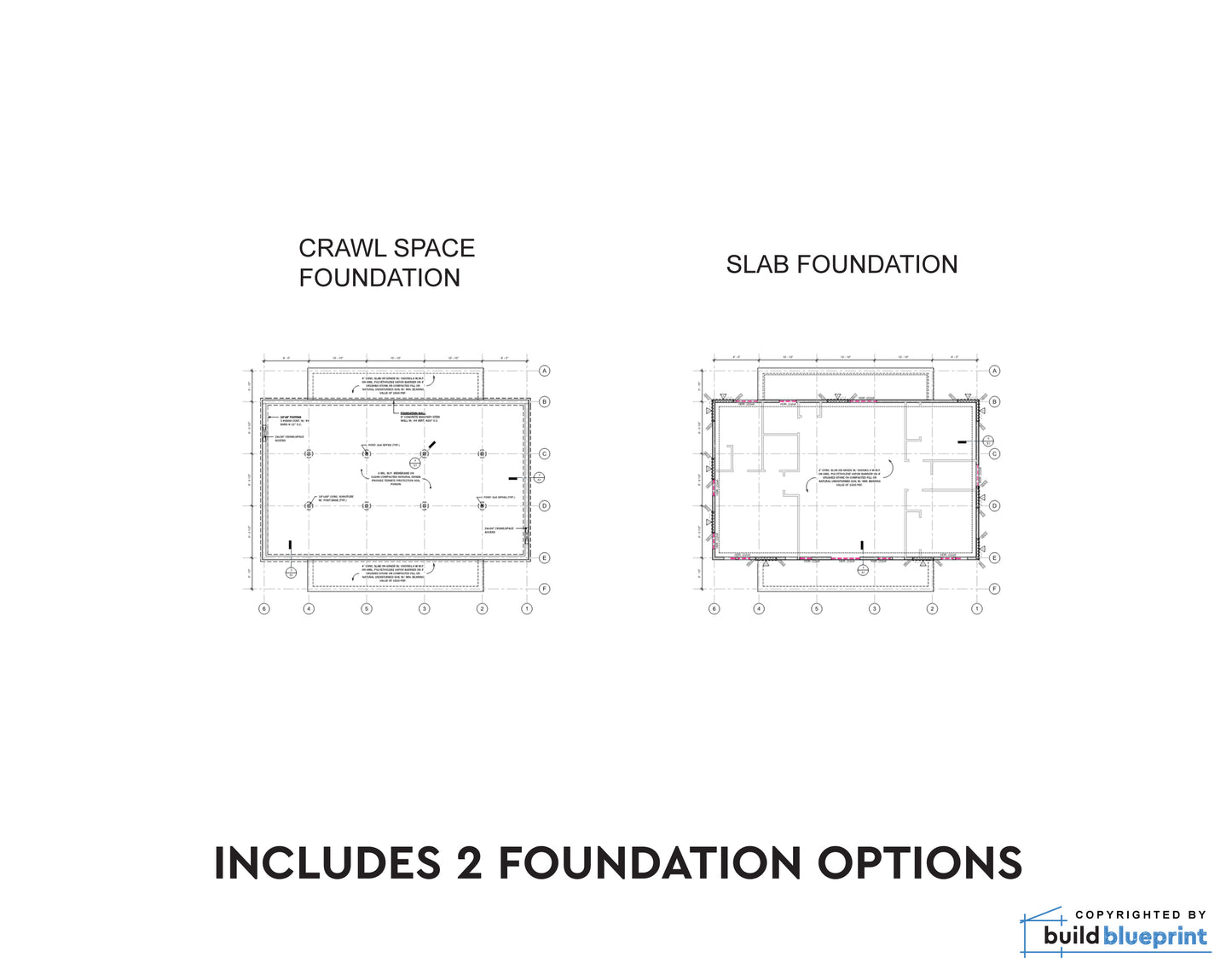

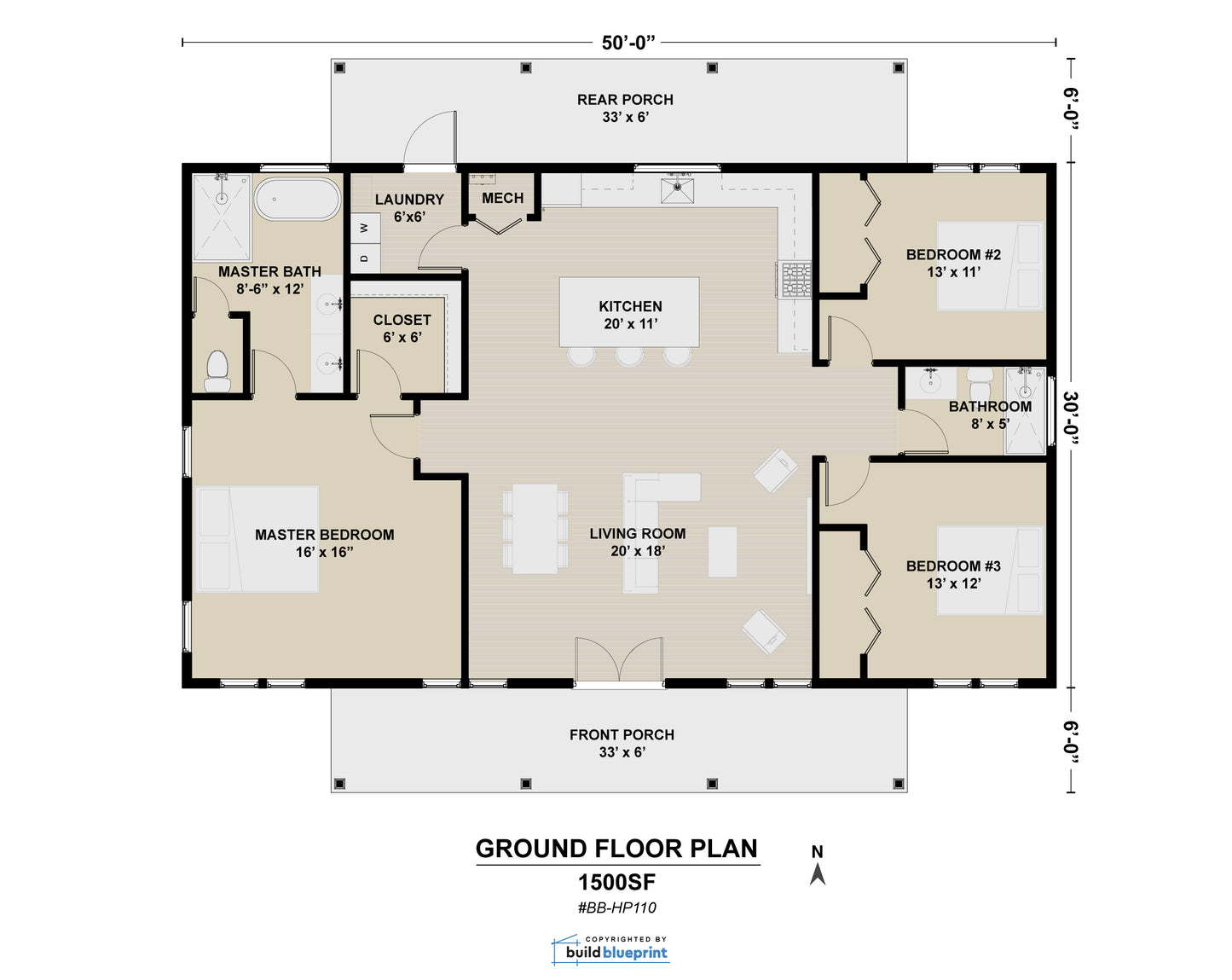

Complete architectural plans to build a 3 Bedroom and 2 Bathroom modern ranch style farmhouse, suitable to be built on any plot of land. This is the ideal home for a medium sized family, with an open floor plan connecting the large living room to the kitchen, separate master bedroom entrance, laundry room with an exterior door, front and rear porches. Ceiling is vaulted in the living room and kitchen areas. Includes 2 foundation options: Concrete Slab and Standard Crawlspace.

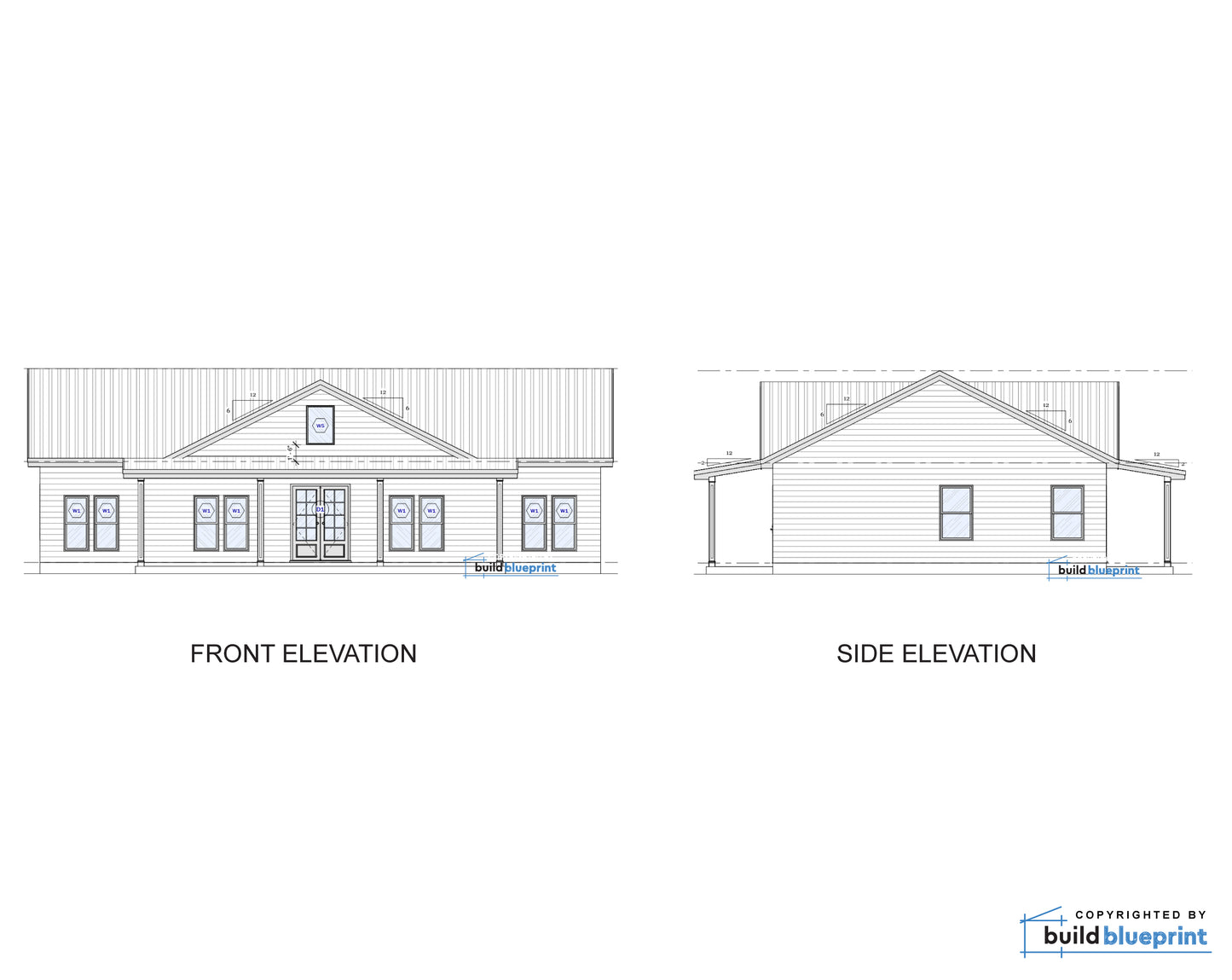

The plans include Materials List, Floor Plans, Foundation Plan, Elevations, Section Detail, Roof framing Plan, Electrical Plan, Plumbing Plan, Construction Details, and Door/Window Schedule, fully dimensioned and annotated ready to be built. The total heated interior is 1,500SF, with 15' high ceiling.

Plans are copyrighted by Build Blueprint, and intended for personal builds only.

Instant Digital Download

You will receive the download link to the full plan immediately after your purchase. Link never expires so you will always have access to download if needed.

Drawing Scale

All of our plans are drawn to standard scale (i.e. 1/4" = 1") as per most building and permit requirements.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Complete Plan Set

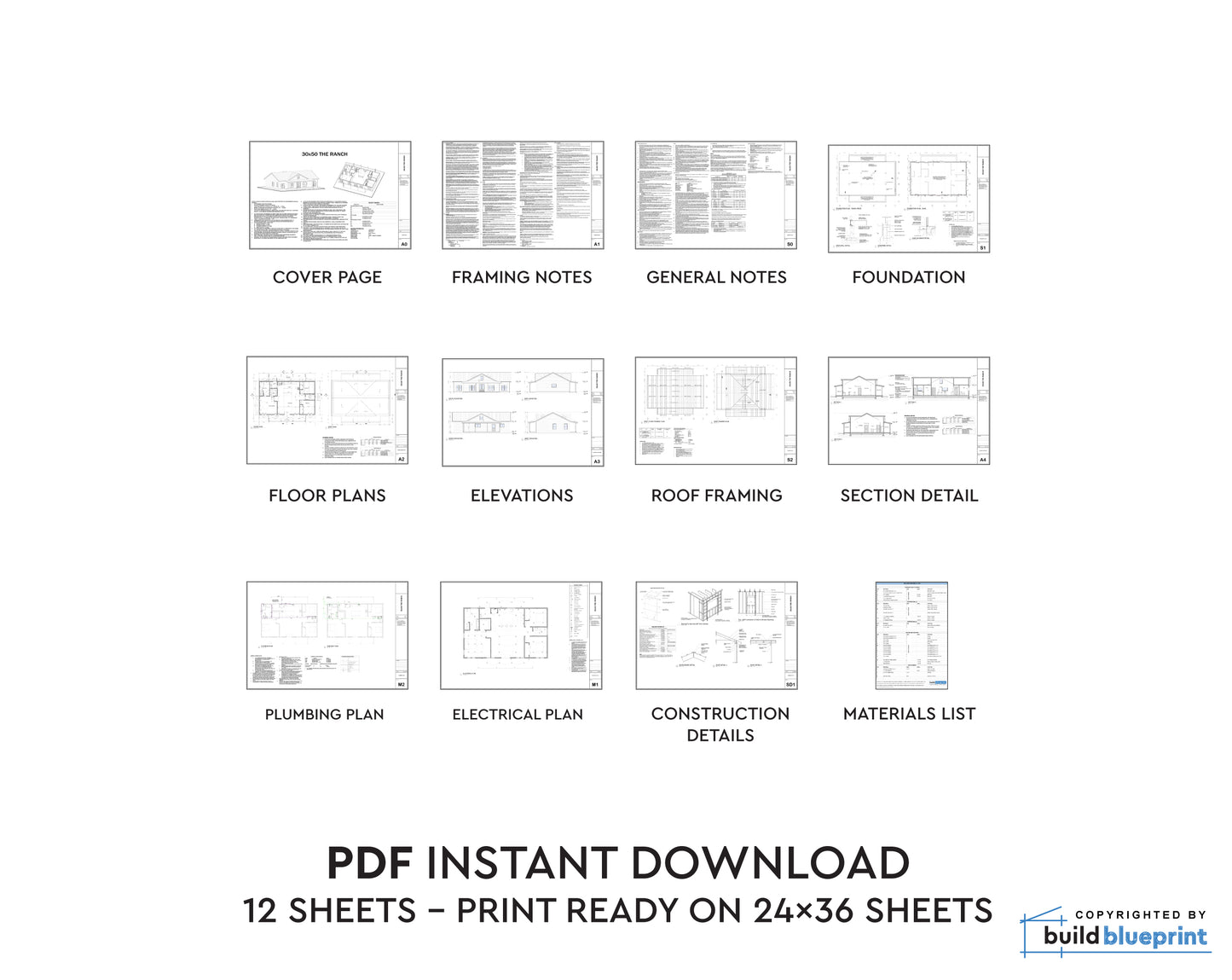

All plans include: materials list, floor plan, elevations, sections, foundation and roofing plan, electrical plan, plumbing fixture locations, construction details, door and window schedule, and more.
